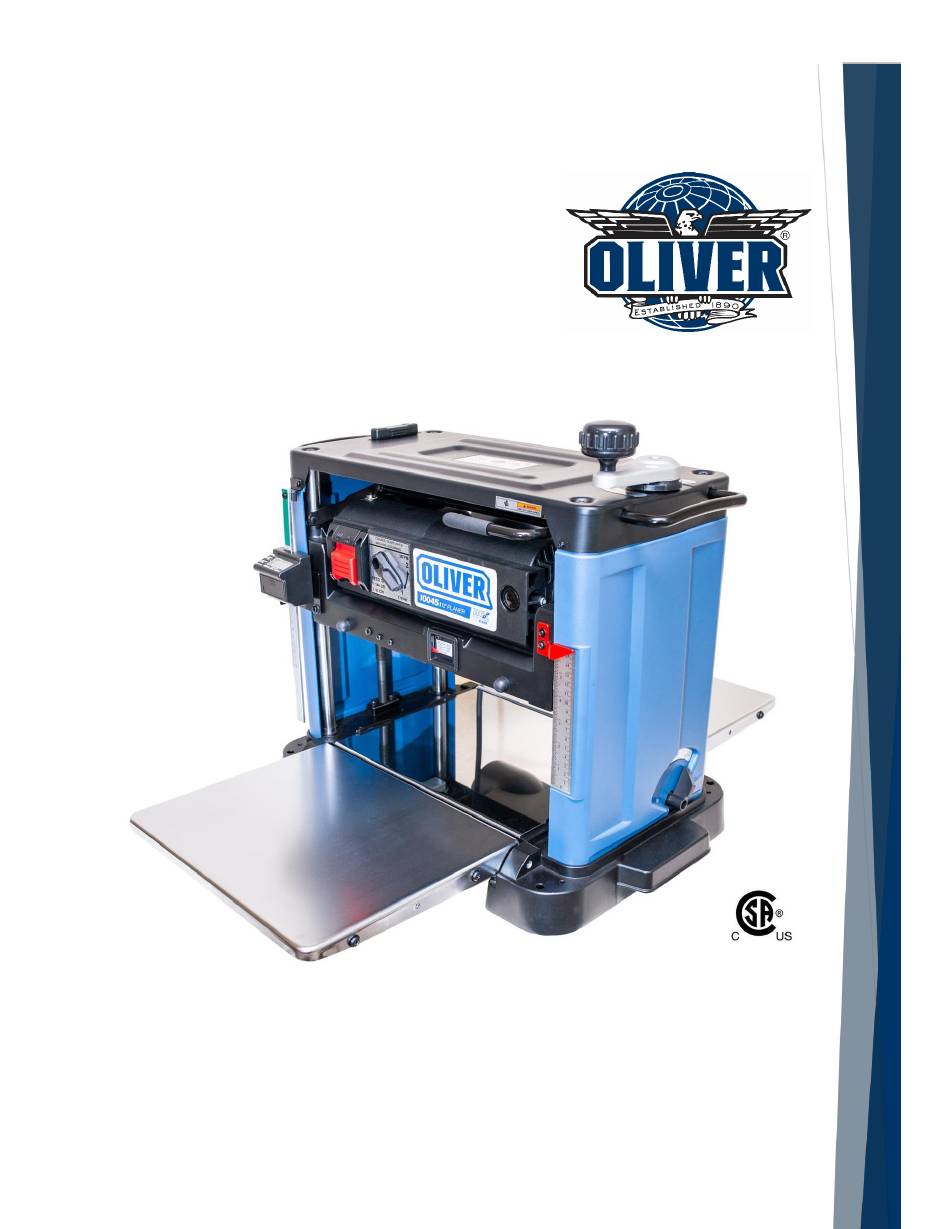

- Page 1 Planer Model 10045 Owner’s Manual For Models Manufactured Since 05/2024 175370 Oliver Machinery 1-800-559-5065 921 Thomas Ave SW Renton, WA 98057 info@olivermachinery.net Stock Number: 10045.201 Manual Version: 1.0.2 WWW.OLIVERMACHINERY.NET...
- Page 3 USAGE OF SAFETY AND PROTECTION DEVICES. OLIVER MACHINERY DISCLAIMS ANY LIABILITY FOR MACHINES THAT HAVE BEEN ALTERED OR ABUSED. OLIVER MACHINERY RESERVES THE RIGHT TO EFFECT AT ANY TIME, WITHOUT PRIOR NOTICE, THOSE ALTERATIONS TO PARTS, FITTINGS, AND ACCESSORY EQUIPMENT WHICH THEY MAY DEEM NECESSARY FOR ANY REASON WHATSOEVER.
-
Page 4: Table Of Contents
Chipping ............31 Indentation ............31 Minimum Circuit Size Required for Model Grooves or ridges along the plane direction ... 31 10045 Planer ..........13 Fuzzy Grain ............31 Grounding ............. 13 Accessories ..........32 Indoor Use Only ..........13 Electrical Wiring ........... -
Page 5: Introduction
Introduction Thank you for choosing Oliver! This manual contains important information on safely setting up, operating, and maintaining this machine. Please take the time to read through this manual and make sure you understand all instructions. While this manual may provide tips on optimizing the result of your workpiece, the manual is not intended as a substitute for formal woodworking training. -
Page 6: Specifications
Specifications Quick View Model 10045 Planer Stock Number 10045.201 Motor Universal Motor 2HP, 120V, 1Ph Max. Stock Width 13" Max Depth of Cut 1/64” (Full width) 1/16" (Stock less than 6" wide) Dimensions 33-1/8”(L) x 24-3/4”(W) x 20-3/8”(H) Footprint 14-1/4”(L) x 20-1/2”(W) Fully Assembled Weight 74 lbs. - Page 7 Feed Rate 17 or 26 FPM Number of Cuts Per Square Inch 136@17FPM 89@26FPM Cutterhead and Carriage Cutterhead Type Oliver HCX Helical Shearing Cutterhead Cutterhead Diameter 1-7/8" Cutterhead Speed 10000 RPM Number of Cutter Inserts Number of Rows of Cutter Inserts...
- Page 8 300 CFM Sound Rating @ 2' distance 103 dB Others Serial Number Location On the back of the motor housing Spare Parts Included 5 Oliver HCX cutter inserts Certification CSA 175370 Country of Origin Taiwan 8 | Page Oliver Machinery...
-
Page 9: Identification
Identification 10045 Planer OLIVERMACHINERY.NET 9 | Page... -
Page 10: Safety
Safety Oliver Machinery has made every attempt to provide a safe, reliable, easy-to-use piece of machinery. Safety, however, is ultimately depending on the individual machine operator. Before operating this machine, please become familiar with the following safety labels and guidelines. -
Page 11: Safety Guidelines Specific To Planer
13. PROPER USE: Do not use this machine for anything other than its intended use. If used for other purposes, Oliver Machinery disclaims any real or implied warranty and holds itself harmless for any injury or damage which may result from that use. - Page 12 After Operation 1. STOP THE MACHINE if the operator leaves the machine for any reason. 2. WAIT until the machine comes to a complete stop. 3. CLEAN UP the work area before departure. 12 | Page Oliver Machinery 10045 Planer...
-
Page 13: Electricals
Please ensure the electrical circuit for this machine meets the minimum circuit size requirement. The minimum circuit size requirement applies to a dedicated circuit that provides power to one 10045 Planer. If more items are sharing the same circuit, consult a qualified electrician to ensure the designated circuit is properly sized for safe operation. - Page 14 *NR: Not Recommended Use properly sized wires that meet or exceed the power requirement of your machine. Using undersized wires may cause overheating and increase the risk of fire WARNING and machine damage. 14 | Page Oliver Machinery 10045 Planer...
-
Page 15: Setup
When the machine is further away from the duct collector, the effective suction and CFM measured at the dust ports decrease. Ensure there is significant suction at the dust port so dust and debris can be effectively removed from the machine. 10045 Planer OLIVERMACHINERY.NET 15 | Page... -
Page 16: Receiving
IMPORTANT If items are damaged, please call us immediately at 1-800-559-5065 10045 Planer has a gross weight of 77 lbs. and a net weight of 74 lbs. Safe moving techniques and proper lifting equipment are required, or serious WARNING personal injury may occur. -
Page 17: Inventory
NOTICE: This machine comes with various standard-sized, non-proprietary parts that can be purchased at local hardware store. If any of these parts are missing, getting them from the local store is the fastest way to get the machine running. We can also deliver any missing parts. 10045 Planer OLIVERMACHINERY.NET 17 | Page... -
Page 18: Assembly
Trox wrench that comes with the package (item #5). 3. Store the wrench at the integrated tool rack on the other side of the top cover. 18 | Page Oliver Machinery 10045 Planer... -
Page 19: Dro Installation
3. Move the carriage to the lowest position. Then mount the DRO body bracket onto the carriage using the provided Philips screw. Shim both sides of the bracket with the washers provided. Do not fully tighten the screw yet. 10045 Planer OLIVERMACHINERY.NET 19 | Page... -
Page 20: Dust Shroud Installation
2. Attach the dust shroud onto the cutterhead cover plate. 4. (Optional) Install the 2.5" dust port adapter to connect the planer to a vacuum. 20 | Page Oliver Machinery 10045 Planer... -
Page 21: Waxing
Using four 5/16" bolts for mounting provides maximum strength and stability. Alternatively, there is another set of four mounting holes that accept screws up to size #10. 10045 Planer OLIVERMACHINERY.NET 21 | Page... -
Page 22: Controls And Components
The carriage lock lever is on the top right side of the carriage. • Lower the lever to LOCK carriage height. • Lift the lever to UNLOCK. TIP: Planing with the carriage lock engaged can reduce snipe. 22 | Page Oliver Machinery 10045 Planer... -
Page 23: Feed Rate Selector
Feed Rate Selector 10045 planer can feed stock at 17 or 26 FPM (feet per minute). The high feed rate allows faster processing time for milling stock to approximate thickness. Use the low feed rate to create a fine finish. -
Page 24: Digital Readout (Dro)
6. Press the ON/OFF/CAL button when the value is set. This will exit the calibration mode. 7. Once the DRO is calibrated, the DRO will memorize the value until the battery is exhausted. 24 | Page Oliver Machinery 10045 Planer... -
Page 25: Components For Planing Wood
[D]. An internal chip blower [E] then pushes the debris out of the dust shroud. 4. As the workpiece moves past the cutterhead, the outfeed roller [F] pulls the workpiece away from the planer. 10045 Planer OLIVERMACHINERY.NET 25 | Page... -
Page 26: Test Run
Congratulations! You have completed the test run, and your planer is ready for production work. If you discover any issues from the tests, please refer to the troubleshooting section and maintenance section to diagnose issues and make adjustments. 26 | Page Oliver Machinery 10045 Planer... -
Page 27: Operation
Wood Grain Direction This planer is designed to plane WITH the grain direction of the wood. Do not plane cross-grain or end- grain. Severe kickback and chipping may occur. 10045 Planer OLIVERMACHINERY.NET 27 | Page... -
Page 28: Step 2: Setting Depth Of Cut
The Janka scale shows the hardness of wood types that are commonly used. It ranks the hardness of various wood types by measuring the amount of force (in lbs.) required to embed a 0.444" steel ball halfway into the wood. 28 | Page Oliver Machinery 10045 Planer... -
Page 29: Step 3: Select Feed Direction
• Carriage height is set too high. • Stop the machine and wait for it to come to a complete stop, then remove the workpiece. • Lower carriage height and restart from step 4. 10045 Planer OLIVERMACHINERY.NET 29 | Page... - Page 30 1/64”. Reduce the maximum depth of cut for harder wood types. Use DRO or the turret depth stop on the carriage crank to adjust the depth of cut. 11. Repeat until the workpiece has reached the desired thickness. Turn off the planer when the work is completed. 30 | Page Oliver Machinery 10045 Planer...
-
Page 31: Common Wood Planing Problems
This can happen when planing wood with high moisture content or if the cutter is dull. Sometimes, this is unavoidable due to the nature of certain wood types. To mitigate this issue, avoid using wood with high moisture content and use sharp cutters. 10045 Planer OLIVERMACHINERY.NET 31 | Page... -
Page 32: Accessories
Accessories Oliver Machinery has a collection of accessories for your planer. Please visit our website, OLIVERMACHINERY.NET, to purchase these items. You may also call 1-800-559-5065 or email PARTS@OLIVERMACHINERY.NET to purchase these items. We are available Monday through Friday, 7:30 AM - 4 PM Pacific Time. -
Page 33: Maintenance
Every 6 months Inspect the elevation of the extension tables. Adjust as needed. Inspect the poly V-belt and replace it if it shows signs of cracking or glazing. Notice: Motor bearings are permanently sealed and lubricated and do not require lubrication. 10045 Planer OLIVERMACHINERY.NET 33 | Page... -
Page 34: Rotate/Replace Cutter Inserts
IMPORTANT: Obstacles between the insert and its seat will create uneven pressure against the insert. This will impact cut quality and may cause the insert to break. 34 | Page Oliver Machinery 10045 Planer... -
Page 35: Inspect / Replace Poly V-Belt
5. Inspect the drive belt for signs of aging. Replace the belt as needed. 6. To replace the drive belt, remove the old belt from the pulleys by walking it out from the pulleys or simply cutting it off. 10045 Planer OLIVERMACHINERY.NET 35 | Page... -
Page 36: Inspect / Replace Motor Carbon Brushes
5. Make sure the carbon brushes are properly reinstalled. Use the cover to compress the spring while screwing the cover back onto the carriage. 3. To access the motor carbon brushes, unscrew the cover with a flathead screwdriver. 36 | Page Oliver Machinery 10045 Planer... -
Page 37: Inspect / Adjust Extension Wings
3. With the standard settings, the straight edge should touch the outside edge of the extension wings while sitting on the two pennies. 3. Follow the instructions in the previous section to slightly elevate the tip of the extension wings. 10045 Planer OLIVERMACHINERY.NET 37 | Page... -
Page 38: Adjust Cutterhead Height Scale
The chain should deflect by approximately 3/8" when it is compressed between sprockets. The chain is too tight if the carriage crank becomes difficult to turn. 5. Clean and lubricate the chain as needed. 38 | Page Oliver Machinery 10045 Planer... -
Page 39: Troubleshooting
Reduce the depth of cut before resuming work. Digital readout is not Dead battery. Replace the battery (AAA type). functional. Frozen display Remove batteries. Wait for 1 minute and reinstall the batteries. 10045 Planer OLIVERMACHINERY.NET 39 | Page... - Page 40 Unable to turn carriage Carriage is locked. Lift the carriage lock lever to unlock the crank. carriage. Carriage is stopped by Adjust the depth stop's minimum height depth stop. setting. Minimum cutterhead height is 5/32". 40 | Page Oliver Machinery 10045 Planer...
-
Page 41: Finish Quality Issues
Glossy-looking finish. Dull cutter. Rotate/replace cutter insert. Cutting depth too Increase depth of cut. shallow. Long lines or ridges run Chipped or incorrectly Rotate/replace cutter insert. along the length of the installed cutter. board. 10045 Planer OLIVERMACHINERY.NET 41 | Page... -
Page 42: Wiring Diagram
Wiring Diagram 42 | Page Oliver Machinery 10045 Planer... -
Page 43: Parts List
Parts List Carriage and Cutterhead Assembly 10045 Planer OLIVERMACHINERY.NET 43 | Page... -
Page 44: Motor Assembly
Motor Assembly 44 | Page Oliver Machinery 10045 Planer... -
Page 45: Body And Base Assembly
Body and Base Assembly 10045 Planer OLIVERMACHINERY.NET 45 | Page... -
Page 46: Top And Carriage Lock Assembly
Top and Carriage Lock Assembly 46 | Page Oliver Machinery 10045 Planer... - Page 47 Mounting Plate 000303-804 Round Head Phillip Screw M5*0.8P*12 340098-000 Roller 280036-901 Spring 016204-000 Chain #410*26P 016218-000 Chain #410*27P 150030-000 Sprocket 150004-000 Sprocket 010006-000 S Ring STW-15 000302-102 Round Head Phillip Screw M4*0.7P*8 250114-615 Dust Port 10045 Planer OLIVERMACHINERY.NET 47 | Page...
- Page 48 Round Head Phillip Screw M6*1.0P*10 175220-901 Guide Rail 175221-000 Wear Plate 924828-001 Depth Stop Assembly 130392-903 Bracket 017002-000 Steel Ball Ø6 280052-000 Spring 000104-107 Cap Screw M8*1.25P*15 361376-902 Lead Screw 000103-102 Cap Screw M6*1.0P*10 48 | Page Oliver Machinery 10045 Planer...
- Page 49 008004-100 Hex Nut 107.7 006001-010 Flat Washer 010002-000 S Ring STW-11 001802-101 Cap Screw + Lock Washer M6*1.0P*16/6.5*10.5 251437-615 Lock Handle 150006-000 Sprocket 170310-901 Plate 001803-102 Cap Screw + Lock Washer M8*1.25P*20/8.2*13.7 280012-000 Spring 10045 Planer OLIVERMACHINERY.NET 49 | Page...
- Page 50 Spare Parts Part Number Descriptions P-15mm4S Box of 10 - 15mm x 15mm x 2.5t - 4-Sided Carbide Inserts 038201-101 Torx Screw for HCX Cutterhead 430012-000 Carbon Brush Set (Set of 2) 50 | Page Oliver Machinery 10045 Planer...
-
Page 51: Maintenance Record
Maintenance Record Date Task Operator 10045 Planer OLIVERMACHINERY.NET 51 | Page... -
Page 52: Notes
Notes 52 | Page Oliver Machinery 10045 Planer... -
Page 53: Warranty And Service
Oliver Machinery makes every effort to assure that its equipment meets the highest possible standards of quality and durability. All products sold by Oliver Machinery are warranted to the original customer to be free from defects for a period of two (2) years on all parts excluding electronics and motors which are warranted for one (1) year from the date of shipment. -
Page 54: Appendix
23.018 27/64 .4219 10.715 59/64 .9219 23.415 7/16 .4375 11.112 15/16 .9375 23.812 29/64 .4531 11.509 61/64 .9531 24.209 15/32 .4687 11.906 31/32 .9687 24.606 31/64 .4844 12.303 63/64 .9844 25.003 12.700 25.400 54 | Page Oliver Machinery 10045 Planer... - Page 56 Oliver Machinery is always adding new Industrial Woodworking products to the line. For complete, up-to-date product information, visit us online at: WWW.OLIVERMACHINERY.NET or call toll-free 1-800-559-5065 ** SAVE THIS MANUAL FOR FUTURE REFERENCE. **...
