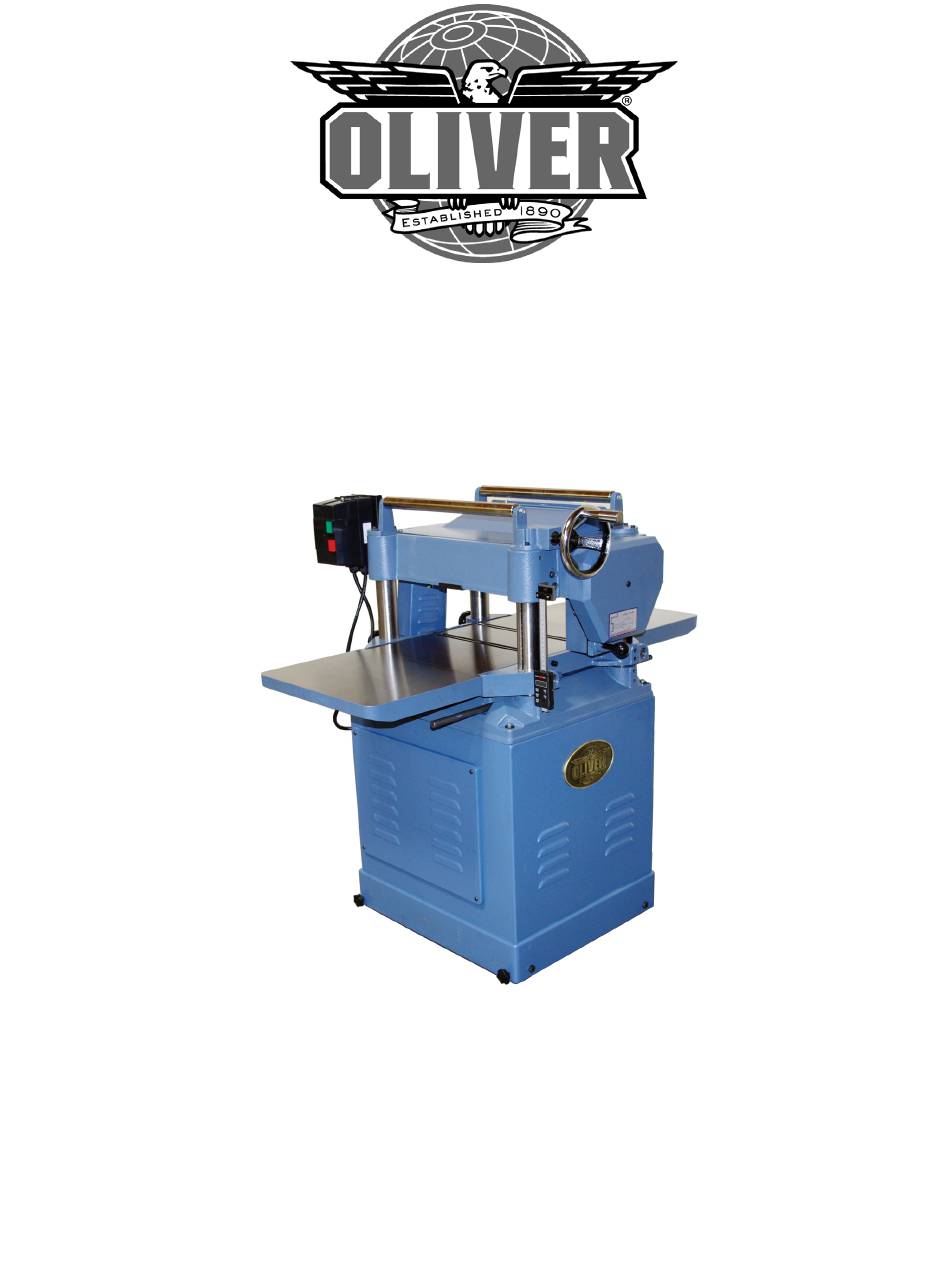

- Page 1 4420 16” Planer Owner’s Manual Oliver Machinery M-4630 9/2019 Seattle, WA Copyright 2019 info@olivermachinery.net www.olivermachinery.net...
-
Page 2: Warranty
In no event shall Oliver be liable for death, personal or property injury, or damages arising from the use of its products. -
Page 3: Warnings
For Your Own Safety Read Instruction Manual Before Operating This Tool Read this manual completely and observe all warning labels on the machine. This machine has made every attempt to provide a safe, reliable, easy-to-use piece of machinery. Safety, however, is ultimately the responsibility of the individual machine operator. -
Page 4: Warnings
17. KEEP GUARDS IN PLACE and in working order. 18. REMOVE ADJUSTING KEYS AND WRENCHES. Form habit of checking to see that keys and adjusting wrenches are removed from tool before turning it on. 19. DON'T FORCE TOOL It will do the job better and safer at the rate for which it was designed. 20. -
Page 5: Table Of Contents
Adjustment of Feed Rollers ........................14 Digital Readout ............................15 Parts ............................... 16-25 Specifications Stock No..................(5HP, 1Ph Helical Cutterhead) 4420.001 Maximum Stock Width (in.) ......................... 16 Maximum Depth of Cut (in.) ........................1/8 Maximum Stock Thickness (in.) ........................6 Minimum Stock Thickness (in.) ........................ - Page 6 16” PLANER Thank you for choosing this planer. This unit is carefully tested and inspected before shipment and if properly used and maintained, will provide you with many years of reliable service. To ensure optimum performance trouble free operation a reasonable amount of care and attention is required.
-
Page 7: Assembly
Always turn dust collection system before starting the planer. Figure 5 Fig. 5 CONSTRUCTING GAUGE BLOCK Your Oliver planer has been adjusted at the factory and should need adjustment. Typically poor performance can be attributed to dull knives however if the knives are in good order it may be time to check the machine. -
Page 8: Knife Replacement
Knife Replacement Knife inserts are dangerously sharp. Use extreme caution when inspecting, removing, or replacing knife inserts. The knife inserts on the Jointer are four-sided. When dull, simply remove each insert, rotate it 90° for a fresh edge, and re-install it. No further adjustment is necessary. -
Page 9: Lubrication Schedule
4420 Lubrication Schedule Components on this chart are referenced to the illustrations below. The illustrations are for component clarification and may not match your specific model. Component Interval Types of Lubricant Reference Return Rollers Monthly SAE 30 Figure A Drive chain... - Page 10 Figure C Figure D Figure E...
-
Page 11: Depth Of Cut
DEPTH OF CUT The cutting depth scale is a combination of inch / metric scale, the cutting range is from 0 to 8" (204 mm). *See page 15 for DRO instructions. TABLE LOCKS Before adjusting the table upward, or downward; loosen knob A, after positioning to required position, Fig. -
Page 12: Return Rollers
Figure 13 FEED ROLLERS There are two powered feed rollers on your Oliver 16” planer. One is located before and the other after the cutterhead. The feed rollers transmit the work piece through the machine. The downward pressure on the work piece is adjustable. -
Page 13: Table Rollers
TABLE ROLLERS Your planer is supplied with two idler table rollers (Figure 15) which help to reduce friction. It is not possible to give exact dimensions on the proper height setting of the table rollers because each type of wood behaves differently. -
Page 14: Feed Rollers And Chip Breaker
FEED ROLLER AND CHIP BREAKER ADJUSTMENTS Figure 18 shows the relationship of the feed rollers and chipbreaker to the lowest point of the cutting circle. As shown in the diagram, both the infeed roller, outfeed roller and chip breaker should all be 0.02” below the lowest point of the cutting circle. - Page 15 CHIP BREAKER ADJUSTMENT Remove the feeler gauge from the top of the gauge block and then move the gauge block to underneath the chip breaker. Once adjusted correctly, the chip breaker will just barely touch the top of the gauge block. Remove the top cover over the cutterhead.
-
Page 16: Digital Readout
DIGITAL READOUT The digital scale equipped with 16” planer can serve many applications, however for wood planning we need only concern ourselves with the ON/OFF, SET, and mm/in buttons. When set properly the digital readout will display the thickness of the finished product. -
Page 17: Parts
4420 Parts List Descriptions Part No. Q'ty 230118-000 170871-000 BELT GUARD FRONT 380147-901 BOLT 000902-102 HEX SCREW W/WASHER M6*1.0P*12 170432-000 BELT GUARD REAR 000003-105 HEX. SCREW M8*1.25P*25 006001-043 FLAT WASHER 8.2*30*4.0t 050273-901 CUTTER HEAD PULLEY 60HZ 10 006002-046 FLAT WASHER 8.5*16*1.5t... -
Page 18: Parts
4420 Parts List Descriptions Part No. Q'ty 56 010003-000 RETAINING RING STW-12 57 051069-000 HEAD CASTING 58 360024-000 ROLLER 59 000402-104 FLAT HEAD SCREW M5*0.8P*12 60 170409-901 LIMIT PLATE 61 012003-008 5*5*22 62 070012-000 CHAIN SPROCKET 63 006001-020 FLAT WASHER 6.2*20*3.0t... - Page 19 4420 Parts List Descriptions Part No. Q'ty 112 230115-000 KNOB 113 130037-000 COLUMN LOCK BUSHING 114 360948-902 FIX ROD 115 051070-000 TABLE 116 000203-104 SET SCREW M6*1.0P*12 117 130038-000 COLUMN LOCK BUSHING 118 002301-201 RIVET 119 000801-104 ROUND HD HEX. SCREW M6*1.0P*20...
- Page 20 4420 Parts List Descriptions Part No. Q'ty 170 130041-000 BUSHING 171 360372-000 ELEVATING SCREW 173 360380-902 SHAFT NS 040006-000 HEX. WRENCH NS 040005-000 HEX. WRENCH NS 040004-000 HEX. WRENCH NS 040003-000 HEX. WRENCH NS 040201-000 WRENCH BOX 8*10 NS 040204-000...
