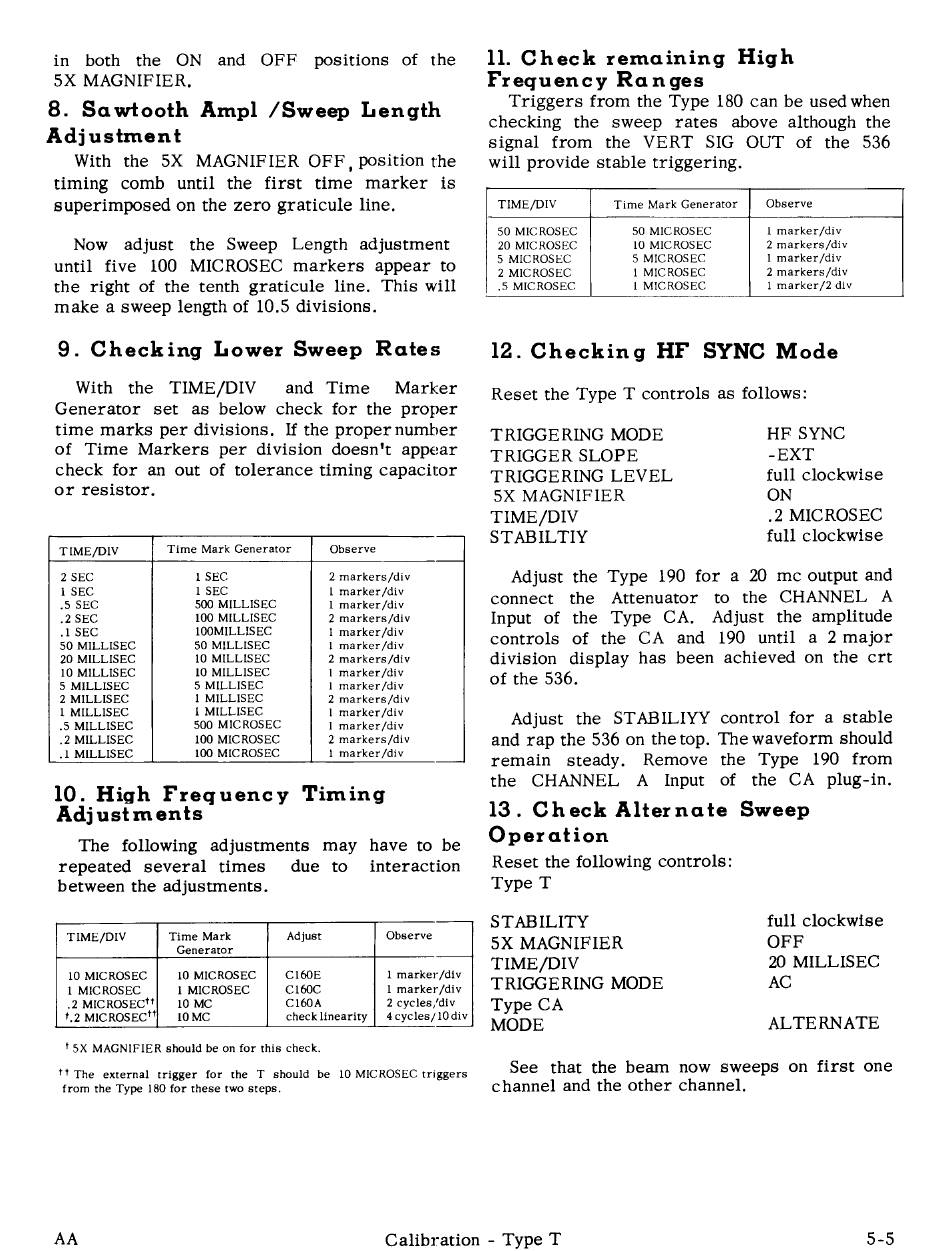

Tektronix T PLUG-IN Instruction Manual page 30

in both the ON and OFF positions of the
5X MAGNIFIER.
8. Sawtooth Ampl /Sweep Length
Adjustment
With the 5X MAGNIFIER OFF, position the
timing comb until the first time marker is
superimposed on the zero graticule line.
Now adjust the Sweep Length adjustment
until five 100 MICROSEC markers appear to
the right of the tenth graticule line. This will
make a sweep length of 10.5 divisions.
9. Checking Lower Sweep Rates
With the TIME/DIV and Time Marker
Generator set as below check for the proper
time marks per divisions. If the proper number
of Time Markers per division doesn't appear
check for an out of tolerance timing capacitor
or resistor.
1l. Check remaining High
Frequency Ranges
Triggers from the Type 180 can be used when
checking the sweep rates above although the
signal from the VERT SIG OUT of the 536
will provide stable triggering.
TIME/DIV Time Mark Generator Observe
50 MICROSEC 50 MICROSEC 1 marker/div
.5 MICROSEC 1 MICROSEC 1 marker/2 div
TIME/DIV Time Mark Generator Observe
2 SEC 1 SEC 2 markers/div
1 SEC 1 SEC Ll marker/div
«9 SEC 500 MILLISEC 1 marker/div
«2 SEC 100 MILLISEC 2 markers/div
.1 SEC 100MILLISEC 1 marker/div
50 MILLISEC 50 MILLISEC 1 marker/div
20 MILLISEC 10 MILLISEC 2 markers/div
10 MILLISEC 10 MILLISEC 1 marker/div
5 MILLISEC 5 MILLISEC 1 marker/div
2 MILLISEC 1 MILLISEC 2 markers/div
1 MILLISEC IL MILLISEC 1 marker/div
.5S MILLISEC 500 MIC ROSEC 1 marker/div
.2 MILLISEC 100 MIC ROSEC 2 markers/div
.1 MILLISEC 100 MIC ROSEC 1 marker /div
10. High Frequency Timing
The following adjustments may have to be
repeated several times due to interaction
between the adjustments.
5X MAGNIFIER should be on for this check.
tt The external trigger for the T should be 10 MICROSEC triggers
from the Type 180 for these two steps.
12. Checking HF SYNC Mode
5X MAGNIFIER ON
division display has been achieved on the crt
of the 536.
the CHANNEL A Input of the CA plug-in.
13. Check Alternate Sweep
Operation
STABILITY full clockwise
channel and the other channel.
