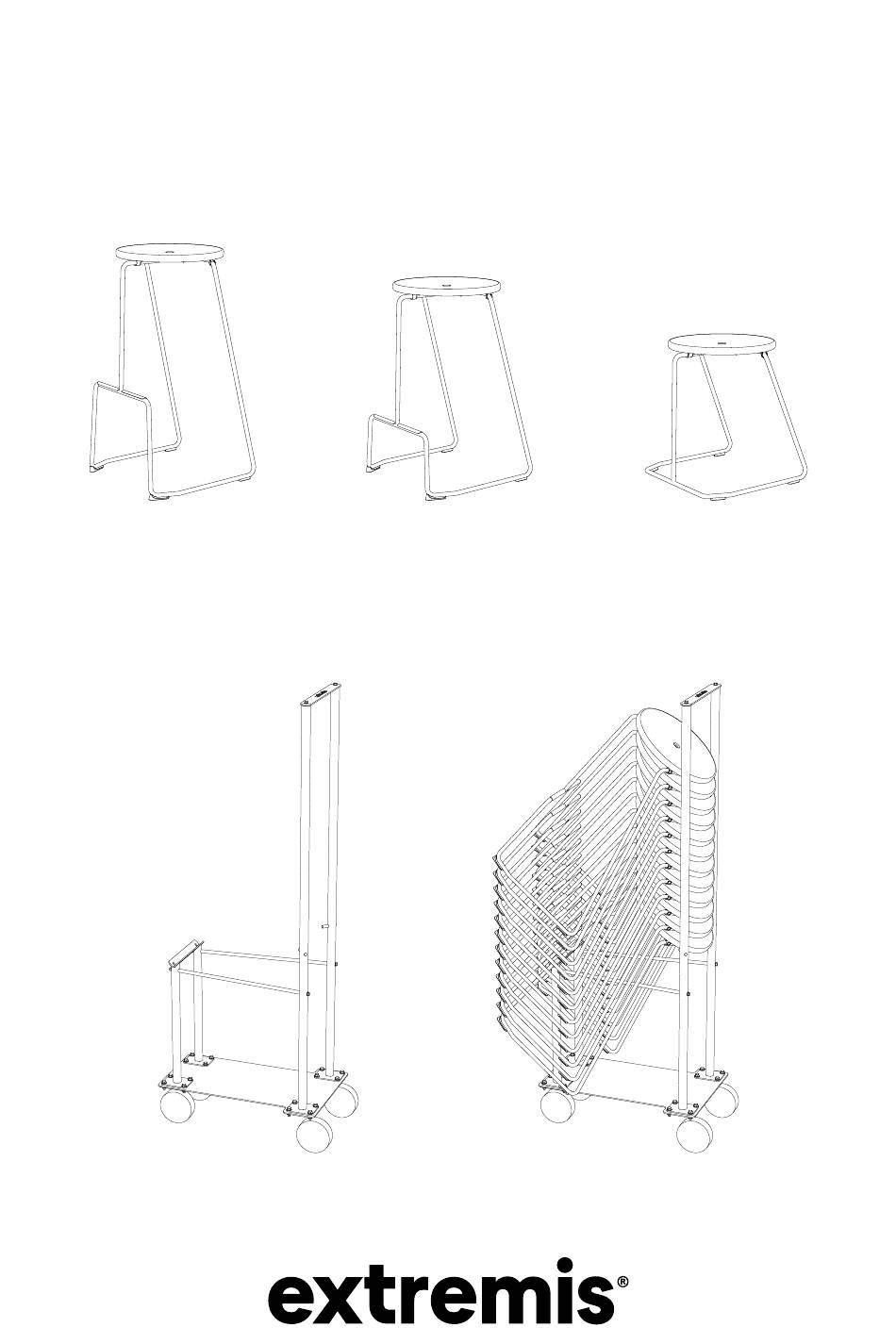

- Page 1 Tiki Stools Stool Trolley...
- Page 2 IMPORTANT! RETAIN FOR FUTURE REFERENCE: PLEASE READ ALL SAFETY NOTES AND INSTRUCTIONS. FAILURE TO COMPLY WITH THESE MAY RESULT IN SEVERE INJURIES.
- Page 4 Table of contents Mounting kit Exploded view Assembly Tiki with powder coated seat Assembly Tiki with oak seat This is an interactive PDF You can easily navigate through this manual, allowing you to smoothly jump from one page to the other.
- Page 5 Assembly backrest with powder coated seat Assembly backrest wit oak seat Assembly Tiki Stool Trolley Warnings - Text instructions - Maintenance This is an interactive PDF You can easily navigate through this manual, allowing you to...
-
Page 6: Mounting Kit
16 x M8x16 6 x M6x40 TIK541 Mounting kit to fix the Tiki Stool Trolley 4 x M6x16 4 x M6x20 powder coated seat oak seat TIK209 Mounting kit to fix the backrest... -
Page 7: Exploded View
Exploded view Bar stool Counter stool Stool Tiki Stool Trolley... - Page 8 Tiki with powder coated seat N° 5 5’ 8 Nm 4kg/8,8lb MAX! TIK201 4 x M6 4 x M6x12 8 - Tiki with powder coated seat...
- Page 9 Tiki with oak seat N° 5 5’ 8 Nm 4kg/8,8lb MAX! TIK201 4 x M6 4 x M6x16 9 - Tiki with oak seat...
- Page 10 Backrest with powder coated seat N° 5 5’ Lay the seat upside down on a table and position the frame on top of it 10 - Backrest with coated seat...
- Page 11 8 Nm 4kg/8,8lb MAX! TIK201 TIK209 Position the backrest to the frame and attach it the washers and bolts 4 x M6 4 x M6x16 11 - Backrest with coated seat...
- Page 12 Backrest with oak seat N° 5 5’ Lay the seat upside down on a table and position the frame on top of it 12 - Backrest with oak seat...
- Page 13 8 Nm 4kg/8,8lb MAX! TIK201 TIK209 Position the backrest to the frame and attach it the washers and bolts 4 x M6 4 x M6x20 13 - Backrest with oak seat...
- Page 14 Tiki Stool Trolley N° 5 5’ Make sure the small pins on the large tubes are facing inwards TIK541 4 x M8 8 x M8x16 14 - Tiki stool trolley...
- Page 15 Make sure the recess of the front support is facing forward TIK541 4 x M8 8 x M8x16 15 - Tiki stool trolley...
- Page 16 TIK541 4 x M6x40 16 - Tiki stool trolley...
- Page 17 TIK541 2 x O-ring 2 x M6x40 17 - Tiki stool trolley...
- Page 18 The trolley safely transports up to 12 stools, counter stools or bar stools (with or without backrest) 18 - Tiki stool trolley...
- Page 19 Attach the storage bag around the connection axis with the push buttons 19 - Tiki stool trolley...
- Page 20 Warnings Text instructions Maintenance Warnings Assembly text instructions Maintenance ...
- Page 21 Warnings General • Do not use any sharp tools to open the packaging. • We strongly advise against using power tools. • Tripping hazard, mind your step. • Do not put out cigarettes on the bench. • Not grafitti proof. •...
- Page 22 • Shake or brush off loose dirt immediately. • UV color fasteness: 7/8 (ISO 105-B02). Wood • When delivered, the wood is oiled. • Wood is a natural material and its look is different for every slat, plank and tree. •...
- Page 23 Assembly text instructions 1 - 2 - 3 - ... Take a look at the drawings, starting from page 8 Tiki with powder coated seat (p8) 1. Lay the seat upside down on a table, using the packaging as protection. Attach the frame to the seat with four M6 wave washers and four M6x12 bolts as shown in the drawing.
- Page 24 Please note: tighten the bolts diagonally as shown on the diagram, do not over-tighten! Max. torque: 8 Nm of 4 kg /8,8 lb. Tiki Stool Trolley (p14) 1. Attach the large back tubes, together with the caster wheels, to the back side of the base plate with four M8x16 bolts and four M8 lock nuts each.
-
Page 25: Maintenance
Powder coating CLEANING Regularly Use Extremis Multicleaner, a 100% biodegradable detergent or common kitchen cleaning products. Avoid using aggressive products. These sur- faces are best cleaned with a neutral cleaning product diluted in water. REPAIRING DAMAGED POWDER COATING When damaged The impact of sharp objects can damage the coating. -
Page 26: Regular Cleaning
REGULAR CLEANING When dirty Make a solution to remove stains on your Sunbrella. MACHINE WASHING Rarely It is also possible to put the blankets and cushion covers in a washing machine (30°). Do not dry clean or tumble dry. The fabric can be cre- ased. - Page 27 Galvanized steel CLEANING When dirty Clean with lukewarm water and a brush. REPARING DAMAGED PARTS WITH ZINC SPRAY When damaged Hot dip galvanization is the most durable way of protecting metal against rusting. If the zinc coating is damaged, the exposed metal can rust.
- Page 28 All rights reserved. Unless otherwise specified, all designs and photographs contained in this publication are copyright protected and are the property of Extremis. No part of this publication may be copied or distributed without Extremis’ prior written consent. The names of the authors of photographs to which we do not hold rights are mentioned here. We have done our utmost to provide a...
