Sonoff 4CH, 4CHPRO Manual

Operating Instruction

Power off

Please install and maintain the device by a professional electrician. electric shock hazard, do not operate any connection or contact the terminal connector while the device is powered on!

Wiring instruction

Light fixture wiring instruction:
Operating Instruction - Wiring instruction - Method 1
Operating Instruction - Wiring instruction - Method 2

Socket wiring instruction (Don't need to connect if no ground wire):
Operating Instruction - Wiring instruction - Method 3
Operating Instruction - Wiring instruction - Method 4

information Make sure all wires are connected correctly.

information To ensure the safety of your electrical installation, it's essential either a Miniature Circuit Breaker (MCB) or a Residual Current Operated Circuit Breaker (RCBO) with an electrical rating of 4CHR3(16A), 4CHR3PRO(40A) has been installed before the 4CHR3, 4CH R3PRO.

Equipment Installation

Operating Instruction - Equipment Installation
35mm rail installation

play.google.com

www.apple.com

Power on

Operating Instruction - Power on

After powering on, the device will enter the quick pairing mode during the first use. The Wi-Fi LED indicator changes in a cycle of two short and one long flash and release.

information The device will exit the quick pairing mode if not paired within 3mins. If you want to enter this mode, please long press any pairing button for about 5s until the Wi-Fi LED indicator changes in a cycle of two short and one long flash and release.

Add the device

Operating Instruction - Add the device
Tap "+" and select "Add Device", then operate following the prompt on the App.

Compatible Pairing Mode

If you fail to enter Quick Pairing Mode, please try "Compatible Mode " to pair.

  1. Long press any pairing button for 5s until the Wi-Fi LED indicator changes in a cycle of two short flashes and one long flash and release. Long press any pairing button for 5s again until the Wi-Fi LED indicator flashes quickly. Then, the device enters Compatible Pairing Mode.
  2. Tap "+" and select "Add Device" then select "Compatible Mode" on APP. Select Wi-Fi SSID with ITEAD-****** and enter the password 12345678, and then go back to eWeLink APP and tap "Next". Be patient until pairing completes.

Specifications

Model 4CHR3, 4CHPROR3
Input 4CHR3: 100-240V ~ 50/60Hz
4CHPROR3: 100-240V ~ 50/60HZ( DC: 9-23V )
Max. Load 4CHR3: 10A/Gang 16A Total
4CHPROR3: 10A/Gang 40A Total
RF 433.92MHz (Receive only)
Wi-Fi IEEE 802.11 b/g/n 2.4GHZ
Operating systems Android & iOS
Working temperature -10ºC~40ºC
Material PC V0
Dimension 145x90x34mm

information 4CHR3 does not support the remote controller with 433.92MHz.

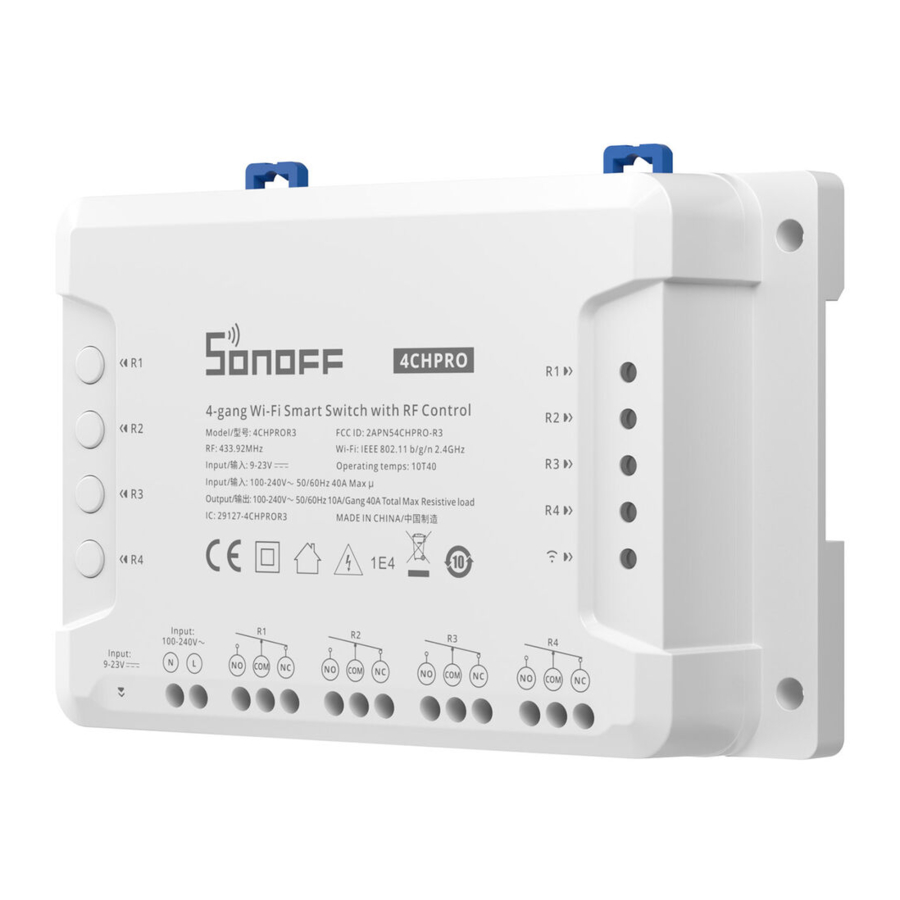

Product Introduction

Product Introduction

information
The device weight is less than 1 kg.
The installation height of less than 2 m is recommended.

Wi-Fi LED indicator status instruction

Wi-Fi LED indicator status Status instruction
Flashes (one long and two short) Quick Pairing Mode
Keeps on Device is connected successfully
Flashes quickly Compatible Pairing Mode
Flashes quickly once Unable to discover the router
Flashes quickly twice Connect to the router but fail to connect to Wi-Fi
Flashes quickly three times Upgrading

Features

This device is a 4-Gang Wi-Fi smart switch with self-locking, interlock and inching that allow you to remotely turn on/off connected devices via your smartphone, schedule on or Off, share to your family to control together.

  • Remote Control
  • Single/Countdown Timing
  • Voice Control
  • Share Control
  • Smart Scene
  • Self-locking
  • Interlock
  • Inching
  • 433MHz Remote Control
  • Power-on State
  • Camera Linking
  • LAN Control

Pairing and Clearing with RF Remote Controller

The 4CHPROR3 supports the remote controller with 433.92MHz frequency brand to turn on/off, and each channel can learn it independently, which is local short-range wireless control not Wi-Fi control.

Pairing Method:
Long press the channel switch button to be paired for 3s until the Wi-Fi LED indicator turns red and "quickly flashes once" and release, then short press the button to be paired on the remote control. If the Wi-Fi LED indicator turns red and "quickly flashes once", it indicates that the pairing is successful.

Clearing Method:
Long press the channel switch button to be cleared for 5s until the Wi-Fi LED indicator turns red and "quickly flashes twice" and release, then short press the button to be cleared on the remote control. If the Wi-Fi LED indicator turns red and "quickly flashes once", it indicates that the code is cleared.

Switch Network

If you need to change the press the any pairing button for about 5s until the Wi-Fi LED indicator changes in a cycle of two short and one long flash and release, , then the device enters quick pairing mode and you can pair again.
Switch Network

Factory Reset

Deleting the device on the eWeLink app indicates you restore it to factory setting.

Common Problems

Q: Why my device stays "Offline"?

A: The newly added device needs 1 - 2mins to connect Wi-Fi and network. If it stays offline for a long time, please judge these problems by the blue Wi-Fi indicator status:

  1. The blue Wi-Fi indicator quickly flashes once per second, which means that the switch failed to connect your Wi-Fi:
    1. Maybe you have entered a wrong Wi-Fi password.
    2. Maybe there's too much distance between the switch your router or the environment causes interference, consider getting close to the router. If failed, please add it again.
    3. The 5G Wi-Fi network is not supported and only supports the 2.4GHz wireless network.
    4. Maybe the MAC address filtering is open. Please turn it off.
      If none of the above methods solved the problem, you can open the mobile data network on your phone to create a Wi-Fi hotspot, then add the device again.
  2. Blue indicator quickly flashes twice per second, which means your device has connected to Wi-Fi but failed to connect to the server. Ensure steady enough network. If double flash occurs frequently, which means you access an unsteady network, not a product problem. If the network is normal, try to turn off the power to restart the switch.

Important Safety Instructions


  1. Risk of electric shock, This product is not a toy and not intended for use by children. For adult use only.
  2. The maximum ambient temperature during use of the appliance must not exceed 40ºC.
  3. The appliance is suitable for moderate climates only.
  4. The ventilation must not be impaired by covering the appliance with items such as newspapers, table cloths, curtains, etc.
  5. Naked flame sources, such as candles, must not be placed on the appliance.

Service email: support@itead.cc

Website: sonoff.tech
