Introductions

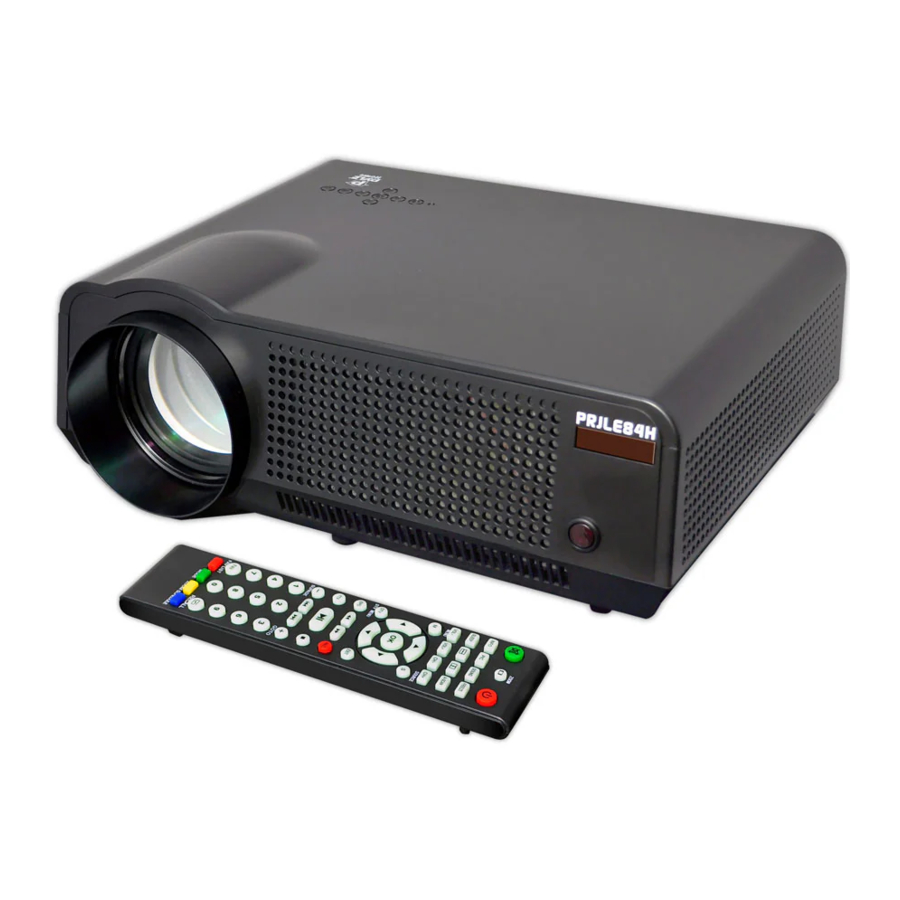

Projector Description
The projector is able to connect signals: HDMI, Y/Pb, Pr, VGA and TV (optional),as well as stereo audio input. Please connect in reference to the following diagrams

Front

1. Focus lens
2. IR receiver
3. Height feet adjustment
4. Cool winds input Ventilation

Back

5. Hot winds output ventilation
6. Power switch
7. Input terminals

TOP

1. Control panel

Bottom

2. Keystone adjustment
3. Height-feet adjustment
4. Projector mount hole (4holes) Fix with M4x8 mm.
5. Label
6. Cold wind input ventilation system

Packing list& Accessories

Please confirm the following after you open the package

Packing list

• Projector x 1
• Lens lid x 1
• Remote control x 1
• Power cable x 1
• AV cable x 1
• User manual x 1
• Extra fuse x 1
• Len cleaner x 1
• PWM4x8 screws x 1

Optional accessories

Projector screen (Matt White, Electric)
Ceiling Mounts

Specification

"Any changes on the parameter will not be noted)

Instructions

Right

1. Right channel speaker

Left

2. Cool wind input ventilation
3. Left channel speaker

Panel instruction

1. Indicator light
   Red: Standby mode
   Green: Working mode
2. Power KEY
   This button can lead the projector to working/standby mode
3. Direction key
   Adjust with parameters, the same function with the remote control
4. KEY
   Confirm
5. Menu
   Open or close the Menu
6. S-KEY
   Source key (VGA,HDMI,etc.)

Installation

Projector Installation

Please install in reference to the instruction below

In order to get a good image quality, do not expose the projector to the sunshine or other strong light, close the curtain if you use the projector in daytime.

Standard setting (Front projection)

Please refer to the below sheet, install the projector in distance according to the screen size. Please make sure the projector is placed on stable mount, Take care of the ventilation condition (nothing near 30cm blocking )

The data may have 3% error, due to the image size according to the projector and screen. If the distance is less than 2M or more than 5M the image may appears unclear.

Please check the following pictures for the trapezoid adjustment

• Incorrect installation

• Installed correctly the image is rectangular

• Incorrect installation


Installation method

Contact a professional service man to mount this projector to a ceiling Follow the instruction below for the correct projector positions:

1. Front projection. Ceiling mount

2. Front projection. Table mount

3. Rear projection. Ceiling mount

4. Rear projection. Table mount


1. This projector might damage beyond repair when it is incorrectly mounted on a ceiling or when it is in correctly installed on a surface or installed on a incorrect surface. It may also inflict damage to people nearby
2. This projector can only be used in an environment with a temperature not exceeding the range of 0-35 degree. The projector may malfunction if temperatures vary outside the normal operating rage
3. The sharpness of the screen might be interrupted when the projector is being used in a dusty, wet, moist or smoke filled environment. The projector might malfunction in a moist or wet environment
4. Take care of the sufficient ventilation around the projector. Otherwise this projector might overheat and cause life threatening situations
5. The first operation of the projector may cause a unclear image. Please refer to the image adjustment for help.

Menu setting

Menu setting method

1. Using the projector, press "menu. The picture display on screen to adjust menu (picture I)

   Picture I
2. Press " " key, the menu in turn circle into "picture" > "sound" > "time" > "system ".
3. Select the adjust interface, use "" key to choose the wanted item (picture II)

   Picture II
4. Press "OK" or " " to adjust the item parameter.
5. Finished the elected item parameter, press the "menu" key again, exit the page.
6. Repeat operating step 2~5, till you finished all the parameters, press " exit", exit the menu page, otherwise, the menu page will auto exit after a period time.

Menu setting
Language	Pyccкий /Arabic /CN
Restore default	YES/NO
Blending	OFF/LOW/MID/HIGH
Osd Duration	OFF/5S/ 10S/ 15S
Upgrate (USB)	Software update

Parameter adjustment

1. Press "menu" key, until display the above picture of the menu;
2. Press "" key, elect the option that need to adjust.
3. Press "OK" key, use "" button to adjust the certain parameters.
4. Press the "menu"key again exit the menu page parameter adjust station.


Picture Menu

Picture Menu
Picture Mode	Standard/warm/user (Tab. "Picture") /Dynamic
Color temperature	Standard/ warm/cool
Aspect	Autp 4 3 16 9 *
Noise reduction	OFF/LOW/MID/HIGH
Flip horizon	OFF/ON
Flip vertical	OFF/ON

* The setting of Height-width is different under different modes, zoom is not valid in picture mode

Tab. "Picture"

Contrast	0~100	Image contrast adjustment
Brightness	0~100	Image brightness adjustment
HUE	0~100	Image hue adjustment
Sharpness	0~100	Image sharpness adjustment

Sound Menu

Sound Menu
Sound mode	Music/ Movie/ Sport/ User/Standard
Balance	(- 50~50)
Auto-volume	OFF/On
Surround Sound	OFF/ Surround
Balance	(120/500/1.5K/5K/10K) Hz 50

Time Menu

Time Menu
Clock -- -- --	Date-- / Month--/Year--/Hr--/Min--
OFF Time	OFF/ Once/Everyday/ Monday / Sunday
On Time	OFF/Once/Everyday/Monday/ Sunday
Sleep Timer	OFF/10Mins/20Mins/30Mins/60Mins/90Mins

Multimedia menu

Multimedia Menu
Picture	View the photos in gallery
Music	Play an album
Movie	Watch a movie
TXT	Read the book

Multimedia Format

1. The usb interface support USB1.1 USB2.0, including hard drive and fresh drives
2. The max. Storage supported is 400Gb
3. The system format supported: FAT16, FAT32, NTFS
4. The usb interface can support most drives but is not universal, any unknown device problem is caused by the device drive
5. The total voltage of the connected devices shall not be over 1200mAh, the problems casued by the wrong operation will not be warranted.

Input terminals

Signal terminals description

Name	Description
Y/Pb/Pr	Component video input
Video	AV input
Lout, Rout	Audio output
Lim, Rin	Audio input
PC-RGB IN	VGA input
Svideo	Svideo input
TV	N/A
HDMI	HDMI Signal input
USB	USB signal input

Turn off the power of projector and the device before connecting.
Either on may cause a break down of machine
Check the shape of the plug, DO NOT try the wrong plug.

Image adjustment

When you use the projector for the first time. It normally will appear image faintness or the image is trapezoid. This is caused by the wrong lens focus or trapezoid correction
Please follow the below steps to correct:

Focus adjustment

Rotate the lens into projector, the rotate it out slowly. At the same time, looking at the resolution point carefully. When the image is clear, it is the best situation of the lens.

Keystone

1. If a projected picture has keystone distortion, correct image with Keystone adjustment. The image becomes trapezoid shape when the screen or projector is not leveled. Please reposition the projector to improve its angle to the screen. However, the circumference of the image may not be focused.


Remote control

Remote control instruction

• DO NOT mix-use the new and old battery
• Make sure nothing stands in the middle of remote and IR
• Avoid the light shine on the IR directly
• Point the remote right to IR within 6m, and 30 degrees
• Pull out the battery if you are not going to use it for a long time
• Please change new battery when the remote malfunctions.
• Do not place the remote in wet or heat condition

Turn on/shut down

If the projector is a new one, please read the "projector install chapter, place the projector and connect the cables, follow the below steps to turn on/off

Turn on

1. Put in two 7-size battery in the remote control before using
2. Pull the power switch on the backboard as the power light turn red

3. Press the power key on the remote or panel, the indicator light turn green

4. The lamp start working 2 seconds later, image projected on the screen the machine is working smoothly
5. The new projector may have problems like image unclear or trapezoid distortion, Please read "image adjustment" chapter
6. After the image is clear, you may enjoy the program, in the meantime, you can still setup the system or adjust the parameters

Turn off

1. Press the power button during using will lead the projector to standby mode
2. when the projector switch into standby mode, the light will turn green from red

FAQ

Q: Blue screen, no picture, no sound
A: Input cables connected right?

Q: Picture right, no sound
A: Input cables connected right? Volume at min. Or on Mute

Q: Audio right, no picture
A: Input signal connected right?
In V GA mode, The PC refresh rate >75Hz
In VGA mode, The PC contrast ratio is 1024 768

Q: Can't find devices when plugged with hard drive or fresh drive
A: Re-plug the device
Check if the device is broken

Q: Can't play the movies
A: The format of the video is right?
Files is broken?
Device is broken?

Q: There is picture, no sound?
A: The decode system doesn't match

VGA with notebook

When connect the projector with the note book, you may need to press the Fn+F* (with on the button)

Trouble shooting

The projector is so easy to use as the TV. While some problems my occur because of the environment and voltage. Please try to recognize the fake malfunction before refer to the technicians.

Problem	The possibility reason
When turn on the power switch, the indicator light do not work	The power can does not connect well The power switch fuse is burned Check the over-heat protection system
The remote control can not turn on projector	The power switch turn on or off? The remote control out of battery? Something stands between the remote and IR Strong light on IR directly
No image on the screen	ls the channel set-up correct? ls there an input signal? ls the input cable plugged well? Under PC model, is the refresh rate >75KHz? When the projector connect with the notebook, set the screen as VGA mode
Auto-off after working for a while	The projector ventilation is block The voltage is not stable O The over-heat protection system

Safety precautions

Please remember the model and series number of the projector in case of lost. Please carefully check all accessories with the pack list before throwing the package away.
When you use this projector, please carefully read user manual.

High brightness lamp! Avoid staring or look directly at the light, specially for children.

Avoid to place the projector in wet condition in case of the electric shock danger.

High voltage inside DO NOT open except for technicians.

It indicates there is a instruction for important operation It indicates there is a dangerous.

Voltage inside that may cause shock

As an A-class product, the projector may cause radio interference.
Users shall take effective measures to deal with.

About the remote control battery

• The remote control battery should be fixed correctly. Otherwise it will be damaged for overheat
• Make sure the remote control out of children reach.

When use this projector, please read this manual carefully.
If wrong operation. it will cause electric shock or fire. So when use and repair this projector. please comply with the following points.

1. Read manual
   Before use this projector, please read full manual carefully and operate according to this manual instruction
2. Clear
   when clear this projector, please pull out the power cable. Use the wet cloth to clear, not the cleasner
3. Accessory
   please use our recommended accessory. Or it will damage the projector.
4. Use environment
   Do not place the projector in wet environment, installation and fix please place this projector in stable table.
5. Ventilation
   the ventilation in the projector are best for projector work stably. Do not let the dust wall up the filter. Or it will cause the projector high-temperature protected. So please use the water to clear the filter per month.
6. Power please make sure the power same as your projector inquiry specification. (220 V or 110V) 8, Earthing wire this projector has earthing wire. It is three pin plug.
7. Protect the power cable
   Please confirm the power cable are perfect when connect the Projector.
8. Thunder
   when the thunder happen or long time no use, please pull the power cable out of projector.
9. Repairment
   As the high voltage inside, please Do not open or try to repair the projector by yourself. Please ask a professional technician to repair the projector.
10. Far away
    Heat device please make sure this projector far away other heat device. It will damage the projector service life.

Caution

About the installation

• In order to improve the projector service life.
  It should not place in a wet and ventilation condition.
• Do not put the projector under the sunshine directly.
• Projector working temperature: 0ºC~+70ºC.
  Projector store temperature: -20ºC~+70ºC.
• Do not block the ventilation-window of projector.
  If the projector interior temperature are too hot, the machine will be shut off automatically. This is hot - protected system.
  So please clean the filter of projector per month. It is very important. Do not let the dust cover the filter.

About Open and close the projector

• When open the projector, connect the power cable and press the "power" key on the panel. the projector will work, but the lamp will be bright more and more. After 5 minutes, the lamp work normally.
• When close the projector, press the power key again. And then the lamp shut off. But the fans still work until 5minutes later. When close the projector, do not pull out the power cable directly. After 5minutes, the projector will shut off automatically.

Fans will adjust the temperature, It is controlled by system. When the projector work, the fans turn slowly or quickly. So the fans noise are different. But it is normal. When the projector work, do not pull out the power cable. If the fans stop to work, it will cause the projector interior temperature very high, so it may damage the projector.
