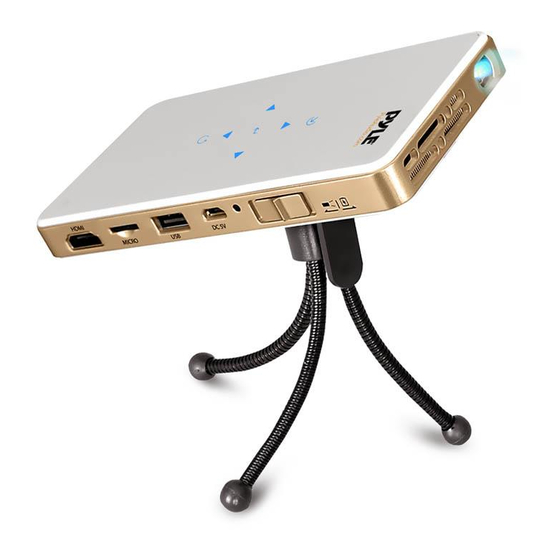

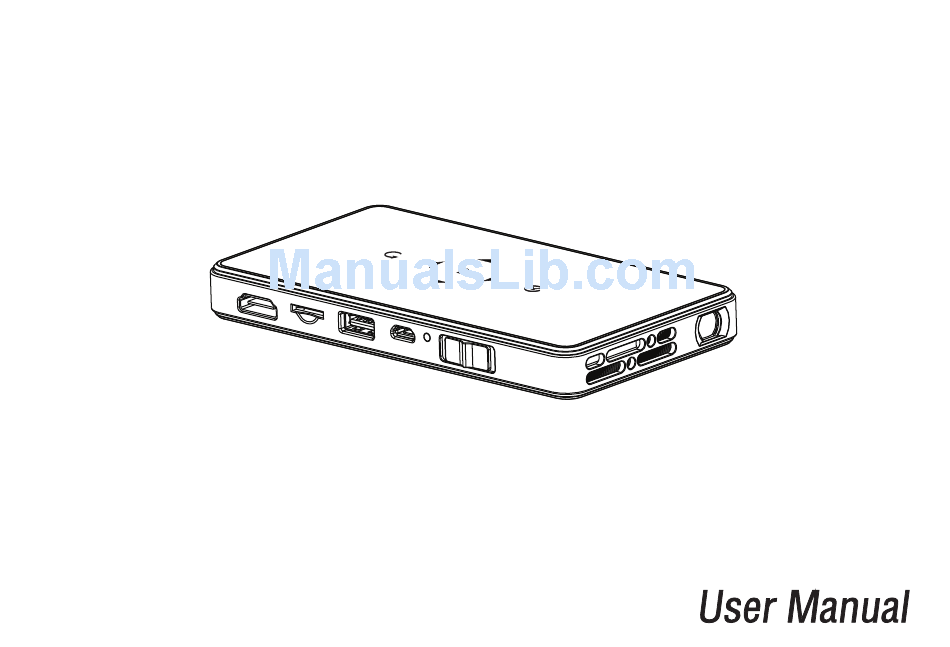

- Page 1 PRJWIFI70 HD Pocket Pro Smart Projector with WiFi Multimedia Entertainment Streaming Color and appearance may differ with the icons in this manual ,Product specifications may vary due to the improved performance without notice...
-
Page 2: Product Features
Product Features HD Pocket Pro Smart Projector with WiFi Multimedia Entertainment Streaming Model: PRJWiFi70 Features: • Smart & Next-Generation Multi-Functional Projector • Picture Flip/Rotate Function (90°, 180°, 240°, 360°) • Lightweight, Portable, Powerful, Versatile • Up to 3 Hour Batter y Life •... -
Page 3: Safety Instructions
Safety Instructions • To ensure the safe use of this projector, please read and become familiar with this manual before use. • Please select the adaptor specified by the company, other adaptors cause damage to the projector. • Unauthorized disassembling, modification, throwing or dropping of this projector is strictly prohibited. Otherwise this projector might break or become faulty. -
Page 4: Packing List
Packing List Please unpack the box carefully, and check for the below items. Projector Carrying Bag Adaptor Tripod Warranty Card HDMI CABLE USB CABLE... - Page 5 Summary 1. Lens 2. Air outlet 3. ON/OFF /Charging Switch 4. Charging Indicator 5. DC 6. USB Interface 7. Micro SD Card 8. HDMI/MHL 9. Touch Key 10. Battery Level Indicator 11. Focus 12. Support Knob 13. Air Inlet 14. Tripod Hole 15.
-
Page 6: Touch Key
Touch Key Source OK/Menu Up/Vol+ Right/Next/Fast Forward Left/Previous/Fast Backward Down/Vol- Return Charging Indicator Charging • When charging this device, insert one end of the USB cable to the USB of the projector, the other end to the PC/Laptop/mobile device, power adaptor or original adaptor. •... -
Page 7: Brightness Mode
Charging for Mobile Devices The internal battery can not only be used for projection, but also can charge your phone. Push the power switch to the right in order to reach the charging mode. Plug one end of the USB cable to the projector; USB 5V 500mA the other end goes into your smartphone. -
Page 8: Hdmi Connection
Mobile Devices Connect to Projector HDMI Connection • Use the HDMI cable to connect the HDMI output device and projector. The projector will select the source automatically after a few seconds or you can also select the source manually. • Micro SD Card (Max 32GB support) •... - Page 9 Select the Source Input Press【 】to change the input channel. There will be a corresponding icon and character for each input source. You can select the desired input from here. Wireless Display Wireless Display If you select Wireless Display, you can connect your smartphone or tablet wirelessly to the projector through a WiFi network.
-
Page 10: Setting Menu
Select the USB input to have the projector play content off of an external hard drive or a flash drive. HDMI Select the HDMI input to have the projector connect to a device with an HDMI output. USB/Micro SD Media Play Press the【... - Page 11 Wireless Display Mode Select (Optional) The following screen will appear when you've selected the Wireless Display Mode. There are two modes under Wireless Display; slide the projector On/Off button towards the left to switch between Miracast and DLNA. Version: 3.0.0-rc3 Name: Projector-XXXXXX Projector on/off...
- Page 12 Miracast Open the WiFi settings on your smartphone or tablet, locate the projector and select it. After it connects, you will be able to mirror any images or audio through the projector. Default name Version: 3.0.0-rc3 Selected WiFi-Display Mode Name: Projector-XXXXXX Status: Waiting for connection...
- Page 13 Several Smart Phone Miracast Connection The setting and name of Miracast of smart phone or tablet is different, please refer to its detailed description. Connection Instruction: Samsung Phone 3. Select "AllShare Cast" 1. Enter the menu of Samsung 4. Find "P-XXXX", click on it and wait few seconds. Then, S3 to find the settings option.
- Page 14 DLNA Under DLNA mode, you may view photos, movies, music that are on your smartphone on your projector via wireless transmission technology. Before using DLNA, the smart device needs to install a software application that support DLNA, such as PPTV, Tencent video, Soho Video, etc. The method for using your iPhone or your Android is basically same.
- Page 15 Play Local Video By DLNA To use the app, iMediaShare Lite-v4.02 as an example, open iMediaShare Lite, select "My Videos" and then select“P-XXXXX" to connect to your projector. Projector-XXXX Phone Control Interface Note: Certain software does not support streaming media by using DLNA.
- Page 16 Play Internet Content by using DLNA After successfully connecting to your project, open your browser and input"192.168.49.1". Select , click "Scan", and then select the network you want to connect to. Input the password of the network, connect to the wireless router. After connected successfully, enjoy home entertainment share.
- Page 17 Menu Introduction Click“ ”, display the wireless network selection menu and select the wireless network. Click“ ”to switch between Miracast DLNA. Click“ ”to show the control buttons. Select control play by video or control by client. Click“ ”to adjust the picture aspect.
- Page 18 Some client software should open the DLNA screen in the "Settings" menu. If the DLNA does not open, there is no DLNA Icon on the control menu of player.
- Page 19 If the transfer process is not smooth or the buffer time is too long, this could be because the distance between the smart device and the wireless router is too great. Sending and receiving data will drop significantly, resulting in slow data transfer. Either replace your router with a high-powered alternative, or place the smart device near your current router.
- Page 20 Mirror iPhone/iPad By DLNA 1. Switch to DLNA mode. 5. After selecting Airplay, you To connect your projector (If the projector and the mobile can find the selectable with wifi, please check phone are under same wifi, please device "Projector-XXXX". page 37.
-
Page 21: Technical Specifications
Technical Specifications HD Pocket Projector Product Name Native Resolution 854×480 Display Technology Lamp R,G,B LED Projection Size 37.8''@1m Standard HDMI Input HDMI WiFi AirPlay DLNA/Miracast* Media Player Built-in 1080P media player Micro SD Support Storage Device File System Headphone Output 3.5mm stereo headphone 8Ω/1W Speaker...
