Page 1: User Manual

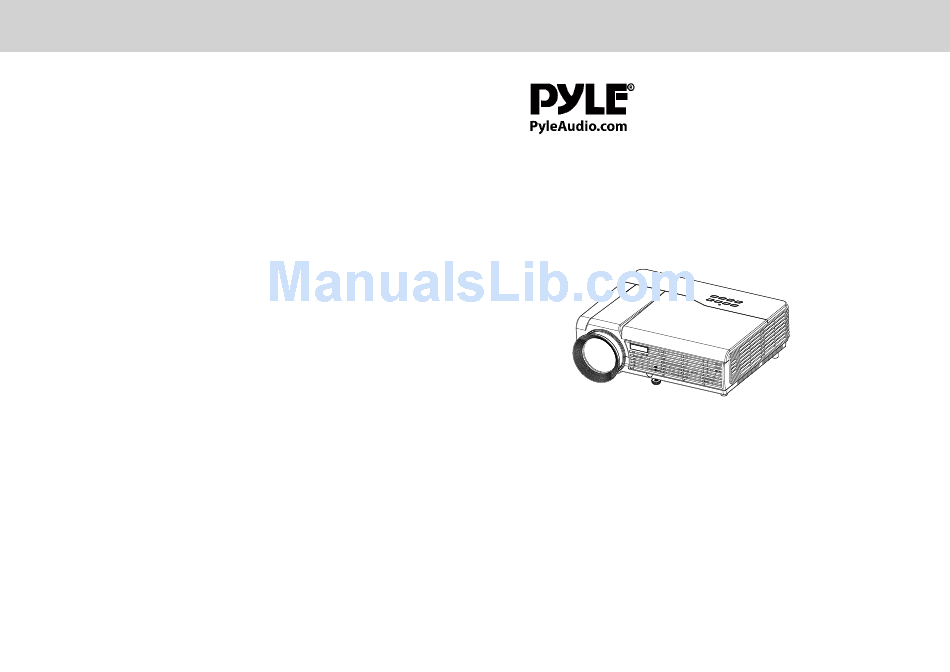

HD LED PROJECTOR User Manual MODEL: PRJD903 182version:01(Android&2USB) -
Page 3: Table Of Contents
Warranty card Ⅰ Contents Warning ……………………………………………………………1 Maintenance record Safety Precautions…………………………………………………2 Return Date： Test Date： Caution ……………………………………………………………3 Cause of Malfunction： Repair Record： Introductions ………………………………………………………4 Installation…………………………………………………………7 Service Station： Signature： full setting…………………………………………………7 standard setting(front projection)…………………………8 Test Date： Return Date： Cause of Malfuction： installation method ………………………………………9 Repair Record：... -
Page 4: Warning
Warning Warning： Please remember the model and series number of the projector in case of lost. Please carefully check all accessories with the pack list before throwing the package away. When you use this projector, please carefully read user manual. Warning：... -
Page 5: Safety Precautions
Safety precautions Warranty clause P age... -
Page 6: Caution
Packing list &Accessories Caution Please confirm the following after you open the package Packing list: Projector---------------------------1 Lens lid-----------------------------1 Remote control--------------------1 Power cable-------------------------1 cable--------------------------1 User manual-----------------------1 Extra fuse------------------------1 Len cleaner-------------------------1 Optional accessories： 1.Projector screen(Matt White,Electric) 2.Ceiling Mounts P age... -
Page 7: Introductions
Specification Introductions Projector Description The projector is able to connect signals: HDMI,Y/Pb/Pr,VGA and TV(optional),as well as stereo audio input. Please connect 5.8"TFT Matrix RGB Type in reference to the following diagrams Input signal video Component video(Ypbpr),VGA,HDMI USB, Front Audio Stereo 2W*2 Speaker Output signal Audio... - Page 8 Instructions FAQ: Right ① Q：Blue screen,no picture,no sound A：Input cables connected right? ② Q：Picture right，no sound A：Input cables connected right? Volume at min. Or on Mute ③ Q：Audio right,no picture A：Input signal connected right? In VGA mode，The PC refresh rate ＞75Hz In VGA mode，The PC contrast ratio is ＞1024*768 ④...
- Page 9 Trouble shooting Introductions The projector is so easy to use as the TV.While some problems my occur because of the environment and voltage. Please try to recognize the fake malfunction before refer to the technicians Problem The possibility reason 1.when turn on ◎The power can does not connect well the power switch, ◎The power switch fuse is burned...
-
Page 10: Installation
Installation Projector Installation Please install in reference to the instruction below Speaker L Speaker R Screen Subwoofer Speaker C Projector Amplifier Appreciate seats Speaker LS Speaker RS In order to get a good image quality, do not expose the projector to the sunshine or other strong light, close the curtain if you use the projector in daytime P age... -
Page 11: Standard Setting(Front Projection)
Menu setting Projector Installation 6.Menu setting method Standard setting（Front projection） Please refer to the below sheet, install the projector in distance according Menu setting to the screen size. Please make sure the projector is placed on stable mount, OSD language English Restore factory default Pycck /Arabic/CN... -
Page 12: Installation Method
Projector Installation Menu Setting 3.Picture Menu Installation method Picture Menu Contact a professional service man to mount this projector to a ceiling Picture Mode Standard/warm/user(Appendix 1)/Dynamic Follow the instruction below for the correct projector positions: Picture mode standard Color temperature Standard/warm/cool Color temperature Aspect ratio 4:3... -
Page 13: Input Terminals
Menu Setting Input terminals Signal terminals description 1. Menu setting method 1. Using the projector，press“menu”. Picture mode standard Color temperature Aspect ratio 4:3 The picture display on screen to adjust Picture Noise reduction middle Flip horizon menu(picture I) Flip vertical PC setup 2. - Page 14 Image adjustment When you use the projector for the first time .It normally will appear image faintness or the image is trapezoid. This is caused by the wrong lens focus or trapezoid correction Please follow the below steps to correct: Focus adjustment 1、...
-
Page 15: Remote Control
