Summary of Contents for Pyle PRJSD188

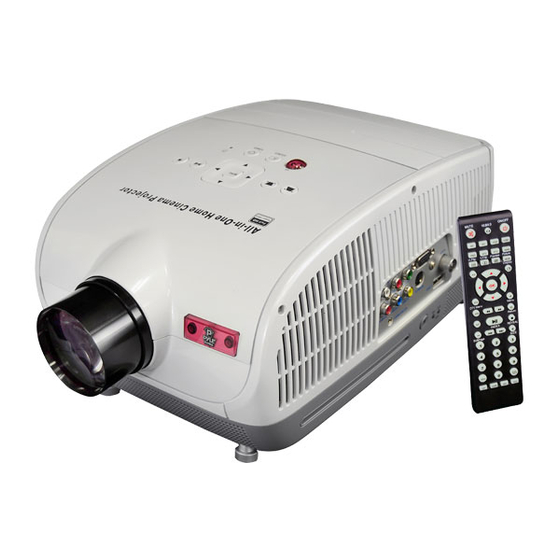

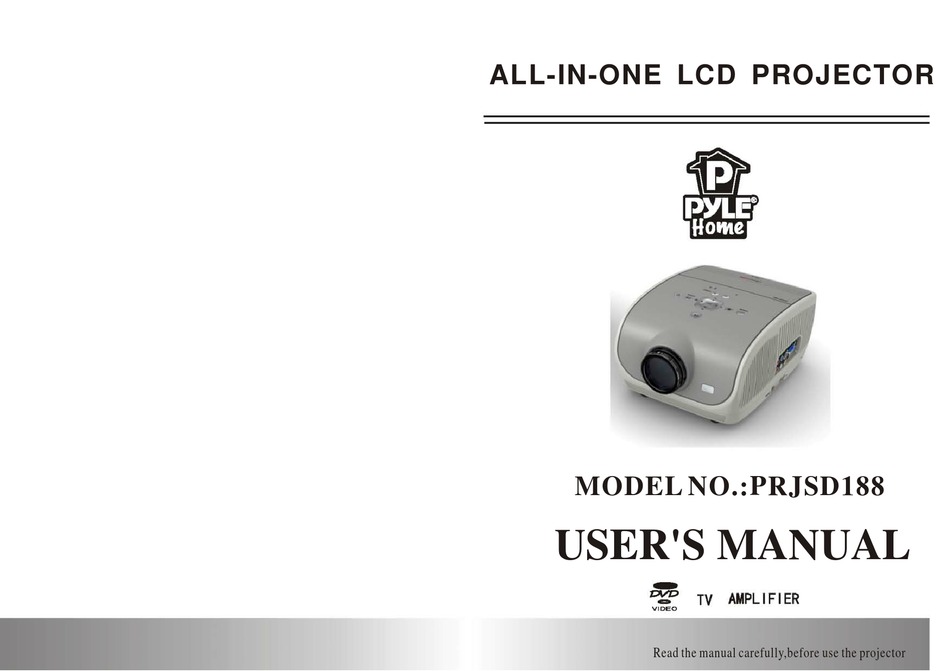

- Page 1 ALL-IN-ONE LCD PROJECTOR MODEL NO.:PRJSD188 USER'S MANUAL TV AMPLIFIER VIDEO Read the manual carefully,before use the projector...
-
Page 2: Accessory List
Accessory and purchasable parts In order to use the projector well ,when you open the carton of projector ,please check the full accessories Accessory list: Projector--------------------------1unit remote control--------------------1pcs power cable-----------------------1pcs AV signal cable-------------------1pcs HDMI signal cable---------------1pcs VGA signal cable-----------------1pcs warranty card---------------------1pcs... -
Page 3: Specification
And please check all accessories SERIES NUMBER when you drop the carton package When you use this projector , please read this manual carefully Warning Do not see the light from the lens ,it is high bright lamp. It will damage your eye .specially for children... -
Page 4: Safety Precautions
Warning; when use this projector ,please read this manual carefully. If wrong operation ,it will cause electric shock or fire.so when use and repair this projector ,please comply with the following points 9,protect the power cable 1,Read manual Please confirm the power cable... - Page 5 But it is normal when the projector work ,donot pull out the pwer cable If the fans stop to work,it will cause the projector interior temperature very high, so it may damage the projector.
-
Page 6: Maintenance
Please use the setup instruction below: Speaker Screen Subwoofer Speaker C Projector Amplifier Appreciate seats Door Speaker In order to get good image quality ,donot let the sunlight shine the screen directly .If you use the projector in the day time, Speaker Speaker... -
Page 7: Projector Installation
Projector Installation Standard setting (front projection ) Please refer to the following instruction ,adjust your picture size and distance, the projector must be put on a strong flat desk or suspended on the ceiling by mounts 4:3 Image ratio The data maybe have 3% error,due to the image size according to the distance between projector and screen less 2m or over 5m,the image would not be clear. -
Page 8: Installation Method
Table mount Warning 1 This projector might damage beyond repair when it is incorrectly mounted on a ceiling or when its incorrectly installed on a surface or installed on a incorrect surface. It may also inflict damage to persons within close vicinity. - Page 9 Projector installation Input port instuction This projector can support HDMI signal ,component video signal,s-video VGA, and USB input ,TV signal ,the audio in and audio out function Adjust the focus lens until the image is clear Panel brand Logo DVD window...
- Page 10 ,then it will work well Image display reflected 90degree If you use projector in cold day ,you can use the reflected mirror to install on the projector lens(as the above picture),you must adjust the focus lens unitl the projection image are clearest .
-
Page 11: Remote Control Instruction
DVD mode or projector mode. 2,Under DVD mode, all red key in the remote control can be used. Under Projector mode, all blue key can be used.All white key can used under two modes. 3,when press mode switch ,if the indicator light are red,it means the remote cotnrol can control the DVD menu ;... -
Page 12: Panel Keystoke Instruction
POWER key ,for open /close projector if close it must wait for release hot ,then Menu direction key ,can up/down turn off the switch back of the projector or choose TV channel Menu direction Key ,can left/right or adjust the volume higher or lower... -
Page 13: Language Setup
After 2 second the projector lamp begin work began appear unclear white light on the screen after 2 minute,the projector begin work 5. For the new projector. When the frist time to use maybe will appear image unclear or trapezoid distortion please read image adjustment chapter 6. -
Page 14: Image Adjustment
Focus adjustment turn the lens into the projector then turn it out slowly at the same time looking at the resolution point carefully when the image is very clearly (take the middle area of the image),it is the... -
Page 15: Menu Setting Method
Menu setting Menu setting method 1. Using the projector press menu key, the picture disply on screen to adjust the menu(picture one) 2. press key the menu entre into image > volume > function > system > setting > image adjust interface 3.
