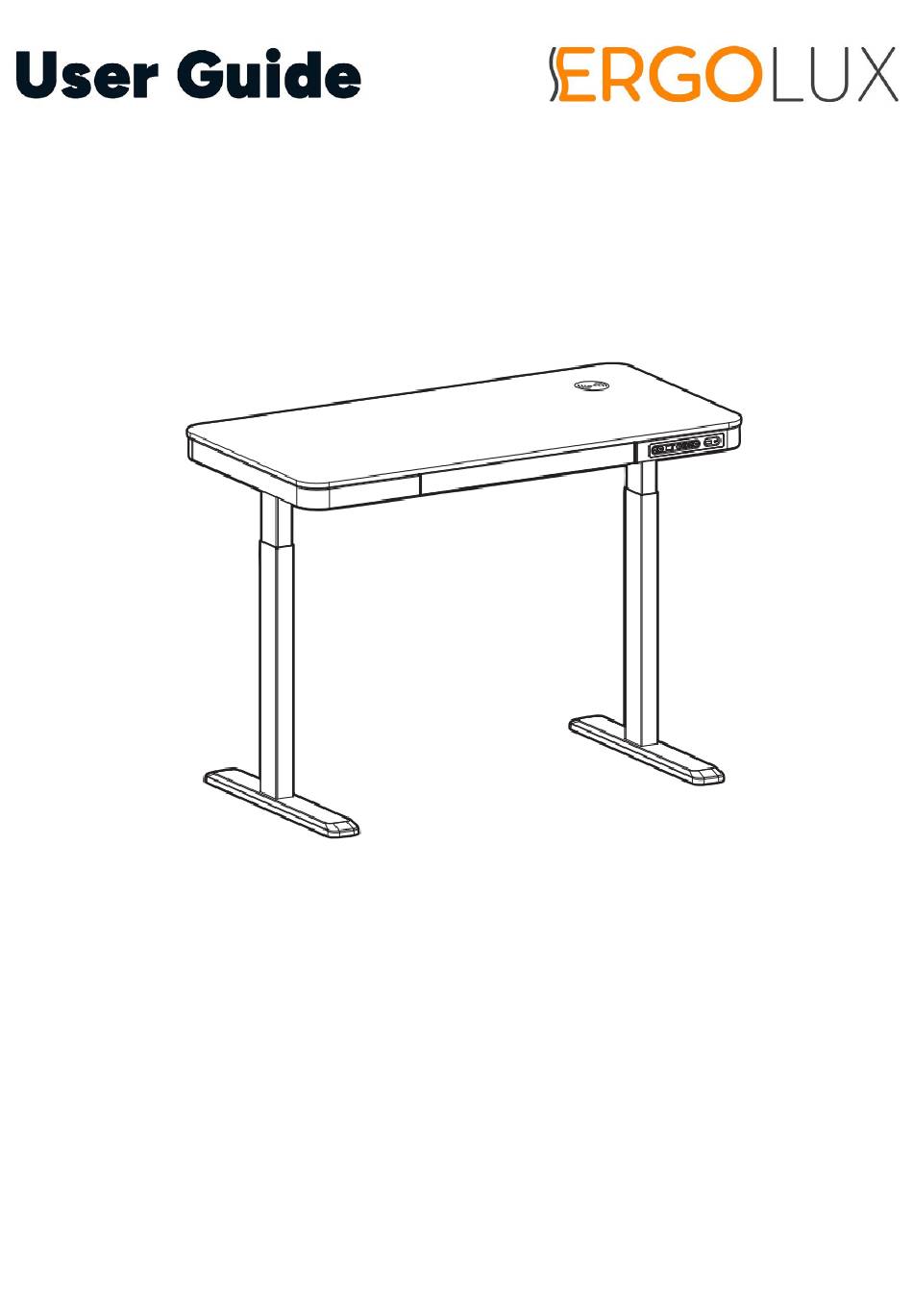

- Page 1 Sorrento Electric Standing Desk with Drawer and USB Ports (120 x 60cm) ELSTDSKTGNB & ELSTDSKTGWB...
-
Page 2: Safety And Warnings
Safety & Warnings • Read all instructions before use and retain this user guide for future reference. • Read all following safety precautions carefully before use. • This desk is designed for indoor use only. • Any failure to comply with the safety and installation instructions in this manual may cause serious bodily harm. -
Page 3: Electrical Safety Instructions
Electrical Safety Instructions The product is powered by electricity. To avoid burns, fire and electric shock, read all instructions carefully. Don't clean the product with water while the power is still connected. Don't disassemble or replace components while the power is still connected. - Page 4 Components Lay all components out on a clean floor and ensure all parts are included. If any pieces are missing, check all packaging thoroughly, then contact help.Kogan.com for assistance. A Desktop B Hook C Lifting Column (x2) D Feet (x2) S-A M6x12 Hex Screw S-B ST4.2x9.5 Screw S-C Cable Tie (x3)
-
Page 5: Installation
Installation Step 1: Attaching the Lifting Columns • Carefully place the desktop (A) upside down on top of a soft blanket on the floor. • Attach the lifting columns (C) to the desktop (A) using x8 M6x12 hex screws (S-A). Tighten the screws using the Allen key (S-F). - Page 6 Step 2: Attaching the Feet • Attach the feet (D) to the lifting column (C) using x8 M6x12 hex screws (S-A). Tighten the screws using the Allen key (S-F). • Attach the hook (B) to the underside of desktop in the desired location using an ST4.2x9.5 Screw (S-B) and a drill.
- Page 7 Step 3: Connecting Cords and Attaching the AC Adapter • Connect the AC adapter and motor to the control panel. Close the clamp on the connectors to secure them together. • Connect the power cord (S-E) to the AC Adapter. •...
-
Page 8: Step 4: Cable Management
Step 4: Cable Management • Attach the cable ties (S-C) to the desktop using the ST4.2x9.5 Screw (S-B) and a drill. • Secure the cables in place using the cable ties (S-C). Step 5: Adjusting the Desk • With the help of another person, turn the desk upright so it is standing on its feet. •... -
Page 9: Operation
Operation Control Panel Memory Setting/ Screen lock Up Button Indicator Down Button USB-A Port USB-C Port Display Timer Memory 1/2 Note: If the control panel is being used for the first time, reset the system before operation. Reset the System 1. -
Page 10: Memory Setting
Stand Reminder Timer • Press the ‘T’ button to set a timer that reminds users to stand up. Each press of the ‘T’ button increases the timer by 0.5 hours (30 minutes). The maximum timer setting is 2 hours. • Once the desired time is set, the display will flash for a few seconds before returning to show the desk’s current height. -
Page 11: Power Saving Mode
Power-saving Mode • The system will automatically enter power-saving mode if there is no user input for 10 minutes. During this mode, the display will turn off. • Touch any button to reactivate the control panel. USB Charging Port The desk features built-in USB-A and USB-C ports for convenient device charging. •... -
Page 12: Control Panel Settings
Control Panel Settings Confirm/ Back/Cancel Adjust Next/Save To Adjust Anti- To Adjust Minimal To Adjust Maximum Collision Sensitivity Height Limit Height Limit (Current Sensor (72~110cm/28.3”- (82~120cm/32.3” ~ Upward Movement) 43.3”) 47.2”) (Level O-Level 8) • Press and hold the ‘M’ and ‘T’ buttons simultaneously for about 5 seconds. - Page 13 To Adjust Anti- To Adjust To Change the Collision To Change the Anti-Collision Current Height Sensitivity Screen Lock and Desktop Sensitivity (Current Sensor Function (0: (Gyro Sensor) Thickness Downward OFF/1: ON) (0~5cm/0~2.0”) (Level 0-8) Movement) (Level 0-8) • Press and hold the ‘M’ and ‘T’ buttons simultaneously for about 5 seconds. The unit will emit a beep, and the display will flash ‘S-1’.
-
Page 14: Specifications
Specifications USB charging ports Combined output: 5V/3A (USB-C & USB-A) Wireless Charger Input DC 15-38V 24W Output Power 5W, 7.5W, 10W Applicable Devices Qi-enabled devices Troubleshooting This guide is designed to help you identify and resolve minor issues caused by irregular operation of the electric system in your sit-stand desk. - Page 15 Motor wires may be broken. Check the connection or contact help.Kogan.com for support. Hall wires may be broken. Check the connection or contact help.Kogan.com for support. Short circuit. Contact help.Kogan.com for support. Overload leads to the motor to fail to drive. Remove all items from the desktop then reset the system.
- Page 16 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.Kogan.com.
