TS5540-MS Micro Spray Valve
User Guide
2.

SPECIFICATIONS

Size
Weight
Fluid Inlet Port
Air Inlet Port
Atomize Air Inlet Port
Fluid Pressure
Activation Pressure
Wetted Parts
Air Cylinder Material
Operating Frequency
Teflon® is a registered trademark of E.I. DuPont
10-32
AIR INLET PORT
1/4-20 PORT
MOUNTING HOLE
122 x 28.5 mm (4.8" x 1.1")
331 g (0.73 lbs.)
1/8" NPT female
10-32 UNF-2B
10-32 UNF-2B
100 psi (6.9 bar) maximum
70 psi (4.8 bar) minimum
303 stainless steel, Teflon®
303 stainless steel
Exceeds 400 cycles/min.
10-32 ATOMIZE
AIR INLET PORT
1/8" NPT
FLUID INLET PORT
1.70" [43.2 mm]
4.8"
[122 mm]

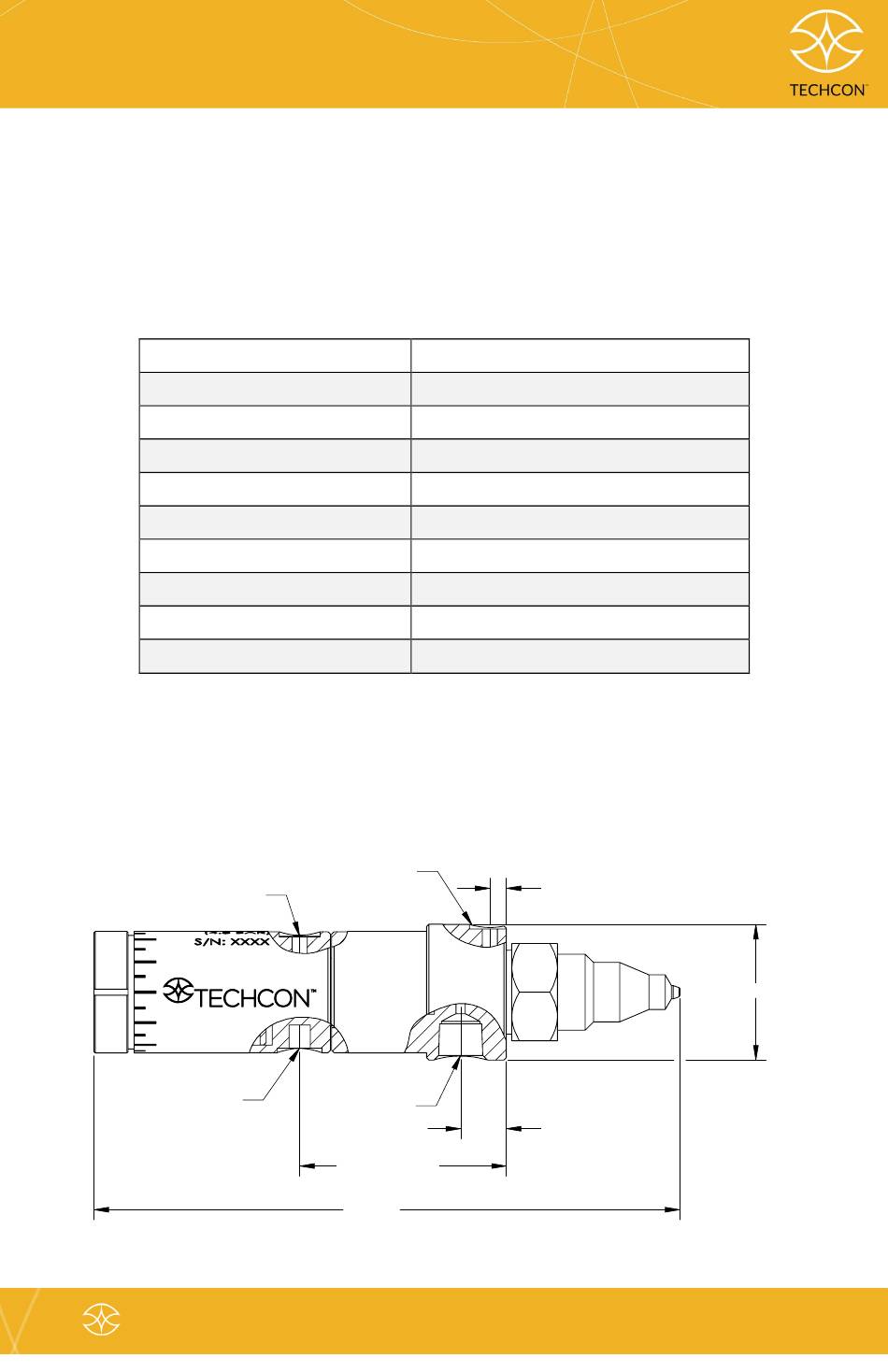

Figure 1.0
4
0.13" [3.3 mm]
1.12" [28.45 mm]
0.38" [9.4 mm]
