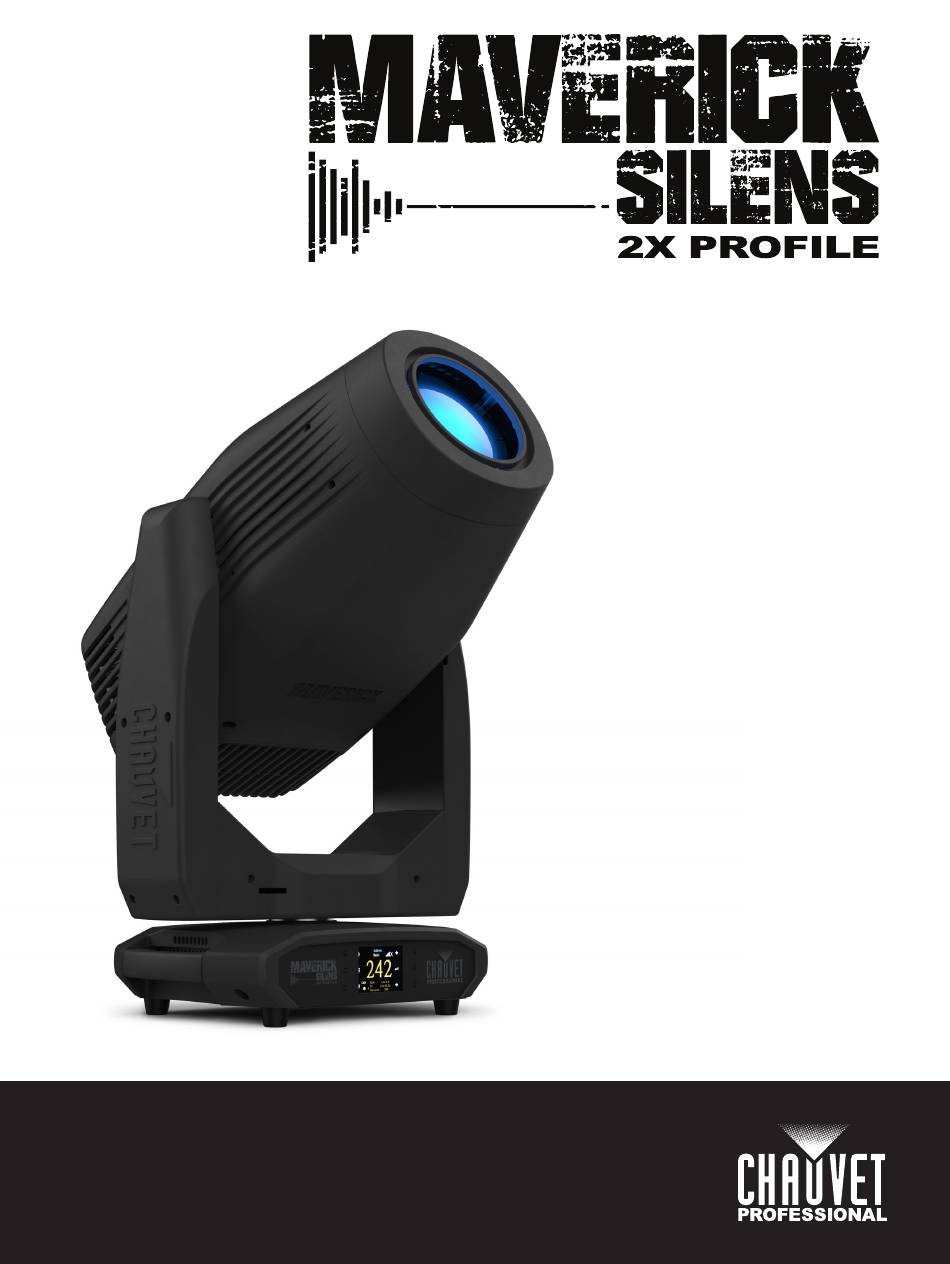

- Page 1 User Manual Model ID: MAVERICKSILENS2XPROFILE...
-
Page 2: Edition Notes
Edition Notes The Maverick Silens 2X Profile User Manual includes a description, safety precautions, installation, programming, operation and maintenance instructions for the Maverick Silens 2X Profile as of the release date of this edition. Trademarks Chauvet, Chauvet Professional, the Chauvet logo, Maverick, and Maverick Silens are registered trademarks or trademarks of Chauvet &... -
Page 3: Table Of Contents
Procedure......................12 Gobo Replacement Diagrams ................12 4. Operation ..................Touchscreen Control Panel................Control Panel Description .................. 13 Battery-Powered Display..................13 Home Screen ....................Control Panel Lock..................Passcode ......................13 Technician Mode................... Maverick Silens 2X Profile User Manual Rev. 1... - Page 4 Manual Test ....................... 26 System Information ..................Zero Adjust Mode..................Web Server ....................5. Maintenance................Product Maintenance ..................Gobo Maintenance..................Transporting on Truss or Racks..............6. Technical Specifications ............Contact Us ..................Warranty & Returns..................Maverick Silens 2X Profile User Manual Rev. 1...
-
Page 5: Before You Begin
Important installation or configuration information. The product may not function correctly if this information is not used. Useful information. The term “DMX” used throughout this manual refers to the USITT DMX512-A digital data transmission protocol. Maverick Silens 2X Profile User Manual Rev. 1... -
Page 6: Safety Notes
• In the event of a serious operating problem, stop using immediately. If a Chauvet product requires service, contact Chauvet Technical Support. Maverick Silens 2X Profile User Manual Rev. 1... -
Page 7: Fcc Statement Of Compliance
LEDs, contributing to shorter lifespans if always used at full intensity. The average LED lifespan is 40,000 to 50,000 hours. To extend LED lifespan, maintain proper ventilation around the product, and limit the overall intensity. Maverick Silens 2X Profile User Manual Rev. 1... -
Page 8: Introduction
1 Menu buttons 2 LCD display 3 Mounting bracket 4 Carry handles 5 Power in 6 Power out 7 Fuse holder 8 Ethernet ports 9 Antenna 10 5-pin DMX in/out 11 USB port Maverick Silens 2X Profile User Manual Rev. 1... -
Page 9: Product Dimensions
276.8 mm 216.9 mm 31.16 in 791.5 mm 21.95 in 577.5 mm 10.68 in 271 mm 15.95 in 405 mm 5.5 in 17 in 140 mm 432.8 mm 5.5 in 140 mm Maverick Silens 2X Profile User Manual Rev. 1... -
Page 10: Setup
4. Screw the fuse holder cap back in place and reconnect power. Power Linking It is possible to power link Maverick Silens 2X Profile products. See the table below for the current draw at each voltage and frequency: 100 V, 60 Hz... -
Page 11: Mounting
When rigging the product onto a truss, use a mounting clamp of appropriate weight capacity. Procedure The Maverick Silens 2X Profile comes with 2 Omega brackets to which the user can directly attach mounting clamps (sold separately). Make sure the clamps are capable of supporting the weight of this product. -
Page 12: Signal Connections
DMX controller, download the DMX Primer from the Chauvet website: www.chauvetprofessional.com. DMX Linking The Maverick Silens 2X Profile can link to a DMX controller using a 5-pin DMX connection or a CRMX connection. For more information about DMX, read the DMX primer at: https://www.chauvetprofessional.com/wp-content/uploads/2016/06/DMX_Primer.pdf. -
Page 13: Usb Software Update
Setup USB Software Update The Maverick Silens 2X Profile allows for software updates with a USB device using the built-in USB port. To update the software using a USB flash drive, do the following: 1. Power on the product, and plug the flash drive into the USB port. -
Page 14: Color Wheel
Setup Color Wheel Congo Blue Orange Cyan Green Rotating Gobo Dimensions 27 mm 22 mm IMAGE Maverick Silens 2X Profile User Manual Rev. 1... -
Page 15: Gobo Designs
Leafiness Dotty Busted burlap (glass gobo) (metal or glass gobo) (metal or glass gobo) (glass gobo) Grass vignette Basketcase CaChow (glass gobo) (glass gobo) (metal or glass gobo) (metal or glass gobo) Maverick Silens 2X Profile User Manual Rev. 1... -
Page 16: Gobo Replacement
This provides a layer of protection against the high temperature from the lamp. • All custom gobos in the Maverick Silens 2X Profile gobo wheel 1 must be aluminum or glass. Procedure Follow the recommended procedure below to remove or replace the gobos: 1. -
Page 17: Operation
4. Operation Touchscreen Control Panel The Maverick Silens 2X Profile has a touchscreen display as well as 6 control buttons. Navigate the menu structure by pressing the buttons, touching the images of the buttons on the sides of the display, or touching the desired menu option on the display directly. -
Page 18: Menu Map
Operation Menu Map Refer to the Maverick Silens 2X Profile product page on www.chauvetprofessional.com for the latest software and menu map. Main Level Programming Levels Description Address 001–512 Sets the starting address Manual Manually set IP address IP Mode DHCP... - Page 19 Network or Downloads update file from another Fixture to Fixture controller is Maverick Silens 2X Profile Driver being sent! via DMX and press enter key to start update Maverick Silens 2X Profile User Manual Rev. 1...
- Page 20 Shutter 1-1 Shutter 1-2 Shutter 2-1 Shutter 2-2 Shutter 3-1 Shutter 3-2 Shutter 4-1 Shutter 4-2 Focus Focus Fine Auto Focus Zoom Zoom Fine Prism Prism Rot Iris Frost Frost Fine Control Maverick Silens 2X Profile User Manual Rev. 1...
- Page 21 Shutter 1-1 Shutter 1-2 Shutter 2-1 Shutter 2-2 Shutter 3-1 Shutter 3-2 Shutter 4-1 Shutter 4-2 Focus Focus Fine Auto Focus Zoom Zoom Fine Prism Prism Rot Iris Frost Frost Fine Control Maverick Silens 2X Profile User Manual Rev. 1...
-
Page 22: Control Configuration
Use control configurations to operate the product with a DMX, Art-Net™, or sACN controller. Control Mode The Maverick Silens 2X Profile works with wired DMX, CRMX, Art-Net™, and sACN control signals. To select which protocol to use: 1. Go to the Settings main level. -
Page 23: Control Channel Assignments And Values
188 219 Color scroll, fast to slow 220 223 Stop 224 255 Reverse color scroll, slow to fast 000 127 -25 to 0 Green – – Hue adjustment 128 255 0 to +25 Green Maverick Silens 2X Profile User Manual Rev. 1... - Page 24 151 165 Gobo 8 shaking, slow to fast 166 210 Gobo scroll, static to fast 211 255 Reverse gobo scroll, static to fast 000 127 Animation excluded – – Animation engage 128 255 Animation inserted Maverick Silens 2X Profile User Manual Rev. 1...
- Page 25 112 119 Gobo wheel auto focus - 16 m 120 127 Gobo wheel auto focus - 18 m 128 255 Reserved Zoom 000 255 0–100% – – Fine zoom 000 255 Fine control (16-bit) Maverick Silens 2X Profile User Manual Rev. 1...
- Page 26 112 119 Dimmer curve: square 120 127 Dimmer curve: ISquare 128 135 Dimmer curve: SCurve 136 143 Dimmer mode: fast 144 151 Dimmer mode: smooth 152 255 Reserved Maverick Silens 2X Profile User Manual Rev. 1...
-
Page 27: Settings Configuration
3. Select from 270 (270°), 180 (180°), or 090 (90°). Black out on Movement To set the Maverick Silens 2X Profile to black out on pan or tilt movement, color wheel movement, or gobo wheel movement: 1. Go to the Settings main level. -
Page 28: Touchscreen Calibration
3. Select from No (pan controls pan, tilt controls tilt) or Yes (pan controls tilt, tilt controls pan). CRMX Reset To reset the CRMX connection and allow the Maverick Silens 2X Profile to connect to a CRMX transmitter: 1. Go to the Settings main level. -
Page 29: Preset Selection
1. Connect the Maverick Silens 2X Profile products to receive the Presets by a DMX daisy chain. 2. Make the Maverick Silens 2X Profile with the Presets to transfer the first in the DMX daisy chain. 3. Power on all of the products. -
Page 30: Test Mode
Operation Test Mode Auto Test To have the Maverick Silens 2X Profile automatically test all functions one after the other: 1. Go to the Test main level. 2. Select the Auto Test option. Manual Test To manually test an individual function of the Maverick Silens 2X Profile: 1. -
Page 31: Web Server
Operation Web Server The Maverick Silens 2X Profile Web Server can be accessed by any computer on the same network as the product. It allows network access to system information, settings such as control setup, manual testing of all functions, firmware updates, and the ability to change the Web Server password. -
Page 32: Maintenance
(needle tip applier recommended). Make sure the gobo holder is rotating freely and is not making any abnormal noise. 8. Reinstall the gobos in the gobo holder. Make sure the gobos are in the correct positions. 9. Reinstall the gobo holder in the unit. Maverick Silens 2X Profile User Manual Rev. 1... -
Page 33: Transporting On Truss Or Racks
This is to prevent undue stress on the tilt locks and limit the amount of off-axis bounce on internal components. Maverick Silens 2X Profile User Manual Rev. 1... -
Page 34: Technical Specifications
5-pin XLR Amphenol XLR Net RJ45 32 or 41 Ordering Product Name Item Name Item Code UPC Number Maverick Silens 2X Profile MAVERICKSILENS2XPROFILE 03012295 781462226435 UL 1573 CSA C22.2 No. 166 E113093 Maverick Silens 2X Profile User Manual Rev. 1... -
Page 35: Contact Us
For warranty terms and conditions and return information, please visit our website. For customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration. For customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration. Maverick Silens 2X Profile User Manual Rev. 1...
