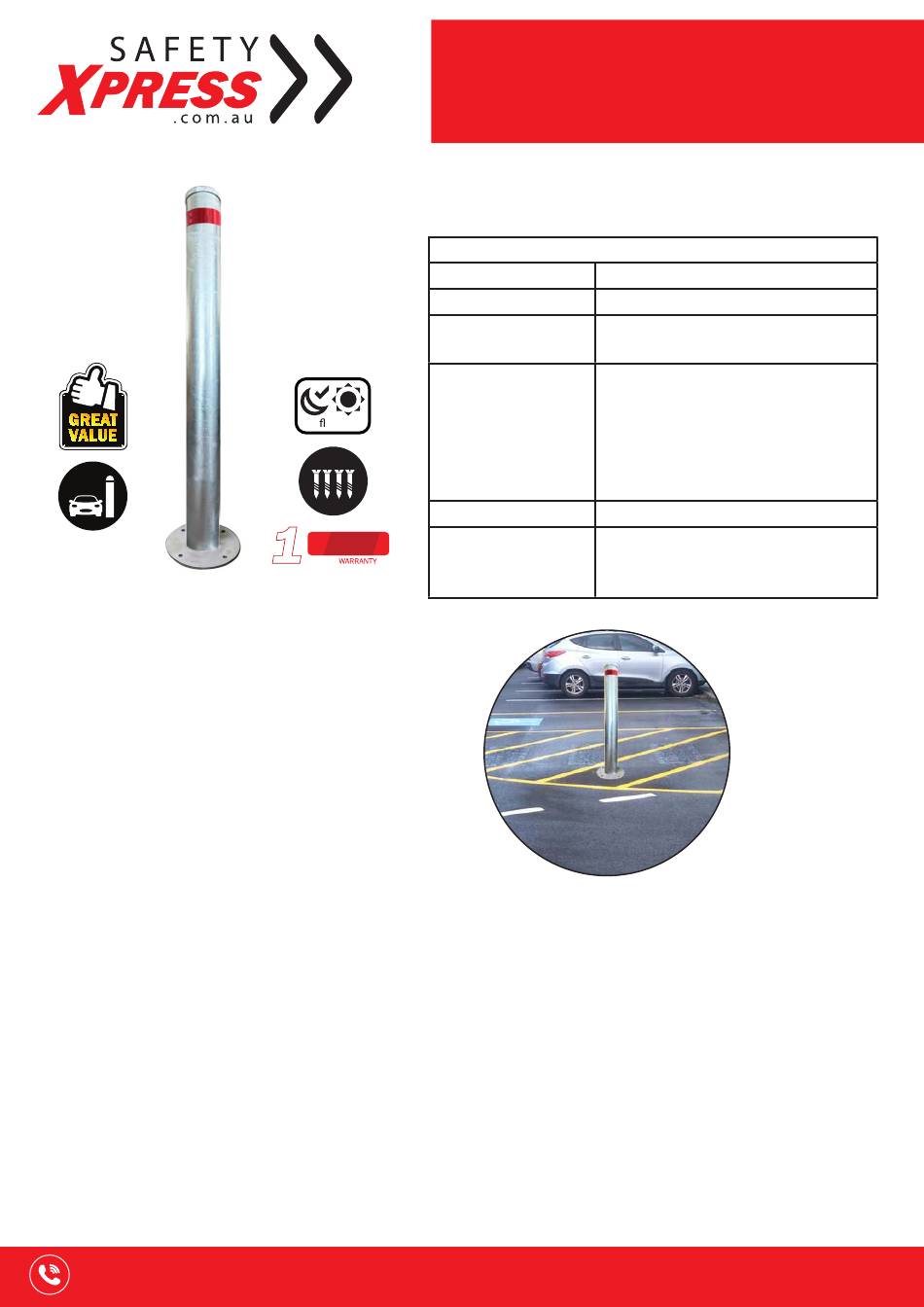

Safety Xpress BOLSM140GALV Installation Manual

P
Tools Required:
• Hammer drill with 14mm drill bit for M10
coach screw 100mm, or 10mm drill bit for M10
concrete screw anchors
• Fixing kit (M10 coach screws 100mm, or 60mm
M10 concrete screw anchors, or 100mm M10
concrete screw anchors)
• The correct sized socket
• A hammer
• A hand broom or industrial vacuum
Installation:
1. Read all instruction steps from beginning to
end.
2. Determine exactly where the bollard will be
placed. If you are installing more than one
bollard, it is a good idea to mark the ground
to ensure that you have a straight line to
assist you with the correct placement of
your bollards.
3. Using your hammer drill, drill a guide hole
in the surface, through each hole in the
bollard using the drill bit. (This is to mark
the surface so that you know where to
continue to drill).
1300 049 246
PRODUCT INFORMATION &
Surface Mount Bollard
SKU
Material
Colour
Re ective
Dimensions:
FREE
Fixings
Item Weight
2 2
MONTHS MONTHS
Fixings
4. Remove the bollard and brush or vacuum
5. Continue to drill each guide hole to almost the
6. If you are using a plastic plug component, put
7. Place the bollard over the holes, line up and
8. Use your socket to tighten the screw if
INSTALLATION GUIDE
Specifications
BOLSM140GALV
Hot Dip Galvanised Steel
Silver Galvanised body with
Class 1 Red Reflective Tape
Height: 1300mm
Diameter:
140mm (Pole) 250mm (Base)
Wall Thickness: 3mm
Base: 4 Mounting Holes
16mm each in Diameter
16kg
4 x FREE Mounting Bolts
Included per bollard
(standard fixings kit)
away the dust.
entire length of your fixings.
it in the drilled hole and hammer in.
place your fixing in the holes and screw or
hammer in.
applicable. Be careful not to overtighten.
www.safetyxpress.com.au
