Safety Xpress BOLBG90 Installation Manual

Tools Required:
• Post hole digger or shovel
• Concrete or concrete mix and water
• Spirit Level
• Shovel
• Measuring Tape
• Trowel
Installation:
1. Determine exactly where the bollard will be
placed and mark your installation positions. If you
are installing more than one bollard, it is a good
idea to mark the ground and use a string line to
ensure that you have a straight line to assist you
with the correct placement of your bollards.
2. Mark the ground at the centre point of where the
bollard will sit. Your aim is to make sure that the
centre of the hole is also the centre of the bollard.
3. Dig a hole in the gravel or dirt. The width of
your hole should be the diameter of the base of
the bollard plus 30mm and the hole should be
approximately 300mm deep.
1300 049 246
PRODUCT INFORMATION &
INSTALLATION GUIDE

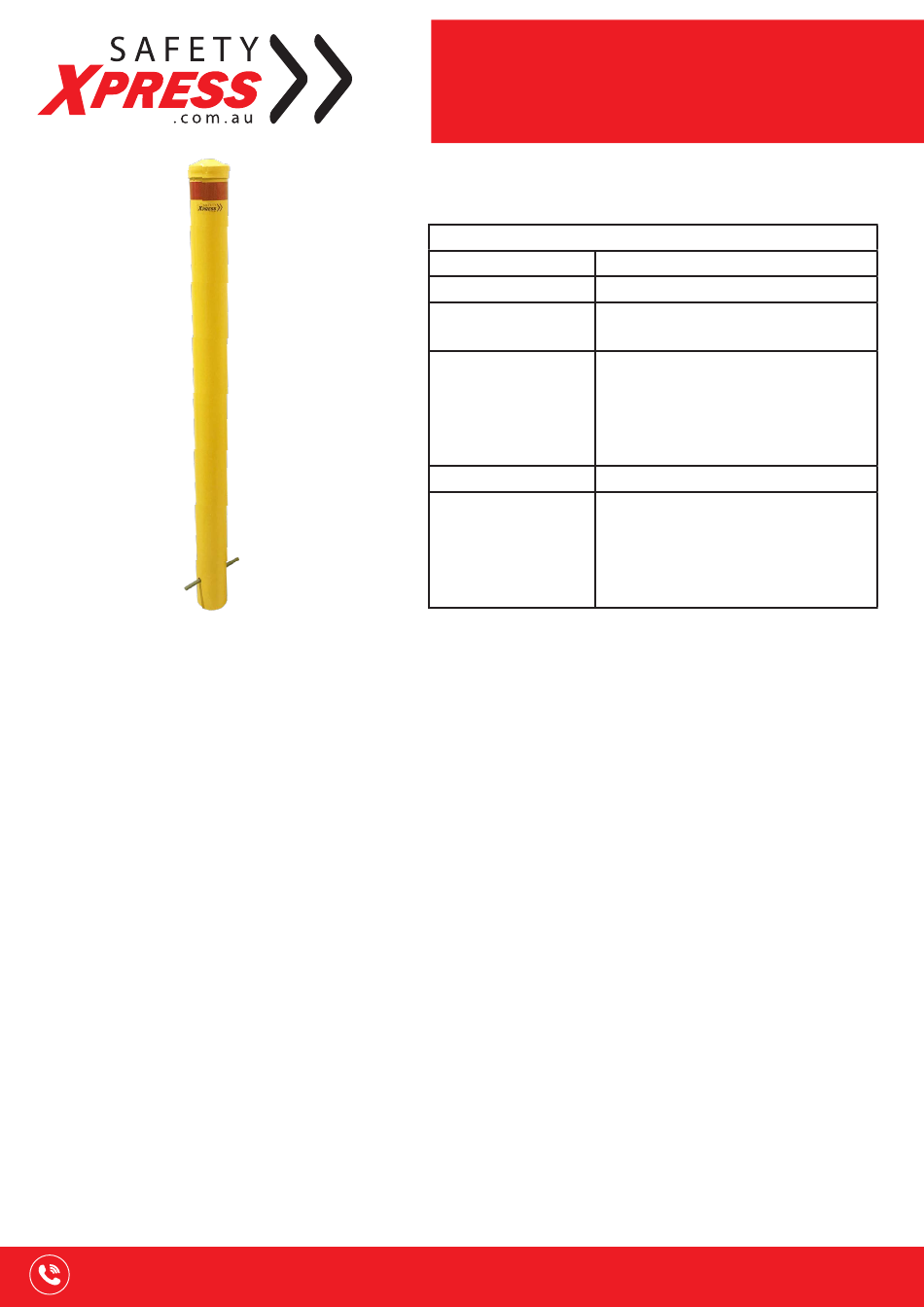

In-Ground Bollard
Specifications
SKU BOLBG90
Material Hot Dip Galvanised Steel
Powder Coated Yellow with
Colour
Class 1 Red Reflective Tape
Diameter: 90mm
Height:
Dimensions:
1200mm Total (900mm above
ground, 300mm below ground)
Wall Thickness: 3mm
Item Weight 9kg
Anchor rod included at base
which can be removed when
Fixings core drilling into existing
concrete or inserted when
setting in new concrete.
4. Prepare the concrete according to manufacturer's
instructions.
5. Place the bollard into the hole and use your level to
ensure that it is vertical.
6. It is advisable to place some crushed rock or gravel
at the bottom of the hole to act as drainage in the event
of water seepage.
7. Shovel the concrete around the base of the bollard,
moving the concrete and packing it down around the
bollard as you fill the hole to surface level.
8. Ensure the surface of the concrete around the bollard
is flat to eliminate any trip hazards by using a trowel to
smooth off the surface.
9. Observe the cure time of the concrete, usually 48
hours, to complete the bollard installation. You may
want to protect the bollard from interference in this time.
Note: For Installation in Pre-Existing
Concrete Surfaces
We highly recommend you engage a professional core
driller to complete the installation. Enquire about our
installation services
www.safetyxpress.com.au
