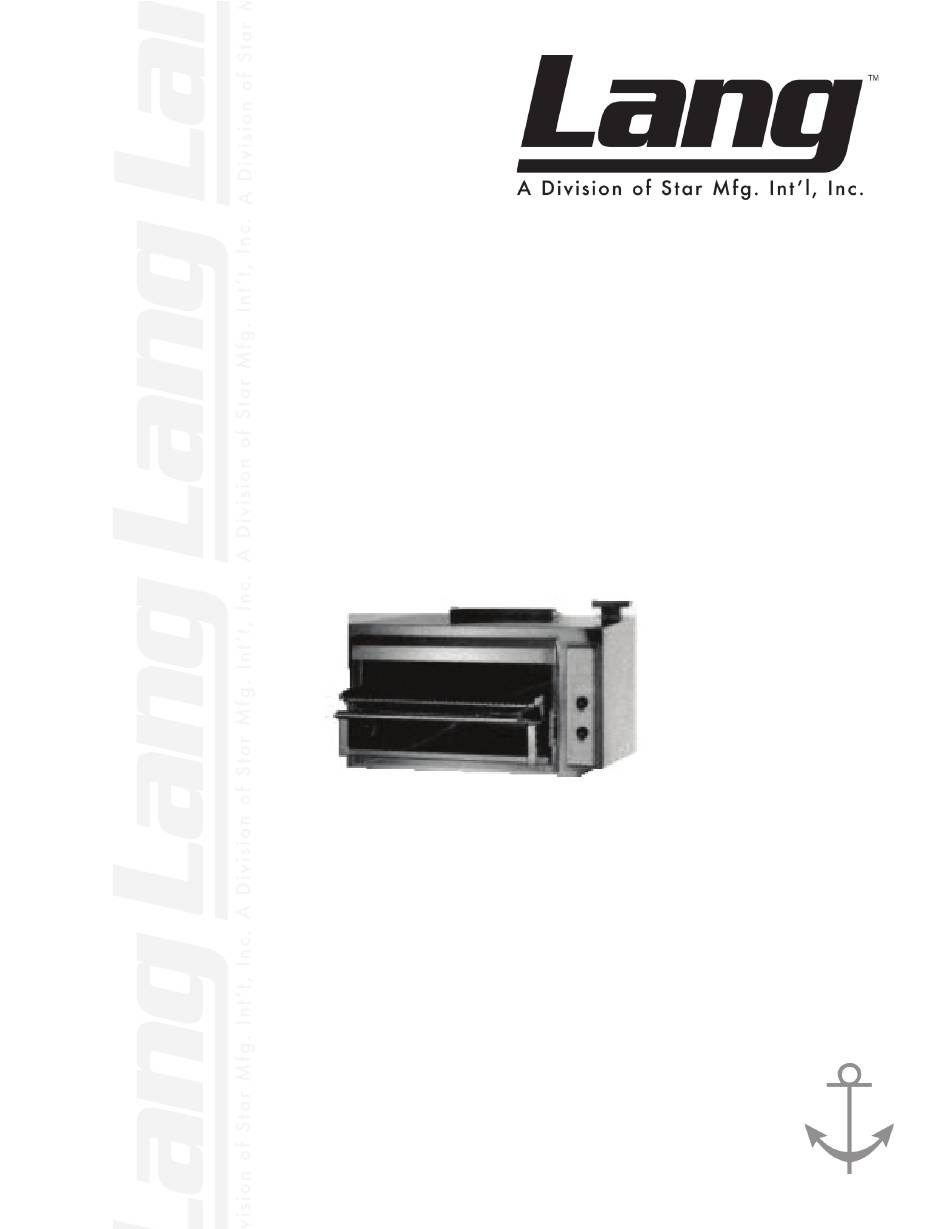

- Page 1 Electric Cruise Line Single Broiler w/ Cabinet Base CLB36-1-440V Installation and Operation Instructions 2M-W1256 REV B (10-22) CLB36-1-440V...
- Page 2 LIMITED EQUIPMENT WARRANTY WARRANTY EXCLUSIONS Lang Manufacturing warrants to the original purchaser of new Lang THE FOLLOWING WILL NOT BE COVERED UNDER WARRANTY. products to be free from defects in material or workmanship, under normal Lang’s sole obligation under this warranty is limited to either repair or and proper use and maintenance service as specified by Lang and upon replacement parts, subject to the additional limitations detailed proper installation and start-up in accordance with the instructions...
-
Page 3: Table Of Contents
TABLE OF CONTENTS CHAPTER PAGE 1. TABLE OF CONTENTS ................3 2. READ FIRST ....................4 3. UNPACKING....................6 4. INSTALLATION ................... 7 5. INITIAL START-UP..................8 6. OPERATION....................8 7. CLEANING....................9 8. TROUBLESHOOTING ................. 10 9. PARTS LISTS ....................11 10. -
Page 4: Read First
IMPORTANT READ FIRST IMPORTANT CAUTION: THE BROILER WEIGHS 370 LBS. (167.83 kg). FOR SAFE HANDLING, INSTALLER SHOULD OBTAIN HELP AS NEEDED, OR EMPLOY APPROPRIATE MATERIALS HANDLING EQUIPMENT (SUCH AS A FORKLIFT, DOLLY, OR PALLET JACK) TO REMOVE THE UNIT FROM THE SKID AND MOVE IT TO THE PLACE OF INSTALLATION. - Page 5 Service on this, or any other, LANG appliance must be performed by qualified personnel only. Consult your authorized service station directory or call the factory at 1-800-807-9054, or WWW.STAR-MFG.COM for the service station nearest you. WARNING: BOTH HIGH AND LOW VOLTAGES ARE PRESENT INSIDE THIS APPLIANCE WHEN THE UNIT IS PLUGGED/WIRED INTO A LIVE RECEPTACLE.
-
Page 6: Unpacking
UNPACKING 3.1 Receiving the Broiler Upon receipt, check for freight damage, both visible and concealed. Visible damage should be noted on the freight bill at the time of delivery and signed by the carrier's agent. Concealed loss or damage means loss or damage, which does not become apparent until the merchandise has been unpacked. -
Page 7: Installation
INSTALLATION DANGER: THIS APPLIANCE MUST BE GROUNDED AT THE TERMINAL PROVIDED. FAILURE TO GROUND THE APPLIANCE COULD RESULT IN ELECTROCUTION AND DEATH. WARNING: INSTALLATION OF THE UNIT MUST BE DONE BY PERSONNEL QUALIFIED TO WORK WITH ELECTRICITY. IMPROPER INSTALLATION CAN CAUSE INJURY TO PERSONNEL AND/OR DAMAGE TO EQUIPMENT. -
Page 8: Initial Start-Up
INITIAL START UP 5.1 PRE-POWER ON Initial Start-up Before the initial use of the broiler, the unit must be wiped down thoroughly with a dry rag, to remove any oils used in manufacturing. Also the unit must be thoroughly allowed to dry itself out. This is done be setting the thermostat to 350°. Allow the range oven to heat until all vapor and condensation has been eliminated. -
Page 9: Cleaning
CLEANING 7.1 After each Meal Cleaning WARNING: KEEP WATER AND SOLUTIONS OUT OF CONTROLS. NEVER SPRAY OR HOSE CONTROL CONSOLE, ELECTRICAL CONNECTIONS, ETC. CAUTION: MOST CLEANERS ARE HARMFUL TO THE SKIN, EYES, MUCOUS MEMBRANES AND CLOTHING. PRECAUTIONS SHOULD BE TAKEN TO WEAR RUBBER GLOVES, GOGGLES OR FACE SHIELD AND PROTECTIVE CLOTHING. -
Page 10: Troubleshooting
Service on this, or any other, LANG appliance must be performed by qualified personnel only. Consult your authorized service station directory or call the factory at 1-800-807-9054, or WWW.STAR-MFG.COM for the service station nearest you. WARNING: BOTH HIGH AND LOW VOLTAGES ARE PRESENT INSIDE THIS APPLIANCE WHEN THE UNIT IS PLUGGED/WIRED INTO A LIVE RECEPTACLE. -
Page 11: Parts Lists
PARTS LIST CLB36-1-400V & CLB36-1-440V Fig No. Part No. Description Body J9-CLB-226 PAN - BROILER 1M-72602-04 GSKTTPEHITMP1/2X1/16X10YD J9-CLB-225 SWITCH PANEL - CLB Heat Switch to 4/17/16 2R-30304-W32-1 2E-30304-36 Heat Switch from 4/18/16 J9-CLB-319 RACK ADJUSTMENT - BROILER 2C-20111-09 SCRW HXHD CAP 10-32X1/2 J9-CLB-212 FRONT HOOD - BROILER 2K-70801-02... - Page 18 LANG MANUFACTURING 265 Hobson Street, Smithville, TN 37166 U.S.A. (800) 264-7827 www.langworld.com...
