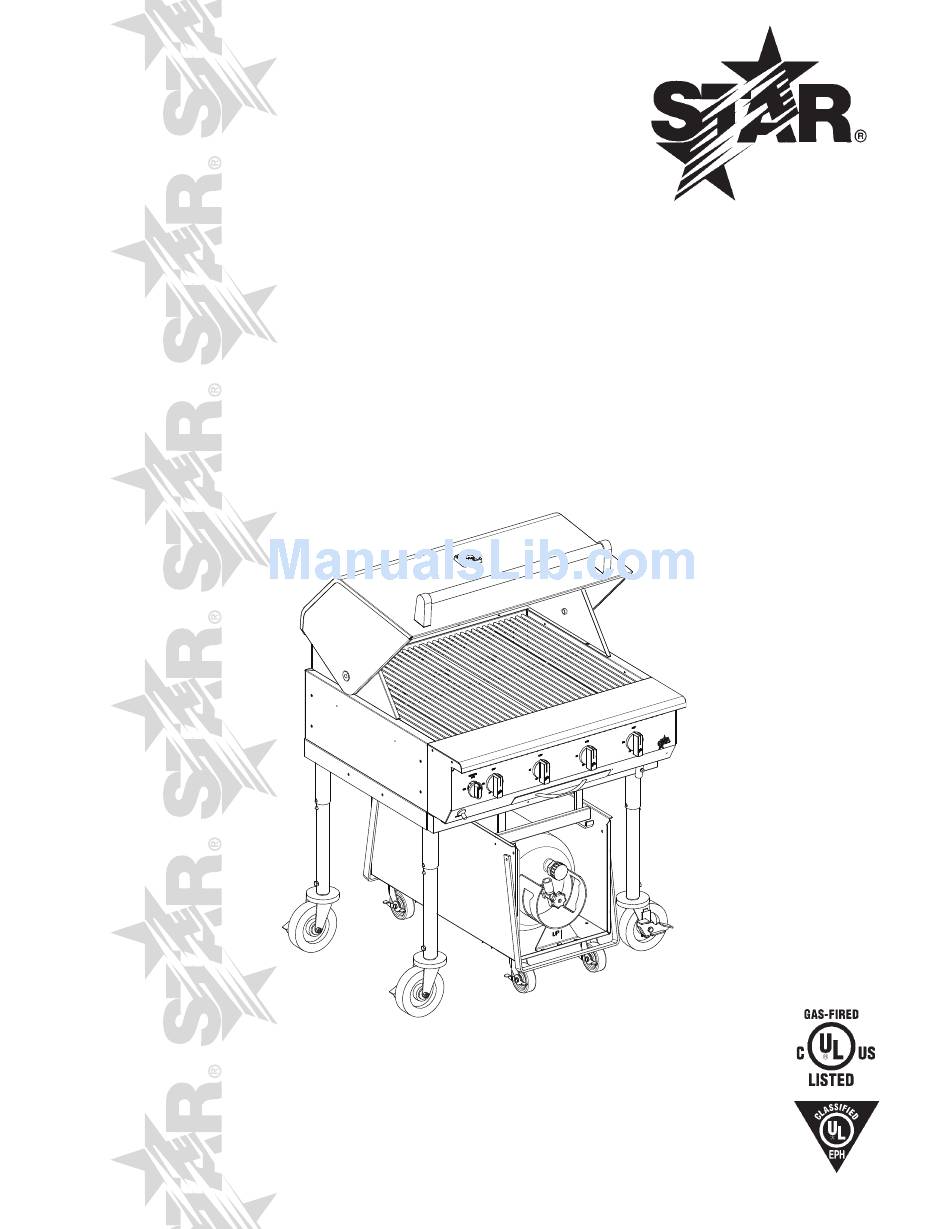

- Page 1 CHARBROILER MODEL OCB30, OCB30T, OCB30TH OCB60, OCB60T, OCB60TH & ACCESSORIES Installation and Operation Instructions 2M-Z920 Rev. B 9/9/09 OCB30TH...
- Page 2 RETAIN THIS MANUAL FOR FUTURE REFERENCE NOTICE Using any part other than genuine Star factory supplied parts relieves the manufacturer of all liability. Star reserves the right to change specifi cations and product design without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment.
-
Page 3: Table Of Contents
OCB30 & OCB60 EXPLODED VIEW ......... 4 OCB30 & OCB60 PARTS LIST ..........5 OCB MANIFOLD EXPLODED VIEW .. -
Page 4: Specifications
SPECIFICATIONS Units are factory installed for LP gas and may be field convertible to natural gas. OCB30 Type: Radiant Style Manual Control 4 Controls for cooking burner; 70,000 BTUH Propane Control for lighter tube Cooking Surface 720 sq in (4645 sq. cm) Approximate weight: Installed - 5 Lb (68.5 kg), Shipping - 200 Lb, (90.7 kg) - Page 5 The carrier will make an inspection and will supply necessary claim forms. The Star-Max™ series gas charbroiler is equipped for the type of gas indicated on the nameplate mounted on the front panel. All units are shipped from the factory for use with LP. The unit can easily be converted for use with Natural Gas, consult your dealer for more information.
- Page 6 GENERAL SAFETY INFORMATION (continued) CAUTION - IMPORTANT SAFETY INFORMATION • Always be sure gas is turned “off” at the burners and at the LP supply gas source when unit is not in use. • This unit shall be operated outdoors in a non-combustible location. Maintain 3 ft. spacing around the unit for operation and servicing.
-
Page 7: General Installation Data Leg Caster Installation
GENERAL INSTALLATION DATA LEG CASTER INSTALLATION Leg Socket Remove all packing material from the unit. Remove the cooking grates & radiants from the unit and with the help of a second person set unit on its back as shown in Fig. . Remove leg/caster Pin Locking assembly from carton and attach in place on grill leg sockets. -
Page 8: Connecting Gas Supply
Attach the other end to the Grill Inlet Grill Inlet using a wrench 90° Elbow On the 60 model, the left side hose OCB30 only will mount to the left tank and the right Regulator Assy side hose to the right tank. LEVELING THE UNIT... -
Page 9: Daily Operation
DAILY OPERATION LOCATING THE GRILL When selecting a suitable location for your grill, take into account concerns such as wind exposure and areas of high traffic. Do not locate the grill close to a home or any kind of combustible construction. -
Page 10: Shutting Down Instructions
DAILY OPERATION (continued) SHUTTING DOWN INSTRUCTIONS To shut down the unit, turn all knobs clockwise to the “OFF” position. Turn LP (propane) gas cylinder control knob clockwise to the “OFF” position. If the unit is not to be used for a while, disconnect LP (propane) gas supply lines from tank (s) for added safety. -
Page 11: Cleaning
If there is no restriction, replace the burner and repeat the lighting steps again by slowly turning on the cylinder gas valve and lighting the burner. If the burner is still not burning correctly, call the Star Parts Help Desk at -800-807-9054. STORAGE DAILY STORAGE Turn off and disconnect the gas supply when finished using the unit. -
Page 12: Hood & Wind Guard Installation
GENERAL ACCESSORY INSTALLATION INITIAL INSPECTION Remove all packing material from your units accessory and all shipping containers should be checked for freight damage both visible and concealed. This unit has been tested and carefully packaged to insure delivery of your unit in perfect condition. If equipment is received in damaged condition, either apparent or concealed, a claim must be made with the delivering carrier. -
Page 13: Lp Tanks
GENERAL ACCESSORY INSTALLATION (continued) LP TANKS New LP (propane) tanks are supplied empty in the tank cart and must be purged of air and filled with propane per NPGA (National Propane Gas Association) recommendations prior Fill Valve to initial use. Gas Valve Tank to Caddy Mounting Bracket... -
Page 14: Mounting Caddy To Charbroiler
GENERAL ACCESSORY INSTALLATION (continued) MOUNTING CADDY TO CHARBROILER Using the cart handles, lift up the front of the tank cart and place the front hanging bracket on the front support brackets (Fig 3). Move to the back of the grill and using the rear cart handle, lift up the cart and slide it back into position on the rear hanging brackets. -
Page 15: Natural Gas Conversion
GENERAL ACCESSORY INSTALLATION (continued) DAILY SEASONING The griddle plate should not require much seasoning while in use. In most cases, brush a light coating of the baking release agent in the morning and occasionally throughout the day will be enough to prevent any sticking. It is not necessary to coat before grilling each item. -
Page 16: Warranty
LIMITED EQUIPMENT WARRANTY All workmanship and material in Star products have a one (1) year limited warranty on parts & labor in the United States and Canada. Such warranty is limited to the original purchaser only and shall be effective from the date the equipment is placed in service. Star's obligation under this warranty is limited to the repair of defects without charge, by the factory authorized service agency or one of its sub-agencies. - Page 18 Are sold with Accessories: thru This drawing contains information confidential to Star Manufacturing International, Inc. 30” & 60” Removable Tank Caddies No reproduction or disclosure of its contents is permitted. SOME ITEMS ARE INCLUDED FOR STAR MANUFACTURING INTERNATIONAL, INC. ILLUSTRATIVE PURPOSES ONLY AND IN...
- Page 19 PARTS LIST September 9, 2009, Rev. A OUTDOOR CHARBROILER GRILL, OCB30 & OCB60 MODEL Fig No Part No Desc Model OCB30 2B-Z9213 GRILL GRATE OCB60 OCB30 H5-Z9237 RADIANT OCB60 OCB30 H5-Z9240 REAR BURNER SUPPORT BRACKET OCB60 OCB30 H5-Z9256 PAN SHIELD...
- Page 20 This drawing contains information confidential to Star Manufacturing International, Inc. No reproduction or disclosure of its contents is permitted. SOME ITEMS ARE INCLUDED FOR ILLUSTRATIVE PURPOSES ONLY AND IN STAR MANUFACTURING INTERNATIONAL, INC. CERTAIN INSTANCES MAY NOT BE AVAILABLE SK2161 REV.
- Page 21 PARTS LIST September 9, 2009, Rev. A OUTDOOR CHARBROILER GRILL MANIFOLD, OCB30 & OCB60 MODEL Fig No Part No Desc Model OCB30 2F-Z9200 BURNER 1 1/4” Dia. OCB60 OCB30 2J-Z5671 ORIFICE # 56 OCB60 OCB30 2V-Z6939 VALVE HI-LO OCB60 2K-Z9221...
- Page 22 OCB-G15 OCB-SHELF OCB-TB20 OCB-CKNAT OCB-TC60 This drawing contains information confidential to Star Manufacturing International, Inc. No reproduction or disclosure of its contents is permitted. SOME ITEMS ARE INCLUDED FOR ILLUSTRATIVE PURPOSES ONLY AND IN STAR MANUFACTURING INTERNATIONAL, INC. CERTAIN INSTANCES MAY NOT BE AVAILABLE...
- Page 23 TANK CADDY BODY ASSY H5-Z9260 CADDY SUPPORT BRKT H5-Z9263 REAR TANK HOLD DOWN BRKT OCB-WG30 WIND GUARD H5-Z9276 WIND GUARD PAGE Some items are included for illustrative purposes only and in certain instances may not be available. Star Manufacturing International, Inc.
