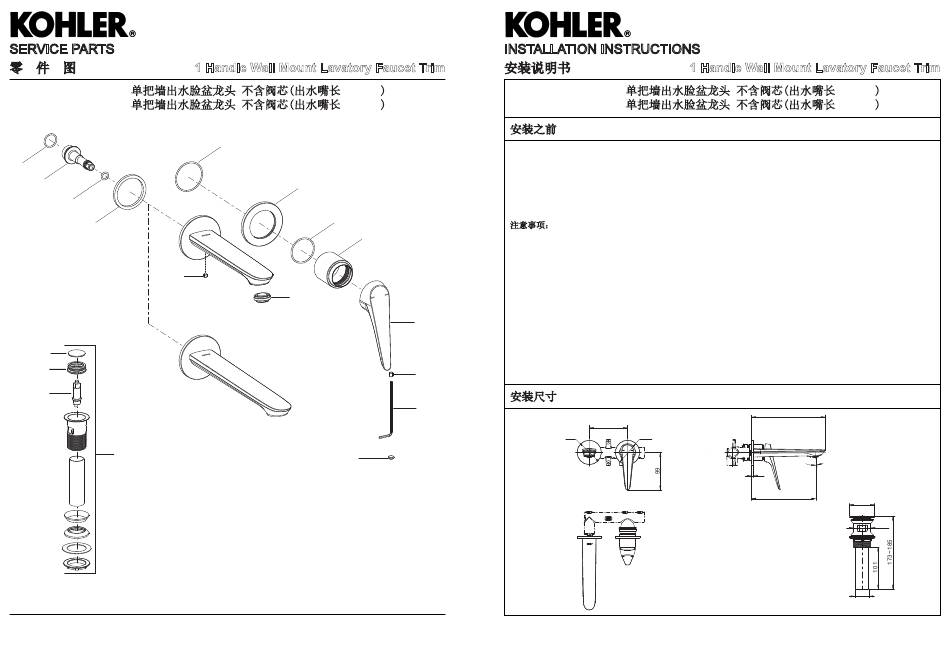

Kohler FLUENCE 33849T-4 Installation Instructions

SERVICE PARTS
零 件 图
33849T-4
单把墙出水脸盆龙头 不含阀芯(出水嘴长170mm)
33850T-4
单把墙出水脸盆龙头 不含阀芯(出水嘴长222mm)
34353
1581776
870817
1043069
3013706
1102888**
1102889
1102892
1095926**
**订购时请说明颜色编号
**Color code must be specified when ordering
1585103-T2-A
FLUENCE
1 Handle Wall Mount Lavatory Faucet Trim
871310
1481209**
1041450
1581325**
1213964
1398346(用于CP/BN表面)
1415585(用于AF表面)
1415586(用于BL表面)
斐勒
INSTALLATION INSTRUCTIONS
安装说明书
33849T-4
33850T-4
安装之前
所有的资料是按最新出版的产品资料编写而成。科勒
公司保留任何时候不经通知即可改变产品特性、包装
或产品可供类型的权利。
说明书包括重要的安装、保养及清洁方面的内容，请
把这些资料交给用户阅读。
注意事项：
1.一定要先彻底冲洗供水管以清除管道中的杂质。
2.检查供水管有无损坏和漏水。如需要，进行替换和
维修。
3.遵守当地管路安装条例。
4.本产品需与单把墙出水脸盆龙头阀芯28028T-NA搭
配使用。
5.确保安装此产品之前，单把墙出水脸盆龙头阀芯
28028T-NA已安装完毕。
1581327**
6.水嘴加施的水效标识表明本产品的水效等级等性能
符合GB 25501-2019《水嘴水效限定值及水效等级》
的要求，是产品符合性的一种标识。
833438
安装尺寸
833730
Ø65
4
1585103-T2-A
1 Handle Wall Mount Lavatory Faucet Trim
单把墙出水脸盆龙头 不含阀芯(出水嘴长170mm)
单把墙出水脸盆龙头 不含阀芯(出水嘴长222mm)
BEFORE YOU BEGIN
All information is based on the latest product
information available at the time of publication.
Kohler Co. reserves the right to make changes in
product characteristics, packaging, or availability at
any time without notice.
Please leave these instructions for the consumer.
They contain important information.
NOTES:
1. Flush the water supply pipes thoroughly to remove
debris.
2. Inspect the supply tubing for damage and leakage.
Replace and maintain as necessary.
3. Observe local plumbing codes.
4. This product should match with the wall mount
lavatory faucet valve 28028T-NA.
5. Install the wall mount lavatory faucet valve
28028T-NA before installing this product.
6. The water efficiency label applied to the faucet
indicates that the water efficiency grade and other
performance of the product meet the requirements of
GB 25501-2019 "Minimum Allowable Values of Water
Efficiency and Water Efficiency Grades for Faucets"
which is a marking of product conformity.
ROUGH-IN DIMENSIONS
33849T: 196
33850T: 247
102
Ø65
5
33849T: 170
33850T: 222
斐勒
FLUENCE
8º
Ø56
Ø42
Ø31.75
1
