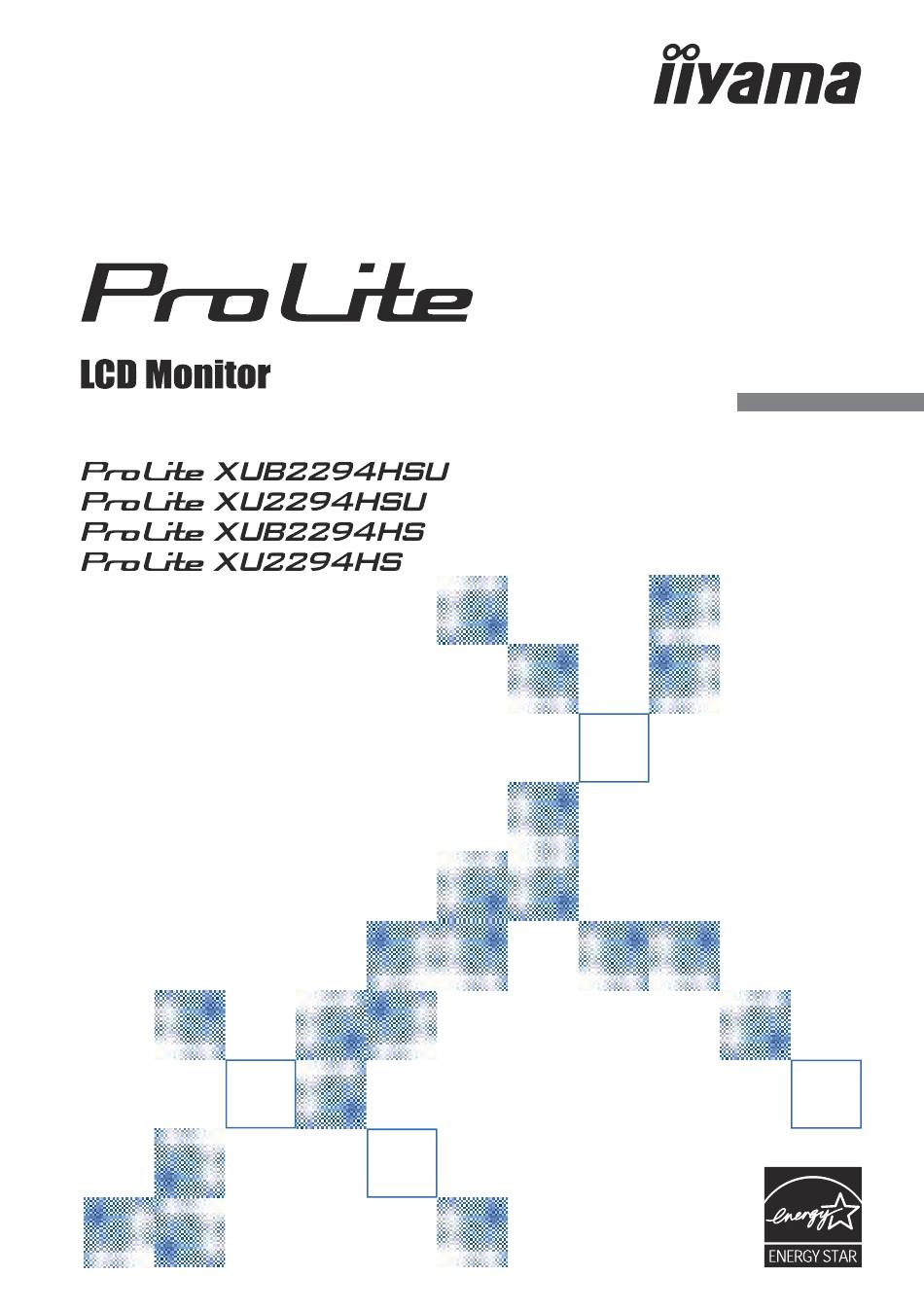

USER MANUAL
ENGLISH
Thank you very much for choosing the iiyama
LCD monitor.
We recommend that you take a few minutes
to read this comprehensive manual carefully
before installing and switching on the monitor.
Please keep this manual in a safe place for
your future reference.

Advertisement

loading
Need help?

Need help?

Do you have a question about the ProLite XUB2294HSU and is the answer not in the manual?

Questions and answers

Related Manuals for Iiyama ProLite XUB2294HSU

Summary of Contents for Iiyama ProLite XUB2294HSU

  • Page 1 USER MANUAL ENGLISH Thank you very much for choosing the iiyama LCD monitor. We recommend that you take a few minutes to read this comprehensive manual carefully before installing and switching on the monitor. Please keep this manual in a safe place for...
  • Page 2 ENGLISH...

  • Page 3: Ce Marking Declaration Of Conformity

    IIYAMA CORPORATION: Wijkermeerstraat 8, 2131 HA Hoofddorp, The Netherlands Model No. : PL2294H We recommend recycling of used product. Please contact your dealer or iiyama service center. Recycle information is obtained via the Internet, using the address: http://www.iiyama.com You can access the Web page of different countries from there.

  • Page 4: Table Of Contents

    TABLE OF CONTENTS FOR YOUR SAFETY ................1 SAFETY PRECAUTIONS..............1 SPECIAL NOTES ON LCD MONITORS .........3 CUSTOMER SERVICE ..............3 CLEANING ..................3 BEFORE YOU OPERATE THE MONITOR ..........4 FEATURES..................4 CHECKING THE CONTENTS OF THE PACKAGE ......4 USING ARM OR STAND ..............5 FITTING AND REMOVAL OF STAND : ProLite XUB2294HS(U) ..7 FITTING AND REMOVAL OF STAND : ProLite XU2294HS(U)..9 CONTROLS AND CONNECTORS : ProLite XUB2294HS(U) ..10 CONTROLS AND CONNECTORS : ProLite XU2294HS(U) ..

  • Page 5: For Your Safety

    DO NOT PUT ANY OBJECT INTO THE MONITOR Do not put any solid objects or liquids such as water into the monitor. In case of an accident, unplug your monitor immediately and contact your dealer or iiyama service center. Using the monitor with any object inside may cause fire, electric shock or damage.
  • Page 6 CAUTION INSTALLATION LOCATION Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or smoky areas as it may cause fire, electric shock or damage. You should also avoid areas where the sun shines directly on the monitor. DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION The monitor may topple and cause injury if not suitably located. Please also ensure that you do not place any heavy objects on the monitor, and that all cables are routed such that children may not pull the cables and possibly cause injury.

  • Page 7: Special Notes On Lcd Monitors

     If you drop any materials or liquids such as water into the monitor when cleaning, WARNING unplug the power cable immediately and contact your dealer or iiyama service center.  For safety reasons, turn off the Power Button and unplug the monitor before you CAUTION clean it.

  • Page 8: Before You Operate The Monitor

    CHECKING THE CONTENTS OF THE PACKAGE The following accessories are included in your package. Check to see if they are enclosed with the monitor. If anything is missing or damaged, please contact your local iiyama dealer or regional iiyama ofÏce.  Power Cable * ...

  • Page 9: Using Arm Or Stand

    USING ARM OR STAND  Before installation, make sure the display arm or desk arm stand is strong enough CAUTION to hold the necessary weight of the monitor and the mount.  Panel angle adjustment range : 23° upward and 5° downward 5°...
  • Page 10 < ROTATING THE MONITOR > ● ProLite XUB2294HS(U) The monitor is designed to be compatible with both landscape and portrait modes. Video card for portrait display will be required for rotating the image on the screen. Available Not Available Landscape Joystick / Power Button Power Indicator Portrait With Stand:...

  • Page 11: Fitting And Removal Of Stand : Prolite Xub2294Hs(U)

    FITTING AND REMOVAL OF STAND : ProLite XUB2294HS(U)  Put the monitor on a stable surface. The monitor may cause injury or damage if it CAUTION falls or is dropped.  Do not give a strong impact to the monitor. It may cause damage. ...
  • Page 12 <Removal> Put a piece of soft cloth on the table beforehand to prevent the monitor from being scratched. Lay the monitor flat on a table with front face down. Press the release button to remove the stand. Release Button Loosen the ’thumb screw’ with the provided screwdriver to remove the Stand-Neck from the VESA Plate.

  • Page 13: Fitting And Removal Of Stand : Prolite Xu2294Hs(U)

    FITTING AND REMOVAL OF STAND : ProLite XU2294HS(U)  Put the monitor on a stable surface. The monitor may cause injury or damage if it CAUTION falls or is dropped.  Do not give a strong impact to the monitor. It may cause damage. ...

  • Page 14: Controls And Connectors : Prolite Xub2294Hs(U)

    USB Downstream Connector ( 5V, 900mA) USB Upstream Connector ( Headphone Connector ( HDMI Connector (HDMI) DisplayPort Connector (DP) Cable Holder AC Connector ( : Alternating current) See JOYSTICK on page 16. For ProLite XUB2294HSU 10 BEFORE YOU OPERATE THE MONITOR...

  • Page 15: Controls And Connectors : Prolite Xu2294Hs(U)

    CONTROLS AND CONNECTORS : ProLite XU2294HS(U) <Front> <Back> Joystick / Power Button A short press turns ON the monitor. NOTE A long press for 5 seconds turns OFF the monitor. Power Indicator NOTE Blue: Normal operation Orange: Standby Mode Speakers Keyhole for Security Lock NOTE You can fasten a security lock and cable to prevent the monitor from being removed...

  • Page 16: Connecting Your Monitor : Prolite Xub2294Hs(U)

    An incorrect connection may cause serious damage to both the monitor and the computer. The cable supplied with the monitor is for a standard connector. If a special cable is required please contact your local iiyama dealer or regional iiyama ofÏce.

  • Page 17: Connecting Your Monitor : Prolite Xu2294Hs(U)

    An incorrect connection may cause serious damage to both the monitor and the computer. The cable supplied with the monitor is for a standard connector. If a special cable is required please contact your local iiyama dealer or regional iiyama ofÏce.

  • Page 18: Computer Setting

    COMPUTER SETTING  Signal Timing Change to the desired signal timing listed on page 32: COMPLIANT TIMING. ADJUSTING THE HEIGHT AND THE VIEWING ANGLE : ProLite XUB2294HS(U)  For optimal viewing it is recommended to position yourself directly opposite to the full face of the monitor, then adjust the monitor’s height 5°...

  • Page 19: Adjusting The Viewing Angle : Prolite Xu2294Hs(U)

    ADJUSTING THE VIEWING ANGLE : ProLite XU2294HS(U)  For optimal viewing it is recommended to look at the full face of the monitor.  Hold the stand so that the monitor does not topple when you change the monitor’s angle. ...

  • Page 20: Operating The Monitor

    OPERATING THE MONITOR JOYSTICK The Joystick can be pressed or tilted in the following five directions. <Front view> Upward <Bottom view> Forward: i-Style Color / Blue Light Reducer Direct Backward: Select Input Source Direct Left: Direct Right: Volume Direct 16 OPERATING THE MONITOR...
  • Page 21 To create the best picture, your iiyama LCD monitor has been preset at the factory with the COMPLIANT TIMING shown on page 32. You are also able to adjust the picture by following the operation shown below. Press the Joystick on the monitor to start the On Screen Display feature.

  • Page 22: Adjustment Menu Contents

    ADJUSTMENT MENU CONTENTS Picture Adjust * ProLite XUB2294HSU PICTURE ADJUST BRIGHTNESS COLOR SETTINGS CONTRAST LANGUAGE RECALL MISCELLANEOUS BLUE LIGHT REDUCER INPUT SELECT ADV. CONTRAST AUDIO SETTINGS OVERDRIVE /PUSH EXIT : SELECT :　 　　　 Adjustment Item Problem / Option Joystick Too dark...
  • Page 23 Color Settings ProLite XUB2294HSU PICTURE ADJUST COLOR TEMPERATURE COLOR SETTINGS 9300K 7500K 6500K USER PRESET LANGUAGE RECALL GREEN MISCELLANEOUS BLUE INPUT SELECT AUDIO SETTINGS I-STYLE COLOR /PUSH EXIT : SELECT :　 Adjustment Item Problem / Option Joystick Cool color 9300K...
  • Page 24 ProLite XUB2294HSU PICTURE ADJUST ON SCREEN DISPLAY SETTINGS COLOR SETTINGS OSD HORIZONTAL POSITION OSD VERTICAL POSITION LANGUAGE OSD ROTATE 0° RECALL OSD TIME MISCELLANEOUS INPUT SELECT AUDIO SETTINGS /PUSH EXIT : SELECT :　 Adjustment Item Problem / Option Joystick OSD is too left...
  • Page 25 Language ProLite XUB2294HSU PICTURE ADJUST CHANGE LANGUAGE Русский POLSKI ENGLISH COLOR SETTINGS Español FRANÇAIS DEUTSCH NEDERLANDS LANGUAGE Český ITALIANO RECALL MISCELLANEOUS INPUT SELECT AUDIO SETTINGS /PUSH EXIT : SELECT :　 Adjustment Item Option Español Spanish English English Français Dutch French Nederlands Český...
  • Page 26 Full Full screen display Video Mode Adjust Aspect * Expansion display of Aspect iiyama Logo is displayed when the monitor is turned on. Opening Logo iiyama Logo is not displayed when the monitor is turned on. Enable the FreeSync function.
  • Page 27 Input Select ProLite XUB2294HSU PICTURE ADJUST INPUT SOURCE Direct COLOR SETTINGS AUTO MANUAL MANUAL LANGUAGE SELECT HDMI RECALL DISPLAYPORT (DP) SELECT MISCELLANEOUS INPUT SELECT AUDIO SETTINGS /PUSH EXIT : SELECT :　 Adjustment Item Option Search for an available input source and select Auto automatically.
  • Page 28 Audio Settings ProLite XUB2294HSU PICTURE ADJUST VOLUME COLOR SETTINGS OPTIONS LANGUAGE MUTE AUDIO RECALL MISCELLANEOUS INPUT SELECT AUDIO SETTINGS /PUSH EXIT : SELECT :　 Adjustment Item Problem / Option Joystick Too soft Volume Direct Too loud Turn off the sound temporarily. Mute Audio Return the sound volume to the previous level.
  • Page 29  Lock Mode <OSD Menu> The OSD can be locked to avoid an accidental setting change. 1. Make sure the monitor is turned ON. 2. The OSD lock will be activated by tilting the Joystick for about 10 seconds. If you try to access the OSD by the Joystick, a message "OSD Locked"...

  • Page 30: Standby Feature

    STANDBY FEATURE This product features the standby function. When activated, it automatically reduces unnecessary power consumption of the monitor when your computer is not in use. There is a standby step the monitor takes as described below. The standby function, including any timer settings is configured by the operating system. Check your operating system manual for information on how this can be configured.

  • Page 31: Trouble Shooting

    MONITOR or if the problem persists. 3. If you are experiencing a problem which is not described below or you cannot correct the problem, discontinue using the monitor and contact your dealer or iiyama service center for further assistance. Problem...

  • Page 32: Recycling Information

    RECYCLING INFORMATION For better environment protection please don’t dispose your monitor. Please visit our web site: www.iiyama.com for monitor recycling. 28 RECYCLING INFORMATION...

  • Page 33: Appendix

    APPENDIX Design and specifications are subject to change without prior notice. SPECIFICATIONS : ProLite XUB2294HS(U) ProLite XUB2294HSU ProLite XUB2294HS Size Category 22" Panel technology Size Diagonal: 21.5" (54.5cm) Pixel pitch 0.249mm H × 0.241mm V Brightness 250cd/m (Typical), 175cd/m (Default / Energy Saving) Panel Contrast ratio 3000 : 1 (Typical), Adv. Contrast Function Available...

  • Page 34: Specifications : Prolite Xu2294Hs(U)

    SPECIFICATIONS : ProLite XU2294HS(U) ProLite XU2294HSU ProLite XU2294HS Size Category 22" Panel technology Size Diagonal: 21.5" (54.5cm) Pixel pitch 0.249mm H × 0.241mm V Brightness 250cd/m (Typical), 175cd/m (Default / Energy Saving) Panel Contrast ratio 3000 : 1 (Typical), Adv. Contrast Function Available Viewable angle Right / Left: 89 degrees each, Up / Down: 89 degrees each (Typical) MPRT...

  • Page 35: Dimensions : Prolite Xub2294Hs(U)

    DIMENSIONS : ProLite XUB2294HS(U) 493.5mm/19.4” 48.0mm/1.9” 235.0mm/9.3” 209.5mm/8.2” ) : Maximum adjustment range DIMENSIONS : ProLite XU2294HS(U) 48.0mm/1.9” 493.5mm/19.4” 246.0mm/9.7” APPENDIX 31...

  • Page 36: Compliant Timing

    COMPLIANT TIMING Horizontal Vertical Video Mode Dot Clock Frequency Frequency 640 × 480 31.469kHz 59.940Hz 25.175MHz 800 × 600 37.879kHz 60.317Hz 40.000MHz 1024 × 768 48.363kHz 60.004Hz 65.000MHz 1280 × 1024 63.981kHz 60.020Hz 108.000MHz 1440 × 900 55.935kHz 59.887Hz 106.500MHz 1680 ×...
