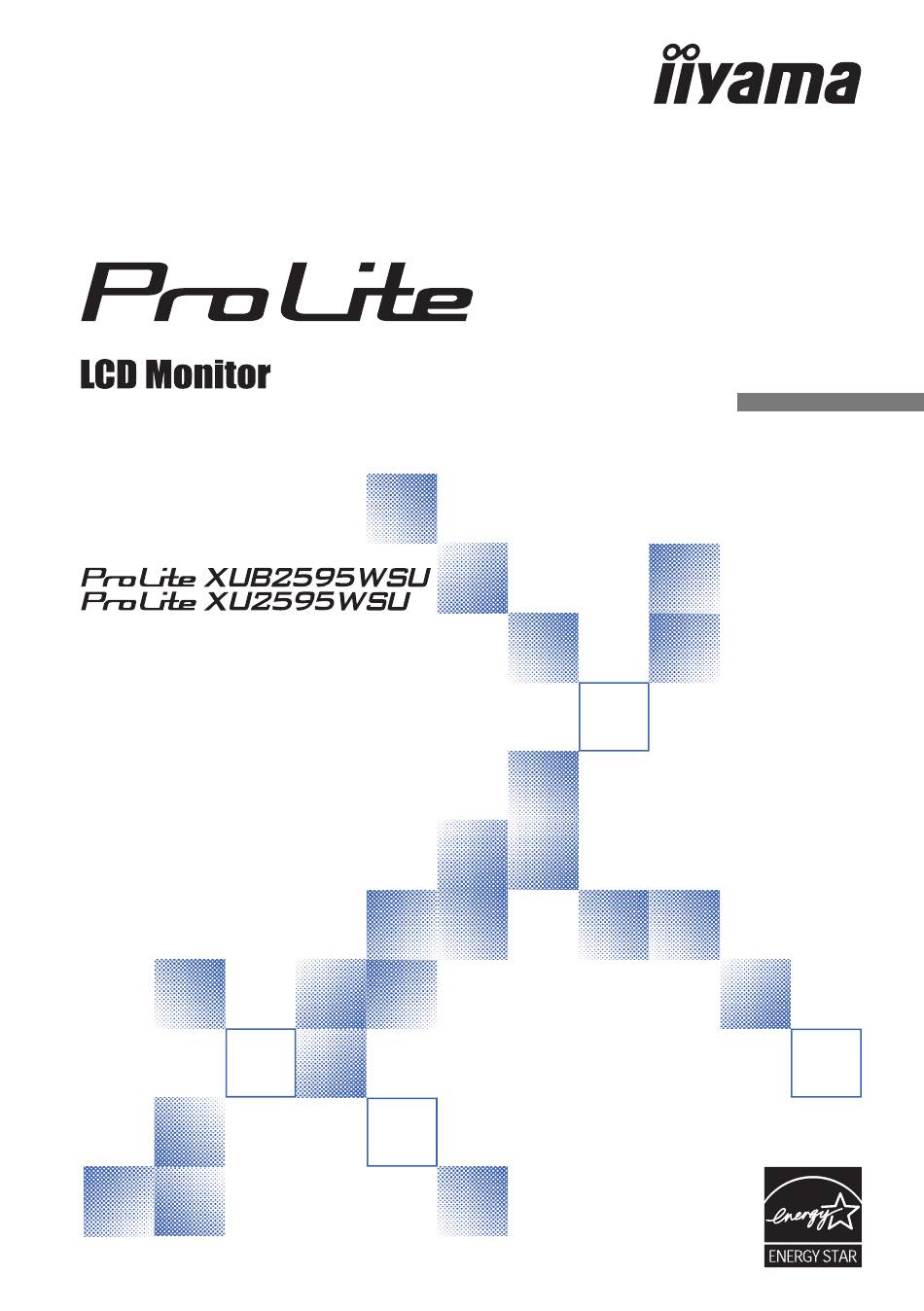

USER MANUAL
ENGLISH
Thank you very much for choosing the
iiyama LCD monitor.
We recommend that you take a few
minutes to read carefully through
this brief but comprehensive manual
before installing and switching on the
monitor. Please keep this manual in a
safe place for your future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ProLife XUB2595WSU and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Iiyama ProLife XUB2595WSU

Summary of Contents for Iiyama ProLife XUB2595WSU

  • Page 1 USER MANUAL ENGLISH Thank you very much for choosing the iiyama LCD monitor. We recommend that you take a few minutes to read carefully through this brief but comprehensive manual before installing and switching on the monitor. Please keep this manual in a...
  • Page 3 ProLite XU2390HS, ProLite XUB2390HS and ProLite XUB2790HS : TCO compliant Congratulations! This product is TCO Certified for Sustainable IT TCO Certified is an international third party sustainability certification for IT products. TCO Certified ensures that the manufacture, use and recycling of IT products reflect environmental, social and economic responsibility.
  • Page 4 IIYAMA CORPORATION: Wijkermeerstraat 8, 2131 HA Hoofddorp, The Netherlands Model No. : PL2595W We recommend recycling of used product. Please contact your dealer or iiyama service center. Recycle information is obtained via the Internet, using the address: http://www.iiyama.com You can access the Web page of different countries from there.

  • Page 5: Table Of Contents

    TABLE OF CONTENTS FOR YOUR SAFETY ................1 SAFETY PRECAUTIONS..............1 SPECIAL NOTES ON LCD MONITORS .........3 CUSTOMER SERVICE ..............3 CLEANING ..................3 BEFORE YOU OPERATE THE MONITOR ..........4 FEATURES..................4 CHECKING THE CONTENTS OF THE PACKAGE ......4 INSTALLATION ................5 FITTING AND REMOVAL OF BASE : ProLite XUB2595WSU ..7 FITTING AND REMOVAL OF BASE : ProLite XU2595WSU ..8 CONTROLS AND CONNECTORS : ProLite XUB2595WSU ..9 CONTROLS AND CONNECTORS : ProLite XU2595WSU ...10...

  • Page 6: For Your Safety

    DO NOT PUT ANY OBJECT INTO THE MONITOR Do not put any solid objects or liquids such as water into the monitor. In case of an accident, unplug your monitor immediately and contact your dealer or iiyama service center. Using the monitor with any object inside may cause fire, electric shock or damage.
  • Page 7 CAUTION INSTALLATION LOCATION Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or smoky areas as it may cause fire, electric shock or damage. You should also avoid areas where the sun shines directly on the monitor. DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION The monitor may topple and cause injury if not suitably located. Please also ensure that you do not place any heavy objects on the monitor, and that all cables are routed such that children may not pull the cables and possibly cause injury.

  • Page 8: Special Notes On Lcd Monitors

     If you have to return your unit for service and the original packaging has been discarded, NOTE please contact your dealer or iiyama service center for advice or replacement packaging. CLEANING  If you drop any materials or liquids such as water into the monitor when cleaning, WARNING unplug the power cable immediately and contact your dealer or iiyama service center.

  • Page 9: Before You Operate The Monitor

    CHECKING THE CONTENTS OF THE PACKAGE The following accessories are included in your package. Check to see if they are enclosed with the monitor. If anything is missing or damaged, please contact your local iiyama dealer or regional iiyama office.  Power Cable*  DisplayPort Cable...

  • Page 10: Installation

    INSTALLATION [WALL MOUNTING] WARNING  When you use with the wall mounting, in consideration of thickness of the mounting stage, tighten the M4 Screw with washer which “L” length is 7mm to fasten the monitor. Using the screw longer than this may cause electric shock or damage because it may contact with the electrical parts inside the monitor.
  • Page 11 [ROTATING THE DISPLAY] ● ProLite XUB2595WSU The monitor is designed to be compatible with both landscape and portrait modes. Video card for portrait display will be required for rotating the image on the screen. Not Available Available Power Indicator Landscape Portrait Portrait Power Indicator With Stand:...

  • Page 12: Fitting And Removal Of Base : Prolite Xub2595Wsu

    FITTING AND REMOVAL OF BASE : ProLite XUB2595WSU CAUTION  Put the monitor on a stable surface. The monitor may cause injury or damage if it falls or is dropped.  Do not give a strong impact to the monitor. It may cause damage.  Unplug the monitor before removal or installation to avoid an electric shock or a damage.

  • Page 13: Fitting And Removal Of Base : Prolite Xu2595Wsu

    FITTING AND REMOVAL OF BASE : ProLite XU2595WSU CAUTION  Put the monitor on a stable surface. The monitor may cause injury or damage if it falls or is dropped.  Do not give a strong impact to the monitor. It may cause damage.  Unplug the monitor before removal or installation to avoid an electric shock or a damage.

  • Page 14: Controls And Connectors : Prolite Xub2595Wsu

    CONTROLS AND CONNECTORS : ProLite XUB2595WSU <Front> <Back> Power Indicator Blue: Normal operation NOTE Orange: Power Management Auto Adjust / Signal Select Button (AUTO)* – / Eco Button ( – )* + / Volume / Blue Light Reducer Button ( + )* Menu Button (MENU) Power Switch ( ) Speakers Stopper USB Downstream Connector ( USB Downstream Connector ( USB Upstream Connector ( Headphone connector ( ) Audio Connector ( ) VGA Connector (D-SUB) HDMI Connector (HDMI) DisplayPort Connector (DP)

  • Page 15: Controls And Connectors : Prolite Xu2595Wsu

    CONTROLS AND CONNECTORS : ProLite XU2595WSU <Front> <Back> Power Indicator Blue: Normal operation NOTE Orange: Power Management Auto Adjust / Signal Select Button (AUTO)* – / Eco Button ( – )* + / Volume / Blue Light Reducer Button ( + )* Menu Button (MENU) Power Switch ( ) Speakers Hook USB Downstream Connector ( USB Downstream Connector ( USB Upstream Connector ( Headphone connector ( ) Audio Connector ( ) VGA Connector (D-SUB) HDMI Connector (HDMI) DisplayPort Connector (DP)

  • Page 16: Connecting Your Monitor : Prolite Xub2595Wsu

    An incorrect connection may cause serious damage to both the monitor and the computer. The cable supplied with the monitor is for a standard connector. If a special cable is required please contact your local iiyama dealer or regional iiyama office.

  • Page 17: Connecting Your Monitor : Prolite Xu2595Wsu

    An incorrect connection may cause serious damage to both the monitor and the computer. The cable supplied with the monitor is for a standard connector. If a special cable is required please contact your local iiyama dealer or regional iiyama office.

  • Page 18: Computer Setting

    COMPUTER SETTING  Signal Timing Change to the desired signal timing listed on page 31: COMPLIANT TIMING. ADJUSTING THE HEIGHT AND THE VIEWING ANGLE : ProLite XUB2595WSU  For optimal viewing it is recommended to position yourself directly opposite to the full face of the monitor, then adjust the monitor’s height and angle to your own preference.

  • Page 19: Adjusting The Viewing Angle : Prolite Xu2595Wsu

    ADJUSTING THE VIEWING ANGLE : ProLite XU2595WSU  For optimal viewing it is recommended to look at the full face of the monitor.  Hold the stand so that the monitor does not topple when you change the monitor’s angle. ...

  • Page 20: Operating The Monitor

    OPERATING THE MONITOR To create the best picture, your iiyama LCD monitor has been preset at the factory with the COMPLIANT TIMING shown on page 31. You are also able to adjust the picture by following the button operation shown below. For more detailed adjustments, see page 22 for SCREEN ADJUSTMENTS.

  • Page 21: Adjustment Menu Contents

    ADJUSTMENT MENU CONTENTS Luminance ProLite XUB2595WSU LUMINANCE CONTRAST IMAGE SETTINGS COLOR SETTINGS BRIGHTNESS EXTRA I-STYLE COLOR STANDARD ADV. CONTRAST Adjustment Item Problem / Option Button to Press Too dull Contrast Too intense Too dark Brightness* Too bright For general windows environment and monitor Standard default setting.
  • Page 22 Image Settings ProLite XUB2595WSU LUMINANCE IMAGE SETTINGS IMAGE SETTINGS PIXEL CLOCK COLOR SETTINGS PHASE HORIZONTAL POSITION EXTRA VERTICAL POSITION ASPECT RATIO FULL Adjustment Item Problem / Option Button to Press Too narrow Pixel Clock* Too wide Phase* To correct flickering text or lines Too left Horizontal Position* Too right Too low...
  • Page 23 Color Settings ProLite XUB2595WSU LUMINANCE COLOR SETTINGS IMAGE SETTINGS GAMMA GAMMA1 6-AXIS COLOR SETTINGS COLOR TEMP. USER EXTRA USER PRESET GREEN BLUE Adjustment Item Problem / Option Button to Press Gamma1 Normal Gamma Gamma2 High contrast Gamma3 Dark Yellow Too weak Green Too strong Cyan...
  • Page 24 ProLite XUB2595WSU LUMINANCE ON SCREEN DISPLAY SETTINGS IMAGE SETTINGS OSD HORIZONTAL POSITION COLOR SETTINGS OSD VERTICAL POSITION OSD TIME EXTRA LANGUAGE ENGLISH Adjustment Item Problem / Option Button to Press OSD is too left OSD Horizontal Position OSD is too right OSD is too low OSD Vertical Position OSD is too high...
  • Page 25 Extra ProLite XUB2595WSU LUMINANCE EXTRA IMAGE SETTINGS RESET COLOR SETTINGS DDC/CI SIGNAL SELECT HDMI EXTRA OVERDRIVE AUDIO SOURCE LINE IN OPENING LOGO FREESYNC INFORMATION Adjustment Item Problem / Option Button to Press Factory-preset data is restored. Reset Return to Menu. DDC/CI is On.
  • Page 26 Direct You can skip the Menu items and directly display an option setting screen or an adjustment scale by using the following button operations.  Volume: Press the + Button when the Menu is not displayed. Adjustment Item Problem / Option Button to Press Too soft Volume...

  • Page 27: Screen Adjustments

    If the screen has a flicker or blur, or the picture does not fit in the display area after performing the Auto Adjust, manual adjustments are required. Both adjustments should be made by using the screen adjustment pattern (Test.bmp) obtained via the IIYAMA web site (http://www.iiyama. com). Adjust the image by following the procedure below to get the desired picture.
  • Page 28 Keep pressing the AUTO Button for about 3-4 seconds. (Auto Adjust) Adjust the image manually by following procedure below when the screen has a flicker or blur, or the picture does not fit in the display area after performing the Auto Adjust. Adjust the Vertical Position so that the top and bottom of the picture frame will fit to the display area. 1) Adjust the Horizontal Position so that the left side of the picture frame will move to the left edge of the display area. 2) Stretch the right side of the picture frame to the right edge of the display area by adjusting the Pixel Clock.
  • Page 29 Adjust the Phase to correct horizontal wavy noise, flicker or blur in the zebra pattern. NOTE  In case the strong flicker or blurs remain on a part of the screen, repeat steps because the Pixel Clock may not be adjusted correctly. If the flicker or blurs still remain, set the refresh rate of computer to low (60Hz) and repeat steps from again.  Adjust the Horizontal Position after the Phase adjustment if the horizontal position moves during the adjustment. Adjust the Brightness and Color to get the desired picture after you complete the Pixel Clock and Phase adjustments.

  • Page 30: Power Management Feature

    POWER MANAGEMENT FEATURE The power management feature of this product complies with power saving requirement of ENERGY STAR ® and VESA DPMS. When activated, it automatically reduces unnecessary power consumption of the monitor when your computer is not in use. To use the feature, the monitor needs to be connected to a VESA DPMS compliant computer.

  • Page 31: Trouble Shooting

    MONITOR or if the problem persists. 3. If you are experiencing a problem which is not described below or you cannot correct the problem, discontinue using the monitor and contact your dealer or iiyama service center for further assistance. Problem...

  • Page 32: Recycling Information

    A strange noise  The Audio Cable is properly connected. is heard. RECYCLING INFORMATION For better environment protection please don't dispose your monitor. Please visit our web site: www.iiyama.com for monitor recycling. TROUBLE SHOOTING / RECYCLING INFORMATION 27...

  • Page 33: Appendix

    APPENDIX Design and specifications are subject to change without prior notice. SPECIFICATIONS : ProLite XUB2595WSU Size Category 25" Panel technology Size Diagonal: 24.95" (63.36cm) Pixel pitch 0.27888mm H × 0.2823mm V Brightness 300cd/m (Typical) Panel Contrast ratio 1000 : 1 (Typical), Adv. Contrast Function Available Viewable angle Right / Left / Up / Down: 89 degrees each (Typical) Response time 4ms (Gray to Gray) Display Colors Approx.16.7M Analog: Horizontal: 30.0-89.0kHz, Vertical: 50-76Hz Sync Frequency Digital(HDMI): Horizontal: 30.0-89.0kHz, Vertical: 50-76Hz Digital(DisplayPort): Horizontal: 95.0-95.0kHz, Vertical: 48-75Hz...

  • Page 34: Specifications : Prolite Xu2595Wsu

    SPECIFICATIONS : ProLite XU2595WSU Size Category 25" Panel technology Size Diagonal: 24.95" (63.36cm) Pixel pitch 0.27888mm H × 0.2823mm V Brightness 300cd/m (Typical) Panel Contrast ratio 1000 : 1 (Typical), Adv. Contrast Function Available Viewable angle Right / Left / Up / Down: 89 degrees each (Typical) Response time 4ms (Gray to Gray) Display Colors Approx.16.7M Analog: Horizontal: 30.0-89.0kHz, Vertical: 50-76Hz Sync Frequency Digital(HDMI): Horizontal: 30.0-89.0kHz, Vertical: 50-76Hz Digital(DisplayPort): Horizontal: 95.0-95.0kHz, Vertical: 48-75Hz Native Resolution...

  • Page 35: Dimensions : Prolite Xub2595Wsu

    DIMENSIONS : ProLite XUB2595WSU 546.5mm/21.5” 543.0mm/21.4” 45.0mm/1.7” 240.0mm/9.4” ( ) : Maximum adjustment range DIMENSIONS : ProLite XU2595WSU 546.5mm/21.5” 45.0mm/1.7” 543.0mm/21.4” 219.5mm/8.6” 30 APPENDIX...

  • Page 36: Compliant Timing

    COMPLIANT TIMING Horizontal Vertical Video Mode Dot Clock Frequency Frequency 31.469kHz 59.940Hz 25.175MHz 640 × 480 37.500kHz 75.000Hz 31.500MHz 37.861kHz 72.809Hz 31.500MHz 35.156kHz 56.250Hz 36.000MHz 37.879kHz 60.317Hz 40.000MHz 800 × 600 46.875kHz 75.000Hz 49.500MHz 48.077kHz 72.188Hz 50.000MHz 48.363kHz 60.004Hz 65.000MHz 1024 ×...
