Summary of Contents for Uplift Desk UPLIFT Spaces Wall System

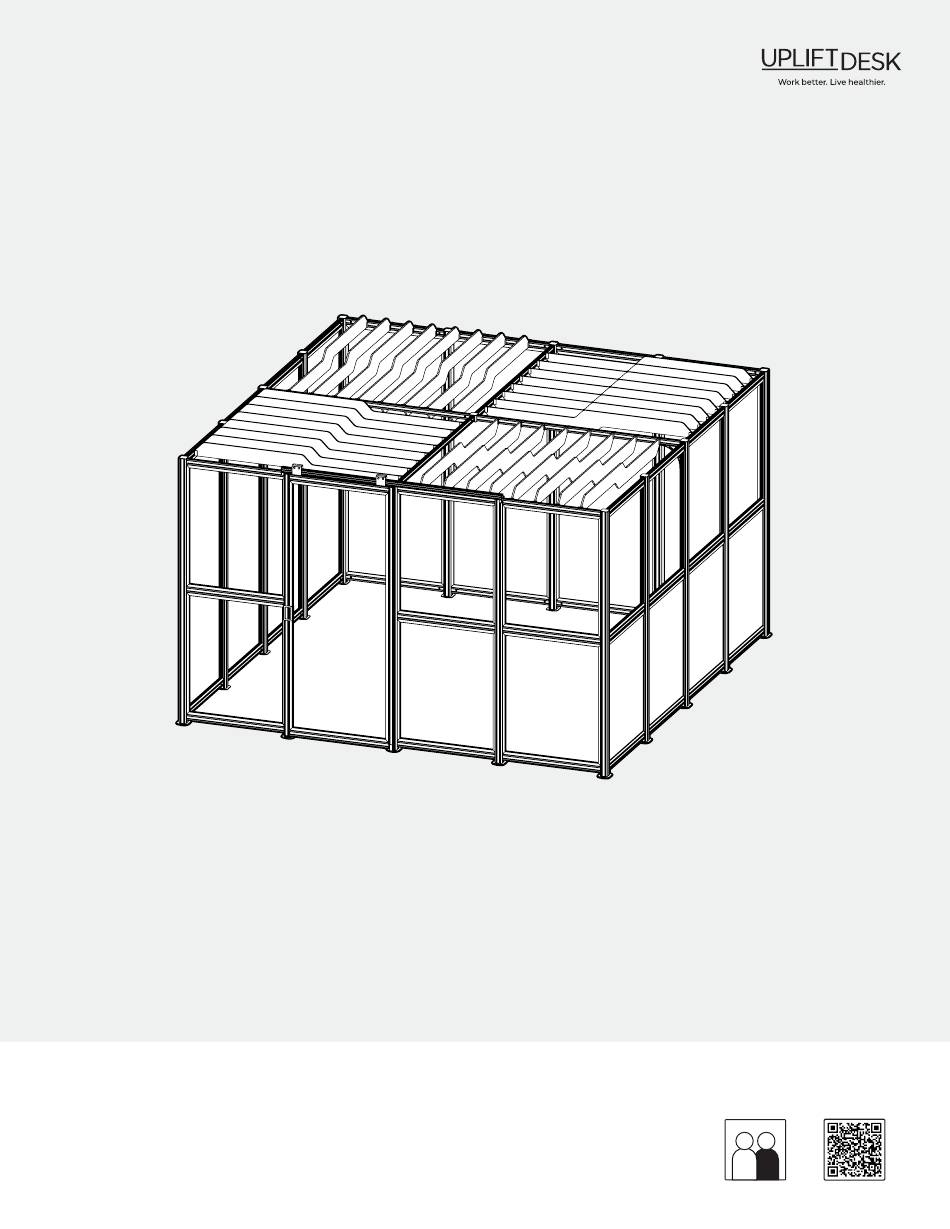

- Page 1 12' x 12' room with door and acoustic roof baffles shown UPLIFT Spaces Wall System Scan QR code for Two person product webpage assembly ACU067 For assembly assistance, visit upliftdesk.com/contact, call 800-349-3839, or email support@upliftdesk.com ©2025 UPLIFT Desk®. All Rights Reserved...
-
Page 2: Table Of Contents
Table of Contents Warnings and Notices ..........3 Components . -
Page 3: Warnings And Notices
Before you start • Review the area where your UPLIFT Spaces Wall System configuration will be assembled and confirm that you have enough space for the completed configuration. • Lay out all parts from each box and ensure you have all of the required parts before throwing away any packaging. Check boxes very thoroughly by removing all packaging. -
Page 4: Components
Every UPLIFT Spaces Wall System configuration and order is unique, so it's crucial to carefully check the parts list and configuration layout included with each order. Make sure to identify which parts are in each box by reviewing the labels on the packaging of each part. - Page 5 Columns Component Length End View Side View WAL001 - 4-Way Full Height Column 89-¾ inches long WAL002 - 4-Way Half Height Column 46-⅜ inches long WAL003 - 3-Way Full Height Column 89-¾ inches long WAL004 - 3-Way Half Height Column 46-⅜...
- Page 6 Miscellaneous WAL029 - Floor Spacer WAL032 - Ceiling Gusset WAL033 - Baffle Bracket WAL042 - I-Beam Rail Mount WAL043 - I-Beam Corner Plate WAL045 - 4-Way Ceiling Hub WAL063 - Sliding Door Bracket WAL064 - Sliding Door Guide WAL032 - Ceiling Gusset WAL065 - Sliding Door Roller WAL066...
-
Page 7: Column Assembly
Column Assembly 4-Way Column 3-Way Column... - Page 8 Components Needed Half Height Column (WAL002) 4-Way Half (WAL021) 4-Way Foot Plate (WAL022) Leveling Pad (WAL053) M6 x 12 Flat Head Screw, qty 4 Height Column (WAL004) 3-Way Half (WAL027) 3-Way Foot Plate Height Column WAL002 - 4-Way Half Height Column Full Height Column (WAL001) 4-Way Full...
-
Page 9: Glass Panel Assembly
Glass Panel Assembly Half Glass Panel Full Glass Panel... - Page 10 A note about assembling the Glass Panels before you begin: The assembly of the Glass Panels is the most time consuming part of building the UPLIFT Spaces Wall System. To ensure the safe arrival of the tempered glass panels to the build site, the frame cannot be shipped preassembled and must be built on site.
- Page 11 Note: For the remainder of the Glass Panel assembly, we recommend laying the assembly down on a large table or carpeted floor. This will help keep the Panel Frames and Gaskets in place as you work around the Glass Panel. A.
-
Page 12: Acoustic Panel Assembly
Acoustic Panel Assembly Full Height Acoustic Panel Half Height Acoustic Panel... - Page 13 Components Needed Half Height Acoustic Panel (WAL037) Half Height Acoustic Panel (WAL007) Panel Width Frame (WAL008) Half Height Frame Channel, (WAL055) M4 x 20 Socket Head Channel, qty 2 qty 2 Screw, qty 8 Full Height Acoustic Panel WAL034 - Half Height Glass Panel (WAL036) Full Height Acoustic Panel (WAL007)
- Page 14 Note: At each panel corner where the Frame Channels meet, there should only be one set of screw attachment holes (shown circled). Use a 3mm Allen wrench to insert two M4 x 20 Socket Head Screws (WAL055) as shown at each corner to connect the WAL055 Frame Channels.
-
Page 15: Wall Installation
Half Height Panel Full Height Panel • Since each UPLIFT Spaces Wall System order and configuration is unique, this instruction manual will show how the connections between the various assemblies are made rather than showing the complete assembly of any specific configuration. - Page 16 Components Needed Panel Width Horizontal Beam (WAL029) Floor Spacer, qty 2 (WAL005) , qty 2 Wall Installation Instructions First Column Placement A. Place one of the Column assemblies at one of the corner locations for the final assembled configuration. WAL005 - Panel Width Horizontal Beam B.
- Page 17 D. Use a T30 Torx key or screwdriver to rotate the T30 Lock clockwise ½ turn to secure the Horizontal Beam in place. Do not exceed this turning distance as it can damage the internal mechanism. Note: If the Horizontal Beam can be pulled out by hand, the lock was not properly tightened and/or was not flush.
- Page 18 Second Panel Placement A. Place the second Panel assembly onto the second Horizontal Beam ensuring that the ridge on the Panel frame engages with the slot in the Beam. B. Slide the Panel over so that the ridge on the Panel Frame engages with the slot in the side of the Column.
- Page 19 D. Remove the 1.5" spacer block so that the lower Horizontal Beam is resting on the Floor Spacer of the second Column. E. Rotate the T30 Lock on each Horizontal Beam clockwise ½ turn to secure them in place. Top Horizontal Beam Placement A.
-
Page 20: Column To Column Ceiling Grid Installation
Column to Column Ceiling Grid Installation... - Page 21 Components Needed (WAL032) Ceiling Gusset, qty 2 (WAL030) Ceiling Gusset Channel (WAL057) M6 Triple End-Feed Nut, (WAL053) M6 x 12 Flat Head Screw, Strip, qty 2 qty 4 qty 8 Column to Column Ceiling Grid Installation Instructions WAL032 - Ceiling Gusset 1/4"...
- Page 22 Press a Ceiling Gusset Channel Strip (WAL030) into the slot in the face of the columns beneath where the Horizontal Beam will be attached. Ensure the end of each Channel Strip is flush against the top Gap from top of of the Foot Plate.
-
Page 23: Column To Hub Ceiling Grid Installation
Column to Hub Ceiling Grid Installation... - Page 24 Components Needed The following components are needed to attach each Panel Width Horizontal Beam (WAL005) and Double Width Horizontal Beam (WAL006) to a Column. (WAL032) Ceiling Gusset (WAL030) Ceiling Gusset Channel (WAL057) M6 Triple End-Feed Nut, (WAL053) M6 x 12 Flat Head Screw, Strip qty 2 qty 4...
- Page 25 A. Press a Ceiling Gusset Channel Strip (WAL030) into the slot in the face of the columns beneath where the Horizontal Beams will be attached. Gap from top of Ensure the end of each Channel Strip is flush against the Column to top of top of the Foot Plate.
-
Page 26: Acoustic Roof Baffle Installation
Acoustic Roof Baffle Installation... - Page 27 Components Needed (WAL038) Single Width Acoustic Baffle (WAL039) Double Width Acoustic Baffle (WAL033) Baffle Bracket, qty 2 (WAL040) M5 x 25 Composite Screw, (WAL054) M4 Hammer Nut, (WAL052) M4 x 12 Flat Head Screw, qty 2 qty 2 qty 2 WAL039 - Double Width Acoustic Baffle WAL038 - Single Width Acoustic Baffle WAL040 - M5 x 25 Composite Screw...
- Page 28 A. Position an Acoustic Roof Baffle assembly above two Horizontal Beams it will be attached to. B. Set the Baffle Brackets onto the Horizontal Beams with the Hammer Nuts into the slots in the top of the Beams (you may have to rotate the Hammer Nut to get it into the slot).
-
Page 29: Sliding Door Assembly
Sliding Door Assembly... - Page 30 IMPORTANT The Sliding Door should only be installed after the room or layout has been completely assembled. The Sliding Door assembly will use one of the Full Height Panels assembled previously. Components Needed (WAL005) Panel Width (WAL013) Door Height (WAL031) Door Height (WAL043) I-Beam Corner...
- Page 31 Loosely attach an M6 End-Feed Nut (WAL051) to each of WAL053 the I-Beam Corner Plates using an M6 x 12 Flat Head Screw (WAL053). WAL051 Slide a Panel Width Horizontal Beam (WAL005) over the End-Feed Nut as shown until it is flush with the Door Height I-Beam.
- Page 32 A. Use the help of a second person to support the I-Beam and Horizontal Beam assembly as shown with Horizontal Beam pointed upward. B. Insert the Full Height Panel assembly into the Beam assembly so that the ridges on the Panel Frame engage with the slots in the Horizontal Beam and I-Beam.
- Page 33 Remove the retaining rings from the 8mm Clevis Pins (WAL056). WAL056 A. Position two Door Rollers (WAL065) inside each of the Sliding Door Brackets and insert a Clevis Pin (WAL056) through each Bracket and Roller in the direction shown. B. Replace the retaining rings onto the Clevis Pins to secure them in place. WAL065 WAL056 Press a Door Height Channel Strip (WAL031) into the recessed...
-
Page 34: Sliding Door Installation
Sliding Door Installation... - Page 35 Components Needed (WAL014) Door Rail I-Beam (WAL042) I-Beam Rail Mount, (WAL043) I-Beam (WAL052) M4 x 12 Flat Head (WAL053) M6 x 12 Flat Head qty 3 Corner Plate, qty 2 Screw, qty 8 Screw, qty 24 (WAL058) M6 Double (WAL064) Sliding Door Guide (WAL066) Sliding Door...
- Page 36 Loosely attach a Double End-Feed Nut (WAL058) to each I-Beam Rail Mount using two M6 x 12 Flat Head Screws per Mount. WAL053 WAL058 Attach an I-Beam Corner Plate (WAL043) to one end of a Door Rail I-Beam (WAL014) using four M4 x 12 Flat Head Screws (WAL052).
- Page 37 With the help of a second person, lift the assembled door onto the end of the Door Rail I-Beam opposite the end of the Beam with the Sliding Door Bumper attached. Note: Ensure the Sliding Door Rollers are engaged in the slot at the top of the I-Beam and slide the door along the rail until it reaches the Slider Door Bumper.
- Page 38 Repeat Steps 4 and 5 to attach a second Sliding Door Bumper to the other end of the Door Rail I-Beam. A. Attach the Sliding Door Handle (WAL067) to the Triple End-Feed Nut inside the Door Height I-Beam at approximately the middle of the I-Beam using two M6 x 12 Flat Head Screws.
-
Page 39: Channel Strip Installation
Channel Strip Installation Channel Strips are used to cover any open connection slots on columns where panels are not connected and exposed slots are undesirable. The Channel Strips are for aesthetic purposes only and do not affect the structural integrity of the Wall System. The list below shows which Channel Strips are used with the various Columns and Beams. - Page 40 Copyright Notice: This manual is a component of this UPLIFT Desk product. This manual is a part of the scope of delivery, even if the item is resold. This manual is also available on the UPLIFT Desk INS-ACU067-1.0 AI-ACU067-1.0 INS-ACU067-1.0...
