Uplift Desk Lady Bird Standing Desk Converter UDA124 Instructions

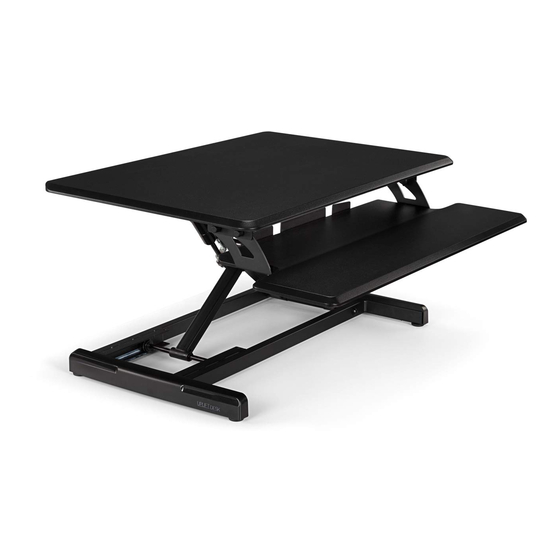

Lady Bird Standing Desk Converter
SKU: UDA124
Package Contents
Main unit
© UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com
Keyboard tray
Step 1
The Lady Bird Desk Converter needs to sit on a surface that's
at least 30" wide x 27" deep. Clear off a surface and, with one
other person to help you, lift the Main unit and set it in place.
The Main unit ships with a hook-and-loop band, which keeps it
secure during shipment. Simply unfasten and remove.
Step 2
You will need to raise the Main unit to a higher position to at-
tach the keyboard tray. Place your left hand flat on the top
surface, which will help support and stabilize the converter
as you raise it. Grip the handle on the right side, squeeze,
and lift.
Please remember to hold the desk converter top firmly. If
you don't secure the top while guiding it up, it could raise
quickly, potentially causing injury during set-up.
Step 3
Note: Do not overtighten the screws. Only tighten them until
the screw heads are flush with the Tray brackets. Going any
tighter may strip the screws and damage the Keyboard tray.
Turn the Keyboard tray upside down and attach the Tray
brackets to the Keyboard tray. Use the included Screws and
a Phillips head screwdriver.
Then, peel off the backing and apply the Pads to the four cor-
ners of the Keyboard tray.
Step 4
Hang the keyboard tray assembly on the knobs and, once in
place, tighten.
Screws
(qty 6)
Tray brackets
Pads
(qty 2) (qty 4)
Plastic zip tie
(qty 2)
