Uplift Desk PDC005-TRAY Assembly Instructions

Power & Data Rail: Wire Tray
SKU: PDC005-TRAY

Package Contents

Power block screws
Extension washers
© UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com
Wire tray
(long or short width. qty 2)

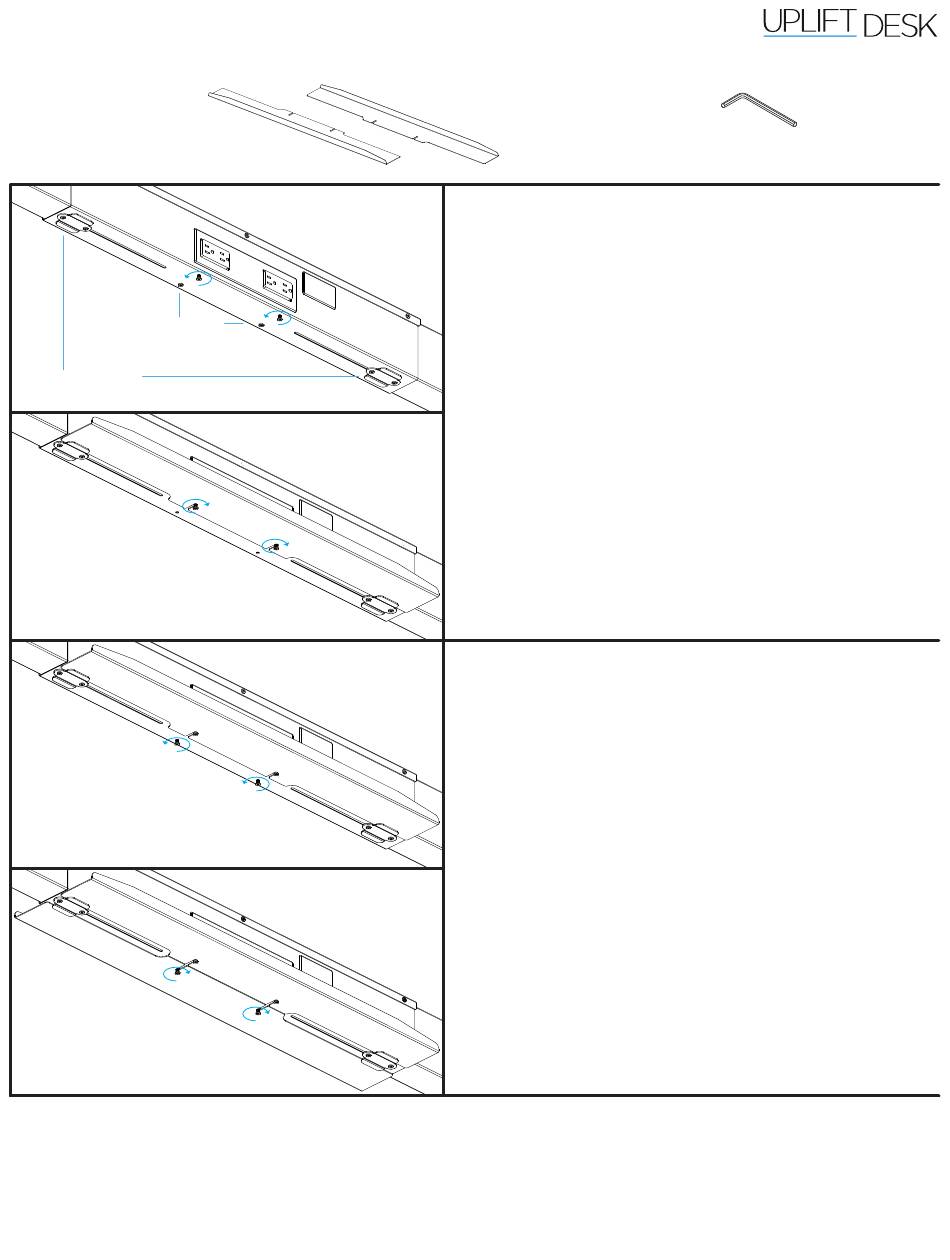

Step 1 - Single Tray

The Extension washers and the screws used to attach the Pow-
er block to the Rail assembly will also be used to attach the
Wire trays.
Loosen all four screws of the Extension washers. Then loosen
the two Power block screws on the side the first Wire tray is
being attached to. Only loosen these screws enough to slide
the Wire tray underneath (about two full turns). DO NOT COM-
PLETELY REMOVE THESE SCREWS.
Align the slots of the Wire tray with the Power block screws.
Then slide the tray underneath both the Power block screw
heads and the wings of the Extension washers as far as it will
go. Make sure that the outer lip of the Wire tray is facing up
towards the top of the Rail assembly and away from the floor.
Once the Wire tray is in place, tighten the Power block screws
with the 3mm Allen wrench. If you are going to add a second
Wire tray to the other side of the Rail, do not tighten the Exten-
sion washer screws yet.

Step 2 - Dual Trays

Once the first Wire tray is in place and the Power block screws
have been tightened, loosen the other two Power block screws
about two full turns. Again, DO NOT COMPLETELY REMOVE
THESE SCREWS.
Slide the second Wire tray under the Power block screw heads
and the Extension washer wings just like the first Wire tray.
Once the second Wire tray is in place, tighten the two Power
block screws and the four Extension washer screws completely
using the 3mm Allen wrench.
3mm Allen wrench
