Control 4 C4-L-FSW Installation Manual

™
Lux Fireplace Switch
Installation Guide
Supported model
• C4-L-FSW Control4 Lux Fireplace Switch
Introduction
The Control4® Lux Fireplace Switch operates independently or as part of a Control4 home
automation system and can be used to control low voltage switched loads like millivolt
fireplace controls, 12VAC and 24VAC control (doorbell, sprinkler, HVAC), and low power DC
switching systems (swimming pool covers, 12V solar, wind, and battery systems). It installs
in a standard wall box using typical wiring standards and communicates to the Control4
system using a wireless connection.
Box contents
• Control4 Lux Fireplace Switch
• Warranty card
• Temporary rocker button
• Control4 Lux Fireplace Switch Installation Guide (this document)
Required faceplates and mounting plate for
installation
The Control4 Lux Fireplace Switch requires a faceplate and mounting plate designed to fit
your install (1 gang, 2 gang, etc.) and are required before you install the fireplace switch.
Part numbers for faceplates and mounting plates:
• Lux Faceplate and Mounting Plate, 1 gang (C4-L-FP1-XX)
• Lux Faceplate and Mounting Plate, 2 gang (C4-L-FP2-XX)
• Lux Faceplate and Mounting Plate, 3 gang (C4-L-FP3-XX)
• Lux Faceplate and Mounting Plate, 4 gang (C4-L-FP4-XX)
Specifications and supported load types
Model number C4-L-FSW
Power requirements 120-277V AC +/-10%, 50/60 Hz
Power consumption 120V: 0.68W all LEDs Off, 0.87W all LEDs On
240V: 1.66W all LEDs Off, 1.86W all LEDs On
277V: 2.64W all LEDs Off, 2.84W all LEDs On
Load types and ratings
Supported load types Low voltage relay control
Maximum switched load 24VAC / 240W
30VDC / 10A
Environmental
Operational temperature 0 to 40 ˚C (32 to 104 ˚F)
Humidity 5% to 95% non-condensing
Storage -20 to 70 ˚C (-4 to 158 ˚F)
Miscellaneous
Control communications Zigbee, IEEE 802.15.4, 2.4 GHz, 15-channel spread
spectrum radio
Wallbox volume 5.75 cubic inches
Weight 0.05 kg (0.12 lb.)
Shipping weight 0.08 kg (0.18 lb.)
Warnings and considerations
WARNING! Turn OFF electrical power before installing or servicing this product.
Improper use or installation can cause SERIOUS INJURY, DEATH or LOSS/
DAMAGE OF PROPERTY.
ATTENTION! Coupez l'alimentation électrique avant d'installer ou de réparer
ce produit. Une mauvaise installation ou utilisation peut entraîner des blessures
graves, décès ou perte / dommages à la propriété.
WARNING! This device must be protected by a circuit breaker (20A max).
ATTENTION! Cet appareil doit être protégé par un disjoncteur (20A max.)
WARNING! Ground this device in accordance with the National Electric Code
(NEC) requirements. DO NOT rely solely upon the mounting braket's contact with
a metal wall box for adequate grounding. Use the mounting plate's ground wire
to make a secure connection to the safety ground of the electrical system.
ATTENTION! Cet appareil doit être en conformité avec le Code national de
l'électricité (NEC). Ne comptez pas uniquement au contact de la plaque avant
avec un boîtier mural métallique pour la mise à la terre adéquate. Utilisez cet
appareil à la terre de l'appareil pour établir une connexion sécurisée au système
électrique.
IMPORTANT! This device must be installed by a licensed electrician in
accordance with all national and local electrical codes.
IMPORTANT! If you are unsure about any part of these instructions, consult a
qualified electrician.
IMPORTANT! Use this device only with copper or copper-clad wire. Do not use
aluminum wiring. This product has not been approved for use with aluminum
wiring.
IMPORTANT! Using this product in a manner other than outlined in this
document voids your warranty. Further, Snap One is NOT liable for any damage
incurred with the misuse of this product. See "Troubleshooting."
IMPORTANT! Do NOT use a power screwdriver to install this device. If you do,
you may overtighten the screws and strip them. Also, overtightening the screws
may interfere with proper button operation.
IMPORTANT! This is an electronic device with intricate components. Handle and
install with care!

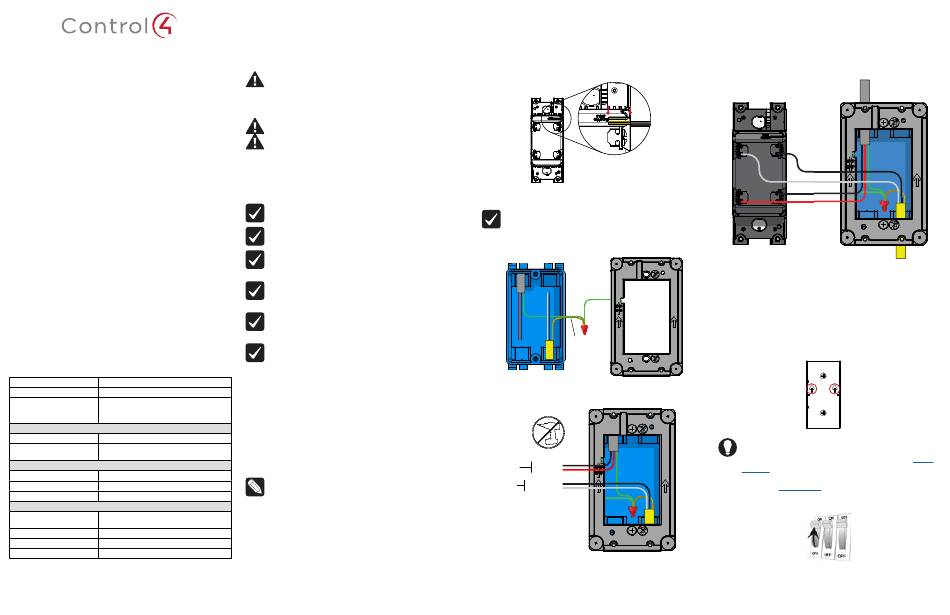

Installation instructions
1 Ensure that the location and intended use meet the following criteria:
• Do not exceed the switched load rating requirements of the fireplace switch.
Refer to the load ratings in the specifications above for details.
• Install in accordance with all national and local electrical codes.
• The range and performance of the wireless control system is highly dependent
on the following: (1) distance between devices; (2) layout of the home; (3) walls
separating devices; and (4) electrical equipment located near devices.
2 Turn off the local electrical power by either switching off the circuit breaker or
removing the fuse from the fuse box. To ensure the wires do NOT have power
running to them, use an inductive voltage detector.
NOTE: The wall box wiring shown in this document is an example. Your wire
colors and functions may differ in color. If you are unsure which wire is Line In,
Load, Neutral, Ground, or Traveler; test and identify the wires before installation.
From Fireplace
Switched Load
Black (Line In/Hot)
From Breaker
White (Neutral)
3 Prepare each wire. Wire insulation should be stripped back 1/2 of an inch (13 mm)
from the wire end. You can use the strip gauge on the back of the fireplace switch to
check the proper distance.
4 Identify your wiring application, and then see the appropriate wiring diagram in the
Sample Wiring Configurations section below.
Green (To ground)
IMPORTANT! As described in the section Warnings and Considerations, DO NOT
rely solely upon the mounting plate's contact with a metal wall box for adequate
grounding
5 Connect the ground wire lead from the mounting plate and ground from the
fireplace (if present) to earth ground in the wall box.
Copper (To ground)
Green (To ground)
Copper (To ground)
6 Using a manual screwdriver, install the mounting plate to the wall box. Do not
overtighten the screws. Pull the rest of the wires through the mounting plate.
Switched Load
From Fireplace
Switched Load
Black (Line In/Hot)
From Breaker
White (Neutral)
Switched Load
From Fireplace
Switched Load
Black (Line In/Hot)
From Breaker
White (Neutral)
7 Identify and connect the wires to the back of the fireplace switch. Insert the wire into
the terminal and secure it by hand-tightening the set screw.
To Fireplace
Fireplace Switch
NEUTRAL LINE
Black (Line In/Hot)
White (Neutral)
LOAD LOAD
Switched Load
Switched Load
From Breaker
8 Fit the wires back into the wall box. Bend the wires in a zigzag pattern so that they
easily fold into the wall box.
9 Align the fireplace switch to the mounting plate (the strip gauge should be at the
top) and fasten it with screws. Tighten the screws until the back side of the fireplace
switch is even with the mounting plate, but no further. Overtightening can warp
the fireplace switch, which may cause mechanical malfunction and mounting
inconsistencies.
10 Install the temporary rocker onto the device. The back of the rocker has two arrows
to indicate which side goes up. Line up the top of rocker with the line on the device.
Hold one side of the rocker in place over the keypad and snap the other side in place
TIP: This device ships with a temporary button for basic operation until finished.
Engraved buttons can be ordered. To remove the temporary buttons and install
the engraved buttons, see the Control4 Lux Button Installation Guide
lux-butn-ig). Blank unengraved buttons are also available.
11 Install the Control4 Faceplate following the instructions in the Control4 Lux Faceplate
Installation Guide (ctrl4.co/lux-fp-ig).
12 Turn on power at the circuit breaker or replace the fuse from the fuse box.
(ctrl4.co/
