Control 4 C4-DIN-8RELSW-E Wiring Manual

DIN-Rail 8-Channel Relay Switch
Wiring Guide
Supported model
• C4-DIN-8RELSW-E DIN-Rail 8-Channel Relay Switch
Diagrams color code*:
Black Line
Red Load
Grey Neutral
Green Earth ground
Blue Ethernet
*Important! The wire colors shown in Figure 1 in the "Diagrams
color code" table are examples only. Actual wire colors differ by
country and/or voltage.
Wiring diagrams
Use these Control4 DIN-Rail 8-Channel Relay Switch wiring diagrams along
with the DIN-Rail 8-Channel Relay Switch Installation Guide
( ctrl4.co/8chrelay-ig ) to install DIN-Rail 8-Channel Relay Switches.

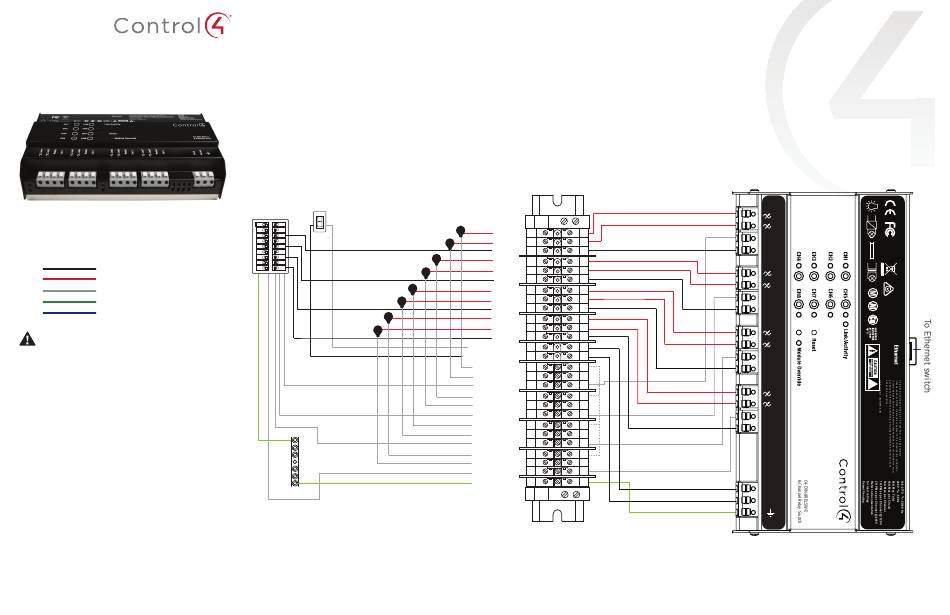

Figure 1. Wiring in Control4 panel
Override switch
Distribution
(breaker)
panel
Note:
When less than four lines are
being used, jumper any
shared neutrals at the
Terminal Block
Important: Remove the four bypass
jumpers that connect each black
terminal to two red terminals by
unscrewing all three screws in each
bypass jumper until the entire bypass
jumper can be pulled out.
Load 1
Load 2
Line 1
Load 3
Load 4
Line 2
Load 5
Load 6
Line 3
Load 7
Load 8
Line 4
Aux Override In
Aux Override Out
Neutral Out 1
Neutral Out 2
Neutral In 1
Neutral Out 3
Neutral Out 4
Neutral In 2
Neutral Out 5
Neutral Out 6
Neutral In 3
Neutral Out 7
Neutral Out 8
Neutral In 4
Ground
Terminal block
Load 1
Load 2
Neutral 1
Line 1
Load 3 Load 3
Load 4 Load 4
Neutral 2
Line 2
Load 5 Load 5
Load 6 Load 6
Neutral 3
Line 3
Load 7 Load 7
Load 8 Load 8
Neutral 4
Line 4
Aux in
Aux out
