Summary of Contents for Banda Audioparts ELITE 4000.4

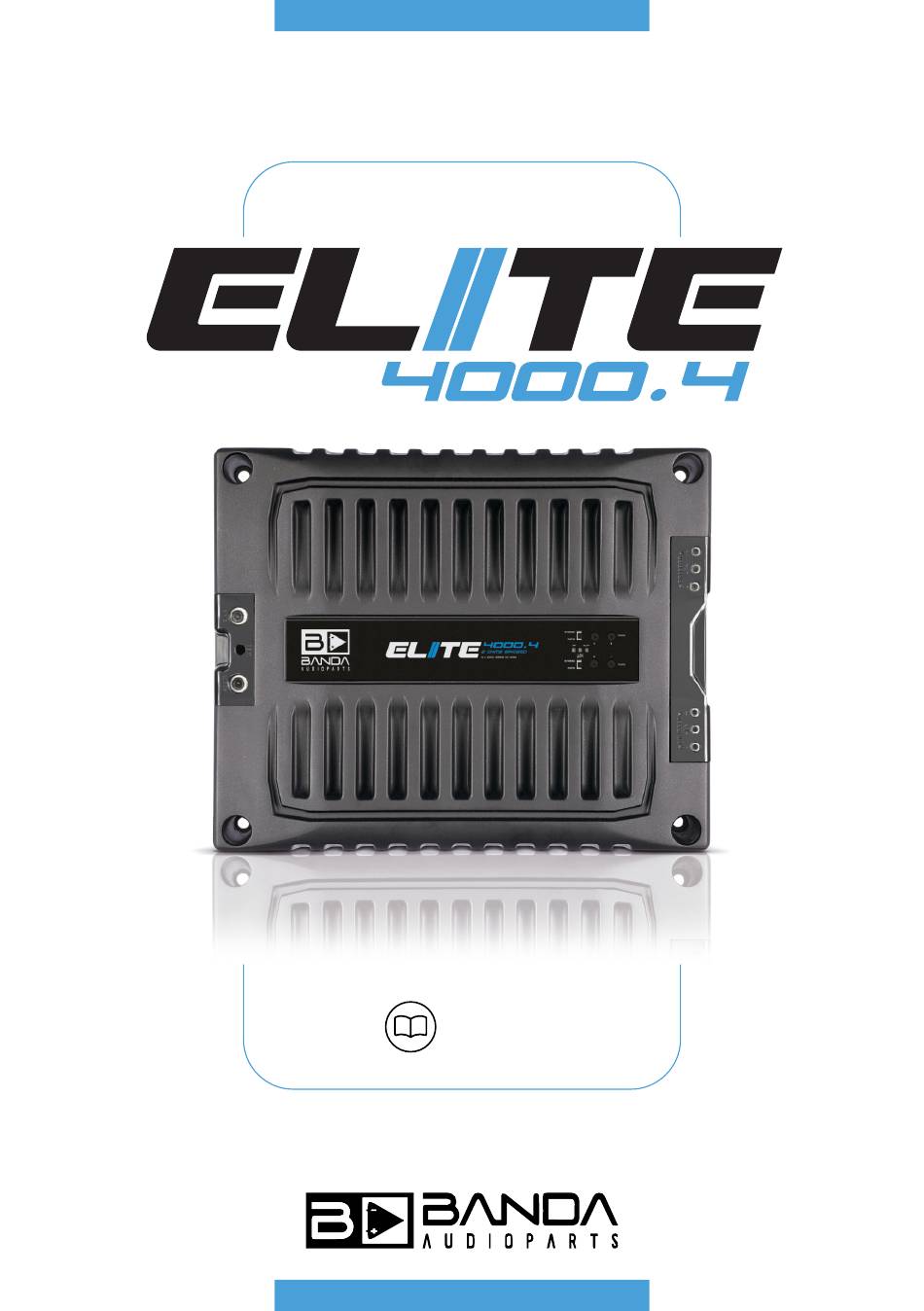

- Page 1 INSTRUCTION MANUAL Read before using...
- Page 2 TABLE OF CONTENTS Introduction Description Technical Specifications Solutions to Potential Problems /Bandaaudioparts /banda_audioparts @BandaAudiopartsOficial Visit www.bandaaudioparts.com...
- Page 3 INTRODUCTION Congratulations! You have just purchased a product with Banda Audioparts quality. Developed by qualified engineers and in a high-tech laboratory. To ensure optimal operation, please read this manual carefully before using the product. Keep the manual in a safe and accessible place for future reference.
- Page 4 DESCRIPTION POWER UNIT GND REM. 12 VDC GND INPUT Connect to the vehicle chassis (Ground) DRIVE INPUT 12VDC (+) Connect electrical antenna (Remote) NOTE: USE EXTERNAL FUSE 12VDC POSITIVE INPUT FRONT PANEL LEDS Blue (ON): On Red (CLIPPING): Indicator of output distortion, short circuit and thermal protection Yellow: Battery voltage below...
- Page 5 DESCRIPTION MONO/STEREO switch (Channel 3 and 4) Right channel gain adjustment (Channel 4) MONO/STEREO switch (Channel 1 and 2) Right channel gain adjustment (Channel 1) Left channel gain adjustment (Channel Left channel gain adjustment (Channel 2) 3)/Gain adjustment for MONO (Bridged 2) Gain adjustment for MONO (Bridged 1) SIDE | CROSSOVER KEY CROSSOVER key...
-
Page 6: Crossover Switch
DESCRIPTION CROSSOVER SWITCH... -
Page 7: Connection Examples
DESCRIPTION CONNECTION EXAMPLES 1 ohm VERSION 1 ohm VERSION BRIDGED (CHANNELS 3 and 4) - Subwoofer CHANNELS 1 and 2 - 2 speakers of 500Wrms @ 2ohms each in parallel resulting in 1000Wrms @ 1ohm per channel 1 coil @2ohms 2000Wrms 2 ohms VERSION 2 ohms VERSION BRIDGED (CHANNELS 3 and 4) - Subwoofer... -
Page 8: Technical Specifications
1 ohm VERSION 1 ohm VERSION BRIDGED (CHANNELS 1 and 2) - Subwoofer BRIDGED (CHANNELS 3 and 4) - Subwoofer 1 coil @2ohms 2000Wrms 1 coil @2ohms 2000Wrms 2 ohms VERSION 2 ohms VERSION BRIDGED (CHANNELS 1 and 2) - Subwoofer BRIDGED (CHANNELS 3 and 4) - Subwoofer 1 coil @4ohms 2000Wrms 1 coil @4ohms 2000Wrms... - Page 9 TECHNICAL SPECIFICATIONS PARAMETERS 1 ohm VERSION 2 ohms VERSION Maximum Power 14.4v @ 1 Ohm 4 x 1200 WRMS Maximum Power 14.4v @ 2 Ohms 4 x 800 WRMS 4 x 1200 WRMS Maximum Power 14.4v @ 4 Ohm 4 x 800 WRMS Maximum Power 14.4v Bridged 2 x 2400 WRMS 2 Ohms 2 x 2400 WRMS 4 Ohms...
- Page 10 SOLUTIONS TO POTENTIAL PROBLEMS PROTECTION SYSTEM PROBLEM SOLUTION Install the appliance in a well-ventilated place and ensure that the ventilation Amplifier temperature has Blue & Red LED On system is not obstructed. The amplifier will reached the operating limit. return to normal operation as soon as the temperature drops.
-
Page 11: Warranty Terms
WARRANTY TERMS Warranty valid for 12 months (one year), starting from the date of purchase, if purchased from an authorized Banda Audioparts dealer. Will be covered by warranty components and/or parts comproved that shows failures in process manufacture or damaged components. - Page 12 /Bandaaudioparts /banda_audioparts @BandaAudiopartsOficial Visit www.bandaaudioparts.com...
