Summary of Contents for Prem-I-Air EH1990

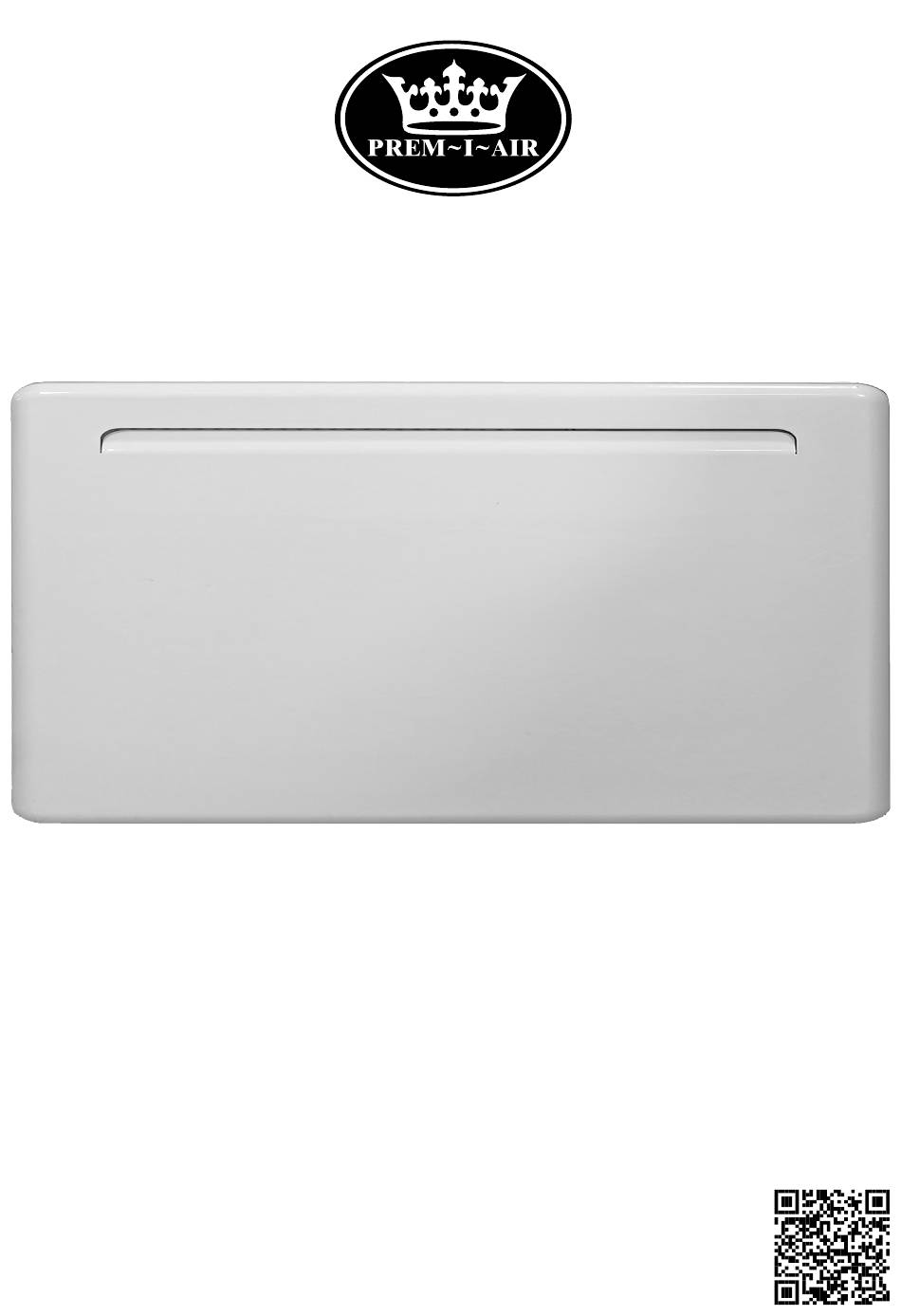

- Page 1 Programmable Panel Heater EH1990 EH1992 EH1994 EH1996 500W 1000W 1500W 2000W User Manual Please Retain for Future Reference Updated Manuals Available Online; www.electrovision.co.uk/search?term=EH1992...
-
Page 2: Before Use
Please note: For energy conservation purposes this product is only suitable for well insulated spaces IMPORTANT Installer and Users please note: These instructions should be read carefully and left with the user of the product for future reference. BEFORE USE You must inspect the appliance including its cable and plug for any signs of damage. - Page 3 ASSEMBLY/INSTALLATION The unit must be switched off and disconnected Free Standing: fig. 2 1. Attach the two castor-wheel Front of heater brackets to the underneath of the heater (see fig. 2) using the eight M4x8mm screws (four in each bracket). The longer side of the bracket goes at the back of the heater (see fig.
- Page 4 ASSEMBLY/INSTALLATION (CONTINUED) Wall Mounting: 1. Remove the bracket from the back 2. Using the bracket as a template, and Note: This item is fitted with a tip over of the unit by depressing the two taking note of the safety instructions switch.
-
Page 5: Operation Mode Selection
OPERATION A Help Video Is Available Online; www.electrovision.co.uk/search?term=EH1992 Control Panel Overview LCD Display Symbol Function Comfort mode (Temperature range 5-35ºC) Eco mode = Comfort mode -3.5ºC Anti-frost mode (Temperature set at 7ºC) Control Panel Symbol Function Heating indicator Main power switch (side of unit) Programming mode (Set the On/Off key heater with a program) - Page 6 OPERATION (MODE SELECTION) ECO Mode: In ECO mode, the temperature cannot be set. The heater will decrease 3.5ºC from the current comfort temperature. For example, if the temperature is set to 19ºC in comfort mode, the ECO mode temperature will be 15.5ºC. Anti-Frost Mode: The temperature in anti-frost mode is always 7ºC and cannot be set by the user.
-
Page 7: Open Window Function
OPERATION (PROGRAMME MODE) You can program the working mode for each hour of the day for a week. When you first enter the P mode you will need to set the current day and the time first. 1. Press Mode key until P appears on the screen 2. -
Page 8: Keypad Lock Function
At time of going to press, the average cost of electricity is £0.27 per unit (kilowatt-hour). The amount you are being charged will be shown on your electricity bill. At this cost, the running costs will be as follows: EH1990 500W £0.14 per hour EH1992 1000W £0.27 per hour... -
Page 9: Disposal And Recycling
TECHNICAL SPECIFICATION Code Dimensions Wall Dimensions Floor Weight Power Power Consumption Operating Mounting (mm) Standing (mm) (kg) Supply (kW) Current (A) EH1990 400x400x96 400x445x264 3.59 230V EH1992 500x400x96 500x445x264 4.39 230V EH1994 640x400x96 640x445x264 5.29 230V EH1996 940x400x96 940x445x264 7.30... -
Page 10: Service / Warranty
Prem-i-Air Appliances Ltd, Lancots Lane, St Helens, WA9 3EX SERVICE WARRANTY Prem-i-Air guarantees the product free from defects in materials and workmanship for a period of twelve months. Should this appliance be operated under conditions other than those recommended, at voltages other than the voltage indicated on the appliance, or any attempts made to service or modify the appliance, then the warranty will be rendered void.
