Perrin & Rowe Traditional Bathroom U.3800L Installation & User Manual

The Traditional Bathroom Collection
I n s t a l l a t i o n & U s e r G u i d e
Congratulations on the purchase of your Perrin & Rowe Bathroom Faucet.
Correctly installed and with sensible care, it will give many years of trouble free service.
Before you proceed...
We recommend you engage the
services of a registered plumber to install this product.
Read the instructions on this leaflet carefully.
P R E P A R A T I O N
Flush the plumbing system before installing the faucet. This is
to avoid plumbing residues clogging the flow straightener, or
possibly damaging the ceramic valves. This is especially
important where extensive plumbing work has been carried out.
C H E C K L I S T
! ! Temperature of the hot water supply does not exceed 185 F ! !
! ! R R e e c c o o m m m m e e n n d d e e d d minimum water supply pressure - 15 psi ! !
! ! R R e e c c o o m m m m e e n n d d e e d d maximum water supply pressure - 75 psi ! !
! ! I I d d e e a a l l p p e e r r f f o o r r m m a a n n c c e e o o b b t t a a i i n n e e d d w w i i t t h h e e q q u u a a l l h h o o t t & & c c o o l l d d p p r r e e s s s s u u r r e e s s ! !
A S S E M B LY - Refer to Fig 1.
Install concealed wall valves and centre body into wall to
required depth, allowing for thickness of tiles etc.
*Please note the maximum depth on installation diagram.
(Extension kits are available for the valves to achieve greater
depth). Cavity should be sufficient to allow for servicing of
valves.
N N o o z z z z l l e e - Assemble nozzle base ring, fitting 'O' seal supplied
between rosette and wall finish. Fit nozzle onto shank using
thread sealing materials sparingly.
W W a a l l l l V V a a l l v v e e s s - Slide rosette onto valve cover ensuring rubber
seal is located correctly in internal recess. Assemble
headpart to wall valve ensuring handle is aligned correctly.
If it is not, remove and turn a few splines until correct align-
ment is achieved.
Connect Hot & Cold water supplies to wall valve inlets.
U.3800L U.3801X U.3805 U.3803 U.3780L U.3781X U.3785
U.3580L U.3580LS U.3581X U.3585
3 3 H H o o l l e e W W a a l l l l T T u u b b S S e e t t s s
1 1 /4 " MAX
2 3 /8 " MAX
1 /2
3 " MAX
1 /8
2 " MIN
Concealed
Wall Valve
Base Seal
3 /4 " NPT
3 / " NPT
4

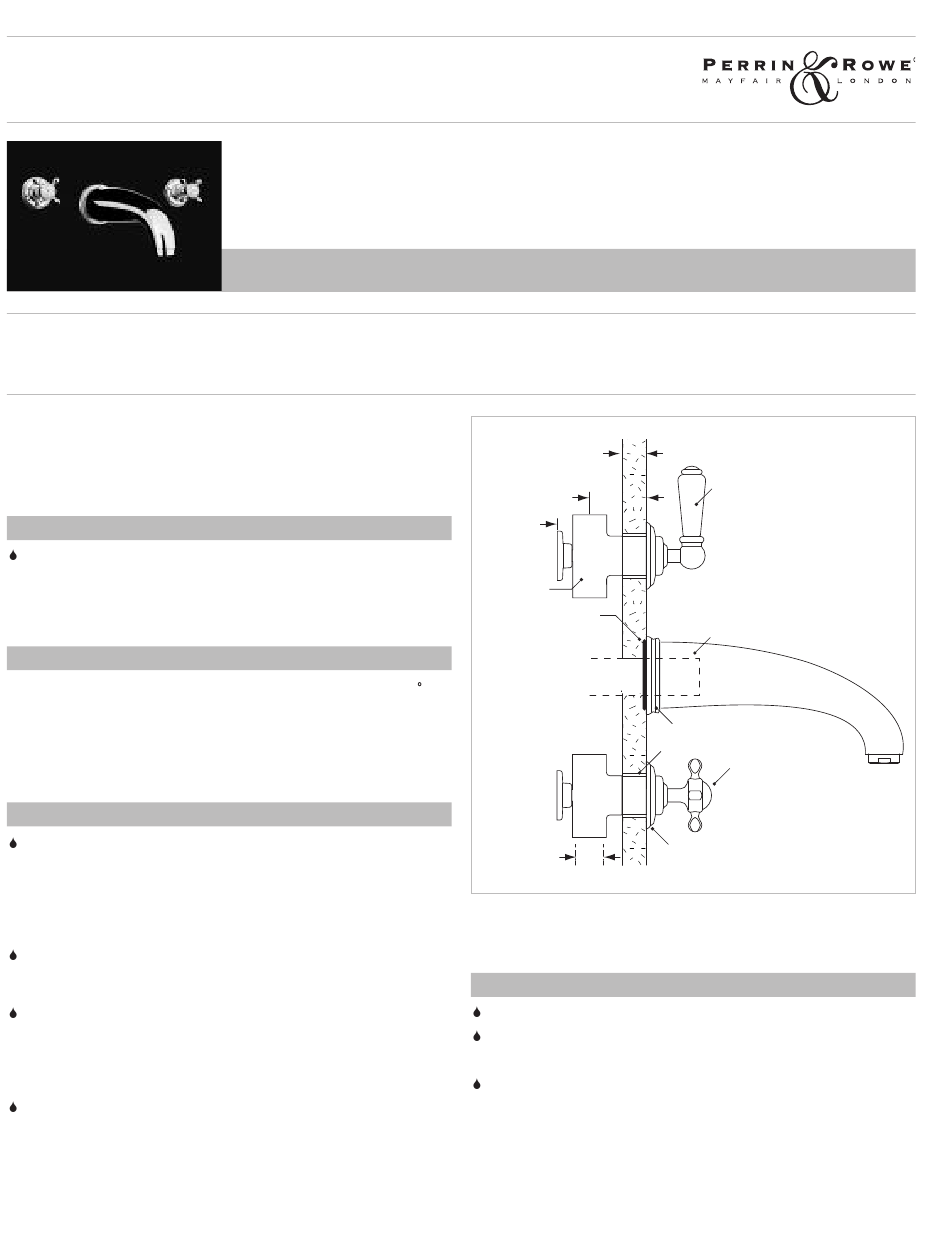

Fig 1.
Installation of Mixer
B E F O R E U S E
Carefully check the installation for leaks.
If further building work is to be carried out in the vicinity, cover
the faucet with a plastic bag to avoid damaging the finish.
Please ensure that the installation complies with the local
plumbing codes.
Lever
Handle
Nozzle
Base Ring
ø1 1 /2 "
Hole
Crosshead
Handle
Rosette
