The Traditional Countr y Kitchen Collection
I n s t a l l a t i o n & U s e r G u i d e
U.4700, U.4701, U.4702
C o n g r a t u l a t i o n s o n t h e p u r c h a s e o f y o u r P e r r i n & R o w e k i t c h e n t a p !
Correctly installed and with sensible care, it will give many years of trouble
free service.
Before you proceed... We recommend you engage the services of a registered
plumber to install this product.
Read the instructions and diagrams in this leaflet carefully.
Preparation
1) Flush the plumbing system before installing the tap. This is to avoid
plumbing residues clogging or possibly damaging the ceramic valves. It
is especially important where extensive plumbing work has been carried
out.
For ease of possible future servicing, we recommend the fitting of
conveniently placed isolating valves.
Check List
G
Temperature of the hot water supply does not exceed 185˚F.
G
Recommended minimum water supply pressure - 14.5psi.
G
Recommended maximum water supply pressure - 72.5psi.
G
Ideal performance obtained with equal hot and cold pressures.
Parthian Monobloc Assembly- Refer to Figure 1.
2) Lever should be on the right when viewed from the front of the fitting.
Hole centre to be a minimum distance of 65mm from wall. The Hot
supply should be at rear of the mixer.
3) Monobloc mixers require a 1
are to be installed on. Maximum counter-top thickness 2
4) Insert the flexible connections through the hole ensuring that the base
ring and seal are in place between the mixer and mounting surface.
Connect these to the relevant supply lines.
5) From the underside of the counter-top, place the clamp plate on securing
stud and using the box spanner supplied, put fixing nut in spanner and
tighten until mixer is held firmly in position.
See Figure 1.
Rinse
7) The rinse units require a 1
are to be installed on. Assemble rinse unit socket ensuring the base seal
is in place under body. Attach the tapered end of the flex to the rinse
unit. Check that the Non-Return valve is fitted in the externally threaded
end of the flex. If not, push the Non-return valve into the bore, ensuring
that it is correctly orientated. Pass the flex through the socket, and screw
the externally threaded end to the remaining hose at the base of the
mixer tap.
" diameter hole through the surface they
7/16
" diameter hole through the surface they
3/16
".
1/4
7 /
1
16 "
Diameter
Hole
Clamp Plate

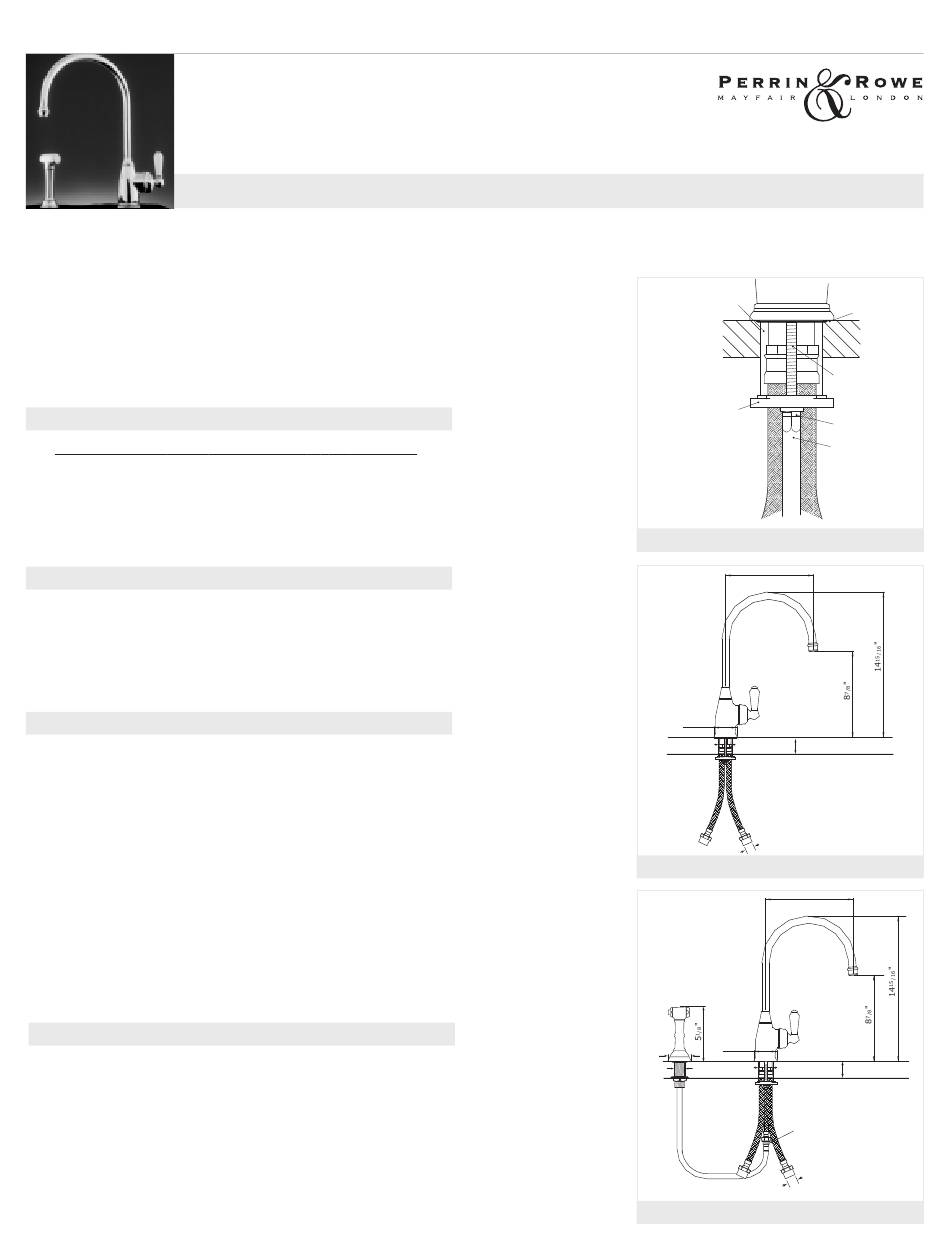

Figure 1. Installation of Centrebody
9"
(Bar Faucet 6 ")
1 /4
Ø2 "
3 /8
Ø1 " Hole
2 " Max
7 /16
1 /4
" NPSM
1 / 2
Single lever Sink Mixer with Lever Handles U.4701
9"
Ø2 "
3 /8
Ø2"
Ø1 " Hole Ø1 " Hole
3 /16
7 /16
Hose Length
NRV
47 "
1 /4
" NPSM
1 / 2
Single lever Sink Mixer with Lever Handles and Rinse U.4702
Base Seal
Securing Stud
Nut
Box Spanner
1 " Max
3 /4
