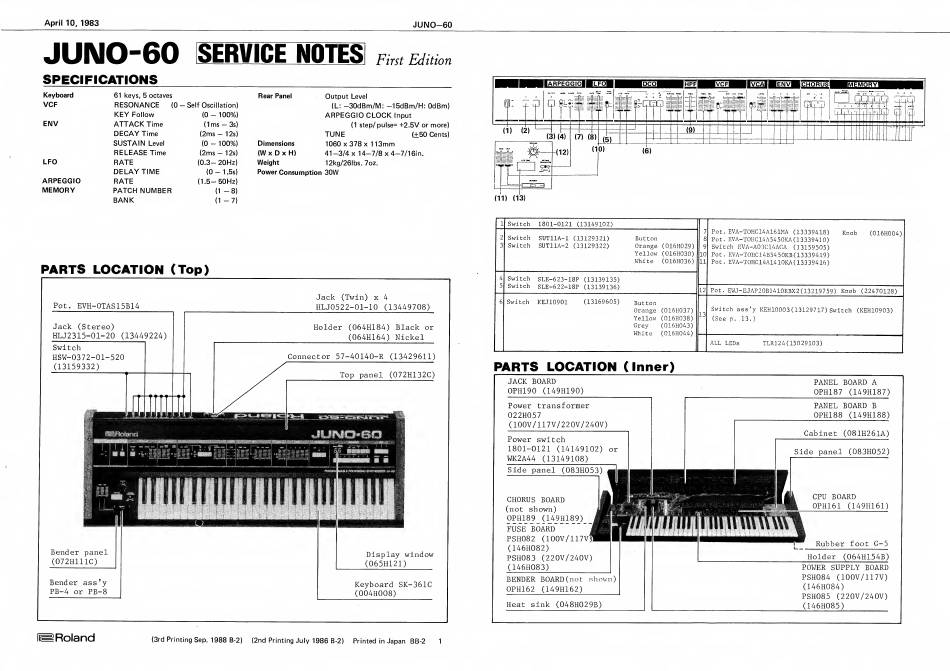

Roland JUNO-60 Service Notes

April 10, 1983 JUNO-60
JUNO-60
SERVICE
NOTES
First
Edition
SPECIFICATIONS
Keyboard
61 keys, 5 octaves Rear Panel Output
Level
VCF
RESONANCE
(0
—
Self Oscillation)
(L:
-30dBm/M: -15dBm/H: OdBm)
KEY
Follow
(0
-
100%)
ARPEGGIO CLOCK
Input
EIMV
ATTACK
Time (1ms
—
3s)
(1
step/pulse= +2.5V or more)
DECAY
Time
(2ms
-
12s)
TUNE
(±50 Cents)
SUSTAIN
Level (0
-
100%) Dimensions
1060 X
378
X
1
13mm
RELEASE
Time
(2ms
-
12s) (W X
D
X H) 41 -3/4 X
1
4-7/8 X 4-7/1
6in.
LFO RATE
(0.3- 20Hz) Weight
12kg/26lbs. 7oz.
DELAY
TIME
(0
-
1.5s)
Power Consumption 30W
ARPEGGIO
RATE
(1.5-50HZ)
MEMORY
PATCH NUMBER
(1
-8)
BANK
(1
-7)
PARTS LOCATION
(Top)
Jack (Twin) x
4
HLJ0522-01-10 (13449708)
Pot.
EVH-OTAS15B14
Jack (Stereo)
HLJ2315-01-20
(13449224)
Holder (064H184) Black or
(064H164)
Nickel
Switch
HSW-0372-01-520
(13159332)
Connector 57-40140-R (13429611)
Top panel (072H132C)
Bender panel
(072H111C)
Display window
(065H121)
Bender ass'y
PB-4
or
PB-8
Keyboard SK-361C
(004H008)
(3rd Printing Sep. 1988
B-2) (2nd Printing July 1986
B-2) Printed in
Japan BB-2
(
11
) (
13
)
1
Switch 1801-0121 (13149102)
2
Switch SUTllA-1 (13129321)
3
Switch
SUTllA-2 (13129322)
4 Switch SLE-623-18P
(13139135)
5
Switch
SLE-622-18P (13139136)
6
Switch KEJ10901 (13169605)
7
Pot. EVA-TOHC14A161MA
(13339418)
Button
8 Pot.
EVA-TOHC14A5450KA
(13339410)
Orange (016H029)
9
Switch EVA-A03C14AOA
(13159505)
Yellow
(016H030)
10 Pot. EVA-TOHC14B5450KB(13339419)
White (016H036)
11 Pot. EVA-TOHC14A1410KA(13339416)
Button
Orange (016H037)
Yellow
(016H038)
Grey
(016H043)
White
(016H044)
Pot. EWJ-EJAP20B1410KBX2(13219759) Knob
(22470128)
Switch ass'y KEH10003
(13129717) Switch (KEH10903)
(See
p
.
13.)
ALL LEDs TLR124 (15029103)
PARTS LOCATION
(Inner)
PANEL BOARD A
OPH187 (149H187)
JACK BOARD
OPH190 (149H190)
Power transformer
022H057
(100V/117V/220V/240V)
PANEL BOARD B
0PH188 (149H188)
Cabinet (081H261A)
Power switch
1801-0121 (14149102)
or
WK2A44 (13149108)
Side panel (083H052)
CPU BOARD
0PH161 (149H161)
Side panel (083H053)
CHORUS BOARD
(not shown)
OPH189 (149H189)
Rubber foot G-5
FUSE BOARD
PSH082 (lOOV/117
(146H082)
PSH083 (220V/240V)
(146H083)
Holder (064H154B)
POWER SUPPLY BOARD
PSH084 (100V/117V)
(146H084)
PSH085 (220V/240V)
(146H085)
BENDER BOARD (not shown)
OPH162 (149H162)
Heat sink (048H029B)
&14J
