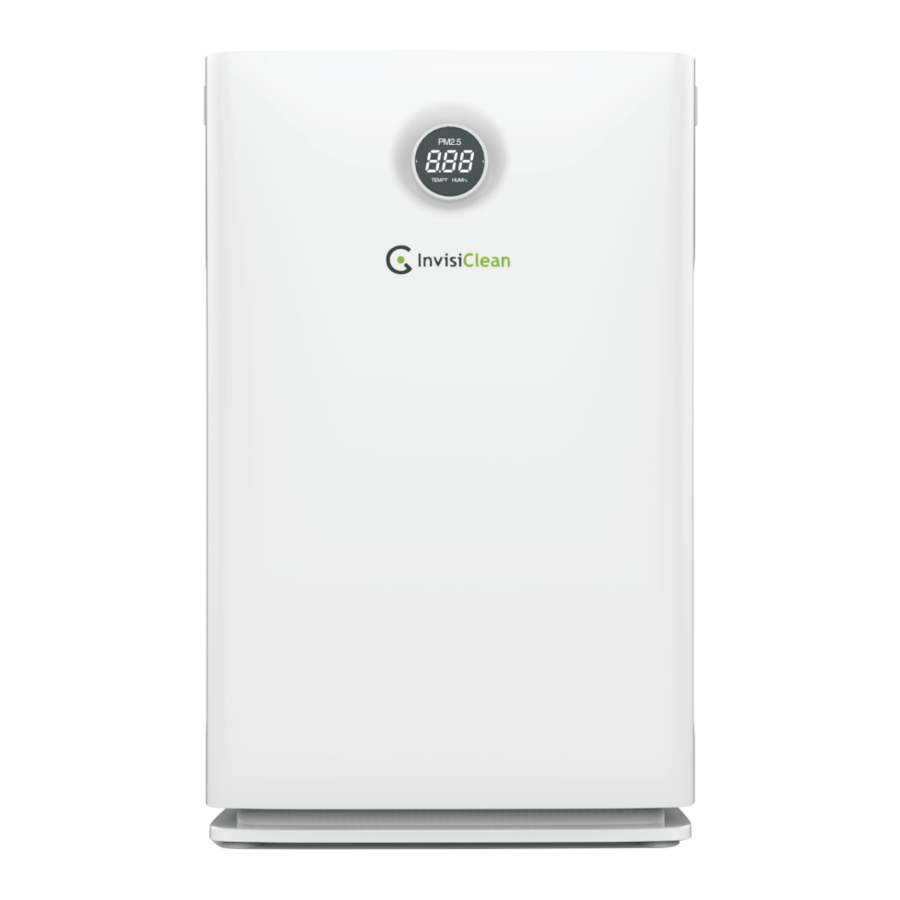

InvisiClean Claro 4-in-1 (IC-4524) Manual

Parts diagram

Controls

Control panel

Button:
Touch Panel

#	Description	Function
1	Timer	Timer with 1 / 2 / 4 / 8 hour options
2	UV/UV reset	UV light switch / UV reset button
3	Power	Power switch to turn unit on
4	Ionizer/Filter reset	Ionizer button / Filters reset
6	Speed/Mode	Fan speeds(1, 2, 3,Turbo, Auto and Sleep mode button)

How to Use

Power Button: Turn air purifier on and off.
Timer Button: When you would like the air purifier to auto shut off after a preset amount of time use this button to set the interval. Time can be selected from 1, 2, 4, and 8 hours.
UV/ UV Reset Button: Press UV button once to turn on the UV light; Press UV button again, the UV light will turn off. When the UV light usage reaches 3,000 hours, the UV indicator light will flash indicating it is time to replace the UV lamp. To reset the UV reset indicator, press and hold the UV button for 3 seconds. The unit will beep and the indicator light will turn off.
Ionizer/Filter Reset Press Ionizer button once to turn the ionizer on; Press Ionizer button again, the ionizer will turn off. After the air purifier has been in use for 4,320 hours, the indicator light on the Ionizer button will flash indicating it is time to replace the filter. To reset the filter reset indicator, hold the Ionizer button for 3 seconds. The unit will beep and the indicator light will turn off.
Fan Speed/Mode: Press the Speed/Mode button to cycle between fan speeds 1, 2, 3, & Turbo and Auto mode and Sleep mode.
The LCD display on the front will cycle between PM2.5 level, temperature, and humidity.

Features & Functions

Features:

LCD display showing current PM2.5 levels, temperature, and humidity.
Three fan speeds + turbo and automatic and sleep mode.
True HEPA * filtration system + UV-C light and ionizer

Footnotes:
* True HEPA filter efficiency of 99.989% with respect to particles 0.1-0.3 μmin diameter indicated by third-party testing conducted pursuant to method GB/T 6165-2008.

Maintenance

Filter Replacement:

Clean exterior of the air purifier with soft and clean cloth, do not use solvents or harsh chemicals to clean the unit
Replace or clean the pre-filter often using the brush attachment of your vacuum cleaner for optimum performance.
True HEPA filter needs to be cleaned or replaced every 6-12 months depending on use. Follow the instructions in the diagram to clean or replace. (Figures: A, B, C)
Figure A: Using both hands, pull to open the front cover, and lift up the front cover to access the filters.

Figure B: Remove the filter using the pull tabs on the filter.

Figure C: Insert the replacement filter. For the front cover, please hook the two lower hooks onto the bottom of the unit first then push forward to latch the door in place. For your safety, the unit will not function without the door latched in place.

UV bulb replacement:
When the UV light button starts blinking, it is time to change the UV bulb. To replace the UV-C bulb, please follow the following steps.

Unplug the unit from the wall and remove the front cover and filter.
Unscrew the 4 screws holding UV bulb access door in place.
Pull the UV bulb from the unit and unscrew the bulb from the holder.
Using gloved hands or a towel to prevent fingerprints, carefully screw the new bulb in place.
Insert bulb back into unit and replace door cover in place with 4 screws.

Note:
Never look at the operating UV lamp directly.
Use only replacement bulb sold by InvisiClean. Order parts on our website, www.invisiclean.com.
Follow the instructions in the diagram on how to replace the UV bulb.
(Figures: A, B, C,D,E)
UV bulb replacement - STEP 1
UV bulb replacement - STEP 2

LAMP CONTAINS MERCURY

Manage in accordance with Spills, Disposal and Site Cleanup Requirements. In case of breakage, follow clean-up procedures provided by contacts below.

www.epa.gov/cflcleanup
1-866-284-4010

Troubleshooting

Problem	Solutions
Will not power on	Try a different outlet Front cover is not installed correctly in place. Remove door, replace, and try again.
Sounds noisy or makes abnormal sounds	Make sure the air purifier is on the ground on a flat level surface. Check to make sure filter is not clogged or needs to be changed. Check air inlet and outlet for obstructions.
Unit is on with no lights	Unit is in sleep mode. Press any button to exit.
Insufficient Air Flow	Check to make sure filter is not clogged or needs to be changed. Check air inlet and outlet for obstructions.

Frequently Asked Questions

Why is the ionizer /filter reset light blinking?	The replace filter light is set to automatically go off after 4,320 hours. It is only a reminder to check the filter to keep the air purifier running smoothly. To reset the light, please hold down the ionizer button while the unit is on for 3 seconds and the unit will beep to reset the timer.
Why is the UV/UV reset light blinking?	The replace UV light is set to automatically go off after 3,000 hours. It is a reminder to replace the UV light bulb. To reset the light, please hold down the UV button while the unit is on for 3 seconds and the unit will beep to reset the timer.
How often should I change filters?	The filter replacement frequency varies greatly on environment. We recommend checking the pre-filter monthly. Vacuum off any visible dust and hair on the pre-filter or replace the pre-filter with a new one. For HEPA filter replacement, we recommend going by looking at the backside of the filter. Once the backside turns a grayish color indicating that dirt has penetrated to the last layer of the filter, we recommend changing it.
When should I change the bulb?	The bulb should be changed yearly for optimum performance.
How do I tell if my UV lamp is working?	You should see a blue glow from the UV bulb when looking into the unit from above the air outlet on the right side.
What is PM2.5?	It is a measurement of PM (Particulate Matter) in the air that is smaller than 2.5 micrometers. Human hair is about 75 micrometers in diameter, so even the largest PM2.5 particle is 30 times smaller than that. For further information, please check in the manual.
My unit is on but the power light is blinking	Please make sure the door is properly closed. Please make sure the two hooks at the bottom of the door are intact and not broken off. If they are broken off, please contact us to replace the door.
What is auto mode?	In auto mode, when the PM2.5 level rises, it will automatically raise the fan speed to remove the particles in the air as fast as possible. Once the pollution source is gone, the fan speed will go back down. If your goal is to prevent PM2.5 inhalation, our recommendation is to leave it on auto. If you are trying to reduce dust and allergens, our recommendation is to leave the air purifier on the highest speed that is comfortable. That way the air purifier is constantly working to move air around and capture dust and allergens.

What is PM2.5?

To put it simply, it is a measurement of PM (Particulate Matter) in the air that is smaller than 2.5 micrometers. Human hair is about 75 micrometers in diameter, so even the largest PM2.5 particle is 30 times smaller than that!
One common misconception of PM2.5 is that it is a count of particles in the air. To clarify, PM2.5 is a weight measurement of µg (micrograms) per m³ (cubic meter). It is not a quantity measurement but a mass measurement. The way our PM2.5 meter works is by using a laser to radiate suspended particles in the air, it collects the scattering light and estimates the mass of all particles 2.5µm and under in size.

Why does it matter?

PM2.5 particulate matter contains microscopic solids or liquid droplets that are so small that they can go deep inside the lungs and into the bloodstream causing health problems. Another common misconception is that a PM2.5 measurement reflects the amount of "dust" in the air. Although it can technically be classified as dust, it is not visible to the eye like normal household dust. Household dust can be irritating but it will usually get filtered out through your nose and mouth.

Where does it come from?

Some are emitted directly from a source, some examples are construction sites, unpaved roads, fields, smokestacks or fires. Most particles in the air are a result of complex chemical reactions of pollutants emitted from power plants, industrial manufacturing, and automobiles.

What PM2.5 level is ok?

The ideal levels are below 100 and if you are sensitive to PM2.5, below 50 is ideal.

Specifications

Input voltage: AC120V/60Hz
Rated power: 55W
CFM:200CFM
Negative ion density: ≥3000000/cm³
Unit weight: 15.2 lbs
Product size: 14.7 x 8.5 x 23.4 inches
If you have any questions, please email us at Support@InvisiClean.com or call us at 818-787-1188
Monday – Friday 9AM-5PM
Pacific time for immediate assistance.

Safety Precautions

READ AND SAVE THESE INSTRUCTIONS

Failure to comply with the warnings listed below may result in electric shock or serious injury.
This product should be used only in accordance with the specifications outlined in this manual. Usage other than what has been specified here may result in serious injury.
When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons.

Read all instructions before using appliance.
This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to defeat this safety feature.
To avoid fire or shock hazard, plug the appliance directly into an AC electrical outlet.
Keep the cord out of heavy traffic areas. To avoid fire hazard, NEVER put the cord under rugs, near heat registers, radiator, stoves, and heaters.
To protect against electrical hazards, DO NOT immerse in water or other liquids. Do not use near water or near objects containing water like vases.
Children cannot recognize the hazards associated with the usage of electrical appliances. For this reason, always supervise children when they are near the unit.
Always unplug the air purifier before moving it, opening the grill, changing filters, cleaning or whenever the air purifier is not in use. Be sure to pull by the plug and not the cord.
NEVER drop or insert any object into any openings.
DO NOT run cord under carpeting.
DO NOT cover cord with throw rugs, runners, or similar coverings.
DO NOT route cord under furniture or appliances. Arrange cord away from traffic area and where it will not be tripped over.
DO NOT operate any appliance with a damaged cord or plug, if motor fan fails to rotate, after the appliance malfunctions, or if it has been dropped or damaged in any manner. Please contact the manufacturer for assistance.
Use appliance only for intended household use as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock or injury to persons.
DO NOT use outdoors.
DO NOT sit or place anything on top of unit.
NEVER block the air openings, grills/outlets or place on a soft surface such as a bed or sofa, as this could cause the unit to tip over, blocking the air intake or air outlet.
DO NOT attempt to repair or adjust any electrical or mechanical functions on this unit. Doing so will void your warranty. The inside of the unit contains no user serviceable parts. All servicing should be performed by qualified personnel only.
To reduce the risk of fire or electric shock, do not use this fan with any solid-state speed control device.

DISCONNECT POWER FROM UNIT BEFORE SERVICING OR REPLACING UV LAMP
