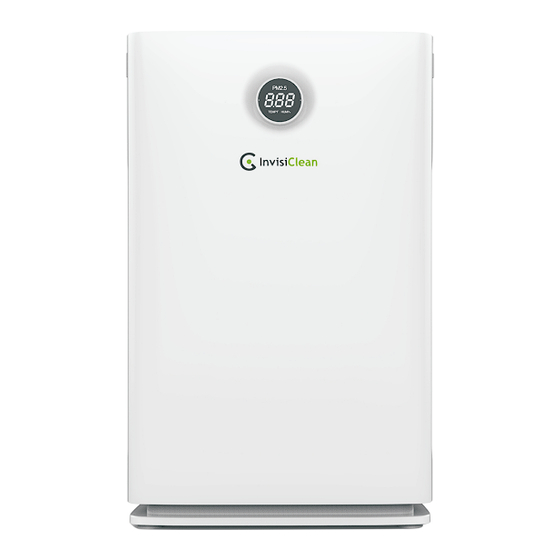

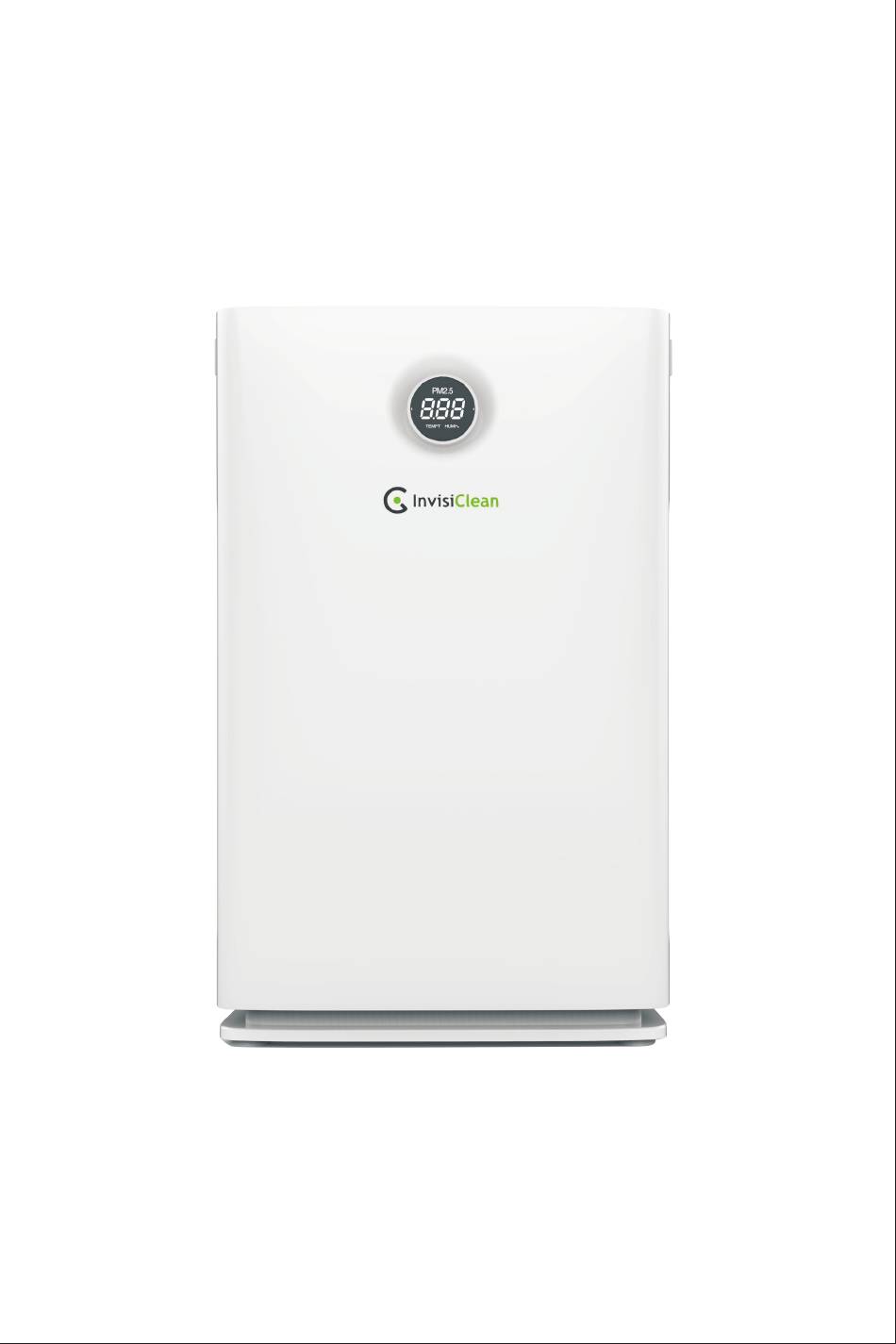

- Page 1 InvisiClean Claro 4-in-1 True HEPA Air Purifier Model No.: IC-4524 If you have any questions, please email us at Support@InvisiClean.com or call us at 818-787-1188 Monday – Friday 9AM-5PM Pacific time for immediate assistance.
-
Page 3: Table Of Contents
Content Contents.………………………………………………………1 Safety Precautions…..………………………………..……2-3 Parts diagram…………………………………………………4 Controls & Use..……………………...……………………5-6 Features & Functions……………………...…………………7 Maintenance.………………………………...…………..……8-10 Troubleshooting…..………………..………..….……………11 Frequently Asked Questions……..………..….……………11-13 Warranty…..………………..………..….………………………15 Save on replacement filters………..………..….……………16 Specifications………..……….……….……..….……………17... -
Page 4: Safety Precautions
READ AND SAVE THESE INSTRUCTIONS WARNINGS Failure to comply with the warnings listed below may result in electric shock or serious injury. This product should be used only in accordance with the specifications outlined in this manual. Usage other than what has been specified here may result in serious injury. - Page 5 READ AND SAVE THESE INSTRUCTIONS • Always unplug the air purifier before moving it, opening the grill, changing filters, cleaning or whenever the air purifier is not in use. Be sure to pull by the plug and not the cord. •...
-
Page 6: Parts Diagram
Parts diagram: Back Housing UV Lamp Front Door Carbon Pre-filter True HEPA Filter... -
Page 7: Controls & Use
Controls Control panel Button： Touch Panel Description Function Timer Timer with 1 / 2 / 4 / 8 hour options UV/UV reset UV light switch / UV reset button Power Power switch to turn unit on Ionizer/Filter reset Ionizer button / Filters reset Speed/Mode Fan speeds(1, 2, 3,Turbo, Auto and Sleep mode button) - Page 8 How to Use 1. Power Button: Turn air purifier on and off. 2. Timer Button: When you would like the air purifier to auto shut off after a preset amount of time use this button to set the interval. Time can be selected from 1, 2, 4, and 8 hours.
-
Page 9: Features & Functions
Features & Functions Features： 1.LCD display showing current PM2.5 levels, temperature, and humidity. 2.Three fan speeds + turbo and automatic and sleep mode. 3.True HEPA * filtration system + UV-C light and ionizer Footnotes: * True HEPA filter efficiency of 99.989% with respect to particles 0.1-0.3 μmin diameter indicated by third-party testing conducted pursuant to method GB/T 6165-2008. -
Page 10: Maintenance
Maintenance Filter Replacement: 1. Clean exterior of the air purifier with soft and clean cloth, do not use solvents or harsh chemicals to clean the unit 2. Replace or clean the pre-filter often using the brush attachment of your vacuum cleaner for optimum performance. 3. - Page 11 E) Insert bulb back into unit and replace door cover in place with 4 screws. Note: Never look at the operating UV lamp directly. Use only replacement bulb sold by InvisiClean. Order parts on our website, www.invisiclean.com. Follow the instructions in the diagram on how to replace the UV bulb.
- Page 12 Maintenance Figure C Figure D Figure E -10-...
-
Page 13: Troubleshooting
Troubleshooting Problem Solutions Will not power on Try a different outlet Front cover is not installed correctly in place. Remove door, replace, and try again. Sounds noisy or Make sure the air purifier is on the ground on a flat level makes abnormal surface. - Page 14 Frequently Asked Questions How often should The filter replacement frequency varies greatly on I change filters? environment. We recommend checking the pre-filter monthly. Vacuum off any visible dust and hair on the pre-filter or replace the pre-filter with a new one. For HEPA filter replacement, we recommend going by looking at the backside of the filter.
- Page 15 Frequently Asked Questions My unit is on but Please make sure the door is properly closed. Please the power light is make sure the two hooks at the bottom of the door are blinking intact and not broken off. If they are broken off, please contact us to replace the door.
- Page 16 What is PM2.5? To put it simply, it is a measurement of PM (Particulate Matter) in the air that is smaller than 2.5 micrometers. Human hair is about 75 micrometers in diameter, so even the largest PM2.5 particle is 30 times smaller than that! One common misconception of PM2.5 is that it is a count of particles in the air.
-
Page 17: Warranty
Warranty 1 Year Warranty InvisiClean warrants this product to be free of defects in materials or workmanship commencing upon the date of the original purchase. Save your original sales receipt to validate start of warranty period. Warranty is not valid without receipt. -
Page 18: Save On Replacement Filters
Save on replacement filters -16-... -
Page 19: Specifications
Specifications Input voltage：AC120V/60Hz Rated power：55W CFM：200CFM Negative ion density：≥3000000/cm Unit weight： 15.2 lbs Product size：14.7 x 8.5 x 23.4 inches -17-...
