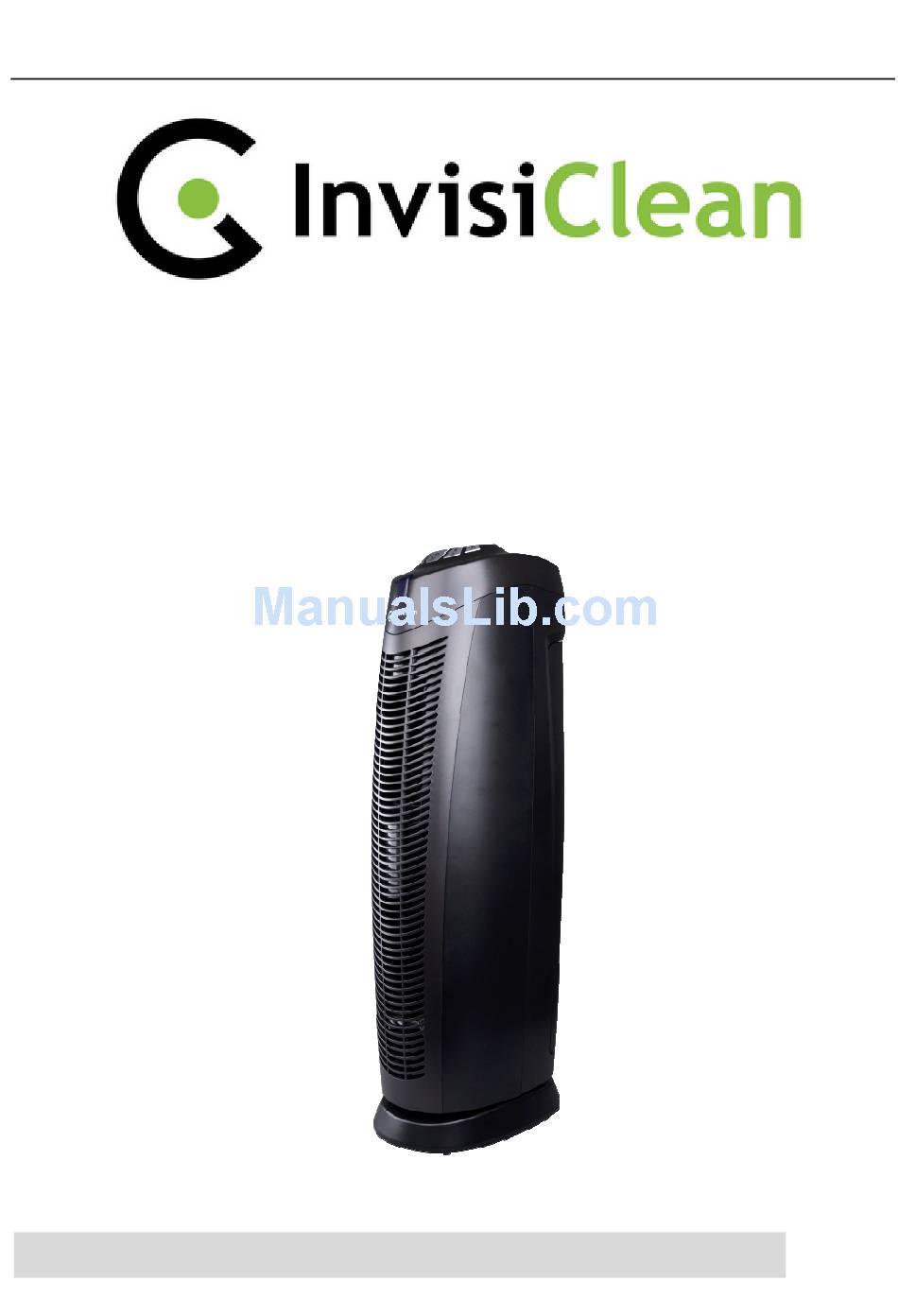

- Page 1 AIR PURIFIER with TRUE HEPA FILTER Model No.: IC-7028-Black READ AND SAVE THESE INSTRUCTIONS:...
- Page 2 Failure to comply with the warnings listed below may result in electric shock or serious injury This product should be used only in accordance with the specifications outlined in this manual. Usage other than what has been specified here may result in serious injury.
-
Page 3: Main Parts
Always unplug the air purifier before moving it, opening the grill, changing • filters, cleaning or whenever the air purifier is not in use. Be sure to pull by the plug and not the cord. NEVER drop or insert any object into any openings. •... -
Page 4: Operation
OPERATION PREPARING FOR FIRST USE 1. Carefully unpack your air purifier from the box and remove from the plastic bag. 2. Select a firm, level, and flat location. For proper air flow, place the unit at least 1 foot from any wall or furniture. Ensure no grills are blocked. 3. - Page 5 Figure 1 OPERATING INSTRUCTIONS The air purifier may be operated by the manual controls located on the air purifier (as shown in Figure 1). Turn the air purifier on by pressing On/Off Button, press On/Off Button again to turn off the machine. Turn on the UV-C lamp and Ionizer ON or OFF by using UV&ION Button.
-
Page 6: Cleaning And Maintenance
TIMER FUNCTION: This function will work in any mode. The timer function allows you to set the length of operation from 1 hour (1H) to 8 hours (8H). Press Timer Button to set your desired operation time. Once the timer is set, the timer indicator will lit and the timer will count down the hours till the air purifier turn itself off. - Page 7 Figure 3 CLEANING or REPLACING HEPA FILTER (See Figure 3) 1. Turn off and unplug the unit. Press the lock & release button and remove the rear cover from the unit. 2. Take out the used filter and discard it properly. (See Figure 4)
- Page 8 Figure 4 Attach the pre-filter to the HEPA filter using Velcro and insert the new HEPA filter. (See Figure 5) Install the rear cover back onto the unit and securely latch in place. Figure 5 NOTE: Do not use water or any other household cleaners to clean the HEPA filter. Due to varying environmental conditions, the filter may need to be replaced earlier or later than indicated by the HEPA Filter Reset Indicator.
-
Page 9: Removing/Installing Uv Lamp
CLEANING PRE-FILTER (See Figure 6) 1. Turn off and unplug the unit. 2. Press the Lock & Release Button and remove the Rear Cover from the unit. 3. Remove the pre-filter from the HEPA Filter. Clean the pre-filter with vacuum brush attachment of your vacuum cleaner. -
Page 10: Maintenance
Figure 7 To remove the UV lamp, rotate it 1/4 turn and then slide it out of the top and bottom lamp sockets. (See Figure 8) Figure 8 To install the UV lamp, slide it into the top and bottom lamp sockets and rotate it 1/4 turn. -
Page 11: Troubleshooting Tips
1. The air purifier should be checked once a month. 2. Clean the pre-filter with the vacuum cleaner, which will remove lint and dirt. Use a clean, dry, soft cloth to wipe the external surface of unit. NOTE: Do not stick any foreign objects or your fingers into the unit. CAUTION: Do not use gasoline, benzine, thinner, harsh cleaners, etc., as they will damage the product. -
Page 12: Year Limited Warranty
3 YEAR LIMITED WARRANTY To the consumer, InvisiClean warrants this product to be free of defects in materials or workmanship commencing upon the date of the original purchase. Save your original sales receipt to validate start of warranty period. Warranty is not valid without receipt .
