Transmission Poly-V Belt Replacement

1. Remove the driven disc. See Driven Disc Replacement
.
26
2. Note the routing of the old belt around the three pulleys
before removing it.

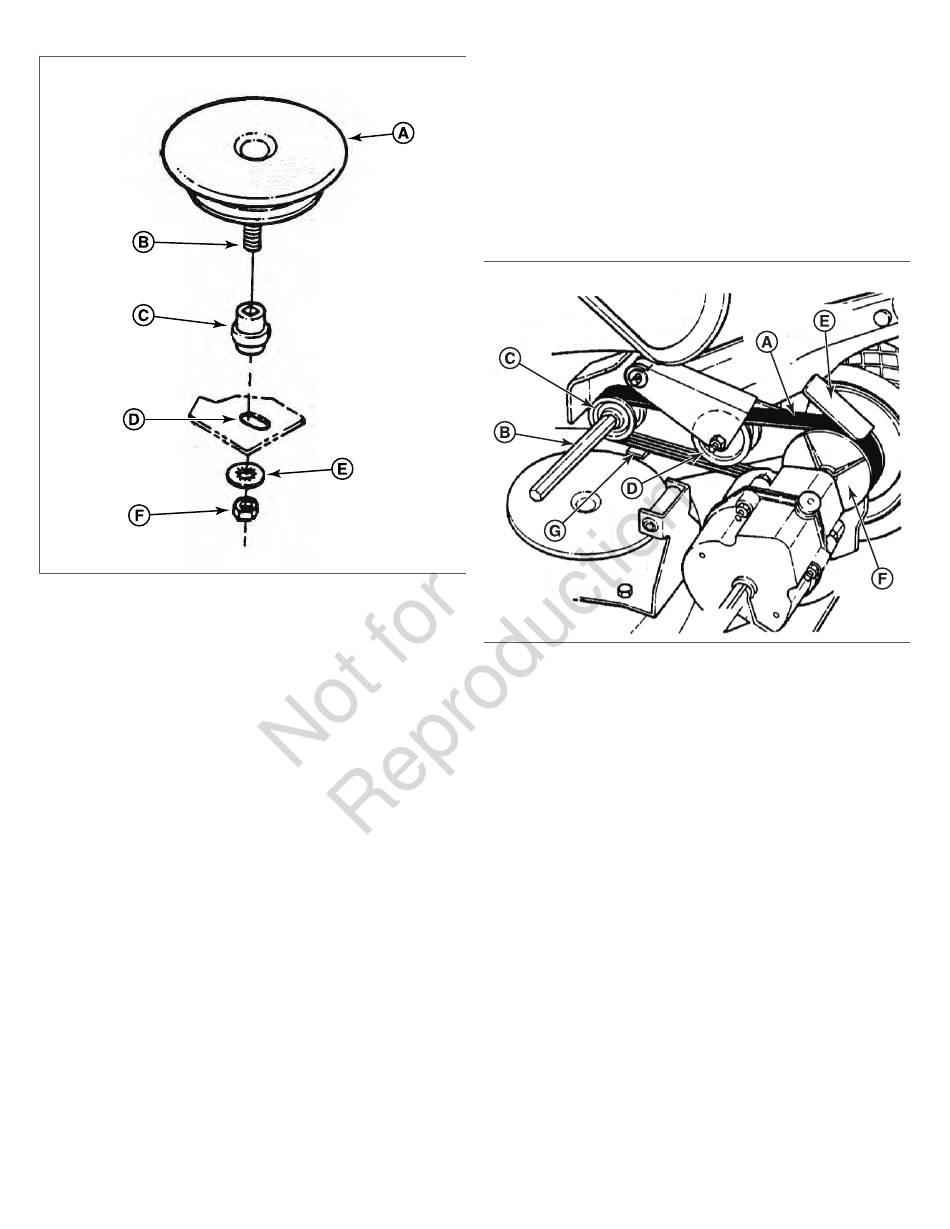

3. Place the new Poly-V Belt (A, Figure 39) over the end of
the hex shaft (B) and onto the drive pulley (C).
4. Work the belt onto the top of the idler pulley (D).
5. Twist the belt sideways and pull it upward between the
differential bracket (E) and driven pulley (F) and then
down into the pulley groove. Make sure the Poly-V Belt is
above the belt guide (G).
