NOKIA 30
GSM CONNECTIVITY TERMINAL
GUIDE FOR USER CONTROL MODE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 30 and is the answer not in the manual?

Questions and answers

Related Manuals for Nokia 30

Summary of Contents for Nokia 30

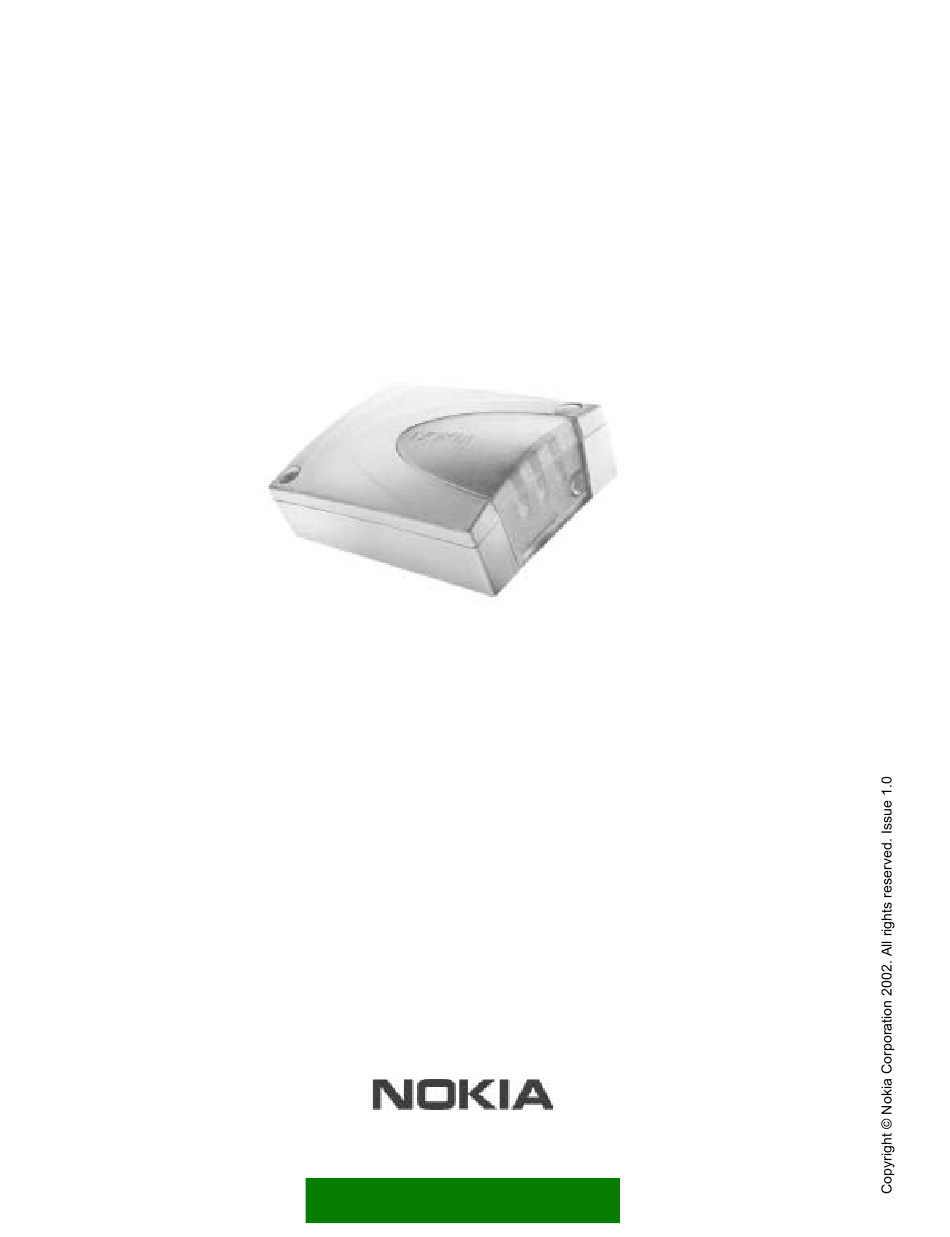

  • Page 1 NOKIA 30 GSM CONNECTIVITY TERMINAL GUIDE FOR USER CONTROL MODE...

  • Page 2: Table Of Contents

    Contents DEFINITIONS AND TERMINOLOGY..................2 REFERENCES ........................3 DOCUMENT SCOPE..................... 3 PRODUCT CONCEPT AND USAGE ................3 GENERAL ....................... 3 USER CONTROL MODE..................3 SECURITY........................4 GETTING STARTED ..................... 5 SECURITY SETTING ....................5 4.1.1 MESSAGE IDENTIFIER..................5 4.1.2 AUTHORIZATION NUMBER................5 4.1.3 PASSWORD ......................
  • Page 3 Nokia operates a policy of continuous development. Nokia reserves the right to make changes and improvements to any of the products described in this document without prior notice. Under no circumstances shall Nokia be responsible for any loss of data or income or any special, incidental, consequential or indirect damages howsoever caused.

  • Page 4: Definitions And Terminology

    DEFINITIONS AND TERMINOLOGY ASCII American Standard Code for Information Interchange Attention CORBA Common Object Request Broker Architecture Circuit Switched Data Group Special Mobile, Global System for Mobile communications GPRS General Packet Radio Service Input/output Machine-to-Machine, Man-to-Machine, Machine-to-Man Short Message, text message Short Message Service Software 2/18...

  • Page 5: References

    § M2M system mode In AT command mode the Nokia 30 GSM Connectivity Terminal is used as a GSM data modem using AT commands. In M2M system mode the Nokia 30 is used as a part of Nokia M2M Platform using CORBA messaging.

  • Page 6: Security

    A message identifier has to be used i.e. the terminal has to be named in order to be able to use the User control mode of the Nokia 30 GSM Connectivity Terminal. The identifier initiates every text message template aimed to control the Nokia 30 GSM Connectivity Terminal and the application attached to it.

  • Page 7: Getting Started

    The following settings must be made first before the User Controlled I/O service can be used. All settings can be made with Nokia 30 Configurator software by opening menu option Remote I/O Control -> User control mode (see Figure 1).

  • Page 8: Password

    If the information available from the device is on-off information, the input should be configured as digital. If in turn the information is of a continuous nature, the input should be analog. (See Figure 4 for a view of the Nokia 30 Configurator for Input settings).
  • Page 9 The initial state of each output pin and thus the device being controlled can also be set using the Nokia 30 Configurator. See Figure 2 for a view of the Nokia 30 Configurator for setting initial output states. Figure 2 Setting initial output values with the Nokia 30 Configurator.

  • Page 10: Sms Center Number

    CONNECTING A DEVICE OR A MACHINE A device to be controlled with the Use control mode of the Nokia 30 is connected physically to it through the M2M System Connector. The general-purpose inputs and outputs of the M2M System Connector described in Chapter 5 are connected to the device.

  • Page 11: Input/Output Pin Descriptions

    INPUT/OUTPUT PIN DESCRIPTIONS The Nokia 30 GSM Connectivity Terminal has the following input and output pins that can be controlled using the services of the User Control mode (see Table 1): Table 1 Nokia 30 GSM Connectivity Terminal inputs and outputs and available modes...

  • Page 12: Command Syntax

    COMMAND SYNTAX The command syntax varies according to activated options. Only one space character is accepted between between words. There may also be spaces in commands as seen on the example below. Password is case sensitive. Command without a Password: X=Terminal Name, Y=Command.

  • Page 13: Command Templates

    COMMAND TEMPLATES COMMAND LIST The Nokia 30 GSM Connectivity Terminal supports the following text message templates as commands and they are not case sensitive (see Table 2). Table 2 Nokia 30 GSM Connectivity Terminal User control mode command list Command...

  • Page 14: Detailed Command Information And Responses

    Set supply power OFF DETAILED COMMAND INFORMATION AND RESPONSES Note that all example commands use the Nokia 30 identifier string and the password property is set off in all following chapters. Note: If a command string is not identified but the Identifier and the optional Password are ok, the terminal will send a following response to the command originator: E.g.

  • Page 15: Reading Inputs

    7.2.2 Reading Inputs The Input_Get X commands are used to read inputs. A response depends on how each input has been configured. Each input can be configured either as digital or analog (see Table 4). Table 4 The Input_Get X commands Command type Command template Comments...
  • Page 16 The state of the input is queried in a frequency defined in the period box. The subscription of events can be used by configuring the correct settings with Nokia 30 Configurator software by selecting menu option Remote I/O Control -> General (see Figure Figure 4.
  • Page 17 Table 5 Input_Get_Change commands for alarm functionality Command type Command template Comments Input_Get_Change All Nokia30 Input_Get_Change All The command subscribes events Response: for all inputs at once and the response INPUT_GET_CHANGE ALL: returns the state of INPUT 1: X those according to input pin INPUT 2: X configuration...

  • Page 18: Reading Outputs

    7.2.4 Reading Outputs The Output_Get X commands are used to read digital output states. Note that password property is set off in following example commands (see Table 6). Table 6 Output_Get X commands Command type Command template Comments Output_Get All Nokia30 Output_Get All The command reads all outputs and the response returns the...
  • Page 19 Table 7 Output_Set X commands Command type Command template Comments Output_Set Z On Nokia30 Output_Set Z On The command sets output Z (Z = 1,2,3,4 or Response e.g. when Z = 1: 5) to ON state and the , Z = 1,2,3,4 or 5 OUTPUT_SET Z ON: response returns the state of all outputs...

  • Page 20: Controlling Power Supply To The Device

    7.2.6 Controlling Power supply to the device Power output can be used to supply power through the Nokia 30 to the application. The Supply_Pwr commands are used to read/write power supply line states (see Table 8). Table 8 Supply_Pwr commands...
