CaptairStore 1634
Ductless filtering chemical storage cabinets
Instructions & User's Manual
Pull-out doors with storage trays

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CaptairStore 1634 and is the answer not in the manual?

Questions and answers

Related Manuals for erlab CaptairStore 1634

Summary of Contents for erlab CaptairStore 1634

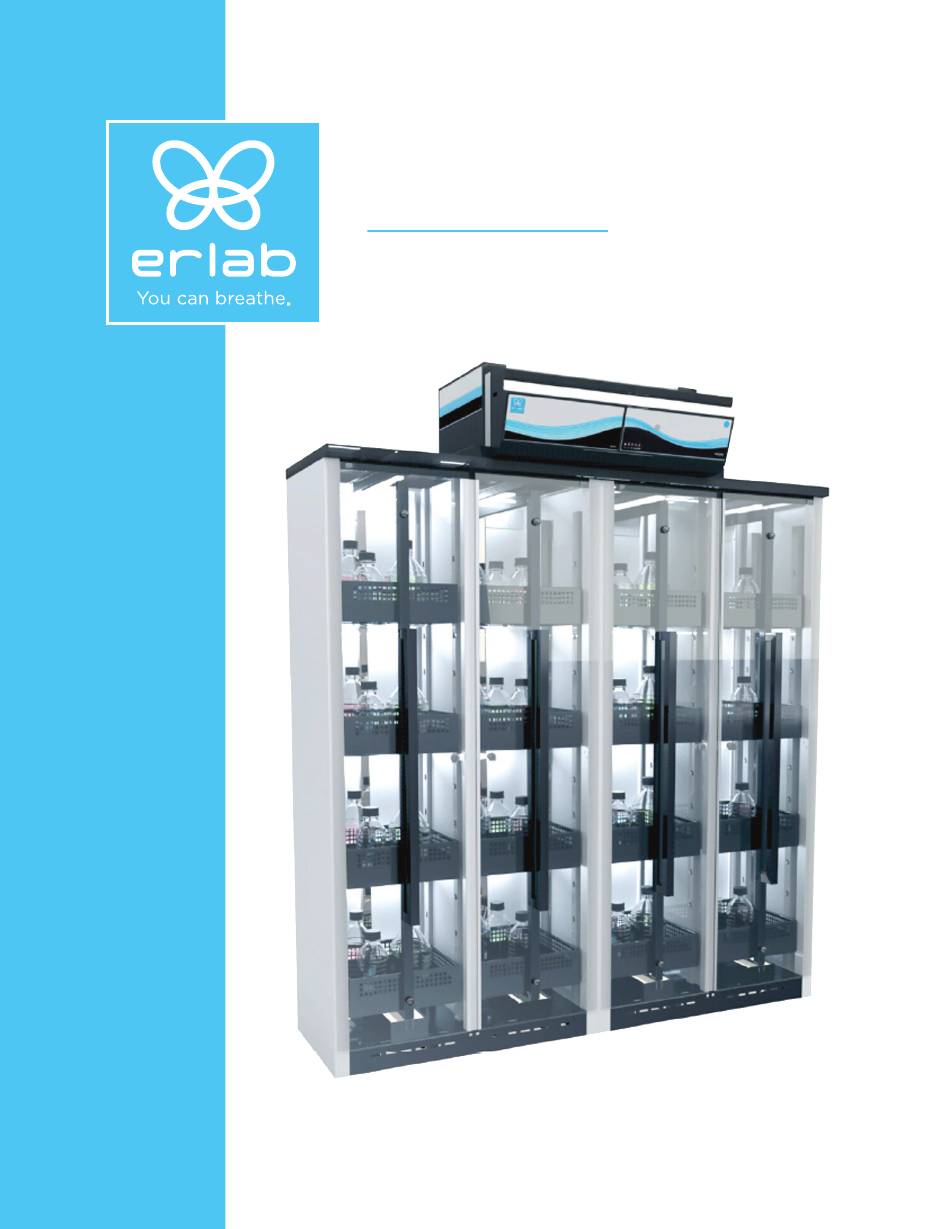

  • Page 1 CaptairStore 1634 Ductless filtering chemical storage cabinets Instructions & User’s Manual Pull-out doors with storage trays...

  • Page 2: Table Of Contents

    Contents General ..................3 Safety notices ................3 Organisation of your storage ..........4 The Erlab guarantee ..............6 Mounting the unit ..............7 Start-up ..................24 The connectivity principle ............ 26 Fan setpoints ................39 Replacing the filters ..............39 Recommendations for the use of filters ......

  • Page 3: General

    The Erlab Services was set up to guarantee your safety. We would remind you that it is important to have the safety parameters validated before using the device for the first time and whenever it is used for a different application.

  • Page 4: Organisation Of Your Storage

    Organization of your storage Prior to handling or storing a chemical product, it is mandatory to consult your label; this label provides information on the dangerousness of chemical substances as well as on the basic principles of protection during handling and storage. This information includes pictograms, some special instructions are reproduced below: EXPLOSIVE COMBUSTIVE...
  • Page 5 CaptairStore 1634 Instructions & User’s Manual Before inserting any new product into the cabinet, the user must check its chemical compatibility with the products it already contains. For example, in the category of corrosive products, it is necessary to distinguished between Acids and Bases. In every case, Acids and Bases must be separated: the reaction of a strong acid with a strong base is highly exothermic (releases heat), which may cause serious accidents.

  • Page 6: The Erlab Guarantee

    Consumable items (including filters) and Captair Pyramid remain under warranty only until the first use. Erlab Inc. is the Sole US Distributor of Captair products and is not responsible for damage that occurs as a result of failure to follow instructions that are included with the original product.

  • Page 7: Mounting The Unit

    CaptairStore 1634 Instructions & User’s Manual The storage cabinet must be fixed to the wall 10 mm 27 mm 16 mm 685 mm 27 in 215 mm 1750 mm...
  • Page 8 1634 7-8-19...
  • Page 9 CaptairStore 1634 Instructions & User’s Manual...
  • Page 11 CaptairStore 1634 Instructions & User’s Manual Z3FM004 Z3FM004 + PIDMS8522 PIDMS8532 2C1P : PIDREQT0018 1C1P : PIDREQT0019 Molecular filter HEPA H14 / ULPA U16 filter SQUARE PART FILTER SQUARE PART FILTER H11074101 H11074031 H11074201 H11074061 H11074301 H11074401...
  • Page 13 CaptairStore 1634 Instructions & User’s Manual...
  • Page 15 CaptairStore 1634 Instructions & User’s Manual...
  • Page 17 CaptairStore 1634 Instructions & User’s Manual...
  • Page 19 CaptairStore 1634 Instructions & User’s Manual Versions 1P1C 1P2C 1C1P 2C1P Fan without molecode S N3 - N4 Fan with molecode S...
  • Page 20 1P2C 1P1C 2C1P* 1C1P*...
  • Page 21 CaptairStore 1634 Instructions & User’s Manual * Hook mounting 1C1P 2C1P...
  • Page 22 with Molecode A-F with and without Molecode S...
  • Page 23 CaptairStore 1634 Instructions & User’s Manual Para m e te r s e tt i ngs RJ45 Access to the Embedded Service (default IP address) IP : 192.168.0.200...

  • Page 24: Start-Up

    Start-up Having carefully followed the steps described in the installation guide, your CaptairStore chemical storage cabinet is now ready to use. The power switch is located at the back of the control panel. LED light system should come on. A filtered storage cabinet works 24/7. We only recommend to swich off the unit for maintenance We also recommend verifying the operating parameters before each new use.
  • Page 25 Note: filter has to be replaced. 3 beeps of 40s. Pulses Press Mute key Please get in touch with Erlab or your 5 seconds apart The filter(s) has/ usual maintenance contact. have reached the Replace filter...

  • Page 26: The Connectivity Principle

    The connectivity principle An ecosystem designed for simpler use and safer protection Embedded service Erlab devices RJ45 Consultations + settings RJ45 Local network Consultations + settings...
  • Page 27 CaptairStore 1634 Instructions & User’s Manual To connect your device Embedded service Direct connection on PC Conditions of use with data cable (RJ45) Hardware requirements 1 PC + 1 cable Parameters Monitoring + Controlling Data access One unit Historical data access...
  • Page 29 « Settings » using the following Apply the following procedure credentials: Login : erlab / Password : smart Please go to page 34 Page is not accessible: Modify computer network parameters...
  • Page 30 Access to the Network and sharing center (windows 10) Left click Left click Access to the network connection (windows 10) N.B : This confirms N.B : This confirms your WIFI is your WIFI is Right click Right click disconnected! disconnected! Left click to access properties Left click to access properties...
  • Page 31 CaptairStore 1634 Instructions & User’s Manual Enter compatible network parameters as indicated below (windows 10) Left click Left click Left click Left click...
  • Page 32 Write down your existing parameters before changing them in order to be able to set your initial parameters after the operation! Enter the following Enter the following parameters: parameters: Validate Validate Modify computer network parameters (windows 11) Network parameters Left click Left click...
  • Page 33 CaptairStore 1634 Instructions & User’s Manual Access to the Network and sharing center (windows 11) Left click Left click Access to the network connection (windows 11) Left click Left click...
  • Page 34 Open your web browser again, type again the following IP address 192.168.0.200 and validate OK : You are connected to the embedded software • You enter the « Status » page and you can have access to the « Settings » using the following credentials: : Login : erlab / Password : smart...
  • Page 35 CaptairStore 1634 Instructions & User’s Manual Administrator Interface Status page details Choose active interface page Device ID: Model Device ID: serial number, MAC address, device status Locate me : digit the button, the light will blink 3 times Option Molecode gauge: indicates a fault in the main carbon filter(s)
  • Page 36 Access to the settings is protected by the following credentials: User name: erlab Password: smart...
  • Page 37 CaptairStore 1634 Instructions & User’s Manual Settings page details Device time and date settings Device network settings Mode: Selected IP protocol Hostname: Device name on network IP: IP address of the device MASK: network mask GW: Network gateway Modify network settings :...
  • Page 38 Log page details Displays the device’s event log Used for downloading the log in .csv format...

  • Page 39: Fan Setpoints

    CaptairStore 1634 Instructions & User’s Manual Fan setpoints Unit / Type of filtration column 1C1P 1P1C 1P1C1P 1P2C 2C1P 1634 Open doors : 2300 RPM / Closed doors : 1300 RPM Replacing the filters The table below summarises all possible Flex™ filter technology configurations for Captair Smart chemical storage cabinets.
  • Page 40 The table below summarizes the different types of carbon filters that Erlab® offers along with their fields of application. Type AS For organic vapors Type BE + Multi-application for acid and organic vapors Type K For ammonia vapors Type F...
  • Page 41 Captair 1634 Smart Instructions & User’s Manual 11- Fit the new HEPA/ULPA filter, main molecular filter (if present) and the fan module, followed by the backup molecular filter (if present). Make sure that all the column components. 12- Reconnect the device’s various cables and hoses, switch the device back on. Filter Replacement Procedure For these operations, we strongly recommended that the user or maintenance technician wear the necessary safety equipment, including: safety glasses, lab coat and gloves...
  • Page 42 Identify which column configuration below applies to your chemical storage cabinets. (See your Valipass label) Unstack the filtration column(s) above the chemical storage cabinets. After carrefuly removing the filters from their packaging, assemble the column per the configuration below If your column configuration changed, Apply the correct fan setpoint for the filtration column configuration (see fan setpoints) 1P2C 1P1C...
  • Page 43 CaptairStore 1634 Instructions & User’s Manual 2C1P 1C1P When reassembling the filtration column, be sure that the fan module is positioned correctly to access your connection points. Reconnect the power supply to the fan unit and the hose to the sampling port.

  • Page 44: Recommendations For The Use Of Filters

    We recommend replacing the filter annually (if used 24/7). ERLAB offers 3-point validation of your handling operations based on a scientific analysis carried out by its laboratory specialists via the global Erlab Safety Program (E.S.P) which includes the eValiQuest questionnaire: : •...

  • Page 45: Shelves : Maximum Permissible Mass

    CaptairStore 1634 Instructions & User’s Manual Shelves : maximum permissible mass Plastic Shelves Basket for pull out doors 15 kg 15 kg Cleaning and maintenance Mechanical item checks Acrylic Parts: These parts must be clean; white streaks or spatters indicate rather heavy use of acid (hydrochloric acid) or products handled at a high temperature.
  • Page 46 About Erlab The Erlab Research and Development laboratory Since 1968, Erlab has been a specialist, inventor and world leader in ductless, zero-emission filtering fume hoods for laboratories to provide total safety in chemical handling. Erlab filtration We provide technologies to protect laboratory staff from inhaling chemicals. This is made possible thanks to our Research and Development (R&D) department, which has continuously improved our filtration technology for more than 50 years.
