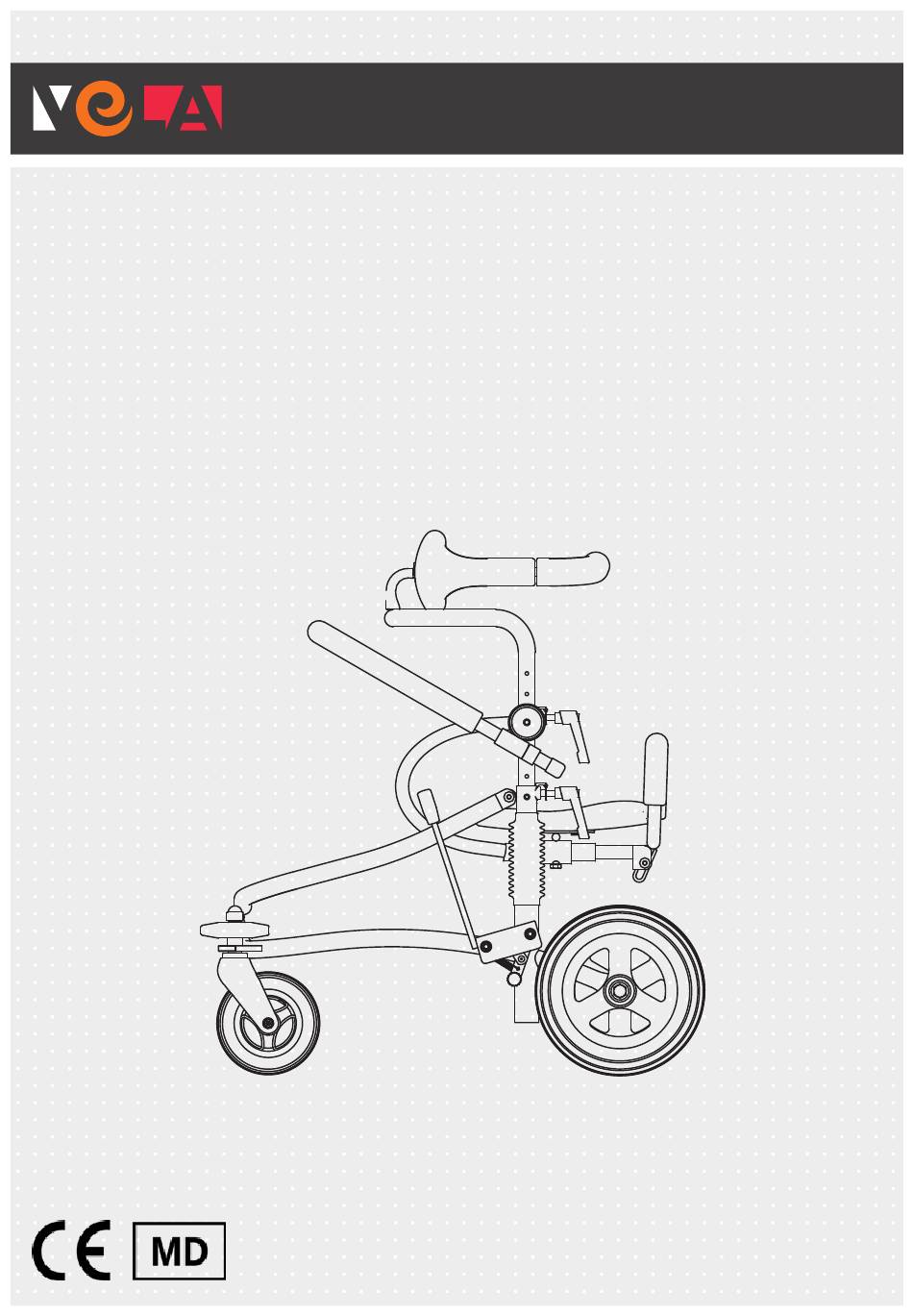

- Page 1 INSTRUCTION FOR USE VELA Miniwalk Manual no.: 106971 Item no.: Model MS106061 MS106062 ISO 9001 ISO 14001 The design varies depending on the model...
-
Page 4: Table Of Contents
TABLE OF CONTENTS 1.0. INTRODUCTION 1.1. WARNINGS 1.2. TROUBLESHOOTING 1.3. LABELS USED ON THE GAIT TRAINER 1.4. SAFETY 1.4.1. Intended use 1.4.2. Transport 1.5. WARRANTY 1.6. UNPACKING THE GAIT TRAINER 1.7. MAINTENANCE 1.7.1. Wheels 1.7.2. Frame 1.7.3. Padding 1.7.4. Recycling guide 1.8. -
Page 5: Introduction
1.0. INTRODUCTION DEAR CUSTOMER Congratulations on your new VELA gait trainer! We are sure this gait trainer will give you daily pleasure. This user manual provides useful information on adjusting, operating and maintaining your gait trainer. Important Please read this user manual carefully and keep it safe for when you need to refer to it. -
Page 6: Warnings
Do not use the gait trainer during adjustments, to avoid pinches from moving parts. The VELA Miniwalk and its accessories are designed for your safety. Removing parts of the equipment can result in open pipe ends that can be sharp and cause damage. These open pipe ends must be closed with plastic plugs - do not touch open pipe ends with fingers or other body parts. -
Page 7: Troubleshooting
Loosen the top Allen screws and hand screws on the upper part and move the upper part to the desired position and tighten the hand screws and Allen screws again. See section 2.0.5./2.0.6. If the above does not solve your problem, you should contact your VELA supplier. -
Page 8: Labels Used On The Gait Trainer
1.3. LABELS USED ON THE GAIT TRAINER Labels 60 x 22,5 mm <Model name> <Model ref. no.> <Manufacturer> MEDICO <Safe working load> <Adress> <Production date/order no.> <Webpage> The last six digits are the product ID number: UDI: (XX) XXXXXXXXXXXXXX (XX) XXXXXX Labels on the gait trainer should be read at a distance of approx. -
Page 9: Safety
Humidity: 15-95% borg SV, Denmark. 1.5. WARRANTY 1.4.1. INTENDED USE VELA grants a right of claim under This device is intended for children applicable law in the country where to help them stand up and move the gait trainer is acquired. The right... -
Page 10: Unpacking The Gait Trainer
:: Instructions for use 1.7.4. RECYCLING GUIDE Your VELA Miniwalk can be reused by 1.7. MAINTENANCE another person when you no longer We recommend an annual inspec- need it as long as the gait trainer is tion of the gait trainer to identify any serviced by a technician beforehand. -
Page 11: Recycling And Disposal
Brake. Rear wheels. The VELA Miniwalk has a wide range of accessories, which makes it possible to adapt the gait trainer to the needs of the individual user. The selection of accessories for VELA Miniwalk can be found at www.vela.eu. -
Page 12: User Manual
2.0. USER MANUAL 2.0.1. ASSEMBLY OF UPPER PART AND BASE The upper part is placed in the risers on the chassis. The upper part is lowered into place in the two risers. Note: The handle must face the swivel front wheels. 2.0.2. -
Page 13: Adjusting The Height Of The Trunk Support
2.0.5. ADJUSTING THE HEIGHT OF THE TRUNK SUPPORT Loosen the two lower hand screws on the top of the gait trainer. Place the trunk support at the desired height (use the height markings in the frame to ensure the same height on both sides). Tighten the hand screws again. -
Page 14: Trunk Support
2.0.9. TRUNK SUPPORT The trunk support is opened by moving the outer handles (on the back) upwards. The trunk support is closed by sliding the handles down again so that the opening is smaller. Note: The trunk support must always be closed when the gait trainer is in use. -
Page 15: Adjusting The Rear Stop
2.0.13. ADJUSTING THE REAR STOP Lower the rear stop to find an Allen screw inside the square profile. Loosen the screw and set the longitudinal direction to the desired position. remember to retighten the Allen screw. - Page 16 VELA :: Gøteborgvej 8-12 :: 9200 Aalborg SV :: Denmark :: +45 96 34 76 00 :: mail@vela.dk vela.eu...
