LS 651 COB Line

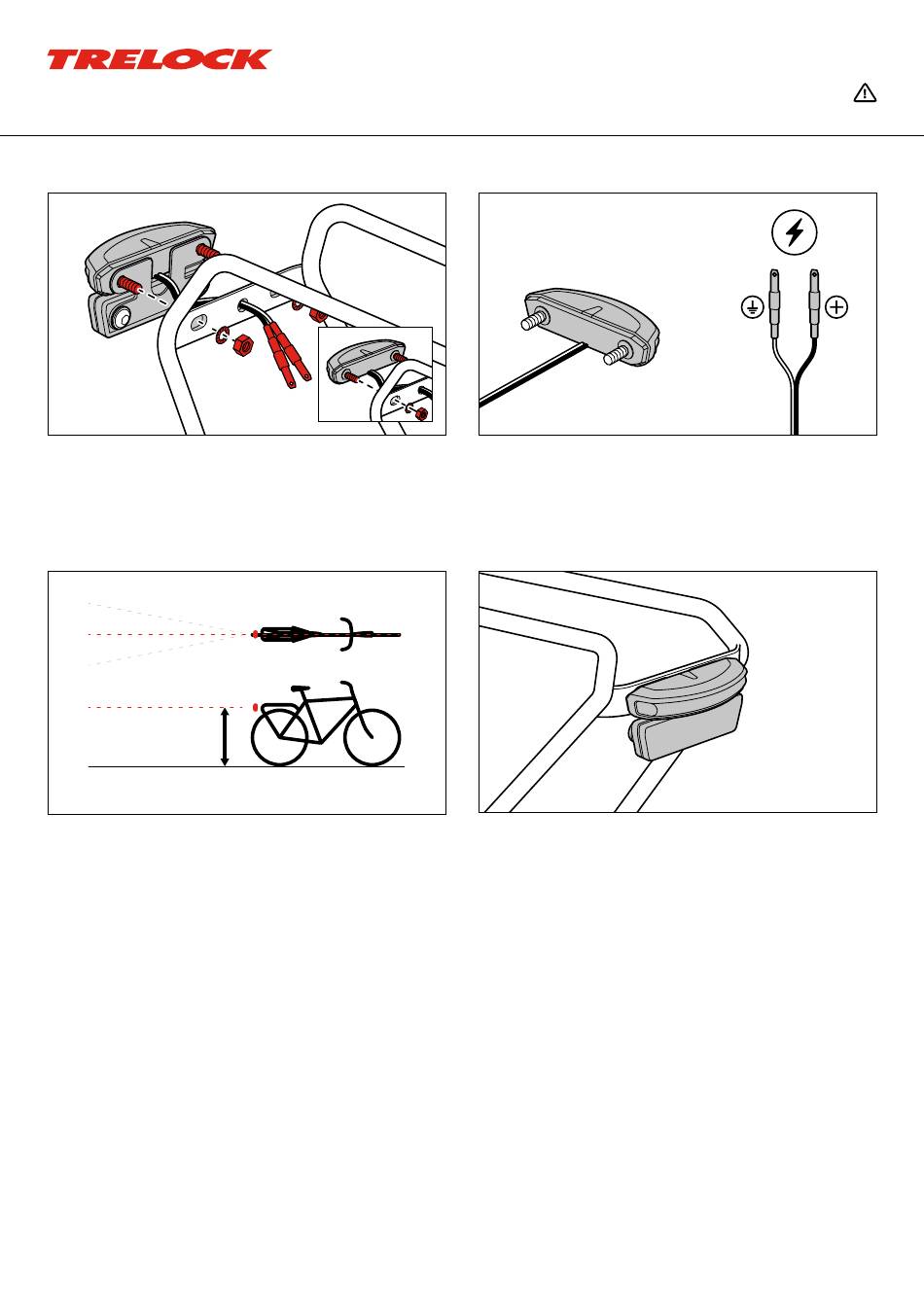

MONTAGE ASSEMBLY
Die Rückleuchte muss fest am Gepäckträger montiert werden.
Verwenden Sie hierfür die mitgelieferten Schrauben. Montageabstand, 50mm.
The rear light must be firmly mounted on the luggage carrier using the supplied bolts.
Mounting distance, 50mm.
MONTAGEHÖHE ASSEMBLY HEIGHT
Fahrzeuglängsmittelachse
Vehicle centerline
Min. 250 mm
Max. 1200 mm
Richten Sie die Leuchte auf die Mittelachse des Fahrrads aus.
Align the light with the center axis of the bike.
GEBRAUCHSANWEISUNG USER MANUAL
Lesen Sie vor der Verwendung sorgfältig die Gebrauchsanweisung und die Sicherheitshinweise.
Read the operating manual and safety information carefully before use.
VERBINDEN CONNECT
Verbinden Sie das mitgelieferte Kabel mit der Leuchte und mit der
Stromzufuhr (6-12 V DC).
Connect the supplied cable to the light and to the power source (6-12V DC).
BETRIEB OPERATION
Die Rückleuchte wird zusammen mit dem E-Bike-System ein- und ausgeschaltet.
The rear light is switched on and off together with the e-bike system.
