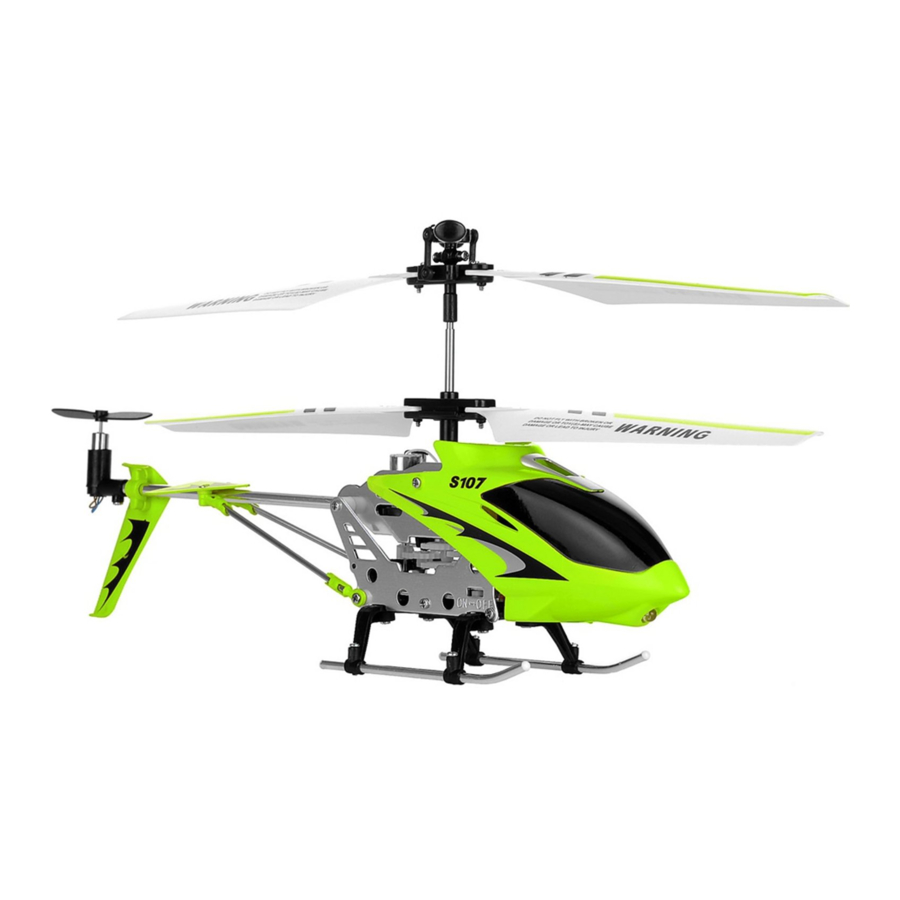

SYMA S107, S107G Manual

PACK LIST

BATTERY INSTALLATION & CHARGING

Charging Helicopter

1. controller charging

2. USB charging



1. Move the power switch on the helicopter to the "OFF"position
2. Charging way A:Put down the charging wire of the back controller and put out the charging wire, then put into the interface of the helicopter, the green light on the controller will to change to red. The charging time is about 40–50 minutes. The glisten red light will to change normal light. Then the helicopter is fully charged.
   Charging way B:Put the USB charging wire into the computer USB interface, the charging wire will be light. Put the other side of USB charging wire into the helicopter's interface, USB charging wire will be turned off light. The charging time is about 40–50 minutes. Charging wire light will turn ON. Then the helicopter is fully charged.

FLYING YOUR HELICOPTER

• Set the Band Selector on the Transmitter and Helicopter to the same frequency.
• Move the Power Switch on the helicopter to the ON position, the power indicator will light up.
• Place the helicopter on the ground with the tail pointed towards you.
• When the helicopter received the transmit, the LED of circuit board will turn light.

Hover up and down
When the helicopter fllies steadily, you can slowly push the throttle stick up to make the helicopter fly higher, or release the stick a bit to make the helicopter fly lower. Only small amounts of stick position change are required for smooth flying.

Turn counterclockwise and clockwise
Hold the helicopter at a height. Push the rudder stick toward left to turn counterclockwise, and push the rudder stick toward right to turn clockwise.

Forward
When you push up the right control lever (steering rudder), the nose incline to down, the helicopter is moving to forward.

OPERATION:

• Don't operate the helicopter under the direct sun or strong lighting; it will affect the control system of your helicopter.
• Don't cover the lens of the transmitter. No signal will be released while you cover the lens.
• Don't stick any other label onto the helicopter; the other label will affect receiving of IR signal.
• The product uses light-minded materials, it will easy to damage if operate incorrectly, tumble or bump or another factor will shatter the product.

ENVIRONMENT FOR FLIGHT:

1. Indoor environment with calm air condition. Beware of the air circulation from the air-conditioner.
2. Space area: lt is recommended to have space area over 20ft(W) X 30ft(L) X 10ft(H).
3. Safety area: lt is recommended that there is no electric fan, air-conditioner, reading lamp or other dangerous objects to flying.

SPARE PARTS LIST

Order by item number from local distributors.
