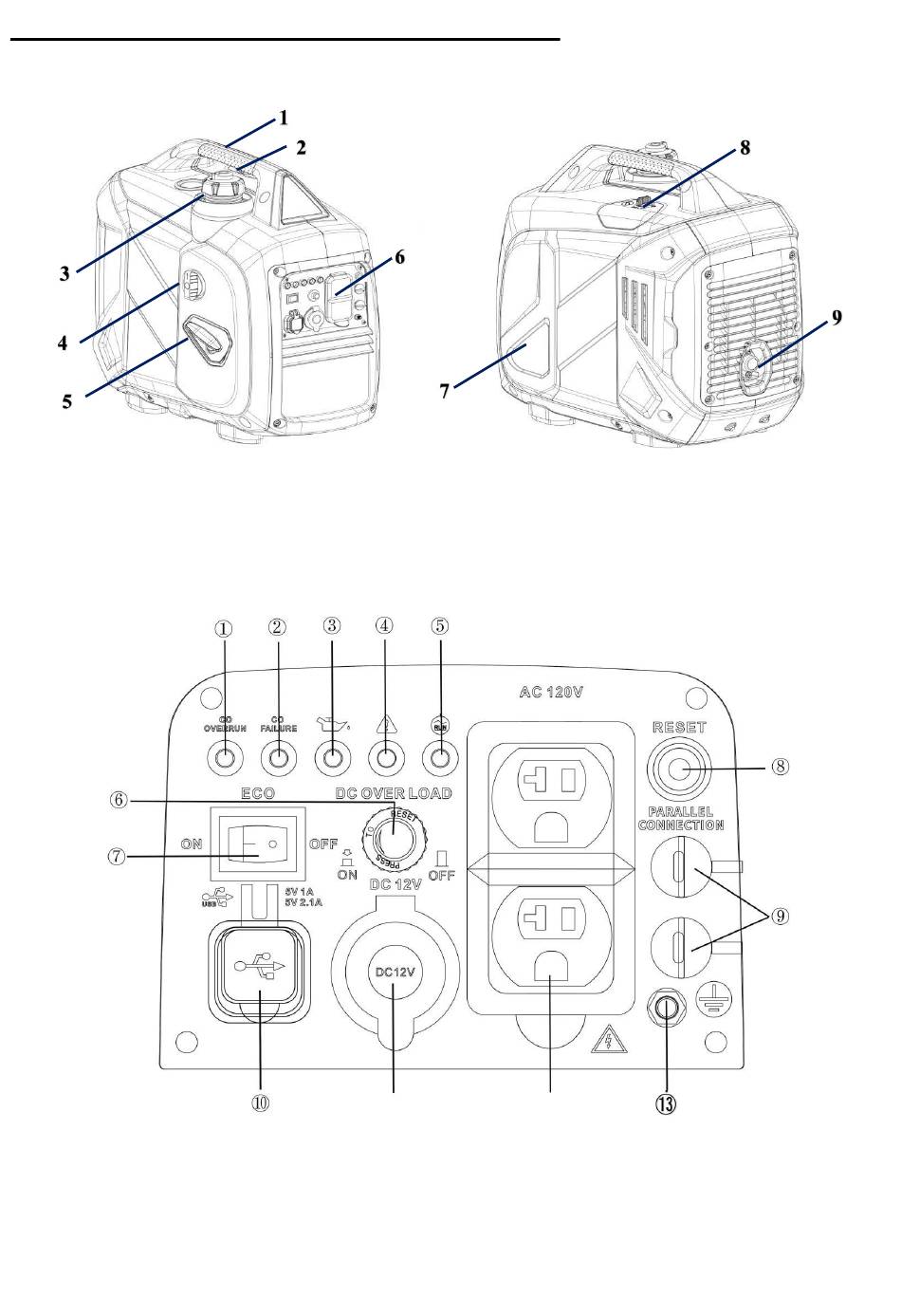

KNOWING YOUR INVERTER GENERATOR
Use the illustrations below to become familiar with the locations and functions of the various components and
controls of this generator.
1
Carrying handle
2
Tank cap switch
3
Fuel tank cap
Control Panel
CO alarm light
①
CO failure light
②
Oil warning light
③
Overload indicator light
④
AC pilot light
⑤
4
Engine switch
5
Recoil start handle
6
Control panel
⑪
⑥ DC reset
⑦ ECO switch
⑧ AC reset
⑨ Parallel kit terminal
⑩ USB port
7 Air filter and oil maintenance cover
8 Spark plug maintenance cover
9 Muffler exhaust exit
⑫
⑪
⑫
⑬
8
12V DC port
AC output receptacle
Ground(earth)terminal
