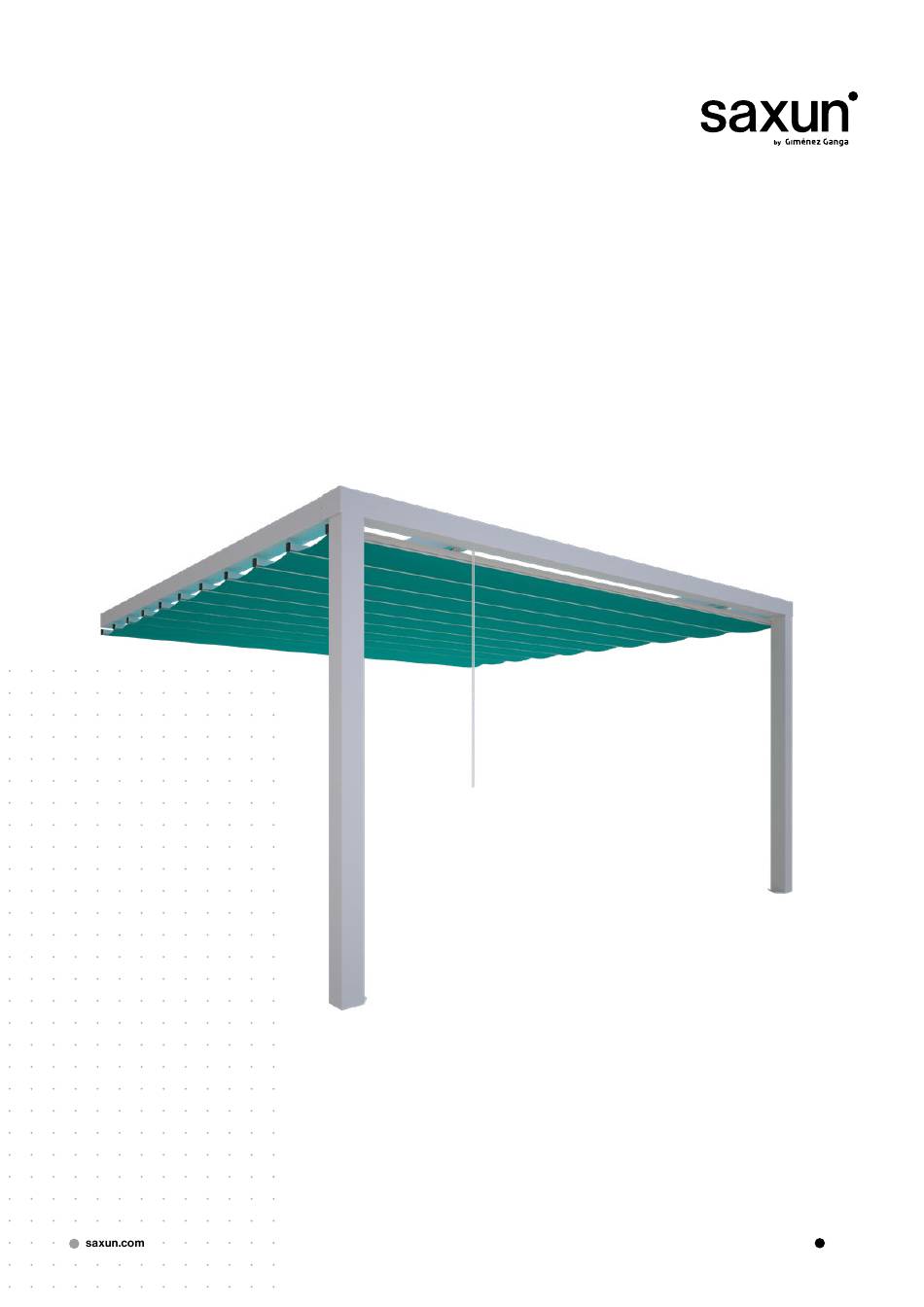

- Page 1 Technical manual Aneas 125x125 2 posts with beams...
-
Page 3: Table Of Contents
TECHNICAL MANUAL ANEAS 125X125 2 POSTS WITH BEAMS Table of contents 1. General safety recommendations. Use and prohibitions ................ 4 2. Canopy awning components 125x125 ......................5 3. Profile cutting ................................7 3.1 Measurement of profiles ................................. 7 3.2 Structure layout plan ..................................8 4. -
Page 4: General Safety Recommendations. Use And Prohibitions
1. General recommendations regarding safety. Use and restrictions In order to ensure the safe assembly, use and maintenance of Before assembly, it is very IMPORTANT for your safety and that this product, a number of precautionary measures must be taken. of the product to follow all the recommendations listed below. -
Page 5: Canopy Awning Components 125X125
TECHNICAL MANUAL ANEAS 125X125 2 POSTS WITH BEAMS 2. Canopy awning components 125x125 Cap 125x125 Corner foot 125x125 120212 120214 Foot 125x125 L-bracket 125x125 120213 120215 T-bracket 125x125 Hinged Corner Piece 125x125 120216 120217 Power strip 18x30x6 P-125x125 mm post 120295 050205 Structural tube 125x125 for power strip... - Page 6 Double Stick Profile Aneas LED aluminium double stick profile 024624 024623 27,5 27,5 LED Diffuser 14.3x3.5 PC Opal Flange with cord clamp 024608 022111 Double pulley Single pulley 022593 022084 Nylon flange pulley reinforced with bearings End hook set stainless steel screw/nut 022581 022379 Palilleria awning metallic fitting...
-
Page 7: Profile Cutting
TECHNICAL MANUAL ANEAS 125X125 2 POSTS WITH BEAMS Aneas double stick interior cover Aneas double stick outer cover 024669 024638 3. Profile cutting 3.1 Measurement of profiles With the measurements of the structure taken, we then cut the profiles that will form the structure of the 125x125 Palillero awning to assemble the beams and posts followed by the guides and sticks. -
Page 8: Structure Layout Plan
3.2 Structure layout plan Left Left guide guide Side beam Central Side beam left guide right MAX= 3000 mm MAX= 3000 mm Post A Post B Front beam MAX= 500 mm MAX= 500 mm 4. Installation 4.1 Surface mounting installation Install the surface fixings of code 120213 or 120214, using M10 screws (not included), of at least of AISI 304 quality (Stainless Steel), with all the bases correctly levelled, depending on the size... -
Page 9: Assembly Of The Front Beam With Posts A And B
TECHNICAL MANUAL ANEAS 125X125 2 POSTS WITH BEAMS Once the bases of the posts have been installed in their respective places, carry out a measurement of the structure to be installed, making sure that both distances are the same size. Correct installation of the post bases is essential for smooth operation. -
Page 10: Assembling The Left Side Beam To The Wall And Post A
Having assembled and fixed the front beam to posts A and B, forming an inverted "U", fix the posts to the bases of the floor. For this purpose, use self-tapping screws DIN 7504-K 6.3x25 A2. Post B Front beam Post A 4.3 Assembling the left side beam to the wall and post A Connect the LEFT SIDE beam 125x125 mm to the 125x125 mm Fasten the left side beam to the hinged corner piece with code... -
Page 11: Assembly Of The Guide Rails With The Front Beam
TECHNICAL MANUAL ANEAS 125X125 2 POSTS WITH BEAMS Fasten the left-hand side beam to the guide bracket previously fixed to the wall (screws not included). Use screws DIN 933 M10x150 A2 and fix with washers and hexagon nuts DIN 934 M10 A2. -
Page 12: Assembly Of The Right Side Beam To The Wall And To Post B
Attach the CENTRAL Guide of the 125x125 slide guide with code Important 024164 to the Guide Brackets with code 120269, fixed to the FRONT beam and to the WALL (M10 screws not included). The guides should be flush with the underside of the beams. Follow the screwing sequences in the same way as those carried The machined part of the Guide where the sticks are to be out with the LEFT-hand guide. -
Page 13: Assembly Of The Pulley Blocks
TECHNICAL MANUAL ANEAS 125X125 2 POSTS WITH BEAMS 4.6 Assembly of the pulley blocks Install the single pulley block code 022084 on the FRONT beam (screws not included). Install the double pulley blocks code 022593 on the WALL and the SIDE beam (left or right) (screws not included). 4.7 Assembly of the sticks Adjust the reinforced nylon flange pulleys with stainless steel screw/nut bearings, code 022379, the flange with the flange foot, code 022111 (position centred) and the end hook assembly, code 022581, to the width of the guides. -
Page 14: Installation Of The Cord And Cord Cleats
Insert the sticks through the machining of the Guides. Insert the end fixing kit for the 125x125 slide guide code 024346 It is possible to pull the stick all the way out without overshooting through the hole in the machining to fix the end hook. Max. - Page 15 TECHNICAL MANUAL ANEAS 125X125 2 POSTS WITH BEAMS To install the cord, insert the two ends of the cord through the Insert the two ends of the cord through the double pulley block double pulley block that leads down to the cord cleats, leaving an in the middle.
-
Page 16: Maintenance
5. Maintenance 5.1 Cleaning and care To clean the canvas, we recommend removing the dust that has For best use and extended durability of the screen, it is recom- accumulated without using water, to enable you to remove all the mended to carry out regular maintenance and checks at least surface particles by vacuuming, air blowing, beating or brushing. -
Page 17: Annex I Input Machining Of Sticks
TECHNICAL MANUAL ANEAS 125X125 2 POSTS WITH BEAMS Annex I Input machining of sticks 62,50 50,50 50,50... -
Page 18: Annex Ii Disassembly And Disposal Of Packaging Of End-Of-Life Product Components
Annex II Disassembly and disposal of packaging and end-of-life product components. Packaging Disposal Important The recycling of the packaging must be carried out by the qualified professional who has installed the product. We advise you to recycle the product packaging responsibly: Paper and cardboard: In waste management, the recycling of paper and cardboard •... - Page 19 TECHNICAL MANUAL ANEAS 125X125 2 POSTS WITH BEAMS Attention Always act with care. Please only use suitable tools that are in perfect condition. • Step 8 • Step 1 Uninstall the central beams by loosening the screws that join the Loosen the screws of the string guide and remove the rope by plate to the structure.
- Page 20 Components • Profile • Screws • Nuts • Brackets support • Mounting plates and union plates • Surface fixation • Cap columns • String • • Pulleys • Nylon pulleys • Pole caps • Hinging hook • Supports • Canvas Our products are mainly made of recyclable materials.
- Page 21 TECHNICAL MANUAL ANEAS 125X125 2 POSTS WITH BEAMS At the end of the useful life of the electrical or electronic equi- Important pment, it must not be disposed of together with other types of waste. These items can be delivered to the specific centres regulated for this purpose by the local authorities.
- Page 22 Plastic Plastic recycling provides a sustainable source of raw material for the industry. Its reuse also significantly reduces environmental problems, as it is a non-biodegradable material. HDPE Recycling reduces energy consumption and CO2 emissions, thus mitigating pollution and climate change. There are several types of plastic, so to achieve optimal recycling it is essential to deposit them in clean points where the separation of the different types and their identification will take place.
- Page 24 Giménez Ganga, S.L.U. Polígono Industrial El Castillo C/ Roma, 4 • 03630 Sax (Alicante) • España saxun.com...
