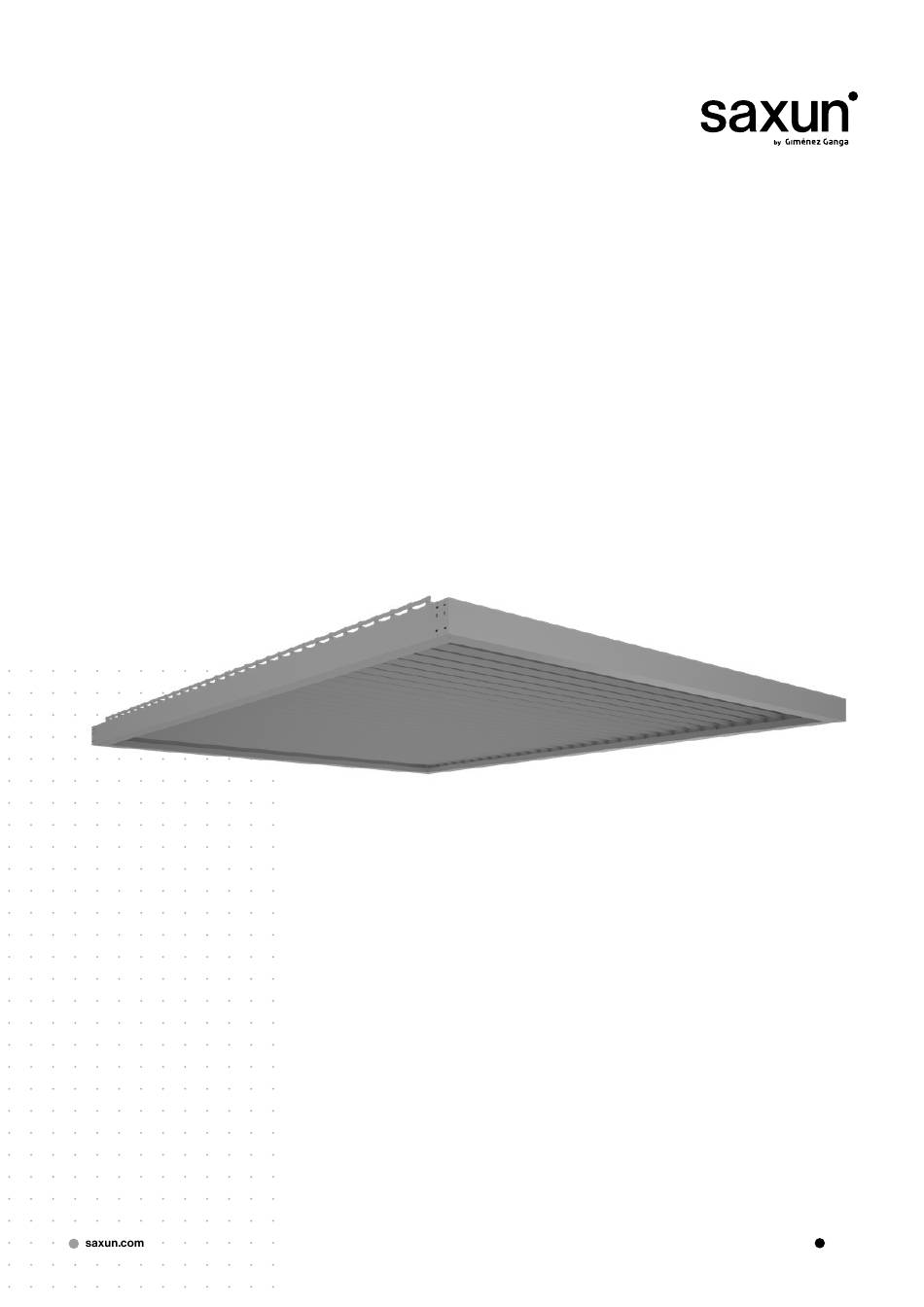

- Page 1 Technical Manual Bioclimatic Pergola P-230 no columns...
-
Page 3: Table Of Contents
TECHNICAL MANUAL BIOCLIMATIC PERGOLA P-230 WITHOUT COLUMNS Table of contents We do not provide the screws for fixing-anchoring to the wall and/or foundations. The fitter must choose the adequate rod/screw/plug/ nut/washer system for fixing and levelling to the ground/floor and/or wall based on the nature of these surfaces. In any case, the screws must be of stainless steel. -
Page 4: General Safety Recommendations. Use And Prohibitions
1. General recommendations prior to installation Screws for fixing and anchoring to the wall and/or floor are not In order to ensure the safe assembly, use and maintenance of this supplied. The installer must select the appropriate fixing system product, a number of precautionary measures must be taken. (rods, screws, plugs, nuts, washers, etc.) and the optimum screed This manual is intended as a reference for experienced profes- and/or wall levelling system, depending on the nature of the instal-... - Page 5 TECHNICAL MANUAL BIOCLIMATIC PERGOLA P-230 WITHOUT COLUMNS After unpacking and checking the integrity the product, and before beginning the installation, the installer will need to check that they have all the compo- nents and tools required for the correct installation. In particular, it must be ensured that the left and right beam ends correspond with the opening and closure as shown in the diagram below.
-
Page 6: Assembly Of The Structure
Top view Take into account that, to install the pergola between walls, they must be Wall 90º to guarantee the correct installation and functioning of the system. 90º 90º Width 2. Assembly of the structure Once the height and levelling have been checked, install the 2 column sections on the wall itself, through the machined holes in the profile and in the square of the column sections. - Page 7 TECHNICAL MANUAL BIOCLIMATIC PERGOLA P-230 WITHOUT COLUMNS Then, screw in 1 DIN (ISO 7978) A2 M8x50 bolt using an M8 DIN 125 A2 washer to the upper bolt carrier at both ends of each of the beams. Washer DIN 125 M8 050167 Code Leave a gap of approximately 30 mm between the screw head and the...
- Page 8 Loosely tighten the remaining screws to secure the system in position. After checking that the position is correct, tighten all screws, except the top one, to the specified torque. MA TIGHTENING TORQUE THREAD (Nm) As the screws are tightened, check that the system components are per- pendicular to each other and that they match the desired dimensions.
-
Page 9: Electrical Pre-Installation In Beams
TECHNICAL MANUAL BIOCLIMATIC PERGOLA P-230 WITHOUT COLUMNS 2.1 Electrical pre-installation in beams Motor wiring, lighting At this point in the installation, all the wiring must be routed to the column selected to house the automatic devices or to the closing beam of the pergola, if preferred. -
Page 10: Installation Of The Front Beam
Then drop the opening and closing side beams onto the column sections. The opening and closing position of the pergola must be observed at all times. Use the protrusions of the rubber part, which are located on the outside of the column, to position the column. 2.3 Installation of the front beam Install the front beam taking into account the steps described earlier in this manual. -
Page 11: Drainage Channelling
TECHNICAL MANUAL BIOCLIMATIC PERGOLA P-230 WITHOUT COLUMNS Column section Column section cover fitting Code 050732 2 fittings for the column cover shall be fitted using 2 ULS (ISO 7380) A2 M6x16 mm screws, one at each end of the inner bracket. 3. -
Page 12: Installation Of Slats
Important On all columns, seal the joint between the beam and column with silicone to ensure that no water seeps in. Seal along the red lines 4. Installation of slats Important Pay close attention when installing the slats, so as not to make mistakes when fitting them. Take into account the position of the opening and closing beams and the position of the illuminated slats, if any. -
Page 13: Installation Of The Slats
TECHNICAL MANUAL BIOCLIMATIC PERGOLA P-230 WITHOUT COLUMNS 4.2 Installation of the slats Set of Beam bushings Start installing the slats from the opening side and from the P-230 inside of the pergola. Code 050660 The beam bushing has a slope that must be matched to the flat face of the shaft. - Page 14 Those slats that feature LEDs or portholes have the lighting system pre-installed. For installation, take into account the end of the slat where the male connector emerges, which must be connected to the female con- nector emerges from the beam. Make the connection and insert the cable inside the beam simultaneously with the installation of the slat.
-
Page 15: Beam Overlap Profile
TECHNICAL MANUAL BIOCLIMATIC PERGOLA P-230 WITHOUT COLUMNS 4.3 Beam overlap profile Once the pergola slats have been installed, clip the overlapping profiles to the outlet beams in the position shown in the picture, To facilitate the clipping of the profile, start from left to right on the beam and clip little by little until you reach the end. Overlap profile P-230 Code 050727 Clipping rubber... -
Page 16: Motor Installation
4.5 Motor Installation On the side where the motor is placed, the motor support must be anchored to the beam (1) and the drive plate must be anchored to the drive plate (2). 21050232 Drive plate 050131 Anchor plate. Drive plate Code 050232 Anchor plate Code 050131... -
Page 17: Electrical Connections
TECHNICAL MANUAL BIOCLIMATIC PERGOLA P-230 WITHOUT COLUMNS 5. Electrical connections The connection of the electrical installation must be done adhering to the current Low Voltage Electrotechnical Regulations (REBT). For the electrical and sound installation, use the spaces in the beams for the perimeter wiring and the columns for fixing the components. The motor cable shall be taken through the “U”... -
Page 18: Installation Of Covers
When installing the profile, the length of the beam minus 20 mm must be taken into account. When installed on the beam there will be 10 mm space between the LED profile and the column. Column LED profile Top view To finish the installation of the LED profile, place a trim piece at each corner of the column to close the cut of both profiles. -
Page 19: Top Cover
TECHNICAL MANUAL BIOCLIMATIC PERGOLA P-230 WITHOUT COLUMNS 6.2 Top cover Column cap 160 ULS ISO screw Code 050613 Code 051103 For the installation of the top caps of the columns, drop the rubber sealing gasket on the column. Place the cover on the Sealing gasket 160 column and screw it to the fitting using ULS screws (ISO 7380) Code 050664... -
Page 20: Disassembly And Disposal Of Packaging And End-Of-Life Product Components
Annex I Disassembly and disposal of packaging and end-of-life product components. Packaging Disposal Important The recycling of the packaging must be carried out by the qualified professional who has installed the product. We advise you to recycle the product packaging responsibly: Paper and cardboard: In waste management, the recycling of paper and cardboard •... - Page 21 TECHNICAL MANUAL BIOCLIMATIC PERGOLA P-230 WITHOUT COLUMNS Caution Always act with care. Please only use suitable tools that are in perfect condition. • Step 6 • Step 1 Dismantling of slats. Electrical disconnection. CAUTION! Before disconnecting any cable switch off the power supply. •...
- Page 22 This symbol means that the product must not be disposed of together with household waste as it must be collected separately for recovery, reuse or recycling in accordance with local regulations. In compliance with Articles 4 and 13 Royal Decree 110/2015, of 20 February, on waste electrical and electronic equi- pment;...
-
Page 23: Annex Ii. Certificate Of Guarantee
TECHNICAL MANUAL BIOCLIMATIC PERGOLA P-230 WITHOUT COLUMNS Annex II Certificate of guarantee The Saxun Bioclimatic pergola is composed of a waterproof pergolas against the most adverse conditions. structure with adjustable aluminium slats, driven by a motor. The P-230 pergolas were tested in accordance with the fo- Its main structure is made of 6063 T5 alloy aluminium profiles, llowing standards, obtaining the following results;... - Page 24 Warranty: Saxun only guarantees these results in cases where the pergola The warranty period for Saxun pergolas is 3 calendar years from has been correctly installed and assembled and properly main- the date that the product is supplied, with the date being that tained.
-
Page 25: Installation Check Sheet For Bioclimatic Pergola
TECHNICAL MANUAL BIOCLIMATIC PERGOLA P-230 WITHOUT COLUMNS Customer: Order/PTO: Prior to placement of columns Squaring and parallelism of the anchoring bases to the floor Solidity of the fastening of anchoring bases to the floor Perfect levelling of the anchoring bases to the floor Prior to installation of slats Strength of wall fasteners Check columns are perfectly plumb... - Page 26 Giménez Ganga, S.L.U. Polígono Industrial El Castillo C/ Roma, 4 • 03630 Sax (Alicante) • España saxun.com...
