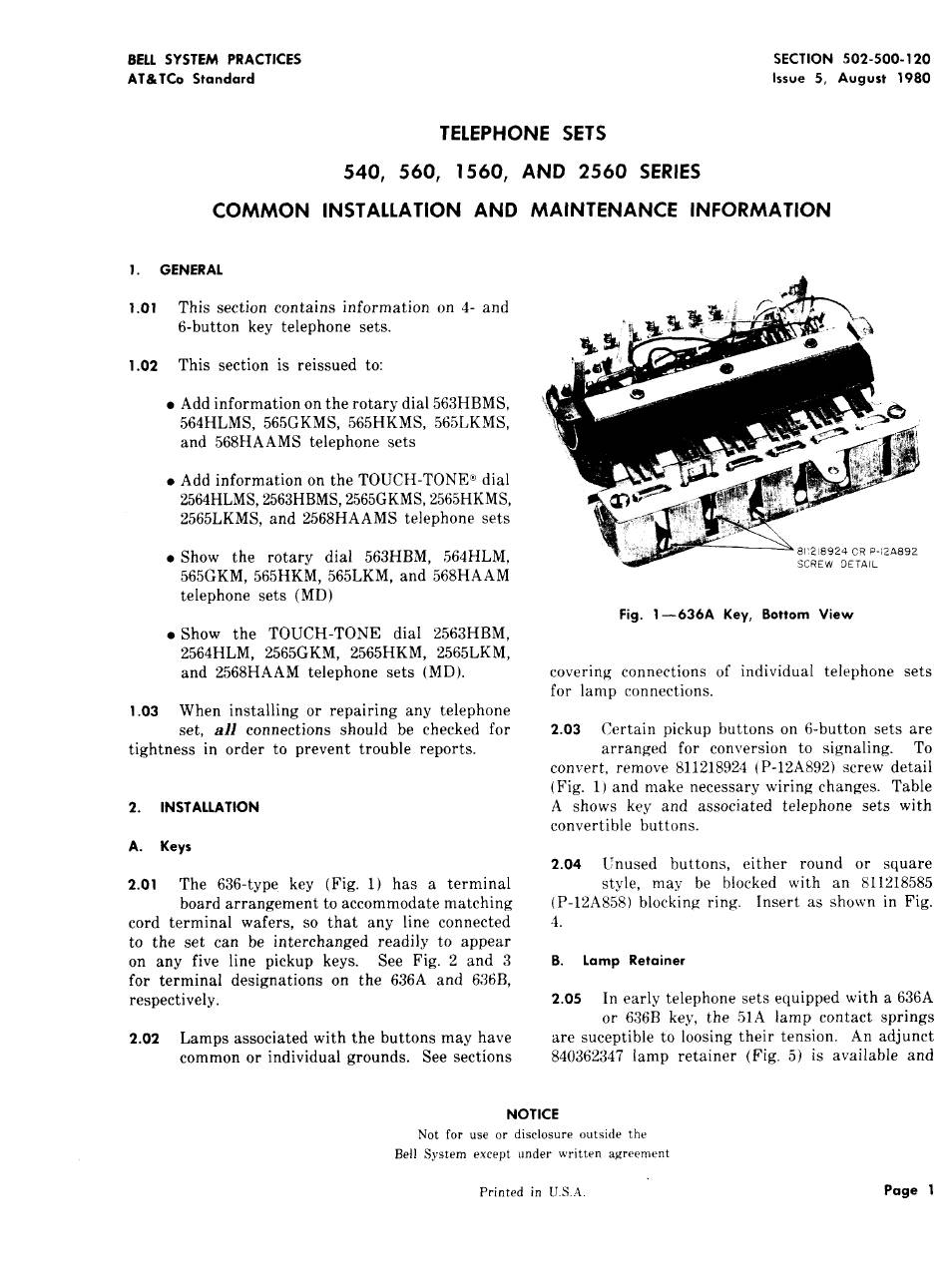

BELL SYSTEM PRACTICES
AT&TCo
Standard
SECTION
502-500-120
issue 5, August
1980
TELEPHONE
SETS
540,
560,
1560,
AND
2560
SERIES
COMMON
INSTALLATION
AND
1.
GENERAL
1.01
This section contains
information
on
4-
and
6-button
key telephone
sets.
1.02
This section is reissued
to:
Add information
on the rotary dial 563HBMS,
564HLMS, 565GKMS, 565HKMS, 565LKMS,
and 568HAAMS telephone
sets
Add information
on the TOUCH-TONE"
dial
2564HLMS, 2563HBMS, 2565GKMS, 2565HKMS,
2565LKMS, and 2568HAAMS telephone
sets
Show the
rotary
dial
563HBM, t564HLM,
565GKM, 565HKM, 565LKM, and 568HAAM
telephone
sets (MD)
Show
the
TOUCH-TONE
dial
2563HBM,
2564HLM, 2565GKM, 2565HKM, 2565LKM,
and 2568HAAM telephone
sets (MD).
1.03
When installing
or repairing
any telephone
set,
all
connections
should be checked for
tightness
in order to prevent
trouble
reports.
2.
INSTALLATION
A.
Keys
2.01
The 636-type
key (Fig. 1) has a terminal
board arrangement
to accommodate
matching
cord terminal
wafers,
so that
any line connected
to the set can be interchanged
readily
to appear
on any five line pickup keys.
See Fig. 2 and 3
for terminal
designations
on the 636A and 636B,
respectively.
2.o2
Lamps associated with the buttons may have
common or individual
grounds.
See sections
MAINTENANCE
INFORMATION
P
----
!/L
Fig. 1—636A
Key, Bottom View
covering
connections
of individual
telephone
sets
for lamp connections.
2.03
Certain pickup buttons
on 6-button
sets are
arranged
for conversion
to signaling.
To
convert, remove 811218924 (P-12 A892) screw detail
(Fig. 1) and make necessary wiring changes.
Table
A shows key and associated
telephone
sets with
convertible
buttons.
2.04
Unused
buttons,
either
round
or square
style,
may
be blocked
with
an 811218585
(P-12 A858) blocking ring.
Insert as shown in Fig.
4.
B.
Lamp
Retainer
2.05
In early telephone sets equipped with a 636A
or 636B key, the .51A lamp contact
springs
are susceptible to loosing their tension.
An adjunct
840362347 lamp retainer
(Fig. 5) is available
and
NOTICE
Not for use or disclosure outside the
Bell System except under written
agreement
Printed
in U.S..A.
