Summary of Contents for AgXcel GX50 N-FUSE

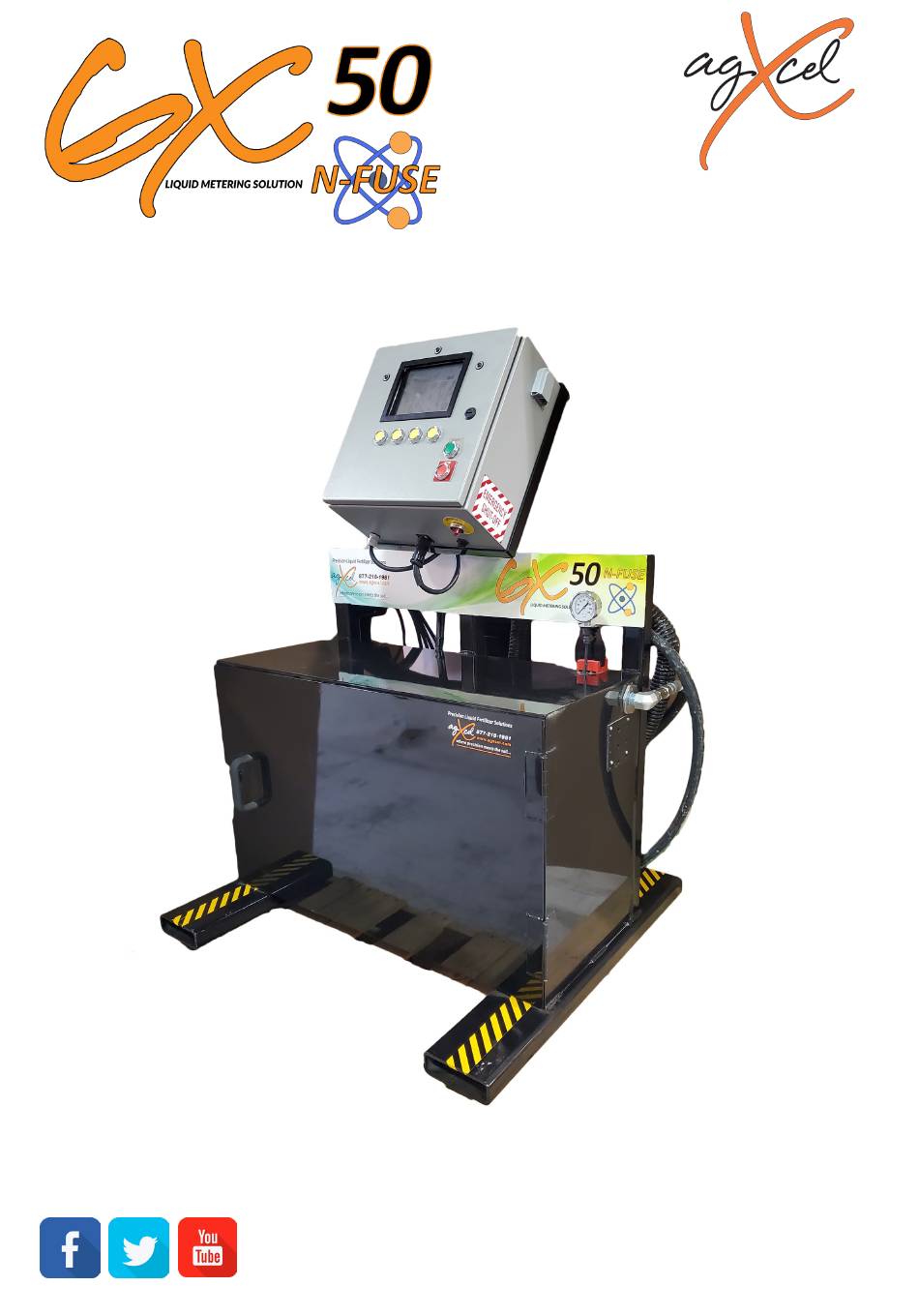

- Page 1 116 E 6TH ST KEARNEY NE 68847 877.218.1981 REV 092020.V1 www.agxcel.com info@agxcel.com...
- Page 2 Disclaimer AgXcel has taken every effort to ensure the correctness of this document, to ensure the highest quality and accuracy. However, AgXcel assumes no responsibility for omissions and errors, nor is any liability assumed for damages resulting from the use of information contained within this document as there are many uncontrolled variables.
- Page 3 A. Positioning the Unit – The GX50 N-FUSE may be placed in any location that is not a high traffic area. However, the unit must be secured, and must be positioned on level ground or plat- form.
- Page 4 GX50 N-FUSE 116 E 6TH ST BREAKDOWN KEARNEY NE 68847 877.218.1981 www.agxcel.com info@agxcel.com...
-
Page 5: System Setup
KEARNEY NE 68847 877.218.1981 This section will assist you in setting up your GX50 N-Fuse. The unit needs to be placed on a level surface. Doing so will ensure proper functionality of the pump and motor system. The GX50 unit uses an industrial 5-20P Nema Straight Blade Plug. This will be able to used a 125v 20amp non GFI outlet. - Page 6 Press once to select the desired recipe. Press again to display a calculator style screen. Using the keypad enter in the desired amount of product for the recipe you want dispensed. Decimals can be entered as well. Once you have programmed each recipe your mechanical buttons on the display panel can activate. www.agxcel.com info@agxcel.com...
-
Page 7: Runninga Batch
If you want to clear the injection recipe and not resume, you would press the red stop button on the enclosure. This will allow you to select a new recipe. www.agxcel.com info@agxcel.com...
