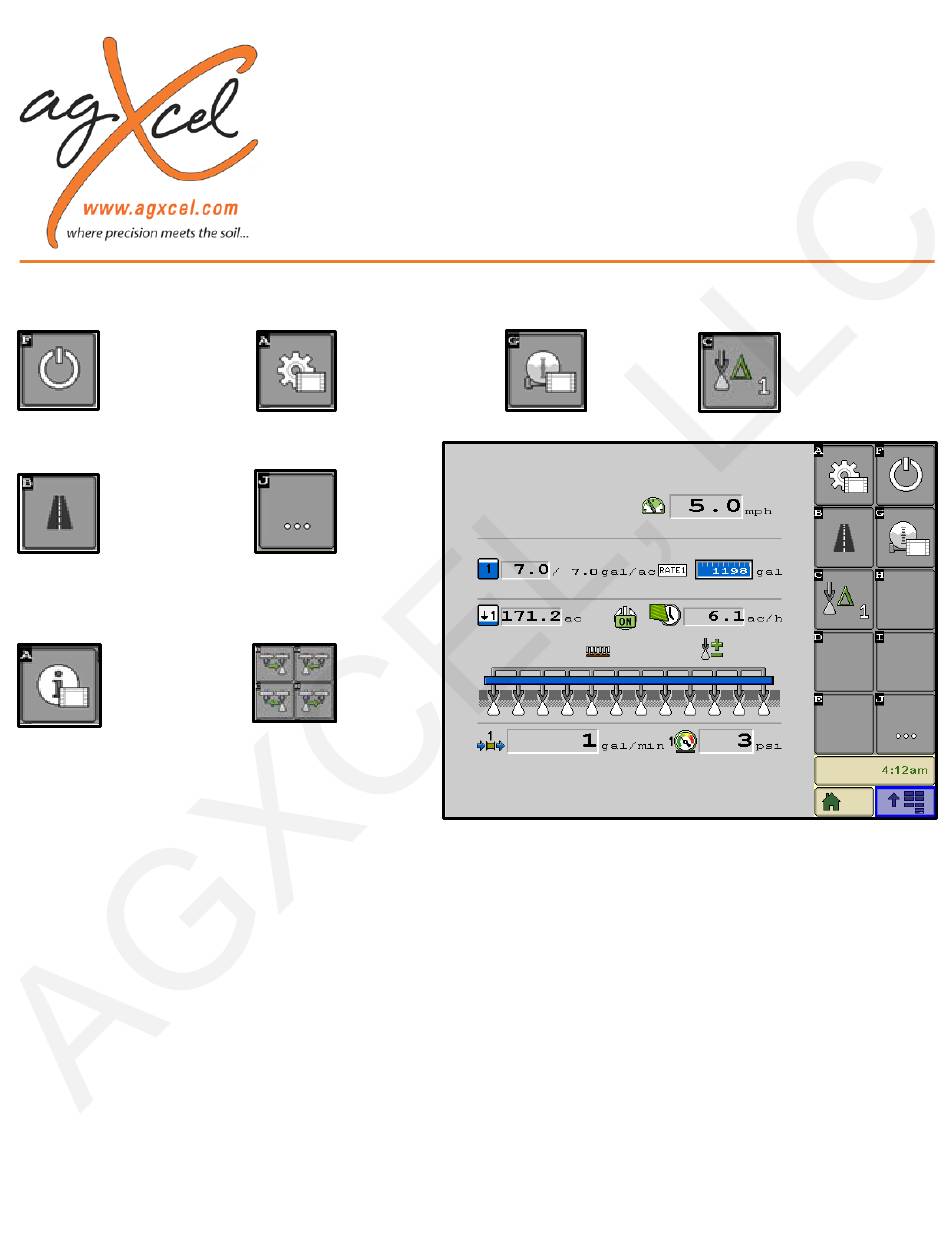

MENU STRUCTURE FOR LIQUID RATE CONTROLLER
Master Switch
•Master Switch to turn
on and off system when
physical Master Switch is
not enabled
Road Mode
Road Mode function is
•
used for safe transport
on public roads
On the Next Page...
Counters
This opens a screen
•
with counters.
System Information
Müller-Elektronik' technology is a very flexible control platform with many capabilities. This quick start setup guide will show you
the necessary steps to setup your display to control AgXcel' s Fertilizer Pump Systems. Follow the general directions in your Müller's
User Manual (especially under Configuration and Liquid Rate Control). This manual will show you the specific numbers and settings
to u s e with your AgXcel Fertilizer Pump System.
Virtual Terminal (VT)
When your Müller ISO Liquid Rate Controller is correctly connected, it will be discoverable in your monitor's Virtual Terminal
section. Select the Virtual Terminal icon, which can be in different areas of the controller.
From the "Home" screen, press the "VT" or "ISO" icon on the bottom of the screen, which will take you to the Virtual
•
Terminal screen.
Once on the Virtual Terminal screen, your Müller ISO module will be detected. Once detected, it will load your current
•
configurations. If this is your first time setting up, it will display a message letting you know that system has not been
configured.
PO Box 1611
Kearney, NE 68848
877.218.1981
www.agxcel.com
Quick Start Setup Instructions for Müller ISO
RCM - Single Product
PLEASE NOTE: Your setup may vary. Not all screens are shown. See
Müller Operator's Manual for safety information and additional
setup/operating information.
Configuration
•Advance Settings
•Speed Settings
•Distance Measurements
•Section Configuration
•Diagnostics
Next Page
•Displays
further function
icons
Sections
•Opening and
closing section
valves from left
to right or from
right to left
Tank
•Refilling Tank
•Emptying Tank
Rate Adjustment
•Rate Target
Selection
•Auto/Manual
•Rate Increase/
Decrease
REV81922
Advertisement
Related Manuals for AgXcel Muller ISO
Summary of Contents for AgXcel Muller ISO
- Page 1 Müller-Elektronik’ technology is a very flexible control platform with many capabilities. This quick start setup guide will show you the necessary steps to setup your display to control AgXcel’ s Fertilizer Pump Systems. Follow the general directions in your Müller's User Manual (especially under Configuration and Liquid Rate Control).
-
Page 2: System Configuration
SYSTEM CONFIGURATION System configuration is where you will set the Müller ISO to be compatible with the AgXcel fertilizer system. AgXcel has found the best settings to work with their fertilizer pump systems. Please carefully follow each step to set up your controller. - Page 3 High number may result in not achieving the target rate. Minimum/Maximum Time: Min/ms is the value the output will start from no matter how much correction is needed. Max/ms is the max value the output will reach once saturation of the output has been reached info@agxcel.com WWW.AGXCEL.COM 877-218-1981...
- Page 4 Pressure Sensor*: If a pressure sensor is installed, please select “Analog” option. If an electric pressure sensor is not installed, please select “Not Installed” option. *When using AgXcel’s optional Pressure Transducer Kit PN 53491 • Once done, press the 3-dot icon to go to the next page of the Advance Configuration.
- Page 5 Choose the option for your setup from the pop-up for your setup from the pop-up screen: screen: Latching (Low=in work), Latching (High=in work), ISOBUS Tractor, Case Momentary Switch, Latching (Low=in work), Latching (High=in work) IH Planter Status) info@agxcel.com WWW.AGXCEL.COM 877-218-1981 Page | 5...
-
Page 6: Sections Configuration
• Enter the number of sections in the Total Sections field. • Enter the number of rows in each section. *Note: Please note with using AgXcel’s • Fence Rows: None integration Harness PN 56410 the following Press the back icon •... -
Page 7: Alarm Configuration
Fill Amount: This is the amount that will be added to the tank level. Max Tank Icon: Press when the tank Empty Tank Icon: Press when the is completely full tank is completely empty. info@agxcel.com WWW.AGXCEL.COM 877-218-1981 Page | 7... - Page 8 AgXcel’s Pressure Transducer Kit (Optional) – PN# 53491 The AgXcel fertilizer application system can be configured with an optional pressure transducer feature. This optional kit will allow the user to display pressure on screen in cab, However, pressure monitoring is an important tool in system setup and system troubleshooting and can assist in ensuring that the liquid application system is operating properly, and this may be attained with a standard analog gauge or a pressure transducer.
- Page 9 Press the Play icon to begin the calibration for Product 1 or Product 2. • The Flow Calibration screen will appear. Enter the values for Target Pressure, Target • Rate, Target Speed, and Nozzle Spacing. • Press the Play icon to proceed. info@agxcel.com WWW.AGXCEL.COM 877-218-1981 Page | 9...
- Page 10 “X” to return to calibration start screen without updating the Meter Cal Value. • Press the Back Arrow to exit the screen. You have now calibrated the flow meter. • info@agxcel.com WWW.AGXCEL.COM 877-218-1981 Page | 10...
- Page 11 10. Many times, setting the Low Limit to 0 will work just fine especially when running lower rates. With an AgXcel System always make sure your Minimum Flow rate is set to 0.0 GPM or your system will not drop below this rate.
- Page 12 How do I know where my pressure should be? AgXcel systems are not pressure based especially when they are controlled with a Liquid Rate Control Module. HOWEVER, pressure can affect the performance of the system if the pressure is too low or too high. Many users feel that the higher the pressure then the less chance they have to plug an orifice.
- Page 13 8. System testing is complete - Turn OFF the Master Switch AgXcel System Performance Settings - To ensure the best performance of your AgXcel system especially at Start Up, setting the PWM Start Up % can be fine-tuned. PWM Start Up % sends voltage to the pumps at the % that has been set. This can assist in the priming cycle to get the pumps running quicker.
-
Page 14: Pin Connector
PRODUCT 1 SECTIONS AgXcel Müller Integration Harness Dual Liquid Product VALVE GROUND SECTION 02 SECTION 03 SECTION 04 SECTION 05 SECTION 06 SECTION 07 Agxcel #56410 SECTION 08 SECTION 09 320-587 SECTION 10 SECTION 11 42-PIN SECTION 12 PRESSURE SIGNAL... - Page 15 AgXcel Channel Integration Harness (PWM,Flowmeter,Pressure) PRESSURE PRESSURE SIGNAL 1 Agxcel #53697 309-506 POWER 16-PIN TO FLOW GROUND INTEGRATION HARNESS 12V FLOW Wire Size: 18G Length: 10ft FLOW SIGNAL GROUND POWER FLOW GROUND Servo (+) PWM Servo (-) PWM MASTER ON/OFF...
- Page 16 AgXcel 6-Section Boom Harness SECTION 1 +12V Agxcel #53594 GROUND SIGNAL 309-504 SECTION 2 16 PIN TO 6-SECTION +12V GROUND SIGNAL SECTION 3 +12V VALVE GROUND GROUND SIGNAL SECTION 2 SECTION 3 SECTION 4 SECTION 4 SECTION 5 SECTION 6...
- Page 17 AgXcel 12-Section Boom Harness SECTION 1 +12V GROUND SIGNAL SECTION 2 SECTION 3 +12V GROUND SIGNAL SECTION 4 +12V Agxcel #53800 GROUND SIGNAL 309-507 +12V 16 PIN TO GROUND SIGNAL 12-SECTION SECTION 5 +12V SECTION 6 GROUND SIGNAL SECTION 7...
