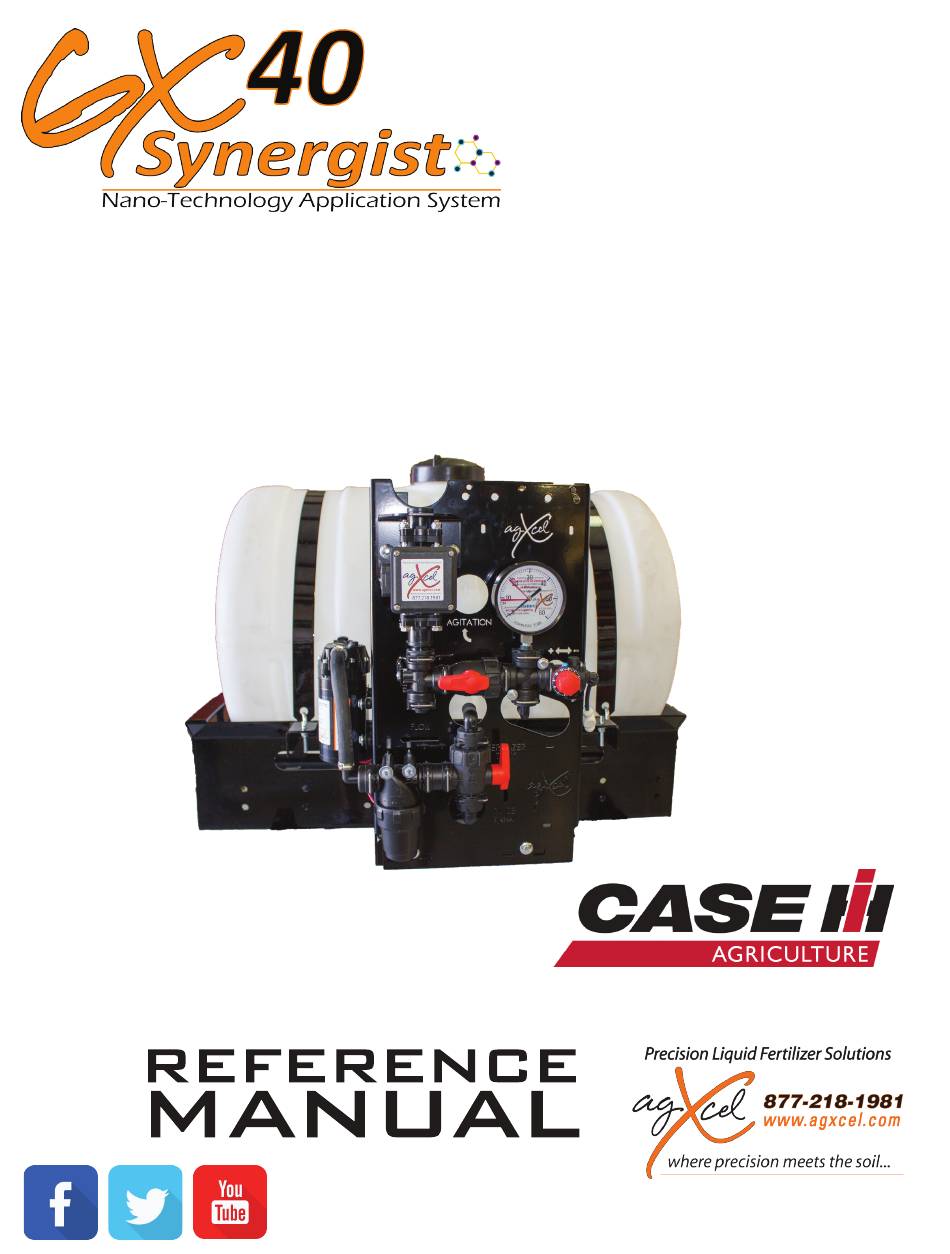

- Page 1 PRO 700 AUTOMATIC RATE NOTE: This is only a guide! Please consult CONTROLLER your CaseIH dealer for detailed instruc- tions or troubleshooting! reference manual www.agxcel.com info@agxcel.com...
- Page 2 Each row will be evenly distributed through a visual flow indicator with one or two floating balls. While pro- viding a good indication of the flow to each row, they do not indicate the exact flow. AgXcel recommends doing a catch test on each row to verify it’s distribution.
-
Page 3: Initial Installation Steps
OEM dealer. The rate controller will provide the data required to manage the speed of the AgXcel electric pump(s) based on the flow response of the flow meter and the vehicle speed. The FAS system is also capable of managing section controls, also referred to as swath control, to minimize overlap areas with optional section control valves. - Page 4 The rate controller has two harness connections. The first is the connection to the Case IH wiring harness that connects to the in-cab display. The second is where the AgXcel system harnesses begin. This guide will provide instructions and screen shots of the Pro 700 display.
-
Page 5: Pin Connector
Use manual mode to increase signal. Should get up to 12 back to in-cab display AgXcel Harness PN# 53519 volts after holding increase button. Flowmeter Tap Test: Pins C2 and C3 are Flow Ground and Signal. If no flow is Common Troubleshooting: registering on the display, you can tap between these two pins with a short wire. - Page 6 AGXCEL INTEGRATION INTO THE PRO 700 ACCUCONTROL LIQUID DISPLAY SETUP & GENERAL PRO 700 OPERATION (Read Instructions Completely before Beginning Installation) Pro 700 Display Setup for AccuControl and SureFire Systems General Pro 700 Operation Setup & Operation Home Screen Status and Warning Left-hand Area—...
- Page 7 AGXCEL INTEGRATION INTO THE PRO 700 ACCUCONTROL LIQUID DISPLAY SETUP & GENERAL PRO 700 OPERATION (Read Instructions Completely before Beginning Installation) Setup & Operation Items in Work Condition include: Layer Valve Operation Controller Product Assignment Calibration Setup Setup Calibration You must create or select a Work Condition to complete the setup for product application.
- Page 8 AGXCEL INTEGRATION INTO THE PRO 700 ACCUCONTROL LIQUID (Read Instructions Completely before Beginning Installation) Pro 700 AccuControl Setup for Liquid PWM Control Your system may vary from the screens shown here. See the AFS AccuControl Rate Controller Software Operating Guide for additional information about configuring your system. The setup may not always Your system may vary from the screens shown here.
- Page 9 AGXCEL INTEGRATION INTO THE PRO 700 ACCUCONTROL LIQUID (Read Instructions Completely before Beginning Installation) AccuControl Setup for Liquid 10. Liquid Drive Setup Toolbox > AccuControl > Liquid Drive A. Select Liquid Drive (Yes) B. Press ‘Setup’ C. Assign Liquid Drive Serial Numbers D.
-
Page 10: Valve Calibration
AGXCEL INTEGRATION INTO THE PRO 700 ACCUCONTROL LIQUID (Read Instructions Completely before Beginning Installation) Create A Layout (sample) Go to Toolbox>Layout Select Current Layout and then select New. Name the Layout. Under Run Screen select a screen. In the white boxes consider adding the following items... - Page 11 AGXCEL INTEGRATION INTO THE PRO 700 ACCUCONTROL LIQUID (Read Instructions Completely before Beginning Installation) Pro 700 & AccuControl Operation for Liquid Application To start applying product (these are not necessarily all the setup you will need) Go to Toolbox>AccuCtrl>Default Speed Enter a default speed.
- Page 12 AGXCEL INTEGRATION INTO THE PRO 700 ACCUCONTROL LIQUID (Read Instructions Completely before Beginning Installation) Possible Run Screen Layout Start with these Valve Cal settings Work Condition > Valve Cal > for system with 2 sections Advanced Calibration To use default AccuCtrl speed, turn Radar off.
- Page 13 Setup and Troubleshooting the Pro 700 AccuControl Liquid PWM System (aka Intellivew IV Intellirate) Note to AgXcel Customers: Note to SureFire people: The Default speed setting that works on our test stand does not work when the tractor is not moving when the Pro 700 is plugged into a tractor that has Radar, Wheel, or GPS speed capability.
- Page 14 Field-IQ module to determine if there is a bad valve should be open, 0 v when valve harness. should be closed 4. See wiring schematic for pin-outs of each harness. 396-3053Y1 SureFire Tower 100 for NutriSphere®-N NH3 for Pro 700 Revised 04/13/2016 www.agxcel.com info@agxcel.com...
- Page 15 This method can be used to partially simulate Manual operation. By starting with the Rate at 0.00 and slowly increasing the Rate you can see how the pump operates as the Rate increases. This can help in diagnosing where the trouble might be. 396-3053Y1 SureFire Tower 100 for NutriSphere®-N NH3 for Pro 700 Revised 04/13/2016 877.218.1981 info@agxcel.com Revised09.2018R1...
- Page 16 AgXcel’s Micro Control Valve AgXcel’s micro control valves are designed to eliminate the need for large sectional valves. The small compact design makes them ideal for controlling flow through the manifolds. Implements that are 60 ft and wider may be set up with 2 control valves, therefore half of the applicator can be shut off.
-
Page 17: Pressure Sensor
AgXcel’s Mag Flow Meter 0.08 - 1.6 GPM AgXcel’s Magnetic Flow Meters are superior to turbine flow meters in two ways. Magnetic flow meters have no moving parts. This eliminates any wear items or any potential for contaminants to jam a spinning turbine. -
Page 18: Troubleshooting
(Read Instructions Completely before Beginning Installation) EPD LED Signals Control Signal LED’s Status LED AgXcel has 2 styles for EPD’s. One of the models To Pumps has three lights and the other model has five lights. PWM Signal Ensure that you are looking at the correct diagram to confirm the signals you are receiving. - Page 19 Inspect all connections for bent or burned out leads. Constantly running the system at a high pressure or getting more than the required voltage (12v) can result in burned out connections causing the system to not work properly. 877.218.1981 info@agxcel.com Revised09.2018R1...
- Page 20 3PIN 2PIN DESCRIPTION 2 pumps will run 17924 55917 GXH_EXT 15FT when whisker is 54073 55415 GXH_EXT 30FT straight *Custom extension lengths can be special ordered - contact SALES for a price quote* www.agxcel.com info@agxcel.com...
- Page 21 This means a heaver ball can be used to monitor a smaller flow. Floating Balls AgXcel uses the low flow columns with 1/4” For most applications of Nutri- push to connect outlet fittings. The flow capabil- Sphere-N NH3 at 32 oz/acre, The ity of 1/4”...
- Page 22 GXUBOLT 4 X 7 X 5/8” one section in order to prevent range dropping below flow 55222 GXUBOLT 6 X 8 1/2” x 5/8” meter capabilities at lower 20554 GXUBOLT 6 X 8 X 5/8” speeds. Using more sections is not recommended. www.agxcel.com info@agxcel.com...
- Page 23 Red Plastic* Ball 20121 1/4 PTC DIVIDER 55212 .3 LB X 1/4” QC CHECK VALVE *For 32 oz/acre at 7mph or less the Green ball works the best. Higher speeds may work better with the Red ball ** 877.218.1981 info@agxcel.com Revised09.2018R1...
- Page 24 Typical temperature, application speed and product batch. NutriSphere-N NH3 applications apply around AgXcel recommends you start with the Gray tube (for 1 to 1.5 oz/min/row. An orifice of this rate typical 32 oz/acre and 30” row spacing). Conduct a test would have a 0.015”...
- Page 25 6. Connect the black 1/4” tubing from top of flow indicator to inlet of check valve. NOTE: For 32 oz/ac rate and speeds 7 mph or less, the green ball will work best. Higher speeds may work better with the red ball 1/3# INLINE CHECK VALVE PN# 55212 877.218.1981 info@agxcel.com Revised09.2018R1...
- Page 26 INLINE 1# CHECK VALVE INLINE 1# CHECK VALVE TANK AGITATION PRODUCT (FERTILIZER) TANK (BOTTOM OF PRODUCT TANK) TANK AGITATION RINSE TANK 3 WAY BALL VALVE PRODUCT (FERTILIZER) TANK RINSE TANK PRODUCT (FERTILIZER)TANK TANK AGITATION RINSE TANK OUTLET WWW.AGXCEL.COM 877-218-1981 info@agxcel.com www.agxcel.com info@agxcel.com...
- Page 27 3/4X1/4 REDUCER 52169 2-WAY BALL VALVE 32399 3/4 THREADED NIPPLE 52146 3/4 X 90D ELBOW RINSE TANK PLUMBING QTY# ITEM 32399 3/4 THREADED NIPPLE 18005 3/4x3/4 MPT X HOSE BARB 37667 3-WAY BALL VALVE 32331 3EL34 POLY ELBOW 877.218.1981 info@agxcel.com Revised09.2018R1...
- Page 28 AGXCEL SYNERGIST MOUNTING OPTIONS Various brackets and u-bolts are available to provide a way to mount the GX40 Synergist to almost any implement. Your AgXcel configuration specialist will get your implement information at ordering time to make sure that all of the hardware needed for your system is included.
- Page 29 SYNERGIST FIELD KIT - PN#55558 COMPLETE AGXCEL GX40 SYNERGIST FIELD KIT CONTAINING CRITICAL COMPONENTS TO KEEP YOU RUNNING IN THE FIELD. KIT INCLUDES: SYNERGIST FIELD KIT PN#55558 ITEM 25709 WILGER 1/4” CAP QC 37614 WILGER LOW FLOW COLUMN QC3 (1/4” TO 1/4” QC)
- Page 30 (Read Instructions Completely before Beginning Installation) AGXCEL MAG FLOWMETER The AgXcel Mag Flow meter is a magnetic flow meter, also technically known as an electromagnetic flow meter. A magnetic field is applied to the metering tube, which results in a potential difference proportional to the flow velocity perpendicular to the flux lines.
- Page 31 Next, use RV antifreeze to winterize your system by pumping an adequate amount through all components. RECOMMENDED PRESSURE (GX ELECTRIC SYSTEMS ONLY) Agxcel recommends to maintain a pressure between 10 and 20 psi. Doing so, and with proper winterization, will ensure the durability of the system, and reduce problems when preparing for the next season.
-
Page 32: General Safety Information
If unsure about chemical compatibility or intended applications of a motor, please call AgXcel for assistance. General Safety Information California Proposition 65 Warning -- This product and related accessories contain chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. -
Page 33: Bypass Operation
Models equipped with closed off. Contact AgXcel for information regarding an internal bypass are designed to pump at high pressure bypass pumps. - Page 34 Noisy / rough operation: Check mounting feet to see if they are compressed too tight. Does the mounting surface multiply noise (flexible)? Check for loose pump head or drive screws. Is the pump plumbed with rigid pipe, causing noise to transmit? www.agxcel.com info@agxcel.com...
-
Page 35: Warranty
Under no circumstances shall AgXcel be liable for special, indirect, or consequential damag- es. In particular AgXcel shall not be liable for damage to crops as the result of misuse or negligence in the application of chemicals or operation of AgXcel products.
