Baumr-AG BT-577 User Manual

Baumr-AG BT-577 User Manual

4 blade
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Video Tutorial:
Tillers – Assembly
READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND
MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual may vary in
The product is NOT supplied with engine oil, although traces of oil from the manufacturing process
may be present. It is essential to add adequate engine oil of the correct type to the engine before use.
Failure to add engine oil will void the product
E&OE

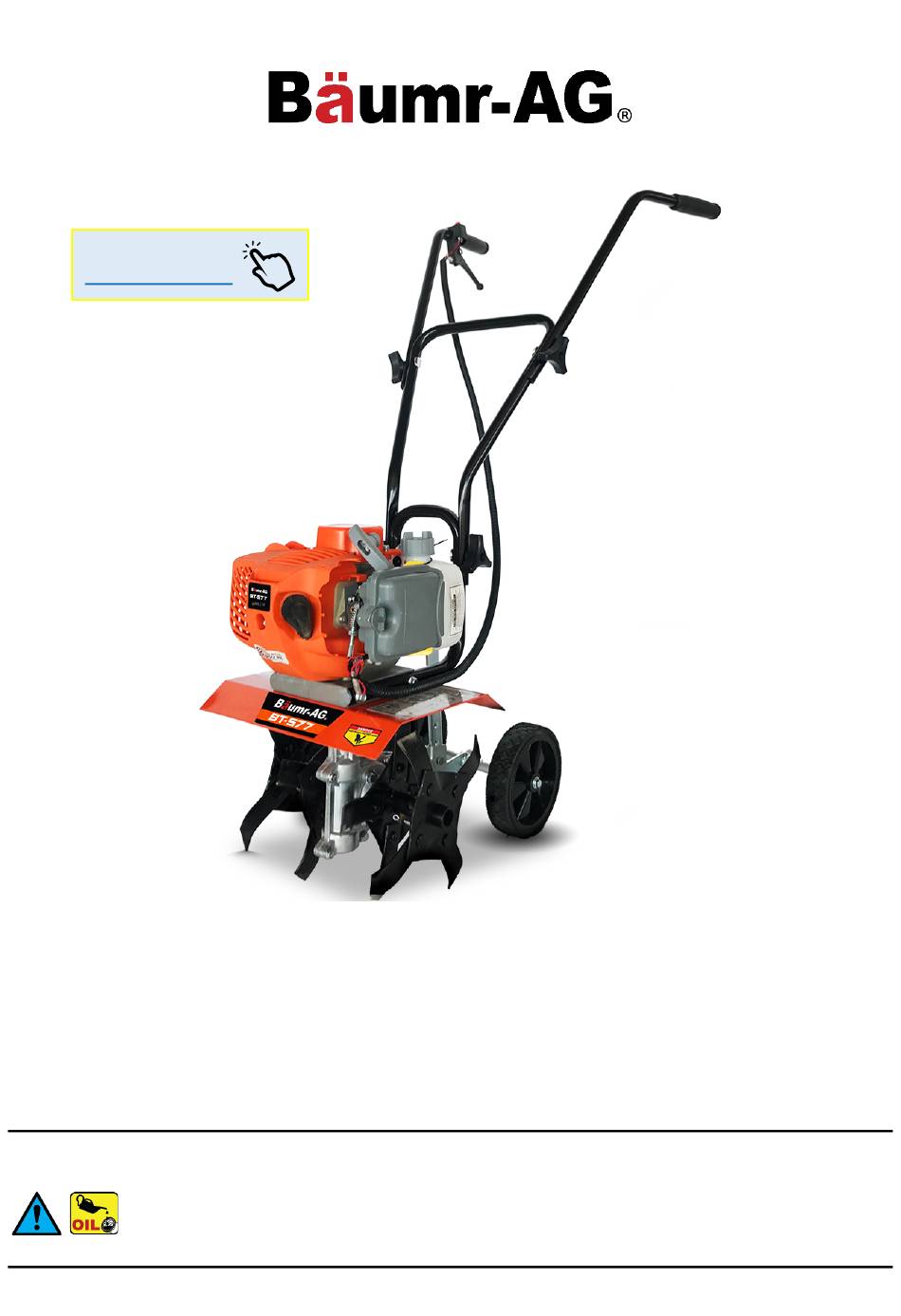

4 Blade Tiller - BT-577
User Manual
[Revision 2.0 November 2019]
appearance, assembly, inclusions, specifications, description and packaging.
warranty.
© 2019 Baumr-AG

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BT-577 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Baumr-AG BT-577

Summary of Contents for Baumr-AG BT-577

  • Page 1 Video Tutorial: Tillers – Assembly 4 Blade Tiller - BT-577 User Manual [Revision 2.0 November 2019] READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual may vary in appearance, assembly, inclusions, specifications, description and packaging.

  • Page 2: Safety

    4 Blade Tiller - BT-577 Safety Safety messages are designed to alert you to possible dangers or hazards that could cause death, injury or equipment or property damage if not understood or followed. Safety messages have the following symbols: You WILL be KILLED or...
  • Page 3 4 Blade Tiller - BT-577 General Electrical Safety General Electrical Safety General Service Information • Inspect electrical equipment, extension • Electrically grounded equipment must have • The equipment must be serviced or cords, power bars, and electrical fittings for an approved cord and plug and be repaired at authorised service centres by damage or wear before each use.
  • Page 4 4 Blade Tiller - BT-577 • When leaving the operating position for any reason: • Shut off the engine. • Wait for all moving parts to stop. E&OE © 2019 Baumr-AG...

  • Page 5: Safety Symbols

    4 Blade Tiller - BT-577 Safety Symbols The product may have safety warning labels attached to it, explained below. Understand the symbols on your product and their meanings. If any stickers become unreadable, unattached etc., replace them. Flammable Material Hazard...
  • Page 6 4 Blade Tiller - BT-577 Slope / Fall Injury Hazard "Slam Dunk" Warning Carbon-Monoxide Hazard Pull Hazard Do not use the product in Be aware that the product Be aware that using the product Do NOT attempt "slam dunk" confined areas or without...

  • Page 7: Table Of Contents

    4 Blade Tiller - BT-577 Table of Contents Safety ................................. 2 Safety Symbols ................................5 Parts Identification ............................ 8 Included Items ............................9 Assembly ..............................10 Quick Start Guide ............................ 15 Maintenance ............................. 16 Air Filter ..................................16 Spark Plug ................................16 Reduction Gearbox ..............................

  • Page 8: Parts Identification

    4 Blade Tiller - BT-577 Parts Identification E&OE © 2019 Baumr-AG...

  • Page 9: Included Items

    4 Blade Tiller - BT-577 Included Items Motor Base (with 1x upper handle and throttle attached) Screws with concaved heads (for handles) Tiller Blades Tri-wing nuts (for handles) Handle Frame Cable ties Upper Handle Bottle (for fuel and 2 stroke mixing)

  • Page 10: Assembly

    4 Blade Tiller - BT-577 Video Tutorial: Assembly Tillers – Assembly Please note, this is to be done straight out of the box. Ensure no fuel or petrol mix is in the tank. Also note that all blades are the same. The order is not important. Augers and auger tips are consumable parts and are not covered under warranty.
  • Page 11 4 Blade Tiller - BT-577 Step 3 Insert blade pins (Fig. 3a), then split pin (Fig. 3b) and bend legs (Fig. 3c). Figure 3a Figure 3b Figure 3c Step 4 Do the same for the other side (Fig. 4). Figure 4 E&OE...
  • Page 12 4 Blade Tiller - BT-577 Step 5 Slide wheel axel into the tail of the motor base (Fig. 5a and 5b). Insert pin and locking wire (Fig. 5c and 5d). Figure 5a Figure 5b Figure 5c Figure 5d Step 6 Turn motor base so it is standing upright on the wheels and tiller blades (Fig.
  • Page 13 4 Blade Tiller - BT-577 Figure 6c Figure 6d Step 7 Attach upper handles in the same manner as Step 6 (Fig. 7). Figure 7 Step 8 Tie down throttle cable with provided cable ties (Fig. 8a, 8b & 8c). Ensure that it is not too tight. If it is too tight, this may result in the throttle cable getting caught and will affect the operation of the engine.
  • Page 14 4 Blade Tiller - BT-577 Figure 8c Step 9 This is now complete (Fig. 9). Please refer to our quick start guide. Figure 9 E&OE © 2019 Baumr-AG...

  • Page 15: Quick Start Guide

    4 Blade Tiller - BT-577 Quick Start Guide Step 1: Ensure enough petrol/oil mixture is in the tank. Step 6: Turn choke to “RUN.” Always use 25:1 ratio (This equates to 40mL of 2 stroke oil to 1L of petrol).

  • Page 16: Maintenance

    4 Blade Tiller - BT-577 Maintenance Air Filter Every eight hours, remove the cover and the filter. The filter should be washed and dried before refitting it. Remove cover to get access to the air filter: PLEASE NOTE: The air filter needs to be oiled prior to use in order to trap dust and dirt before it reaches the motor.

  • Page 17: Reduction Gearbox

    4 Blade Tiller - BT-577 This product comes with a Torch branded spark plug, model L7T. Please see below for cross referenced spark plugs: • NGK; BM6A, BPM7A • CHAMPION; CJ6Y, CJ7Y, CJ8 • DENSO; W20M-U • BOSCH; WS5F, WS7F, WS8F Reduction Gearbox Every 100 working hours, change the grease in the reduction gearbox.
  • Page 18 ©2019 Baumr-AG. All rights reserved. No part of this document, including descriptive content, concepts, ideas, diagrams or images may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying, scanning or recording, or any information storage and retrieval system,...
