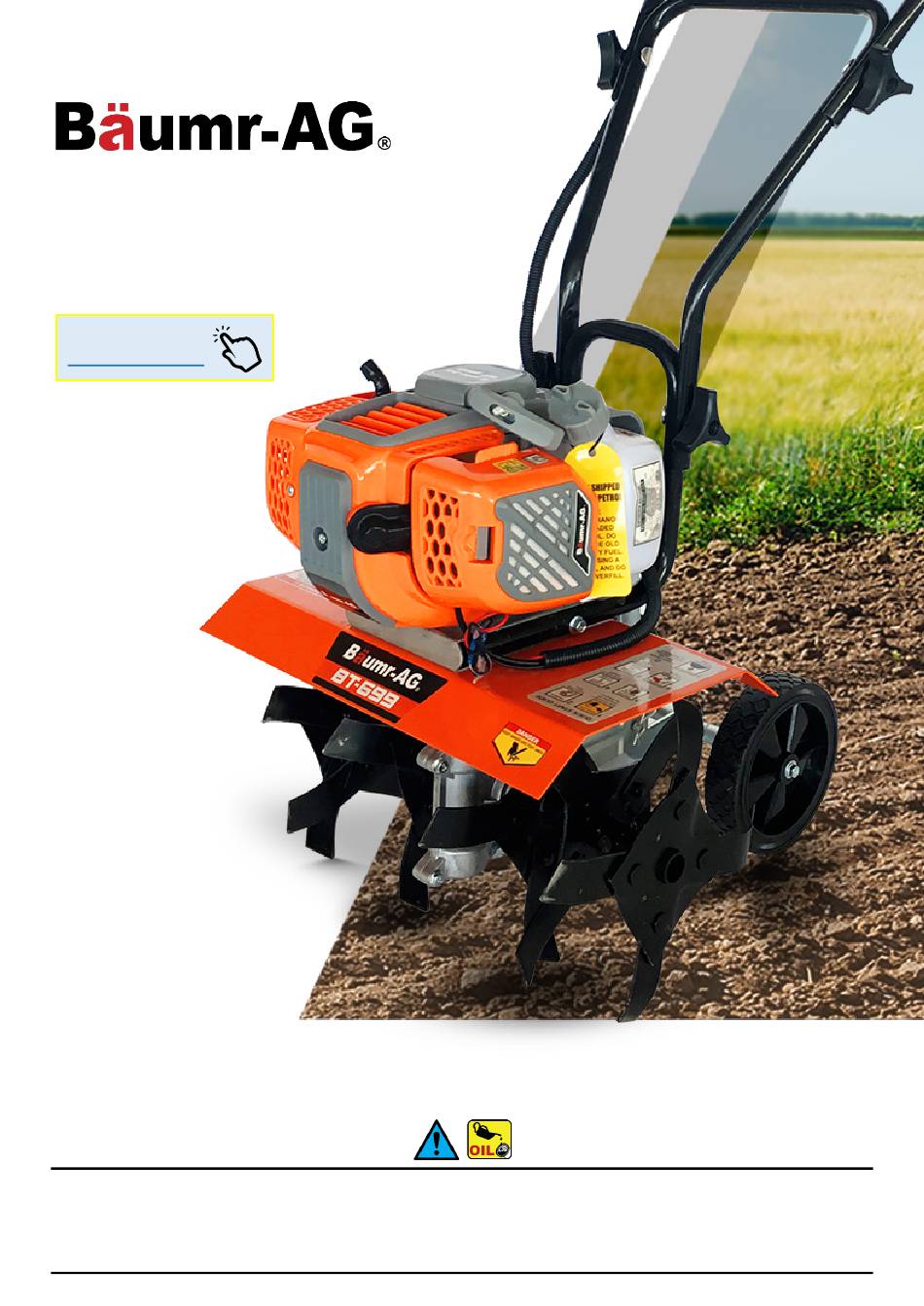

6 Tine Tiller/Cultivator
BT-699
Video Tutorial:
Tillers – Assembly
READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND
MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual may vary in
appearance, assembly, inclusions, specifications, description and packaging.
The product is NOT supplied with engine oil, although traces of oil from the manufacturing process may be present. It is essential to
E&OE
add adequate engine oil of the correct type to the engine before use.
User Manual
[Revision 4.0 February 2020]
© 2020 Baumr-AG
Failure to add engine oil will void the product
warranty.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Baumr-AG BT-699
Summary of Contents for Baumr-AG BT-699
- Page 1 The product is NOT supplied with engine oil, although traces of oil from the manufacturing process may be present. It is essential to E&OE © 2020 Baumr-AG add adequate engine oil of the correct type to the engine before use.
- Page 2 6 Tine Tiller/Cultivator – BT-699 Safety Safety messages are designed to alert you to possible dangers or hazards that could cause death, injury or equipment or property damage if not understood or followed. Safety messages have the following symbols: You WILL be KILLED or...
- Page 3 6 Tine Tiller/Cultivator – BT-699 General Electrical Safety General Electrical Safety General Service Information • Inspect electrical equipment, extension • Electrically grounded equipment must have • The equipment must be serviced or cords, power bars, and electrical fittings for an approved cord and plug and be repaired at authorised service centres by damage or wear before each use.
- Page 4 6 Tine Tiller/Cultivator – BT-699 • When leaving the operating position for any reason: • Shut off the engine. • Wait for all moving parts to stop. E&OE © 2020 Baumr-AG...
- Page 5 6 Tine Tiller/Cultivator – BT-699 Safety Symbols The product may have safety warning labels attached to it, explained below. Understand the symbols on your product and their meanings. If any stickers become unreadable, unattached etc., replace them. Flammable Material Hazard...
- Page 6 6 Tine Tiller/Cultivator – BT-699 Carbon-Monoxide Hazard Pull Hazard Slope / Fall Injury Hazard "Slam Dunk" Warning Do not use the product in Be aware that the product Be aware that using the product Do NOT attempt "slam dunk" confined areas or without...
- Page 7 6 Tine Tiller/Cultivator – BT-699 Table of Contents Safety ................................2 Safety Symbols ................................5 Parts Identification ............................8 Included Items ............................... 9 Assembly ..............................10 Quick Start Guide ............................15 Maintenance ..............................16 Air Filter ..................................16 Spark Plug ................................16 Reduction Gearbox ..............................
- Page 8 6 Tine Tiller/Cultivator – BT-699 Parts Identification E&OE © 2020 Baumr-AG...
- Page 9 6 Tine Tiller/Cultivator – BT-699 Included Items Motor Base (with upper handle, throttle and switch) Twin Wheel Axle Upper handle Allen Keys (5mm & 4mm) Dual Tiller Blades Blade Pins Single Tiller Blades Tri Wing nuts (for handles) Multi Tool (with 17mm & 19mm hex socket and Phillips...
- Page 10 6 Tine Tiller/Cultivator – BT-699 Video Tutorial: Assembly Tillers – Assembly Please note, this is to be done straight out of the box. Ensure no fuel or petrol mix is in the tank. Augers and auger tips are consumable parts and are not covered under warranty. Please note, the tiller model used in this assembly guide may vary slightly from your unit.
- Page 11 6 Tine Tiller/Cultivator – BT-699 Step 3 Insert blade pins then split pin and bend legs (Fig.3). Split pin quantities vary between models. Figure 3 Step 4 Do the same for the other side (Fig. 4). Figure 4 Step 5: Attaching the Wheels Slide wheel axel into the tail of the motor base (Fig.
- Page 12 6 Tine Tiller/Cultivator – BT-699 Figure 5c Figure 5d Step 6: Attaching the Handles Turn motor base so it is standing upright on the wheels and tiller blades (Fig. 6a). Attach handle frame (Fig. 6b) with screws and tri wing nuts. Ensure that the concaved head is on the inside (Fig. 6c) and the tri wing nuts are on the outside (Fig.
- Page 13 6 Tine Tiller/Cultivator – BT-699 Step 7: Attach upper handles in the same manner as Step 6 (Fig. 7). Figure 7 Step 8 Tie down throttle cable with provided cable ties (Fig. 8a, 8b & 8c). Ensure that it is not too tight. If it is too tight, this may result in the throttle cable getting caught and will affect the operation of the engine.
- Page 14 6 Tine Tiller/Cultivator – BT-699 Step 9 This is now complete (Fig. 9). Please refer to our quick start guide. Figure 9 E&OE © 2020 Baumr-AG...
- Page 15 6 Tine Tiller/Cultivator – BT-699 Quick Start Guide Step 1: Ensure enough petrol/oil mixture is in the tank. Step 6: Turn choke to “RUN.” Always use 25:1 ratio (This equates to 40mL of 2 stroke oil to 1L of petrol).
- Page 16 6 Tine Tiller/Cultivator – BT-699 Maintenance Air Filter Every eight hours, remove the cover and the filter. The filter should be washed and dried before refitting it. Remove cover to get access to the air filter: PLEASE NOTE: The air filter needs to be oiled prior to use in order to trap dust and dirt before it reaches the motor.
- Page 17 6 Tine Tiller/Cultivator – BT-699 This product comes with a Torch branded spark plug, model L7T. Please see below for cross referenced spark plugs: • NGK; BM6A, BPM7A • CHAMPION; CJ6Y, CJ7Y, CJ8 • DENSO; W20M-U • BOSCH; WS5F, WS7F, WS8F Reduction Gearbox Every 100 working hours, change the grease in the reduction gearbox.
- Page 18 ©2020 Baumr-AG. All rights reserved. No part of this document, including descriptive content, concepts, ideas, diagrams or images may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying, scanning or recording, or any information storage and retrieval system,...
