Baumr-AG BT-677 User Manual

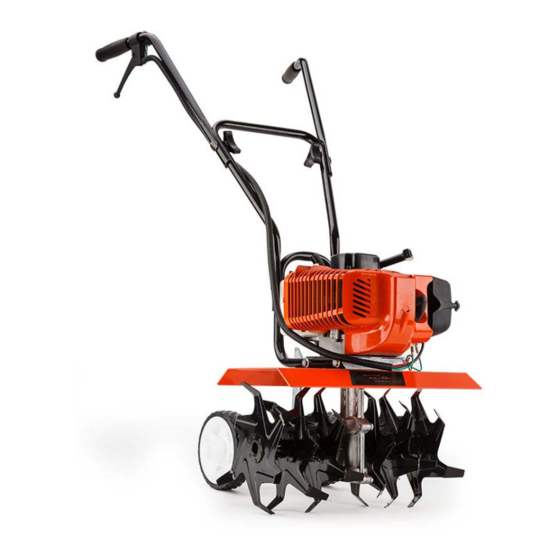

Six blade hand-held cultivator tiller
Hide thumbs

Advertisement

Table of Contents

Six Blade Hand-Held Cultivator Tiller
BT-677
[Revision 4.0 December 2017]
User Manual
READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND
MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual may vary in
appearance, assembly, inclusions, specifications, description and packaging.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BT-677 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Baumr-AG BT-677

Summary of Contents for Baumr-AG BT-677

  • Page 1 Six Blade Hand-Held Cultivator Tiller BT-677 [Revision 4.0 December 2017] User Manual READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual may vary in...

  • Page 2: Table Of Contents

    Failure to follow the proper protocols listed in the manual may cause personal injury to the operator or damage to equipment. E&OE © 2017 Baumr-AG...

  • Page 3: Safety

    Never operate the tiller without good visibility or light. • Be careful when tilling in hard ground. The tines may catch in the ground and propel the tiller backwards. If this occurs, let go of the handlebars and do not restrain the machine. E&OE © 2017 Baumr-AG...
  • Page 4 • When leaving the operating position for any reason: − Shut off the engine. − Wait for all moving parts to stop. E&OE © 2017 Baumr-AG...

  • Page 5: Know Your Tiller

    Six Blade Hand-Held Cultivator Tiller - BT677 Know your Tiller E&OE © 2017 Baumr-AG...

  • Page 6: Included Items

    Dual Tiller Blades Blade Pins Single Tiller Blades Tri Wing nuts (for handles) Bottle (for fuel and 2 stroke mixing) Multi Tool (with 17mm & 19mm hex socket and Phillips head tip) Handle Frame Cable Ties E&OE © 2017 Baumr-AG...

  • Page 7: Assembly

    Place the motor base upside down (ensuring NO fuel is in the tank – Fig. 1a) and place 1 dual blade onto the axle and align the pin holes (Fig. 1b). Figure 1a Figure 1b Step 2 Place a single blade with the spacer facing in (Fig. 2a) and align the pin holes (Fig. 2b). Figure 2a Figure 2b E&OE © 2017 Baumr-AG...
  • Page 8 Do the same for the other side (Fig. 4). Figure 4 Step 5: Attaching the Wheels Slide wheel axel into the tail of the motor base (Fig. 5a and 5b). Insert pin and locking wire (Fig. 5c and 5d). E&OE © 2017 Baumr-AG...
  • Page 9 Turn motor base so it is standing upright on the wheels and tiller blades (Fig. 6a). Attach handle frame (Fig. 6b) with screws and tri wing nuts. Ensure that the concaved head is on the inside (Fig. 6c) and the tri wing nuts are on the outside (Fig. 6d). Figure 6a Figure 6b Figure 6c Figure 6d E&OE © 2017 Baumr-AG...
  • Page 10 If this does happen, please cut cable tie and replace with a newly purchased cable ties. Figure 8a Figure 8b Figure 8c Step 9: This is now complete (Fig. 9). Please refer to our quick start guide. E&OE © 2017 Baumr-AG...
  • Page 11 Six Blade Hand-Held Cultivator Tiller - BT677 Figure 9 E&OE © 2017 Baumr-AG...

  • Page 12: Quick Start Guide

    Step 8: Squeeze throttle according to desired need. Step 4: Turn choke to “COLD.” Step 9: When finished, turn ON/OFF switch to OFF. Step 5: Pull starter cord 3-4 times or until engine starts. Click to Watch: Starting a 2-Stroke E&OE © 2017 Baumr-AG...

  • Page 13: Maintenance

    This product comes with a Torch branded spark plug, model L7T. Please see below for cross referenced spark plugs: • NGK; BM6A, BPM7A • CHAMPION; CJ6Y, CJ7Y, CJ8 DENSO; W20M-U • BOSCH; WS5F, WS7F, WS8F • E&OE © 2017 Baumr-AG...

  • Page 14: Reduction Gearbox

    Every 100 working hours, change the grease in the reduction gearbox. WARNING! Maintenance procedures that are not reported in this manual must only be carried out by an authorised service personnel. Only use original spare parts. E&OE © 2017 Baumr-AG...

  • Page 15: Specifications

    65cc 10,000RPM w/ Centrifugal clutch Starting System Recoil (pull cord start) Fuel Type Regular Unleaded 95 +RON Fuel-Oil Ratio 25:1 (25 parts fuel to 1 part two stroke oil) Fuel Volume Max. Output Max. Speed 9,000r/min E&OE © 2017 Baumr-AG...
  • Page 16 ©2017 Baumr-AG. All rights reserved. No part of this document, including descriptive content, concepts, ideas, diagrams or images may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying, scanning or recording, or any information storage and retrieval system,...
