CBFI 1500
INLINE EXHAUSTERS
OPERATION INSTRUCTIONS AND PARTS MANUAL
PLEASE READ AND SAVE THESE INSTRUCTIONS
The purpose of this manual is to aid in the proper installation and operation of the CBFI 1500 inline exhauster. These instructions are
intended to supplement good general practices and are not intended to overwrite local codes and ordinances.
IT IS THE RESPONSIBILITY OF THE PURCHASER TO ENSURE THAT THE INSTALLATION AND MAINTENANCE OF THIS
EQUIPMENT IS HANDLED BY QUALIFIED PERSONNEL.
Inspect all shipments carefully for damage. THE RECEIVER MUST NOTE ANY DAMAGE ON THE CARRIER'S BILL OF LADING AND
FILE A CLAIM IMMEDIATELY WITH THE FREIGHT COMPANY.
GENERAL SAFETY
1.
All electrical work must be done in accordance with all applicable electrical codes by a
qualified electrician.
2.
Prior to wiring, ensure the power supply is locked in the OFF position and that the motor
nameplate voltage matches the supply voltage.
3.
The CBFI inline exhausters are for commercial/industrial indoor use permanently
connected to the power supply of a building, and are ONLY for use in non hazardous
locations. DO NOT install or use in a kitchen.
4.
For general ventilation use only. Do not use to exhaust hazardous or explosive materials
or vapors.
5.
Caution: The fan contains rotating parts and electrical service. Appropriate safety
precautions should be taken during installation, operation and maintenance. When servicing,
the fan motor may be hot. Open the housing and allow time for it to cool down.
6.
Before starting the unit, carefully inspect and ensure that the wheel rotates freely.
7.
Check and tighten all screws, nuts, bolts etc. prior to fan start up (as some may have
loosened during shipping).
8.
When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden
utilities.
9.
Ducted fans must always be vented outdoors. To reduce risk of fire, use only metal ductwork.
10. This unit must be electrically grounded.
11. Please follow all applicable national, state/provincial and local codes. All of them will
supersede this manual.
12. Failure to follow the safety instructions in this manual may cause serious injury or death
due to electrical shock or high speed rotating parts.

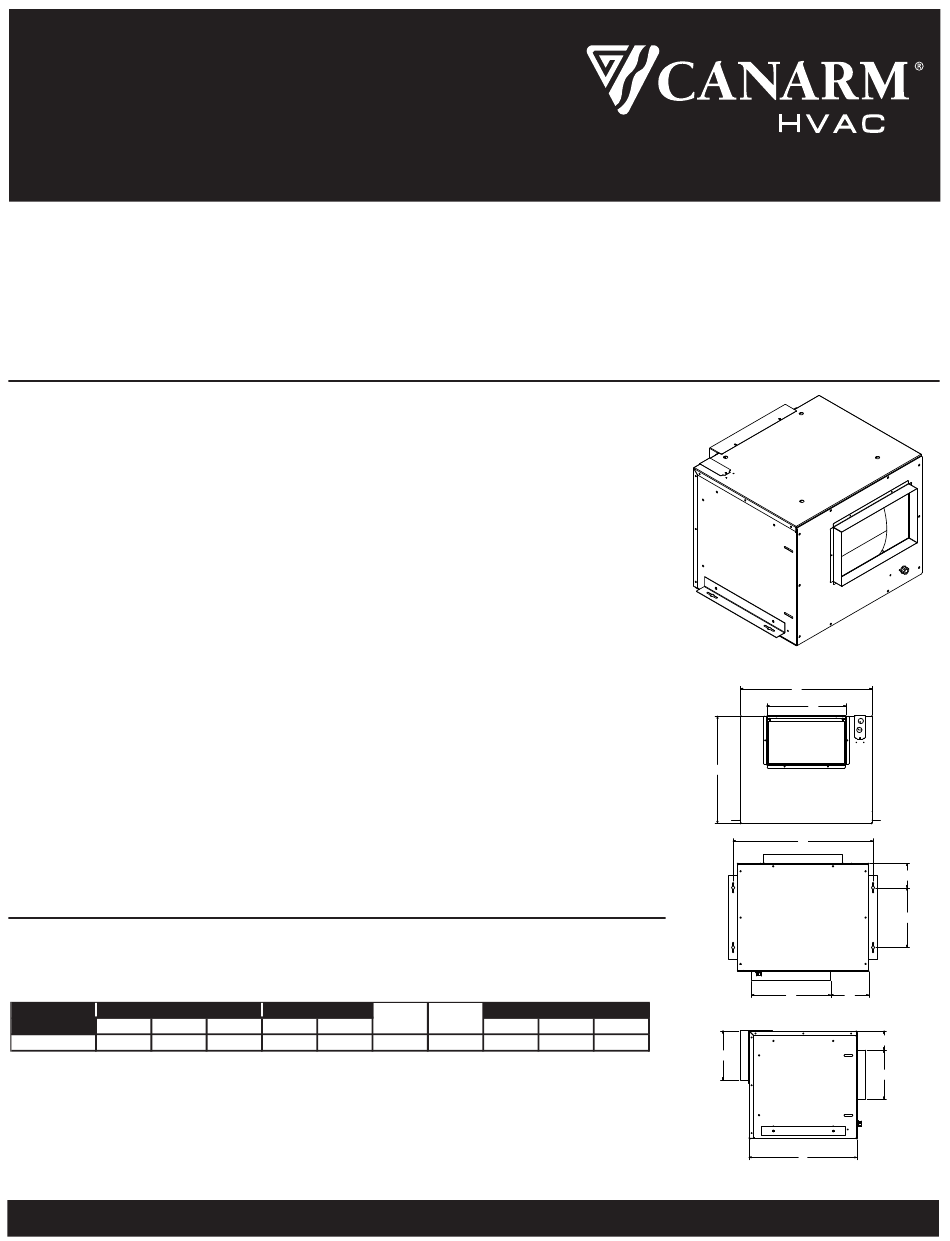

DIMENSIONS & COMPONENTS
&./9'0234567
-.$%8
!
"
#")'*+,,
!!""""""
#$""""""
M-CBFI-1500 05/24
./18%134567
#
$
%
#$""#%#&
#'""#%("
$""#%("
'""'%#&
-./01'0234567
)
2
&
'
&""'%$"
!'""'%$"
(""#%$"
A
B
D
(
#)""""""
E
CBF1500
MAR 13
D
H
I
J
G
F
E
C
Page 1 of 5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CBFI 1500 and is the answer not in the manual?

Questions and answers

Summary of Contents for Canarm CBFI 1500

  • Page 1 PLEASE READ AND SAVE THESE INSTRUCTIONS The purpose of this manual is to aid in the proper installation and operation of the CBFI 1500 inline exhauster. These instructions are intended to supplement good general practices and are not intended to overwrite local codes and ordinances.
  • Page 2: Installation

    Should you need to convert the unit, changing its intake to discharge orientation, follow the steps on page 3 of this manual. If you have questions, contact Canarm using the information on the last page of this manual. (Fig. 5-7)
  • Page 3 CBFI SERIES INLINE EXHAUSTER INSTALLATION CONTINUED GREEN GROUND SCREW FOUND INSIDE THE ELECTRICAL IT IS RECOMMENDED TO COMPARTMENT USE A STRAIN RELIEF FOR THE INCOMING POWER CONNECTION FEATURES TWO KNOCKOUTS FOR YOUR CONVENIENCE THE DIAL AND COMPONENT ARE PERMANENTLY MOUNTED TO THE HOUSING BEFORE BREAKING THE ELECTRICAL CONNECTION IN THIS WAY ALWAYS ENSURE THE BRANCH CIRCUIT IS DISCONNECTED, YOUR POWER SUPPLY...
  • Page 4: Variable Speed Control

    CBFI SERIES INLINE EXHAUSTER STANDARD WIRING INSTRUCTIONS 1. All wiring should be completed by a qualified electrician in accordance with National Electrical Codes and all local ordinances. 2. Ensure power supply is disconnected and locked out prior to making electrical connections. 3.
  • Page 5: Maintenance Replacement Parts

    WARRANTY CANARM Ltd. warrants every new fan to be free of defects in material and workmanship to the extent that, within a period of one year from the date of purchase CANARM Ltd. shall either repair or replace at CANARM’s option, any unit or part thereof, returned freight prepaid and found to be defective.
  • Page 6: Sécurité Générale

    CBFI 1500 EXTRACTEURS EN LIGNE MODE D’OPÉRATION. LIRE ET GARDER CES INSTRUCTIONS Le but de ce manuel est de fournir un support pour une bonne installation et utilisation du extracteurs en ligne CBFI. Ces instructions sont destinées à compléter les bonnes pratiques générales et ne sont pas destinées à des fins de remplacement des normes et codes locaux.
  • Page 7 Si vous devez convertir l'unité, en changeant son orientation d'admission vers l'orientation de décharge, suivez les étapes de la page 3 de ce manuel. Si vous avez des questions, contactez Canarm en utilisant les informations figurant à la dernière page de ce manuel. (Fig. 7-10) INSTALLATION SIMPLIFIÉE...
  • Page 8 90 degrés 180 degrés AVERTISSEMENT Le CBFI 1500 peut passer d'une entrée et d'une sortie à 90 degrés Avant de rompre la connexion électrique de cette manière, à une entrée et une sortie directes ou à 180 degrés. assurez-vous toujours que le circuit de dérivation est déconnecté, Retirer le panneau plat et échangez-le avec le panneau avec le...
  • Page 9 SÉRIE CBFI EXTRACTEURS EN LIGNE INSTRUCTIONS POUR CÂBLAGE STANDARD 1. Tous les branchements doivent être effectués par un électricien certifié selon le Code National Électrique et toute législation locale. 2. Assurez-vous que l’alimentation est coupée et verrouillée avant d’effectuer toute connections électriques. 3.
  • Page 10: Garantie

    CANARM LTD. Garantie que chaque nouveau ventilateur est exempt de défauts matériels et de fabrication dans la mesure où, dans un délai d’un an à compter de la date d’achat, CANARM Ltd. réparera ou remplacera, au choix de Canarm, toute unité ou pièce de celle-ci, retourné...
