HRE SERIES – HORIZONTAL RESTAURANT EXHAUSTER
Rotating parts on fans should not be exposed. Where these components are not protected by ductwork, cabinets or
covers, appropriate guards should be employed to restrict exposure to rotating parts. Access doors should not be
opened with the fan operating to avoid foreign objects being drawn into the system. On initial start-up a careful
inspection should be carried out to ensure no foreign material is present which could become airborne in the system.
Read installation and operation instructions carefully before attempting to install, operate or service Delhi HRE Series
Blowers. Failure to comply with instructions could result in personal injury and/or property damage. Retain instructions
for future reference.
Restaurant duty HRE Models are specifically designed as a quiet and efficient blower for vapor removal from commercial
cooking equipment. These backwardly inclined, single inlet blowers have a standard CW rotation and upblast discharge.
The blower housing is constructed from continuously welded 16 gauge steel, complete with tilted access and 2" drain for
cleaning.
Complete access for motor and drive installations and servicing may be completed by removal of the drive compartment
cover. Pre-lubricated ball bearings, curb cap, motor adjustment hardware and a dynamically balanced wheel are
standard equipment. Operating temperature range is –30 to 400 deg. F. For Unit dimensions, refer to Figure 1/Table 1.
1. Always disconnect power source before working on or near a motor or its connected load. Lock the power
disconnect in the open position and tag to prevent unauthorized application of power.
2. Follow all local and national electrical and safety codes.
3. Blower must be electrically grounded. This can be accomplished by using a separate ground wire connected to
the bare metal of blower frame, or other suitable means.
4. Ensure that the power source conforms to the requirements of your equipment.
5. Do not put hands near or allow loose or hanging clothing to be near belts, pulleys, or blower wheel while the unit
is running.
MODELS: HRE-13, HRE-16, HRE-20, HRE-24
GENERAL SAFETY
UNIT DESCRIPTION

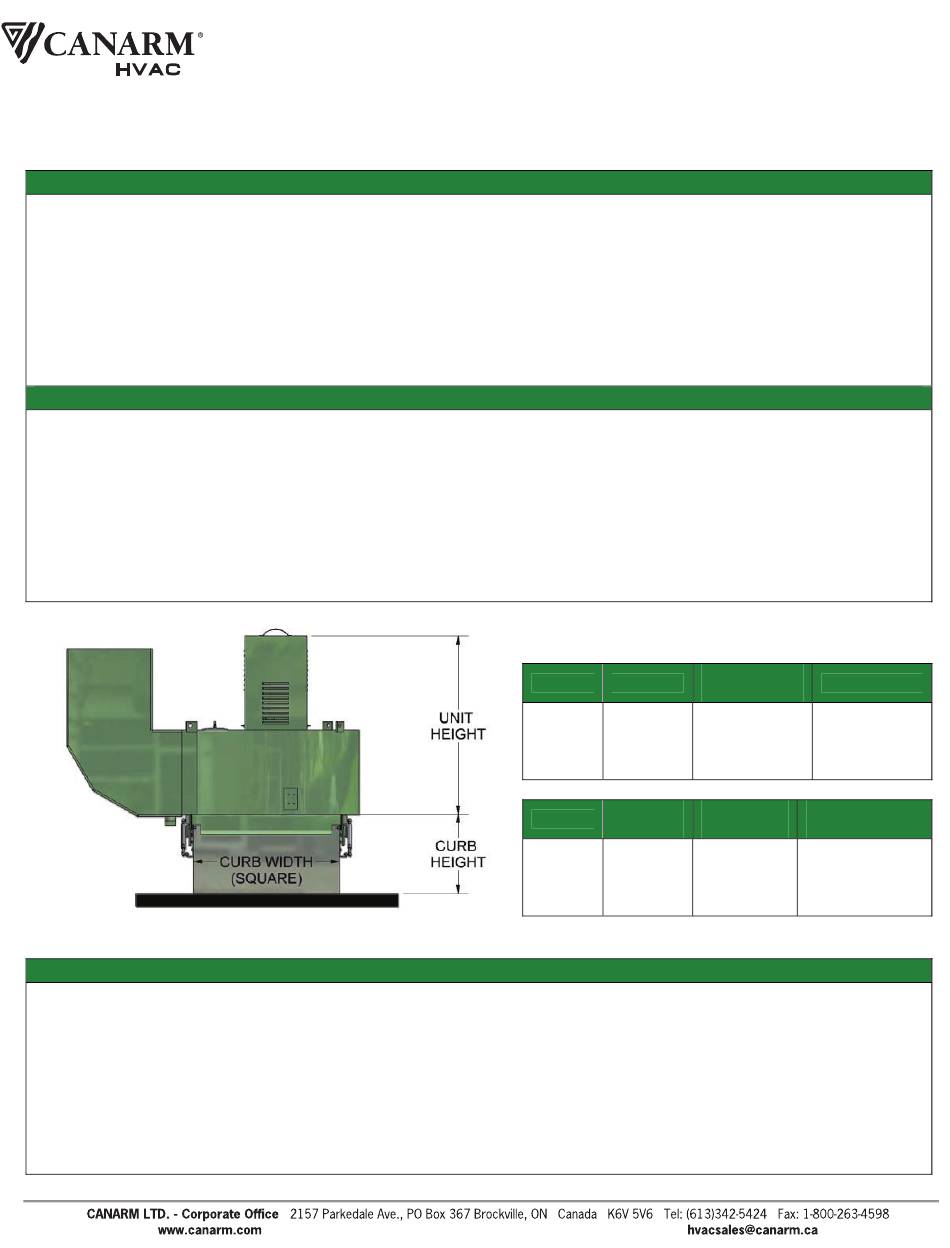

Figure 1
GENERAL SAFETY INSTRUCTIONS
MODEL
MAX. HP
FRAME SIZE
13
2
16
3
20
5
24
7-1/2
UNIT
MODEL
HEIGHT
13
30-15/16"
16
34-1/4"
20
40-1/16"
24
43-5/8"
Sep-07
MAX.
SHAFT DIA
143T
1"
143T
1-3/16
215T
1-3/16"
215T
1-7/16"
CURB
MIN. CURB
WIDTH
HEIGHT
20-1/2"
18"
24-1/2"
18"
28-1/2"
18"
33-3/8"
18"
